Yaesu GS-065 Thrust Bearing
Brand:
Yaesu
Yaesu GS-065 Thrust Bearing
Yaesu GS-065 Thrust Bearing
Yaesu GS-065 Thrust Bearing

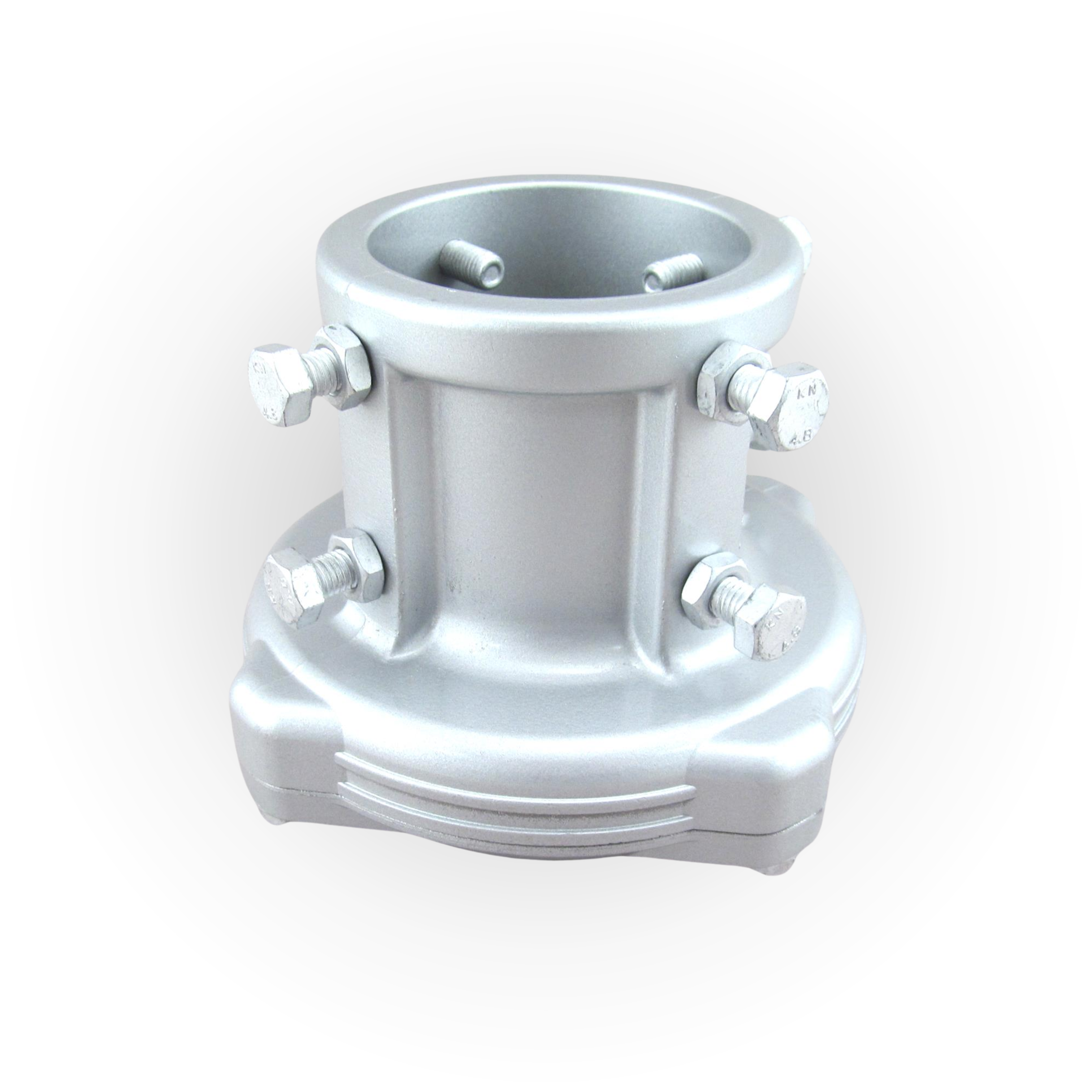

The Yaesu GS-065 is a heavy-duty mast thrust bearing designed to support vertical antenna loads while reducing stress on antenna rotators. Featuring a dual ball-bearing design and corrosion-resistant die-cast aluminum construction, the GS-065 improves system stability and extends rotator service life in demanding amateur radio antenna installations. It is ideal for medium and heavy-duty directional antenna systems utilizing mast diameters up to 65 mm.
Key Features
- Heavy-duty thrust bearing for antenna mast support
- Designed to reduce vertical load on antenna rotators
- Supports mast diameters up to 65 mm (2.5 inches)
- Dual ball-bearing construction for smooth mast rotation
- Helps extend rotator service life
- Improves antenna system stability under load
- Ideal for HF beam antennas and stacked arrays
- Suitable for VHF and UHF directional antenna systems
- Heavy-duty die-cast aluminum housing
- Highly corrosion-resistant construction
- Baked enamel protective finish
- Four-locknut mast retention system
- Hardened mounting hardware for durability
- Supports large wind-load antenna installations
- Reliable two-level bearing mechanism
- Factory-lubricated bearing assembly
- Designed for long-term outdoor operation
- Reduces mast wobble and mechanical stress
- Compatible with Yaesu medium and heavy-duty rotator systems
- Suitable for tower-mounted antenna installations
- Can be used with thrust-bearing-supported mast systems
- Improves alignment of large antenna arrays
- Professional-grade antenna support accessory
- Ideal for contest, DX, satellite, and EME stations
- Simple installation using standard mounting hardware
Typical Uses
- HF beam antenna installations
- Stacked Yagi antenna arrays
- VHF/UHF directional antenna systems
- Contest and DX stations
- Satellite communication systems
- EME and weak-signal installations
- Tower-mounted amateur radio stations

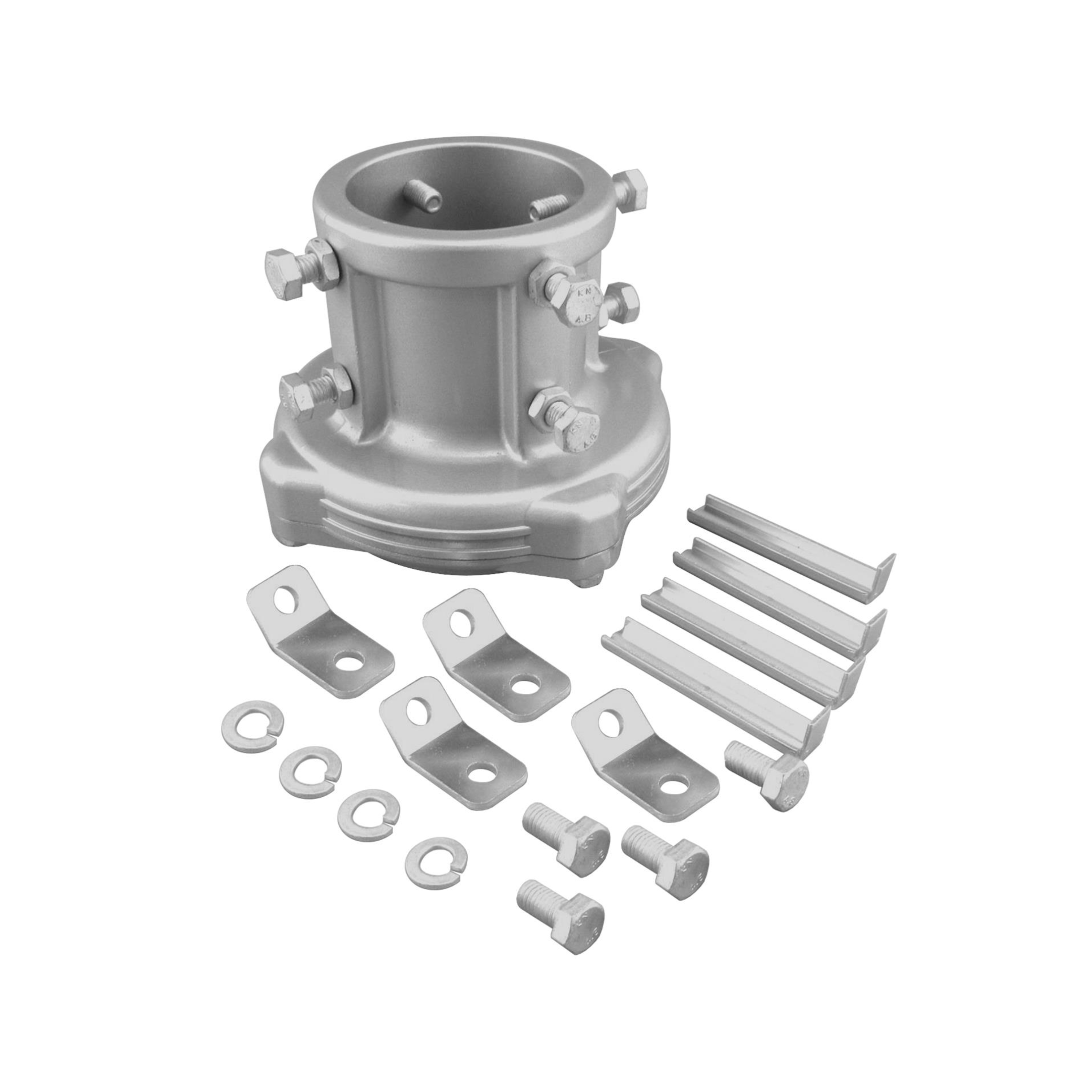

In the Box
- Yaesu GS-065 Thrust Bearing
- Mast clamp hardware
- Mounting hardware set
- Installation documentation
| Brand | Yaesu |
| Model Number | GS-065 |
| Product Type | Thrust Bearing |
| Bearing Type | Dual Ball Bearing |
| Maximum Mast Diameter | 65mm |
| Maximum Mast Diameter Inches | 2.5in |
| Construction | Die-Cast Aluminum |
| Finish | Baked Enamel |
| Corrosion Resistance | Yes |
| Mounting Hardware | Included |
| Lock Nut System | 4 Lock Nuts |
| Bearing Design | Two-Level Ball Bearing |
| Application | Mast Support |
| Application | Rotator Load Relief |
| Installation Type | Tower Mount |
| Outdoor Rated | Yes |
| Compatible Rotators | Yaesu G-450 Series |
| Compatible Rotators | Yaesu G-800 Series |
| Compatible Rotators | Yaesu G-1000 Series |
| Compatible Rotators | Yaesu G-2800 Series |
| Weight | 1.19kg |
