ICOM IC-7300 HF/50MHz Transceiver
Brand:
ICOM
ICOM IC-7300 HF/50MHz Transceiver
ICOM IC-7300 HF/50MHz Transceiver
ICOM IC-7300 HF/50MHz Transceiver

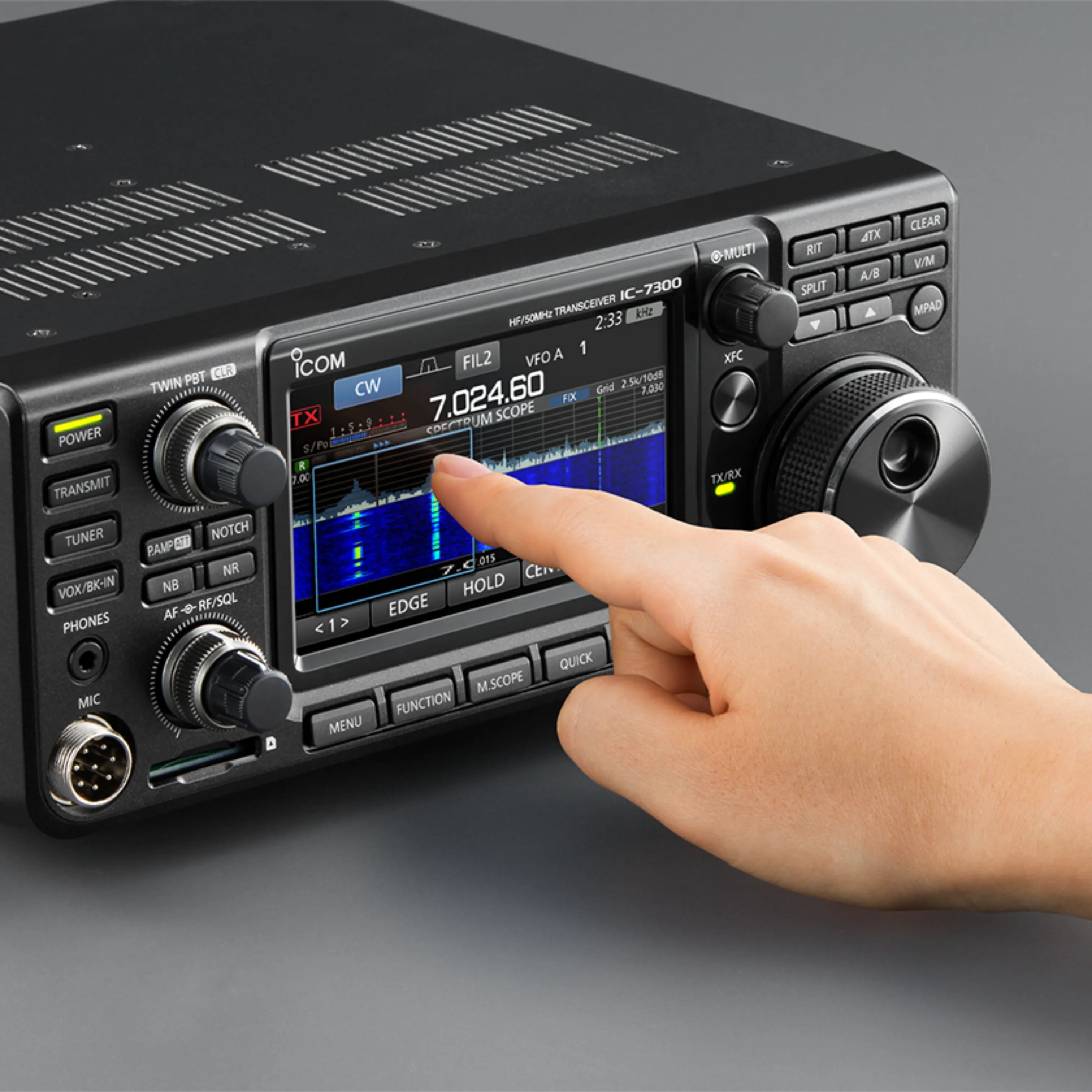

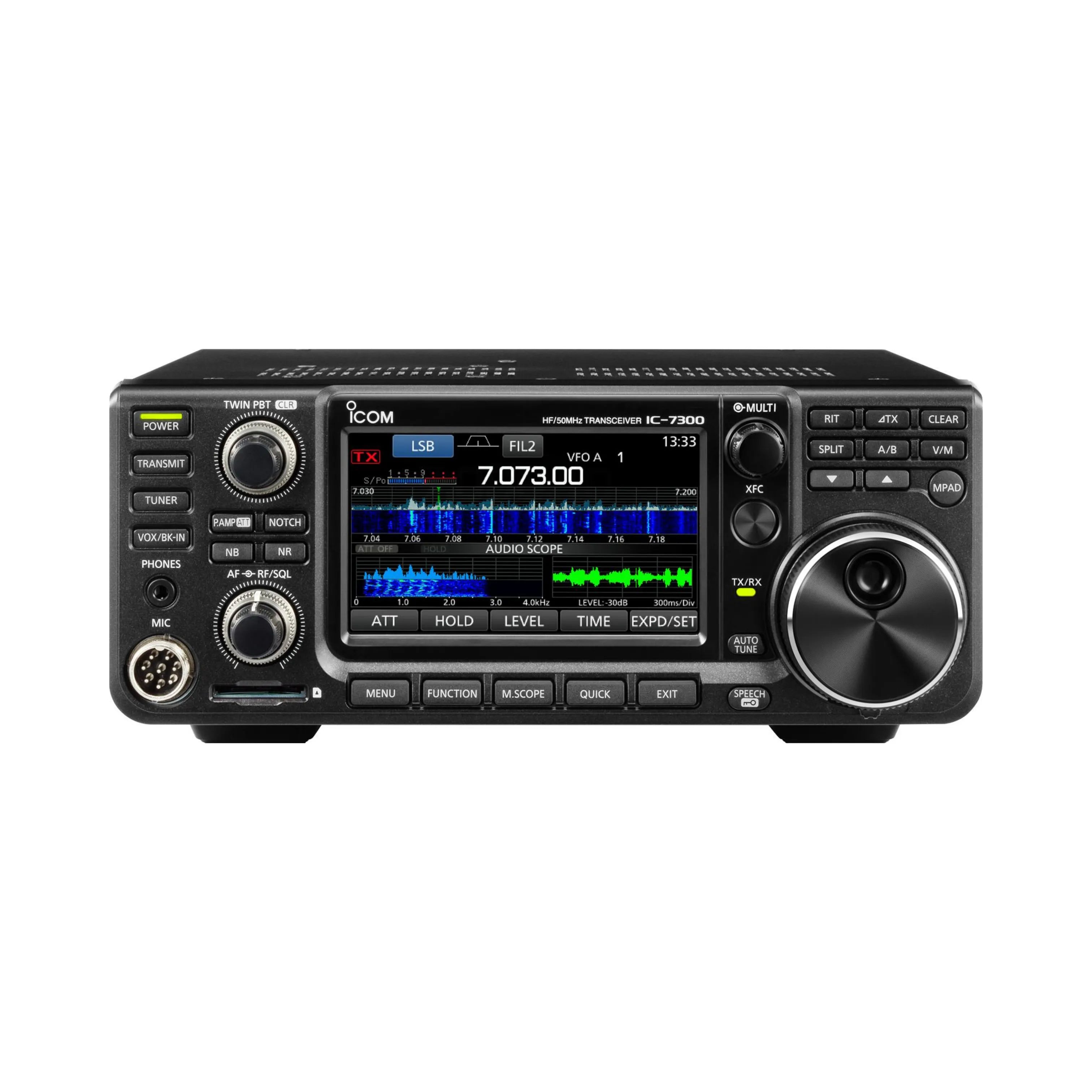

The ICOM IC-7300 is a high-performance HF and 50 MHz all-mode transceiver featuring RF direct sampling SDR technology for exceptional receiver performance and signal clarity. Designed for amateur radio operators seeking advanced DSP capabilities, an integrated spectrum scope, and intuitive touchscreen operation, the IC-7300 delivers contest-grade performance in a compact desktop station platform.
Key Features
- HF and 50 MHz amateur band coverage
- RF direct sampling SDR receiver architecture
- All-mode operation including SSB, CW, AM, FM, and RTTY
- 100 Watt transmitter output on SSB, CW, and FM modes

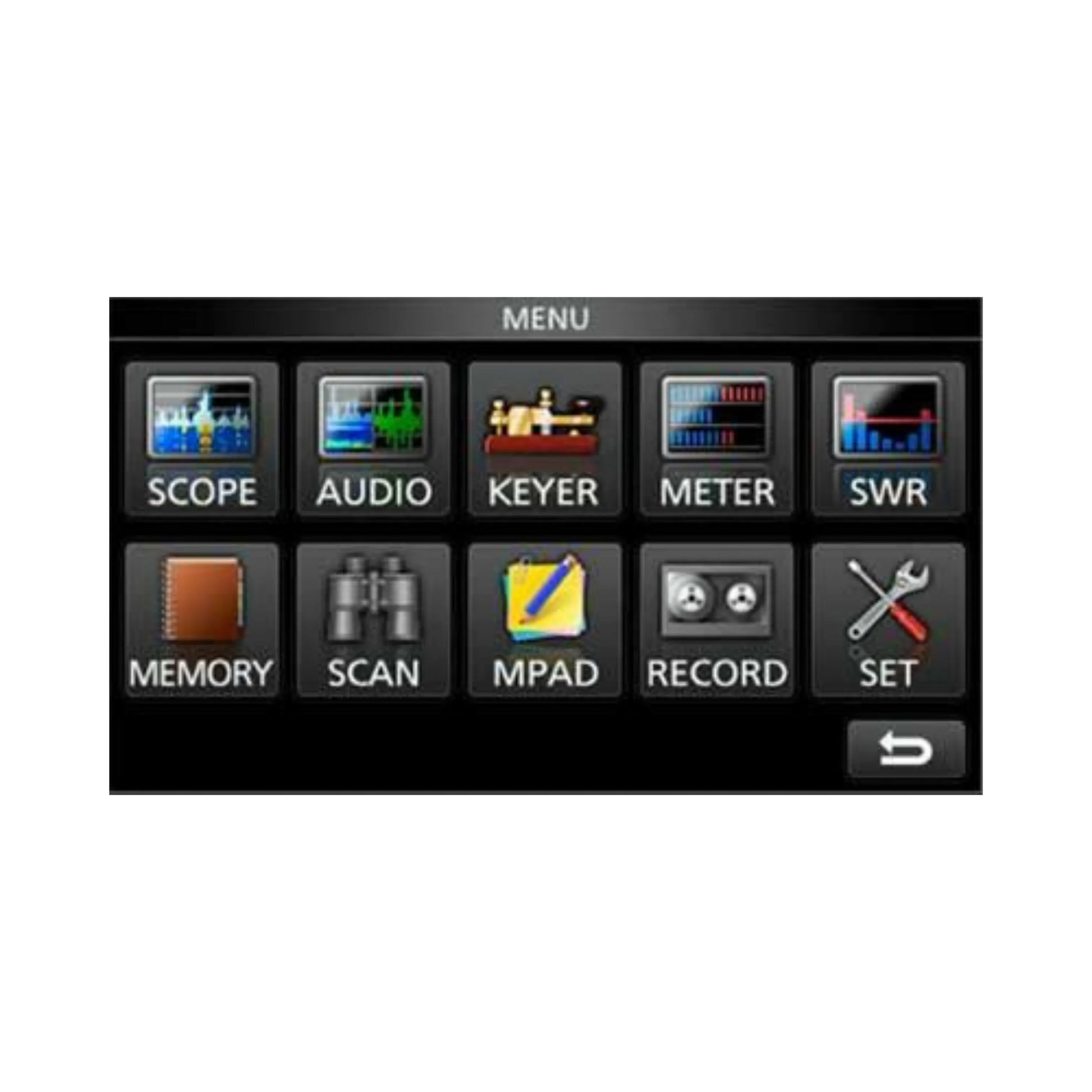

- Large color touchscreen display with intuitive menu navigation

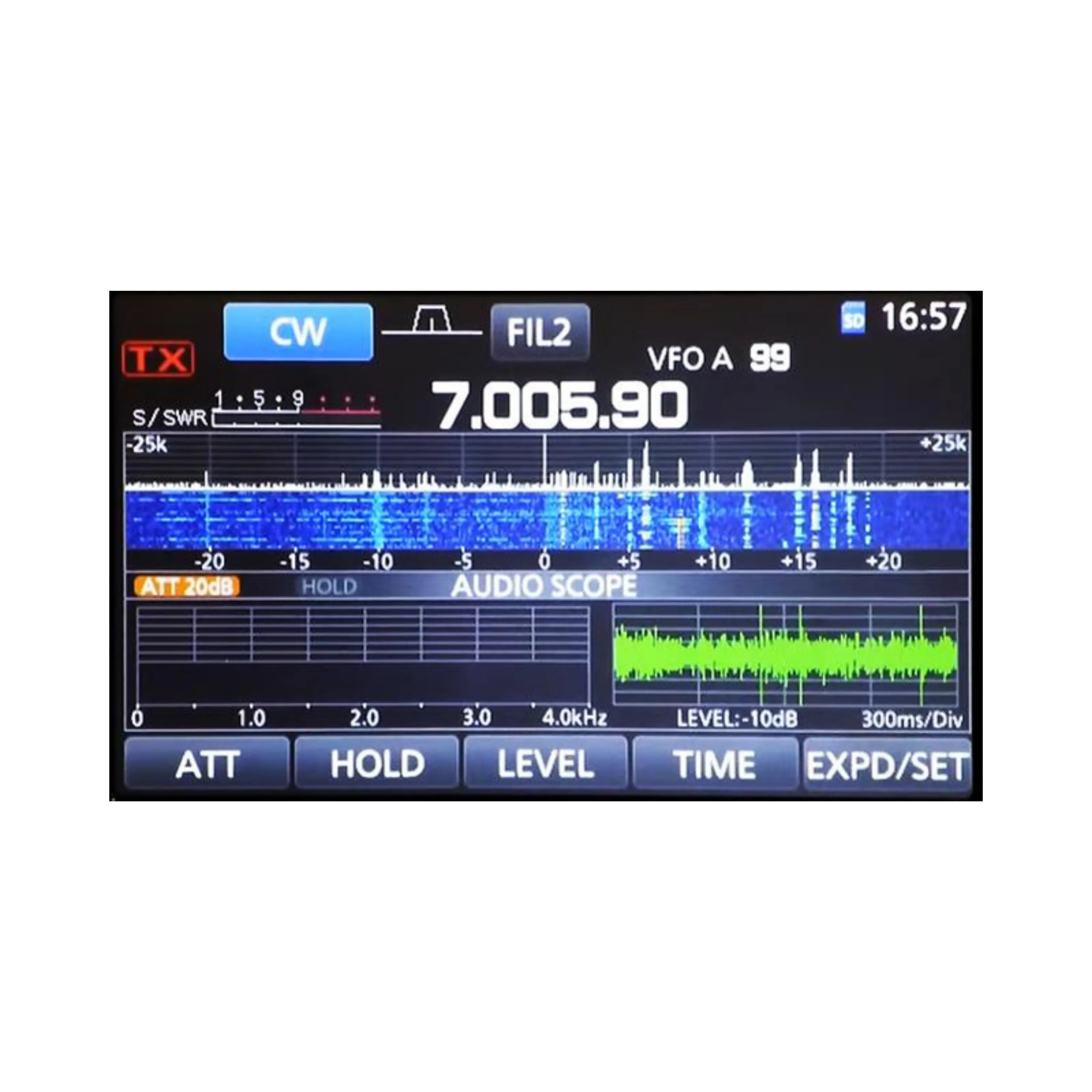

- Real-time spectrum scope with high-speed signal monitoring
- Waterfall display for visual band activity analysis
- Advanced DSP processing for improved receive performance
- Digital IF filtering with adjustable bandwidth control
- Built-in automatic antenna tuner for rapid band changes
- Integrated USB sound card for digital mode operation
- Single USB cable connectivity for CAT control and audio interfacing
- Excellent close-in dynamic range and strong signal handling
- Twin passband tuning functionality
- Digital noise reduction and noise blanker systems
- Auto notch filter for interference suppression
- Voice memory and CW memory keyer functions
- SD memory card support for settings, recordings, and firmware updates
- High-resolution band scope inherited from ICOM SDR platforms
- Compact base station design suitable for home and mobile installations
- Ideal for DXing, contesting, digital modes, and general HF operation
Typical Uses
- HF amateur radio base station operation
- DX chasing and contest operation
- FT8, RTTY, PSK31, and digital communications
- Emergency and preparedness communications
- 50 MHz weak-signal and propagation monitoring
- General shortwave amateur radio operation
In the Box
- ICOM IC-7300 Transceiver
- Hand Microphone
- DC Power Cable
- Spare Fuses
- User Documentation
| Brand | ICOM |
| Model Number | IC-7300 |
| Product Type | HF/50MHz SDR Transceiver |
| Frequency Coverage TX | HF Amateur Bands and 50 MHz Band |
| Frequency Coverage RX | 30 kHz-74.8 MHz |
| Operating Modes | SSB/CW/AM/FM/RTTY |
| Receiver Architecture | RF Direct Sampling SDR |
| RF Output Power | 100 W SSB/CW/FM |
| AM Output Power | 25 W |
| Display | Color Touchscreen |
| Spectrum Scope | Real-Time |
| Waterfall Display | Yes |
| DSP Processing | Digital Signal Processing |
| Automatic Antenna Tuner | Built-In |
| USB Audio Interface | Built-In |
| CAT Control | USB |
| Memory Storage | SD Card |
| Noise Reduction | Digital |
| Noise Blanker | Built-In |
| Auto Notch Filter | Built-In |
| Passband Tuning | Twin PBT |
| Antenna Connector | SO-239 50 Ohm |
| Supply Voltage | 13.8 VDC |
| Current Consumption RX | Approx. 1.25 A |
| Current Consumption TX | Approx. 21 A |
| Dimensions | 240 x 94 x 238 mm |
| Weight | Approx. 4.2 kg |
| Microphone | Included |
