ICOM IC-705 Portable Transceiver for HF/50/144/430 MHz All Mode Communication
Brand:
ICOM
ICOM IC-705 Portable Transceiver for HF/50/144/430 MHz All Mode Communication
ICOM IC-705 Portable Transceiver for HF/50/144/430 MHz All Mode Communication
ICOM IC-705 Portable Transceiver for HF/50/144/430 MHz All Mode Communication

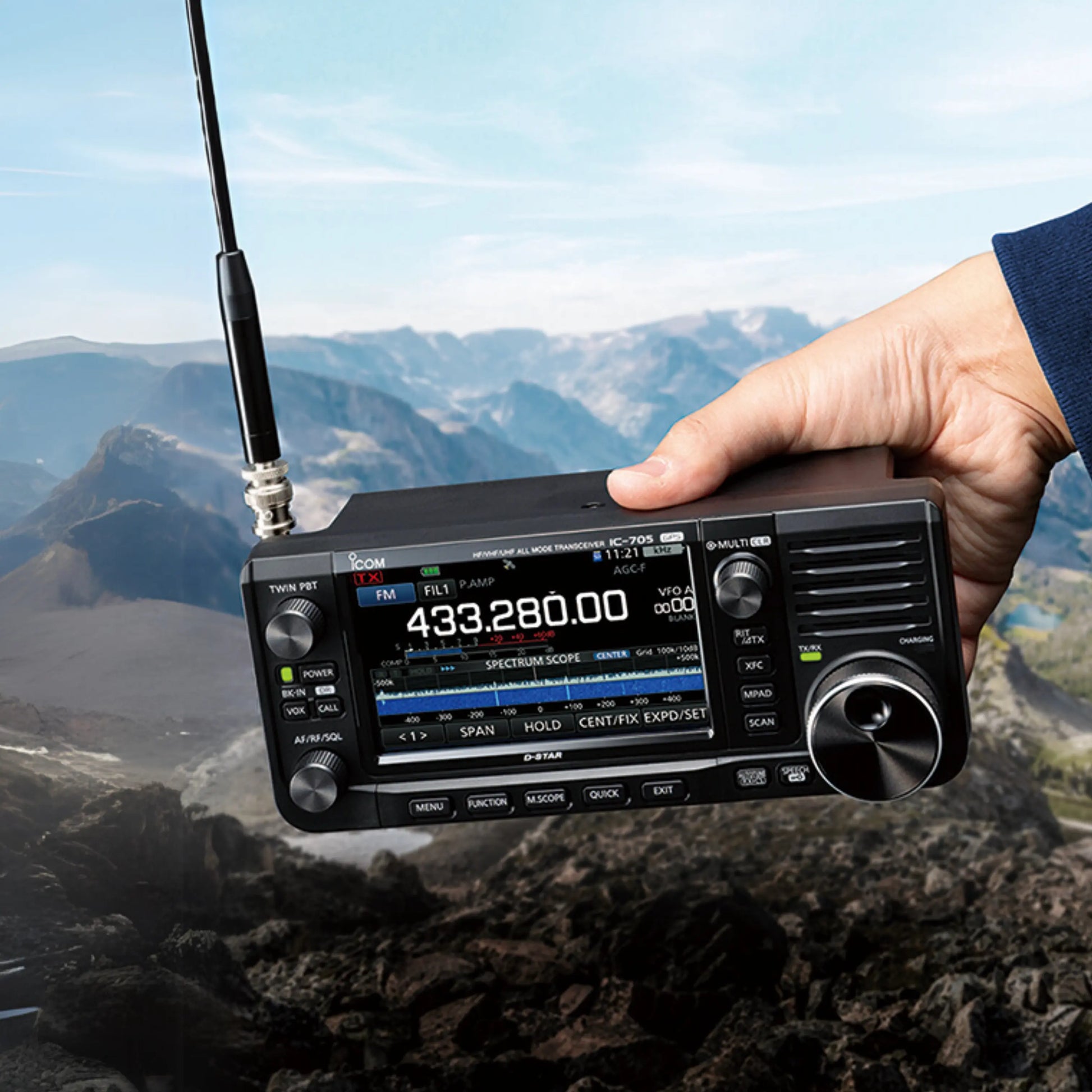

The ICOM IC-705 is a compact all-mode SDR transceiver designed for HF, 6m, 2m, and 70cm amateur radio operation. Combining advanced RF direct sampling technology, a large color touchscreen display, integrated GPS, Bluetooth®, Wireless LAN, and D-STAR® digital voice capability, the IC-705 delivers high-performance portable communications for field, mobile, and base station applications. Its lightweight design and battery-powered operation make it ideal for portable operating environments while maintaining the advanced functionality found in larger ICOM transceivers.
Key Features
- HF, 50 MHz, 144 MHz, and 430 MHz amateur band coverage
- All-mode operation including SSB, CW, AM, FM, RTTY, and D-STAR DV
- Advanced SDR architecture with RF direct sampling receiver design
- Real-time spectrum scope with waterfall display for signal monitoring

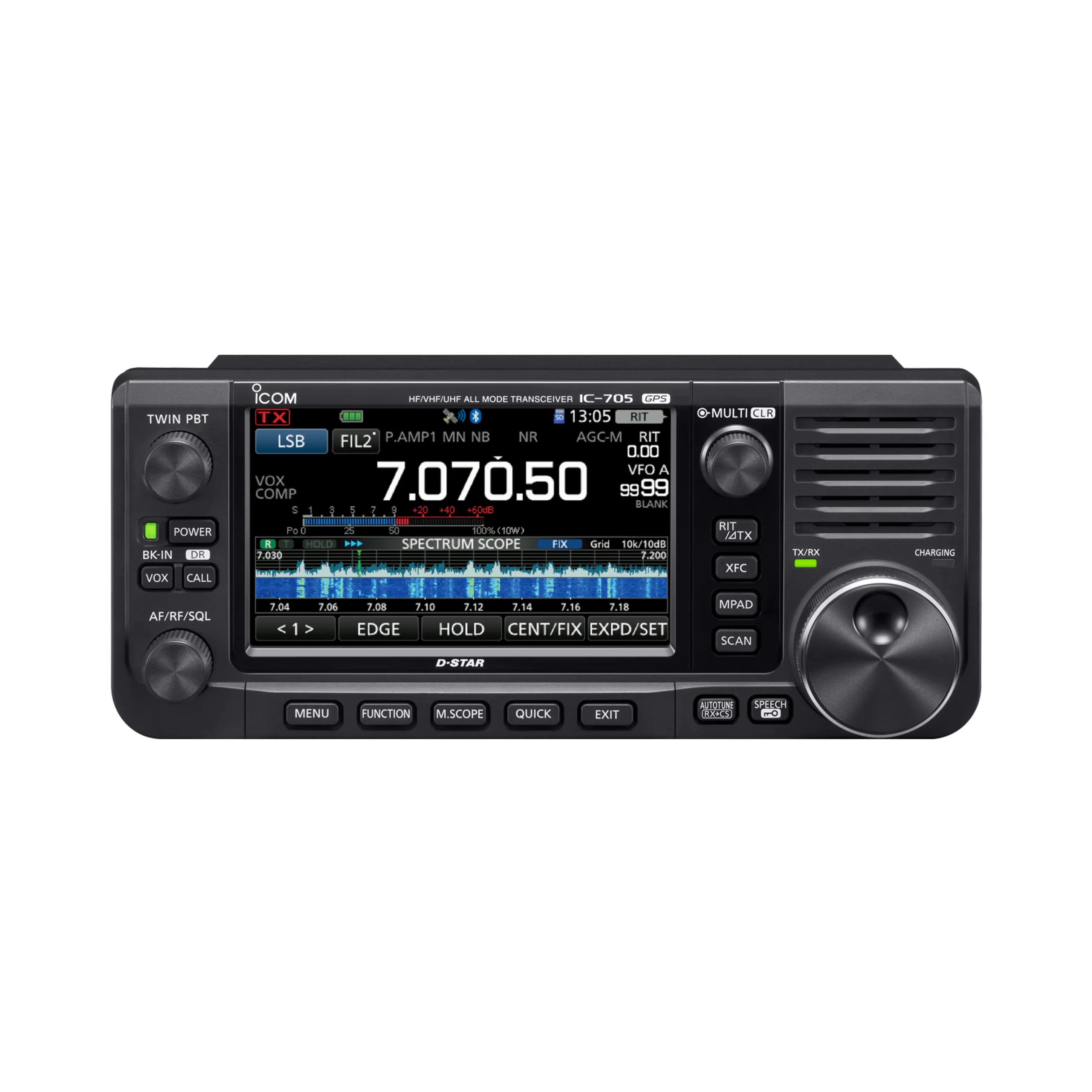

- Large 4.3-inch color TFT touchscreen display
- Built-in GPS receiver for position reporting and repeater search functions
- Integrated Wireless LAN for network connectivity and remote operation
- Built-in Bluetooth® for wireless accessories and connectivity
- D-STAR Terminal and Access Point modes for digital network access
- One-touch FT8 preset operation with programmable memories
- MicroSD card slot for recording, programming, firmware updates, and data storage
- Micro USB interface supporting CAT control, audio connectivity, and charging functions
- High-resolution band scope inherited from ICOM flagship SDR platforms
- Audio scope display for enhanced signal analysis
- Photo Share capability for D-STAR digital communications
- Portable QRP operation with supplied rechargeable battery pack
- Up to 5 Watts RF output using battery power
- Up to 10 Watts RF output with external 13.8 VDC power source
- Continuous wideband receive coverage from 30 kHz through VHF frequencies
- FM broadcast and airband reception capability

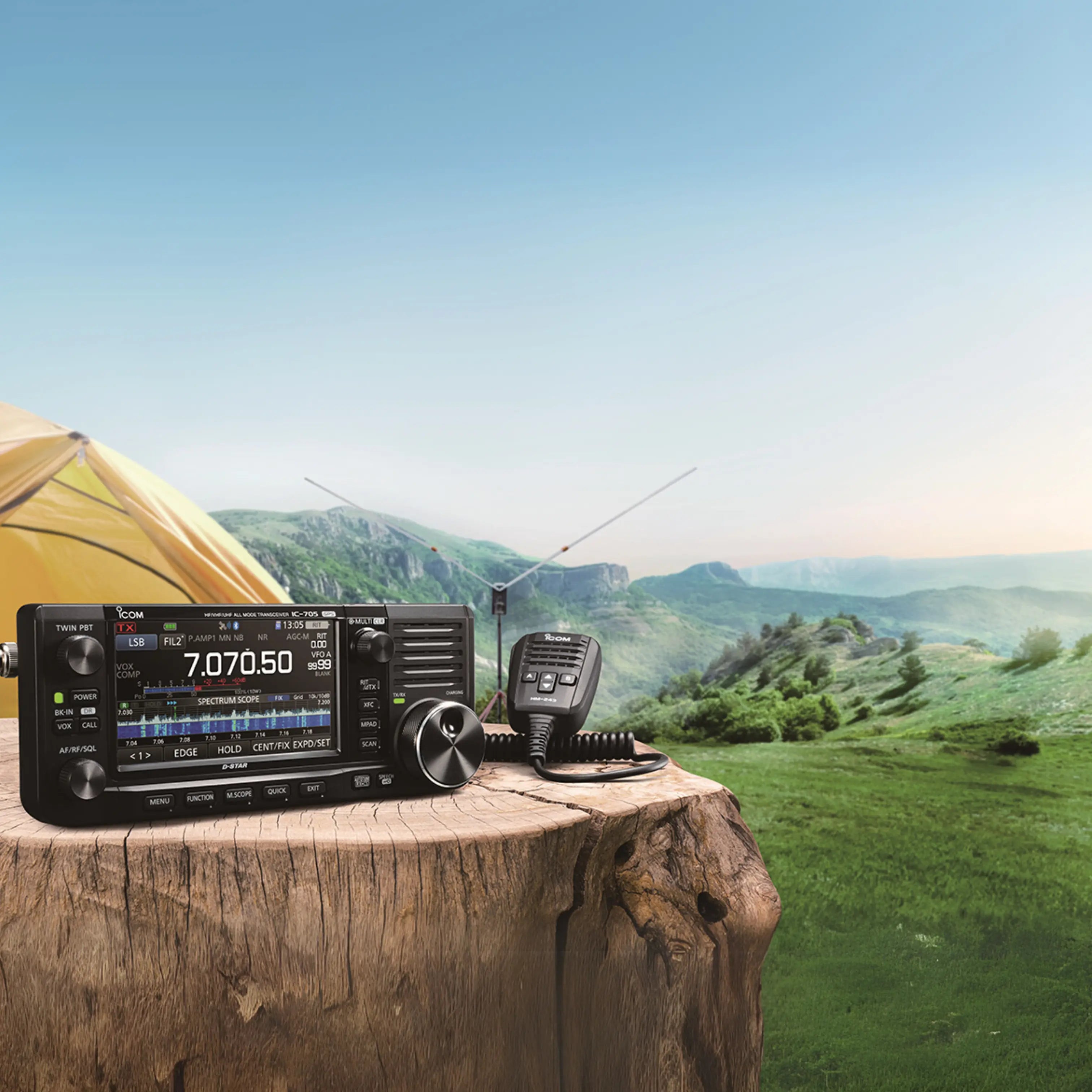

- Programmable HM-243 speaker microphone included
- Compact field-ready construction weighing approximately 1.1 kg
- Ideal platform for POTA, SOTA, emergency communications, portable DXing, and digital modes
Typical Uses
- Portable HF and VHF/UHF amateur radio operation
- Parks on the Air (POTA) activations
- Summits on the Air (SOTA) expeditions
- D-STAR digital voice communications
- Field emergency communication deployments
- FT8 and digital mode operation
- Mobile and temporary station installations
In the Box
- ICOM IC-705 Transceiver
- HM-243 Programmable Speaker Microphone

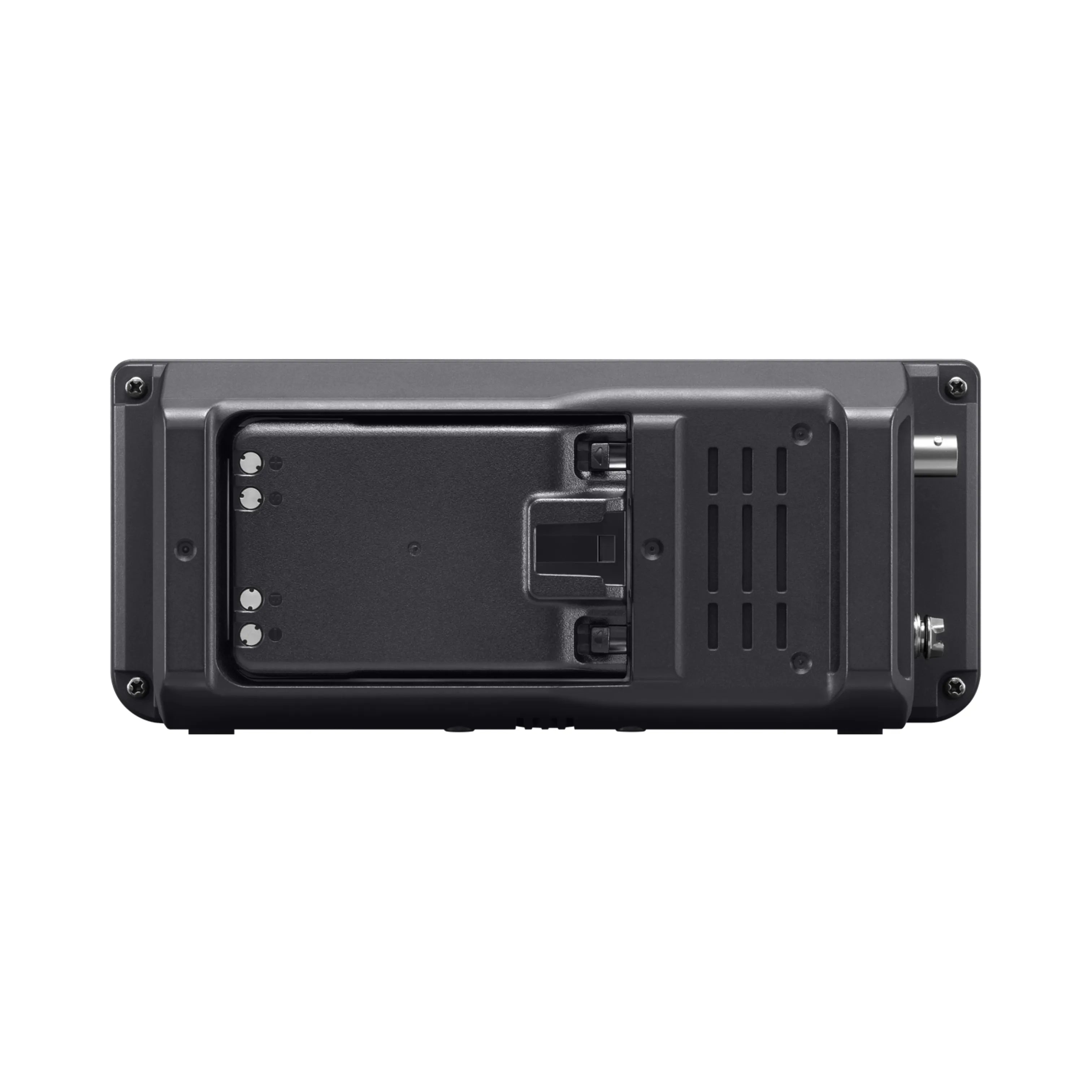

- BP-272 Lithium-Ion Battery Pack
- OPC-2421 DC Power Cable
| Brand | ICOM |
| Model Number | IC-705 |
| Product Type | Portable SDR Amateur Radio Transceiver |
| Frequency Coverage TX | HF/50 MHz/144 MHz/430 MHz Amateur Bands |
| Frequency Coverage RX | 30 kHz-199.999 MHz and 400-470 MHz |
| Operating Modes | SSB/CW/AM/FM/RTTY/DV(D-STAR) |
| RF Output Power | 5 W (Battery) / 10 W (13.8 VDC External) |
| Receiver Architecture | RF Direct Sampling SDR |
| Display | 4.3 in Color TFT Touchscreen |
| Spectrum Scope | Real-Time Spectrum Scope |
| Waterfall Display | Yes |
| Audio Scope | Yes |
| GPS Receiver | Built-In |
| Bluetooth | Built-In |
| Wireless LAN | Built-In |
| D-STAR Support | Yes |
| Terminal Mode | Supported |
| Access Point Mode | Supported |
| FT8 Preset Function | Yes |
| Memory Storage | microSD Card Slot |
| USB Interface | Micro USB |
| Antenna Connector | BNC 50 Ohm |
| Battery Type | BP-272 Li-Ion |
| Battery Voltage | 7.4 VDC |
| External Supply Voltage | 13.8 VDC |
| Weight | Approx. 1.1 kg |
| Dimensions | 200 x 83.5 x 82 mm |
| FM Broadcast Reception | Supported |
| Airband Reception | Supported |
| Speaker Microphone | HM-243 Included |
