Yaesu G-800DXA Medium Heavy-Duty Rotator
Brand:
Yaesu
Yaesu G-800DXA Medium Heavy-Duty Rotator
Yaesu G-800DXA Medium Heavy-Duty Rotator
Yaesu G-800DXA Medium Heavy-Duty Rotator
The Yaesu G-800DXA is a medium heavy-duty antenna rotator system engineered for larger HF beam antennas, stacked arrays, and demanding VHF/UHF directional antenna installations. Featuring a powerful DC motor drive, high braking torque, precision 360-degree azimuth indication, and rugged die-cast construction, the G-800DXA delivers reliable antenna positioning and long-term durability for serious amateur radio operators and contest stations.
Key Features
- Medium heavy-duty rotator system for demanding antenna installations
- Designed for HF beam antennas, stacked arrays, and VHF/UHF systems
- 450-degree rotation capability for flexible antenna positioning
- Powerful DC motor drive system
- High rotation torque for larger antenna loads
- Heavy-duty braking mechanism for stable antenna holding power

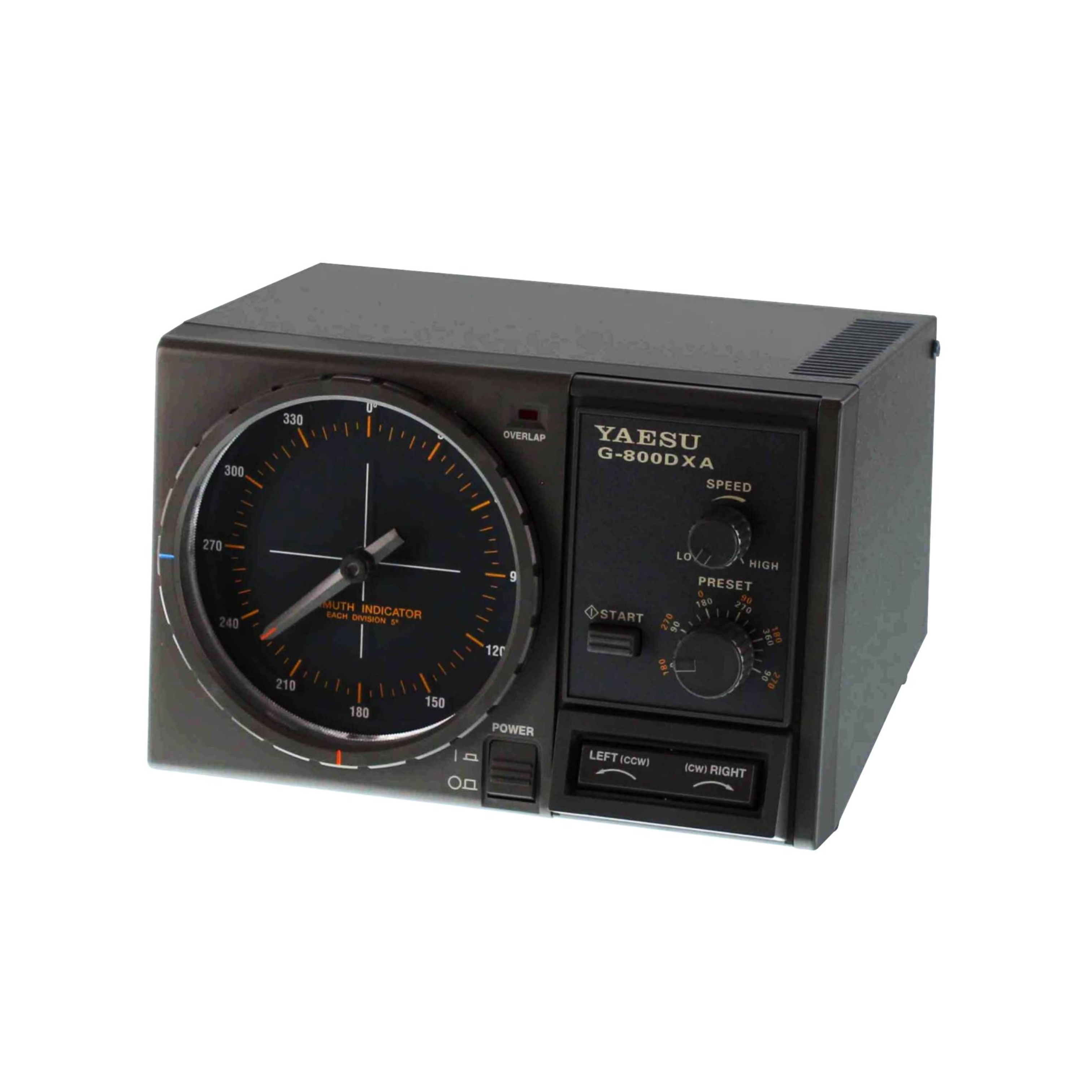

- Precision compass-style controller with analog azimuth display
- Suitable for tribanders, monobanders, and multi-element directional antennas
- Supports larger wind-load antenna systems than medium-duty rotators
- Die-cast aluminum rotor housing for durability
- Weather-resistant outdoor rotor construction
- Factory-lubricated gear train for long service life
- Smooth and accurate directional control
- Compatible with Yaesu thrust bearings and mast supports
- Supports tower-mounted and rooftop installations
- Reliable positioning for DX, contesting, and satellite operations
- Integrated braking system minimizes antenna drift
- Ideal for permanent amateur radio station installations
- Heavy-duty mast clamping system included
- Professional-grade Yaesu engineering and reliability
- Suitable for HF, VHF, UHF, EME, and weak-signal applications
- Designed for continuous long-term outdoor operation
- Easy controller operation with clear heading indication
- Supports demanding antenna array configurations
- Excellent choice for advanced amateur radio stations
Typical Uses
- HF beam antenna systems
- Large tribander installations
- Stacked HF arrays
- VHF/UHF weak-signal stations
- Contest and DX stations
- EME and satellite communication systems
- Permanent amateur radio tower installations

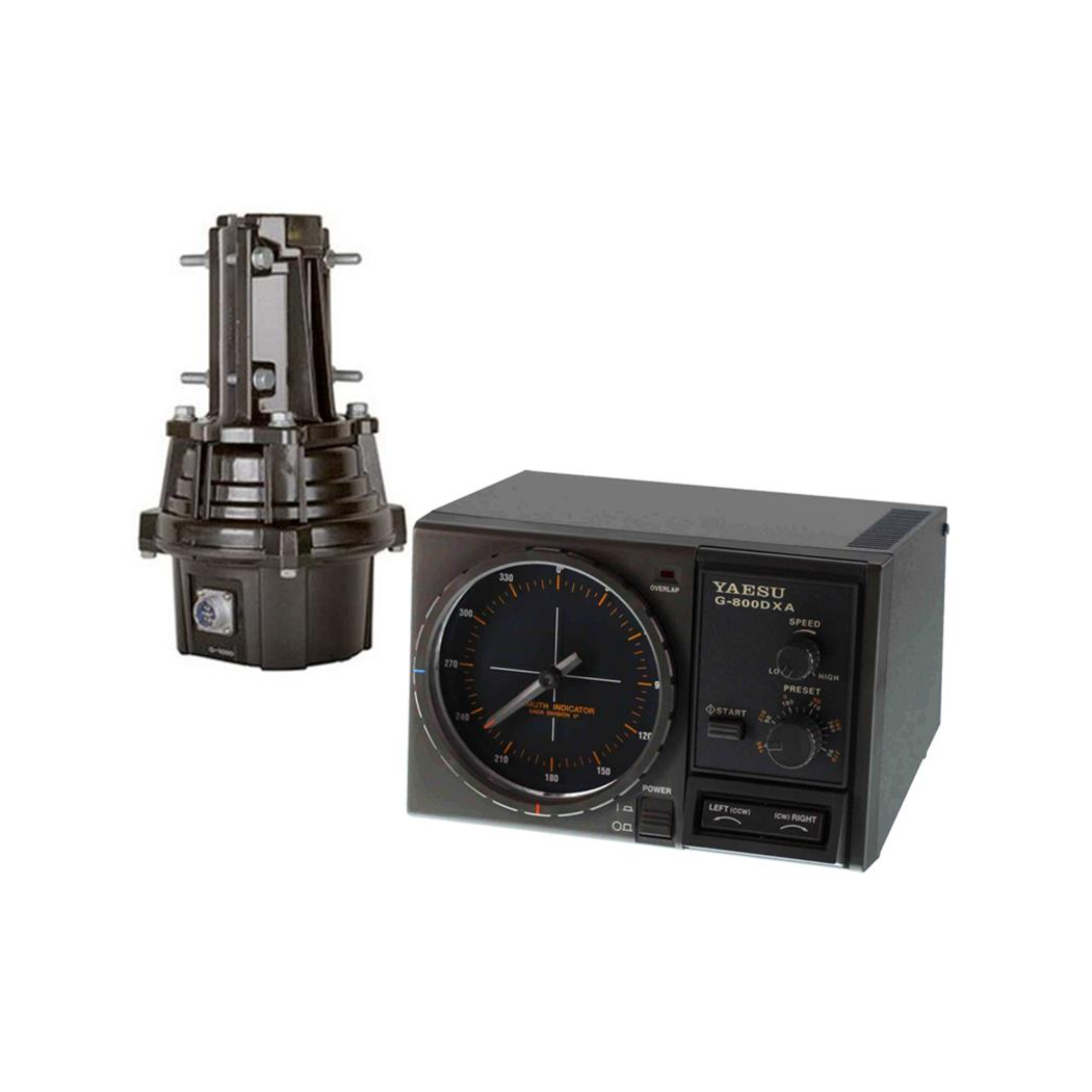

In the Box
- Yaesu G-800A Rotor Unit
- Yaesu G-800DXA Controller
- Mast clamps and mounting hardware
- Rotor connector assembly
- User manual
| Brand | Yaesu |
| Model Number | G-800DXA |
| Product Type | Medium Heavy-Duty Antenna Rotator |
| Rotation Range | 450° |
| Rotation Torque | 800kgf-cm |
| Braking Torque | 5000kgf-cm |
| Maximum Vertical Load | 200kg Continuous |
| Maximum Vertical Load Momentary | 500kg |
| Wind Load Tower Mount | 1.5m² |
| Wind Load Approximation | 16sq.ft |
| Maximum K Factor | 200 |
| Rotation Time 360° | 48-60 Seconds |
| Motor Voltage | 24V DC |
| Controller Power Supply | 120V AC |
| Bearing Type | Ball Bearing |
| Mast Diameter Range | 38-63mm |
| Maximum Continuous Duty | 5 Minutes |

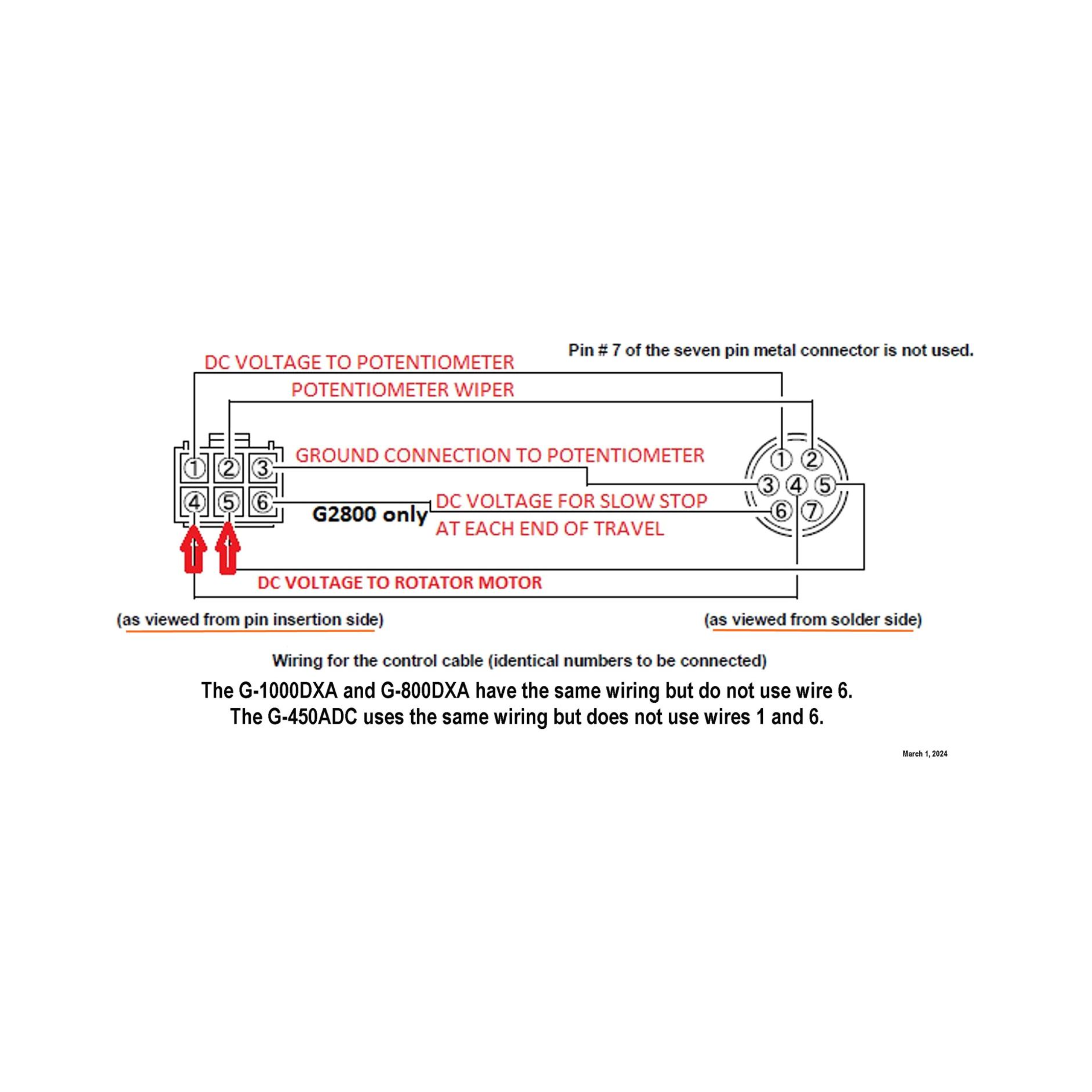

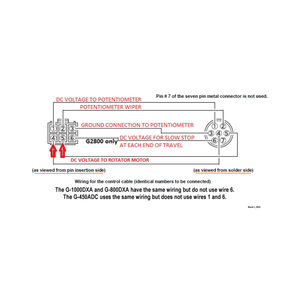

| Control Cable Requirement | 6 Conductor |
| Rotor Dimensions | 250 x 270mm |
| Rotor Weight | 8.5kg |
| Controller Dimensions | 190 x 125 x 175mm |
| Controller Weight | 3.5kg |
| Housing Material | Die-Cast Aluminum |
| Application | HF Beam Antennas |
| Application | VHF/UHF Directional Antennas |
| Application | Stacked Antenna Arrays |
| Application | Satellite Antennas |
