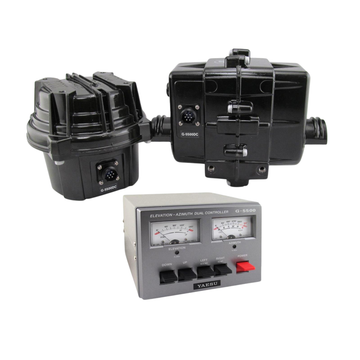

Yaesu G-5500DC Azimuth-Elevation Rotator system
Yaesu G-5500DC Azimuth-Elevation Rotator system
Yaesu G-5500DC Azimuth-Elevation Rotator System
The Yaesu G-5500DC is a precision azimuth-elevation rotator system designed for satellite communication, EME, weak-signal VHF/UHF operation, and advanced antenna tracking applications. Combining independent azimuth and elevation rotators with a dedicated control unit, the G-5500DC enables accurate three-dimensional antenna positioning for tracking satellites, space communications, and directional antenna systems requiring both horizontal and vertical movement.
Key Features
- Complete azimuth-elevation antenna positioning system
- Designed for amateur satellite communication and antenna tracking
- Independent azimuth and elevation rotator assemblies
- 450° azimuth rotation capability
- 180° elevation rotation range
- Precision analog azimuth and elevation indication
- Dedicated dual-axis control console
- Accurate antenna positioning for satellite tracking applications
- Suitable for LEO, MEO, and amateur satellite systems
- Ideal for EME and weak-signal VHF/UHF operations
- Supports cross-polarized Yagi arrays and satellite antennas
- Heavy-duty gear drive system
- Reliable braking mechanism for stable antenna positioning
- Weather-resistant outdoor rotor assemblies
- Die-cast aluminum rotor construction
- Smooth and accurate tracking performance
- Compatible with computer-controlled tracking systems
- Works with Yaesu GS-232 series rotor controllers
- Supports automated satellite tracking software integration
- Suitable for fixed amateur radio installations
- Designed for long-term outdoor operation
- Heavy-duty mast mounting hardware included
- Excellent choice for AMSAT and satellite enthusiasts
- Professional-grade Yaesu engineering and reliability
- Optimized for directional antenna systems requiring full sky coverage
Typical Uses
- Amateur satellite communication systems
- AMSAT satellite tracking stations
- EME (Earth-Moon-Earth) operations
- Weak-signal VHF/UHF stations
- Weather satellite reception systems
- Research and educational antenna tracking projects
- Directional antenna positioning applications
In the Box

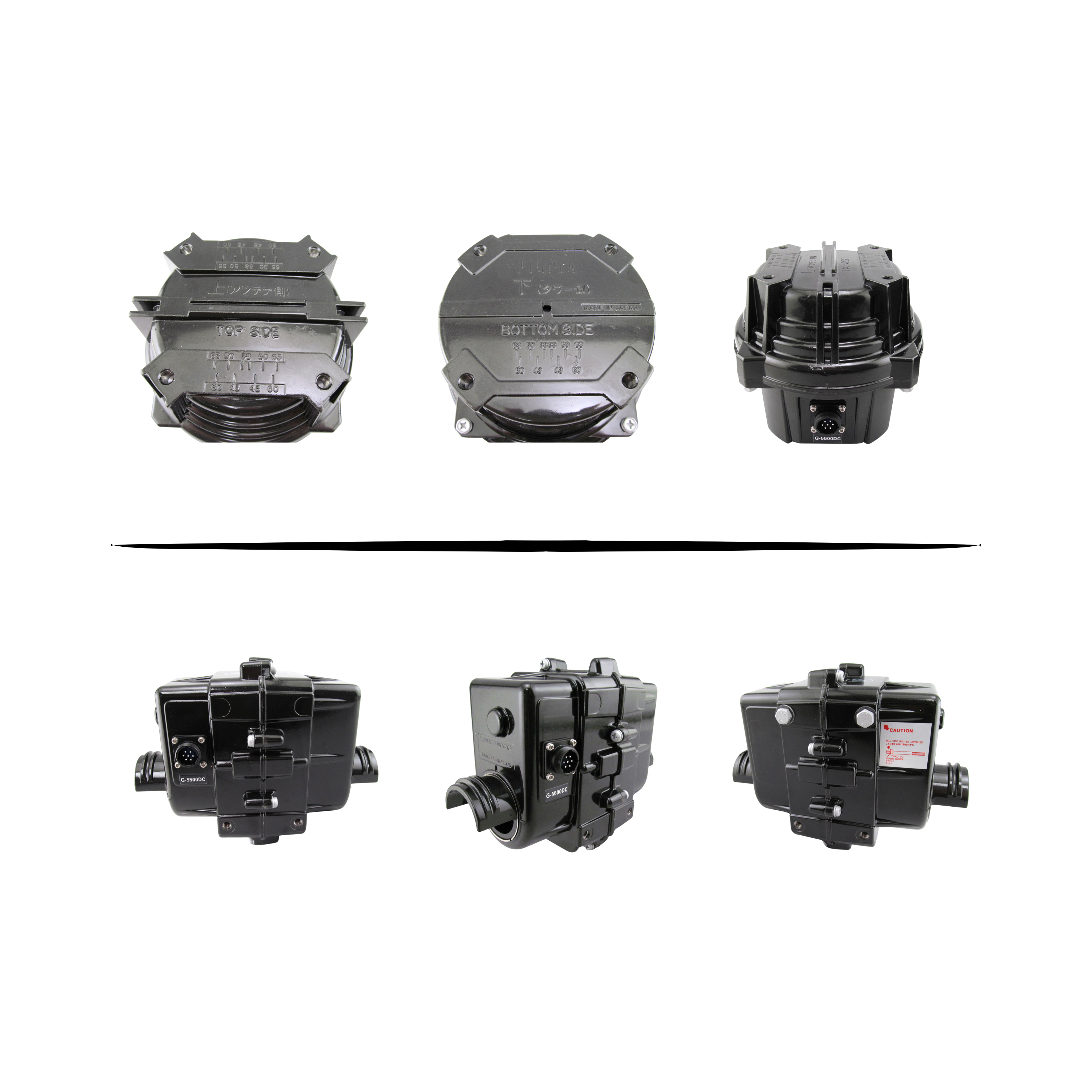

- Yaesu G-5500 Azimuth Rotator Assembly
- Yaesu G-5500 Elevation Rotator Assembly

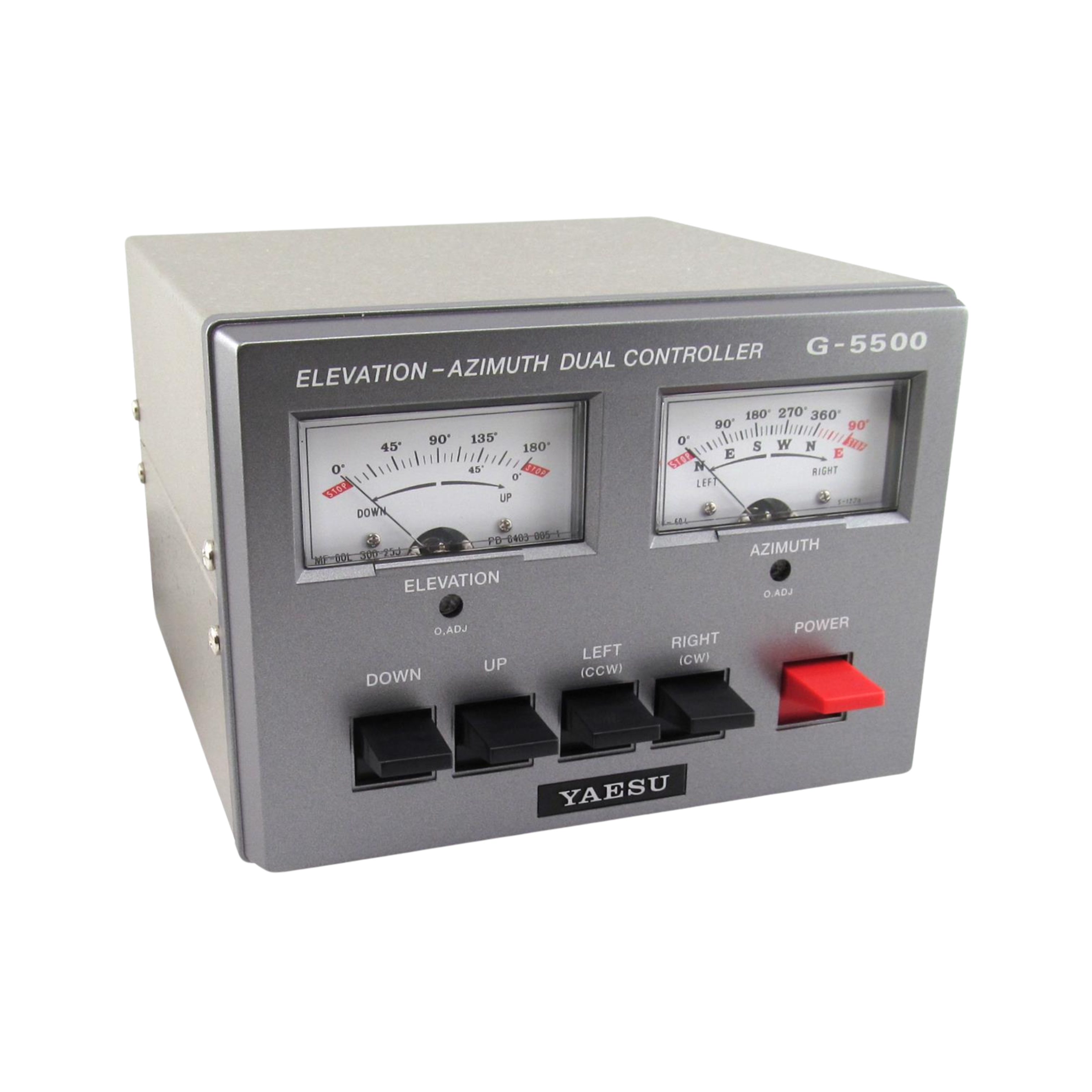

- G-5500DC Dual-Axis Controller

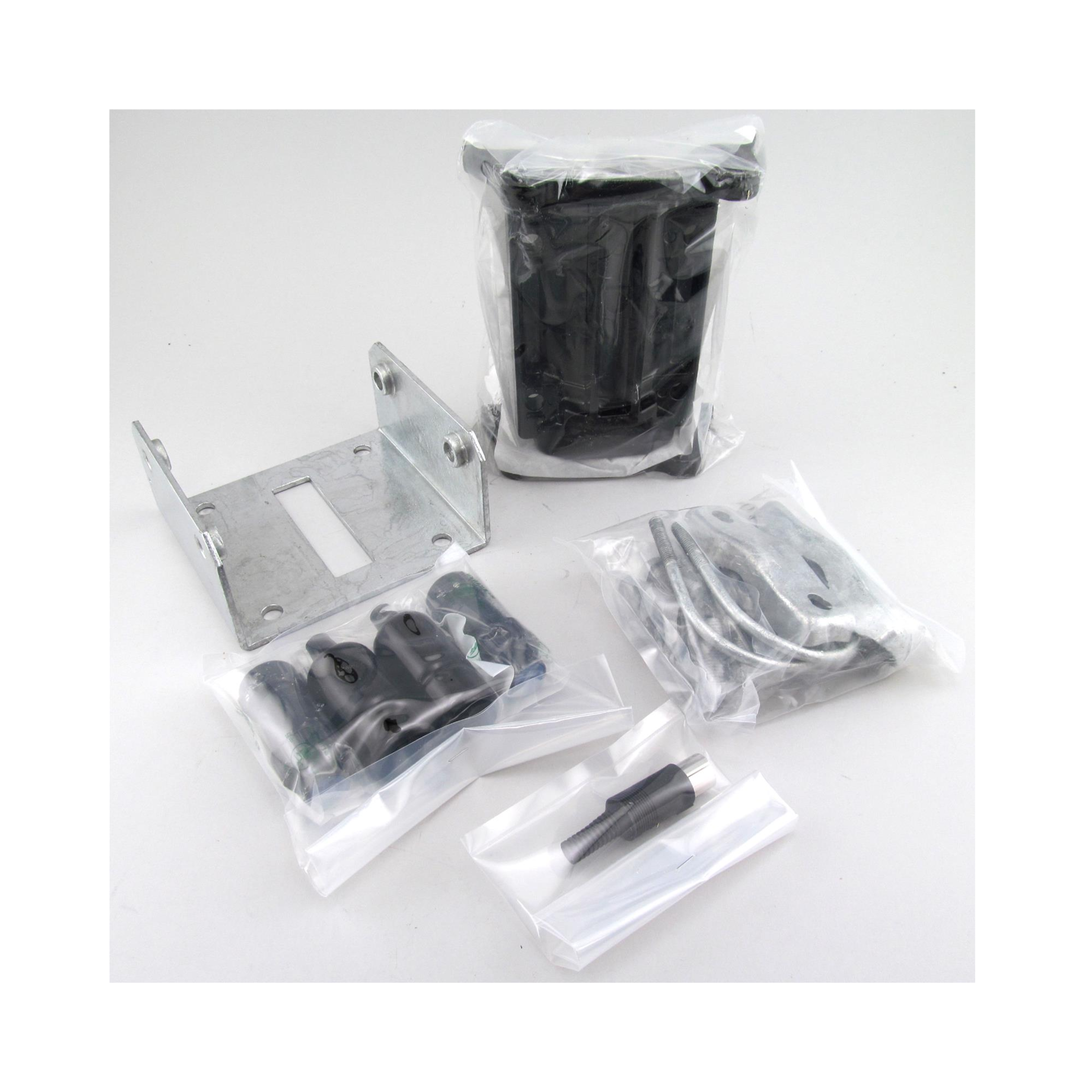

- Mast clamps and mounting hardware
- Rotor connector assemblies
- User manual
| Brand | Yaesu |
| Model Number | G-5500DC |
| Product Type | Azimuth-Elevation Rotator System |
| Rotation Type | Dual Axis Azimuth and Elevation |
| Azimuth Rotation Range | 450° |
| Elevation Rotation Range | 180° |
| Azimuth Rotation Torque | 500kgf-cm |
| Azimuth Braking Torque | 3000kgf-cm |
| Elevation Rotation Torque | 300kgf-cm |
| Elevation Braking Torque | 2000kgf-cm |
| Azimuth Rotation Time 360° | Approx. 63 Seconds |
| Elevation Rotation Time 180° | Approx. 60 Seconds |
| Motor Voltage | 24V DC |

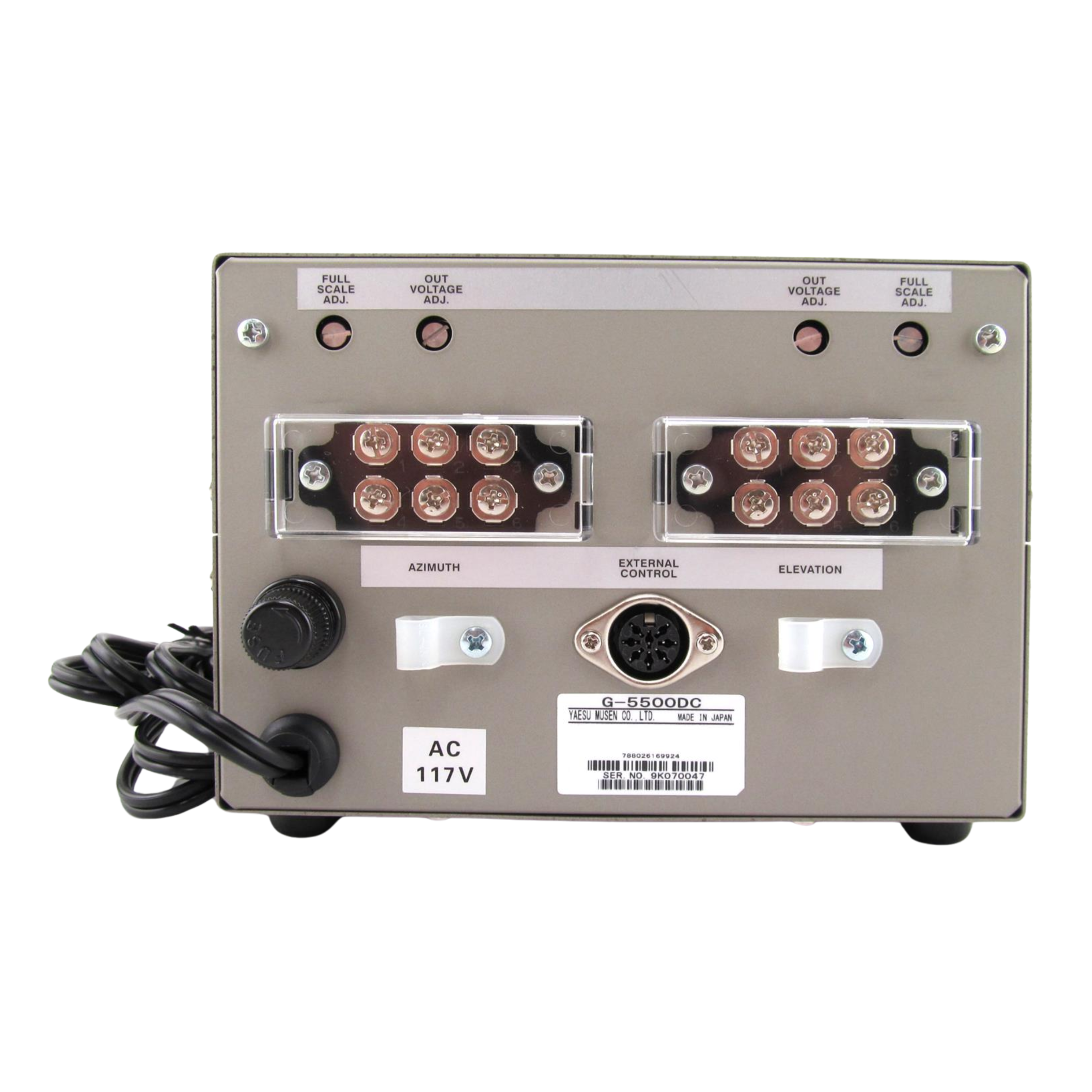

| Controller Power Supply | 117V AC |
| Controller Type | Dual Axis Analog Controller |

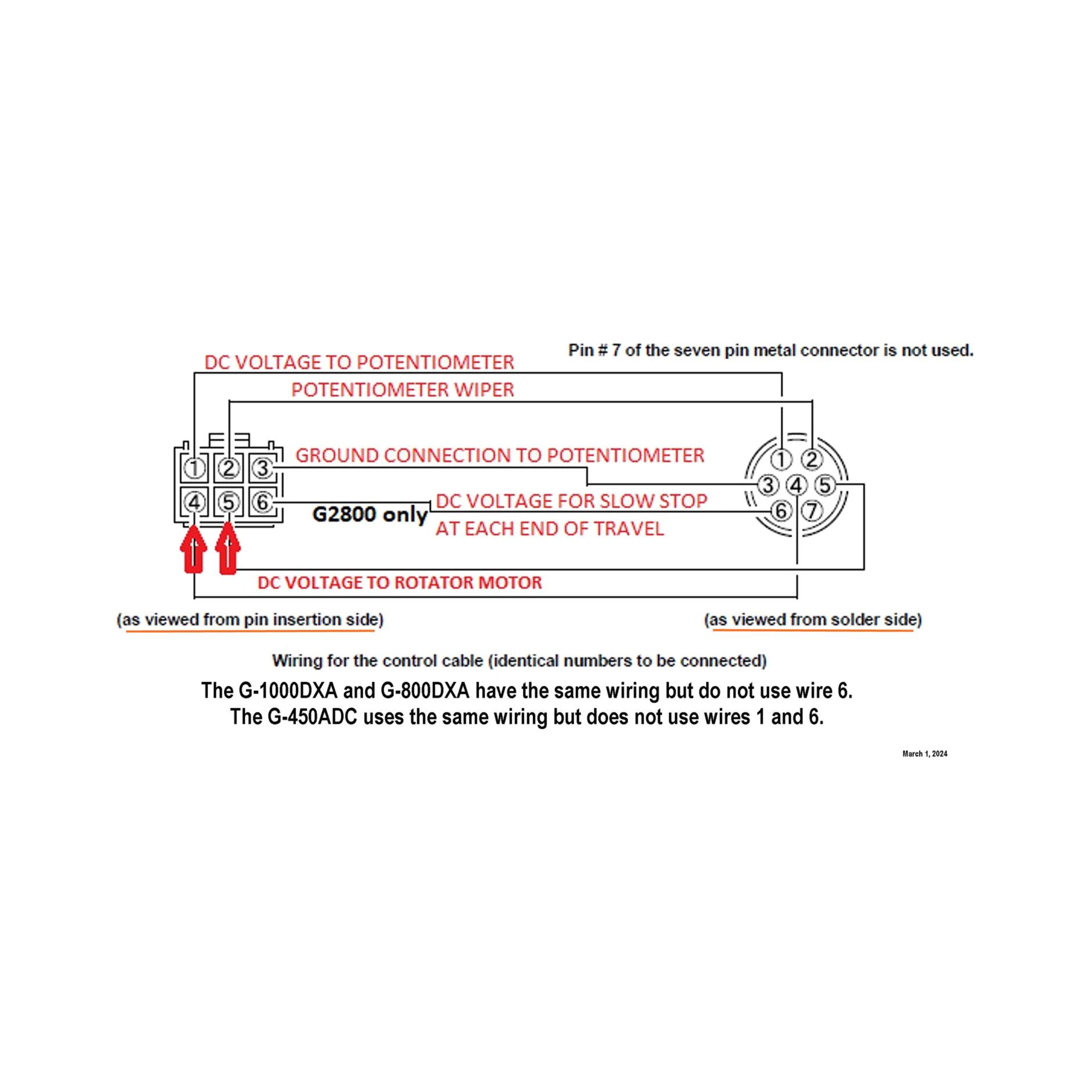

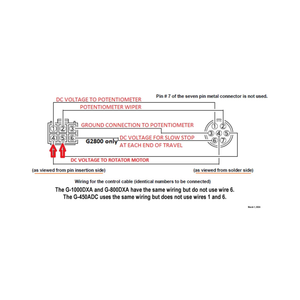

| Control Cable Requirement | 6 Conductor Azimuth / 6 Conductor Elevation |
| Mast Diameter Range | 32-63mm |
| Housing Material | Die-Cast Aluminum |
| Weather Resistance | Outdoor Rated |
| Computer Control Compatible | Yes |
| GS-232 Compatible | Yes |
| Application | Satellite Tracking |
| Application | AMSAT Operation |
| Application | EME Stations |
| Application | VHF/UHF Weak Signal Systems |
