Yaesu G-1000DXA Heavy-Duty Rotator
Brand:
Yaesu
Yaesu G-1000DXA Heavy-Duty Rotator
Yaesu G-1000DXA Heavy-Duty Rotator
Yaesu G-1000DXA Heavy-Duty Rotator

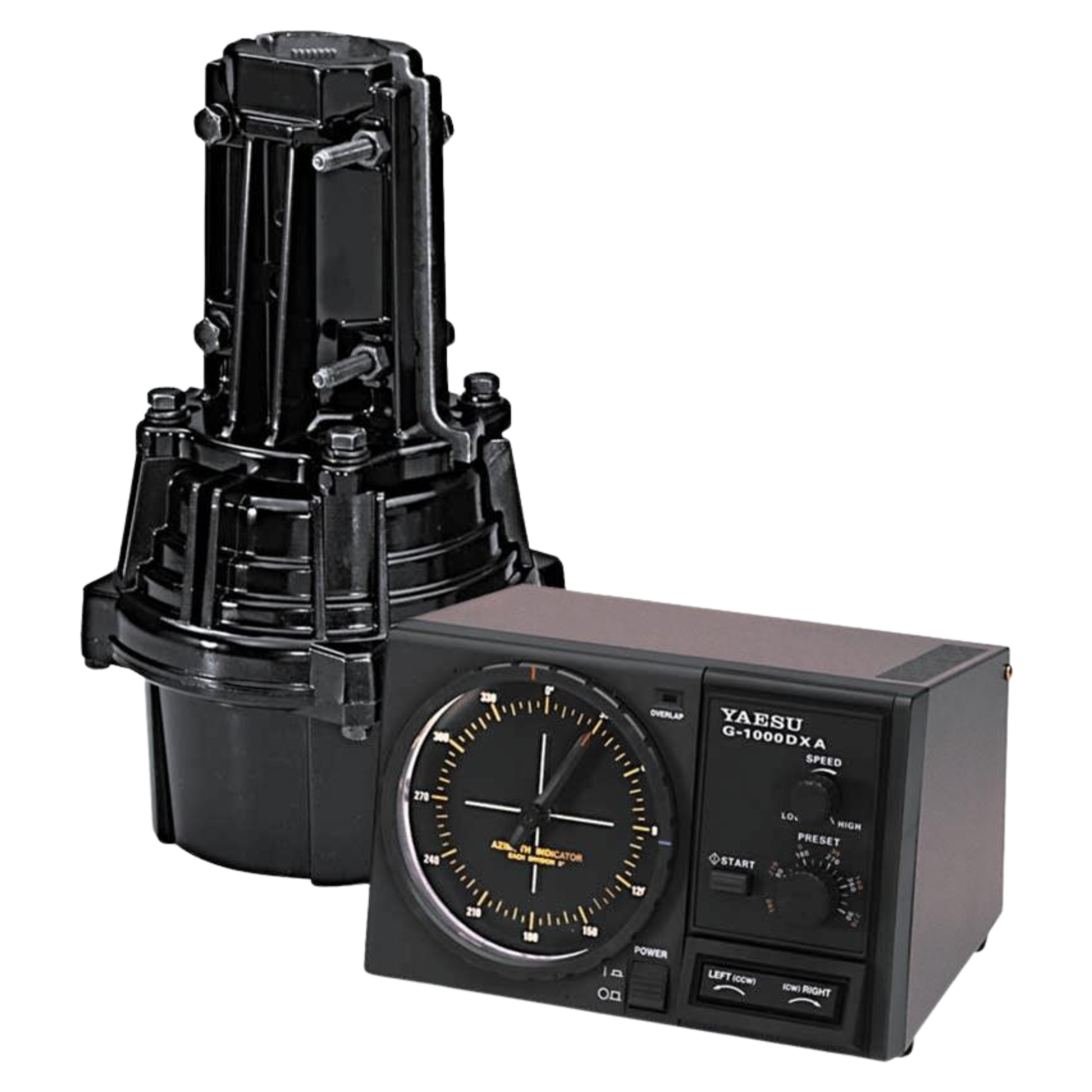

The Yaesu G-1000DXA is a heavy-duty antenna rotator system engineered for demanding amateur radio installations using large HF beam antennas, stacked arrays, and high-performance VHF/UHF directional systems. Featuring variable-speed rotation, high turning and braking torque, 450-degree rotation capability, and precision preset positioning control, the G-1000DXA delivers reliable antenna handling for serious DX, contest, and weak-signal operating environments.
Key Features
- Heavy-duty rotator system for demanding antenna installations
- Designed for large HF beam antennas and stacked arrays
- 450-degree total rotation range with preset positioning
- Variable-speed rotation control
- Adjustable rotation speed from approximately 40 to 100 seconds per 360° rotation
- High-performance DC motor drive system
- Heavy-duty braking mechanism for secure antenna positioning
- Turning torque up to 1,100 kgf-cm
- Braking torque rated at 6,000 kgf-cm
- Supports large directional antenna systems
- K-factor rating of 230 for demanding antenna loads
- Continuous vertical load capability of 200 kg
- Momentary vertical load capability of 800 kg
- Wind load rating up to 2.2 m² when tower mounted

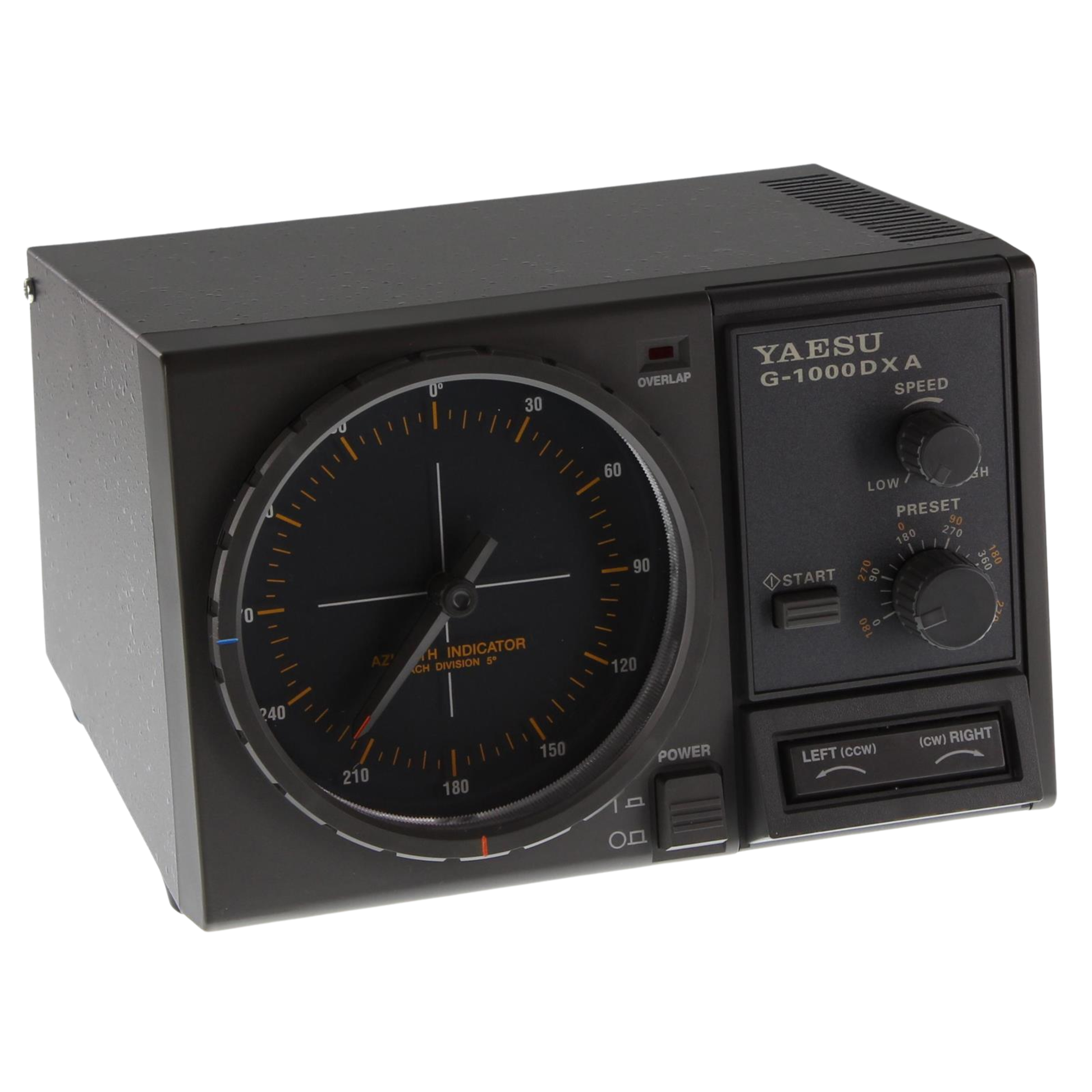

- Precision analog azimuth display controller
- Preset heading control for automatic antenna positioning
- Smooth and accurate directional tracking
- Dual-race ball bearing support system
- Die-cast aluminum weather-resistant rotor housing
- Factory-lubricated gear system for long service life
- Mechanical and electrical stop protection systems
- Compatible with Yaesu GS-232 series computer controllers
- Suitable for contest, DX, EME, and satellite installations
- Supports mast diameters from 38 mm to 63 mm
- Professional-grade Yaesu rotator engineering
Typical Uses
- Large HF beam antenna systems
- Multi-antenna contest stations
- DX and weak-signal operations
- EME and satellite communication systems
- Stacked Yagi arrays
- Permanent tower installations
- Advanced amateur radio stations
In the Box
- Yaesu G-1000A Rotor Unit
- Yaesu G-1000DXA Controller
- Mast clamps and mounting hardware
- Rotor connector assembly
- User manual
| Brand | Yaesu |
| Model Number | G-1000DXA |
| Product Type | Heavy-Duty Antenna Rotator |
| Rotation Range | 450° |
| Rotation Torque | 600-1100kgf-cm |
| Braking Torque | 6000kgf-cm |
| Maximum Vertical Load | 200kg Continuous |
| Maximum Vertical Load Momentary | 800kg |
| Wind Load Tower Mount | 2.2m² |
| Wind Load Mast Mount | 0.75m² |
| Maximum K Factor | 230 |
| Rotation Time 360° | 40-100 Seconds Variable |
| Motor Voltage | 11-24V DC |
| Controller Power Supply | 117V AC |
| Bearing Type | Dual Race Ball Bearing |
| Mast Diameter Range | 38-63mm |
| Maximum Continuous Duty | 3 Minutes |

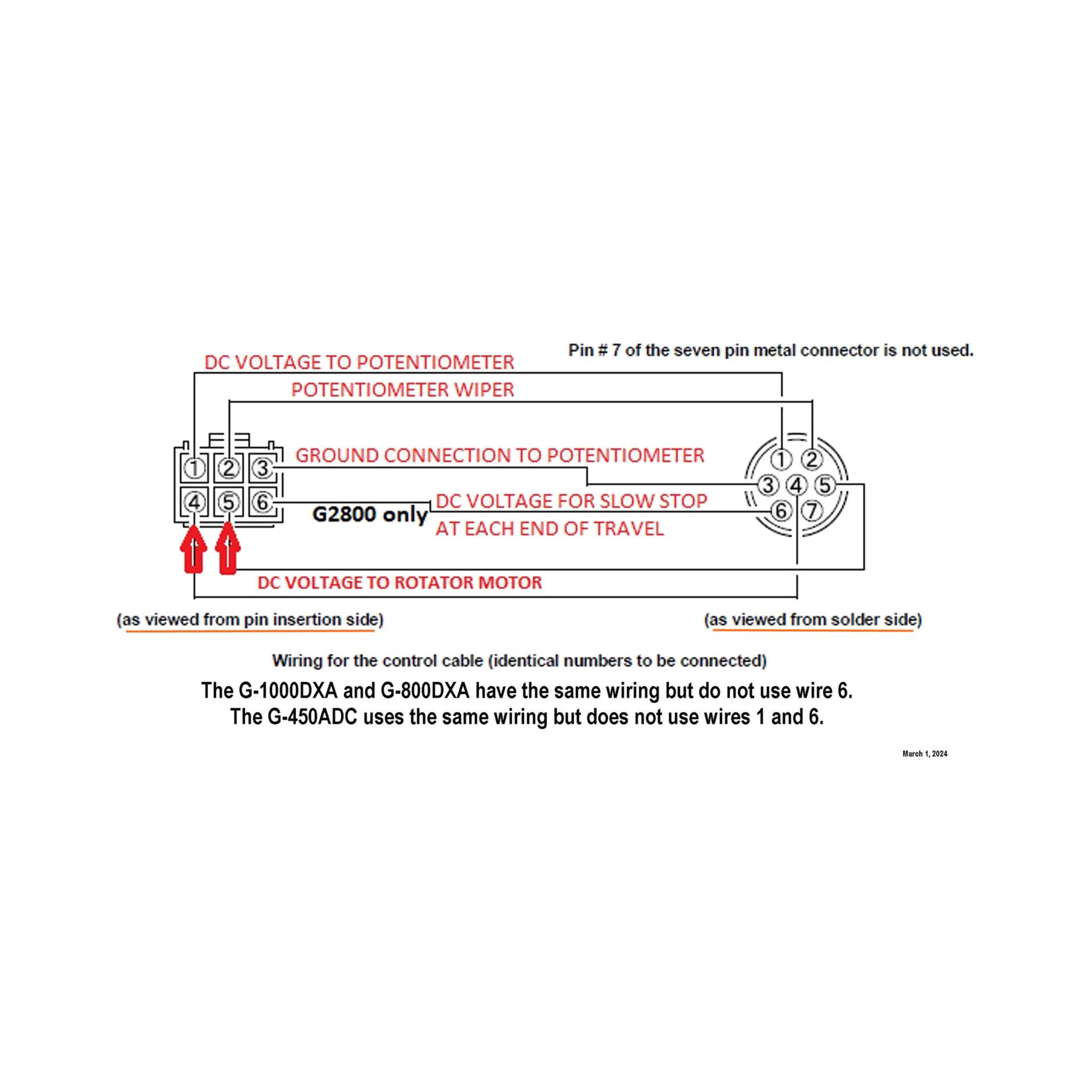

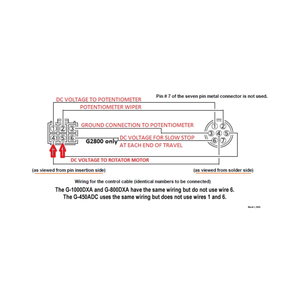

| Control Cable Requirement | 6 Conductor |
| Rotor Dimensions | 186 x 300mm |
| Rotor Weight | 3.6kg |
| Controller Dimensions | 200 x 130 x 193mm |
| Controller Weight | 2.8kg |
| Housing Material | Die-Cast Aluminum |
| Preset Control | Yes |
| Variable Speed Control | Yes |
| Application | HF Beam Antennas |
| Application | Stacked Antenna Arrays |
| Application | VHF/UHF Directional Systems |
| Application | EME and Satellite Antennas |
