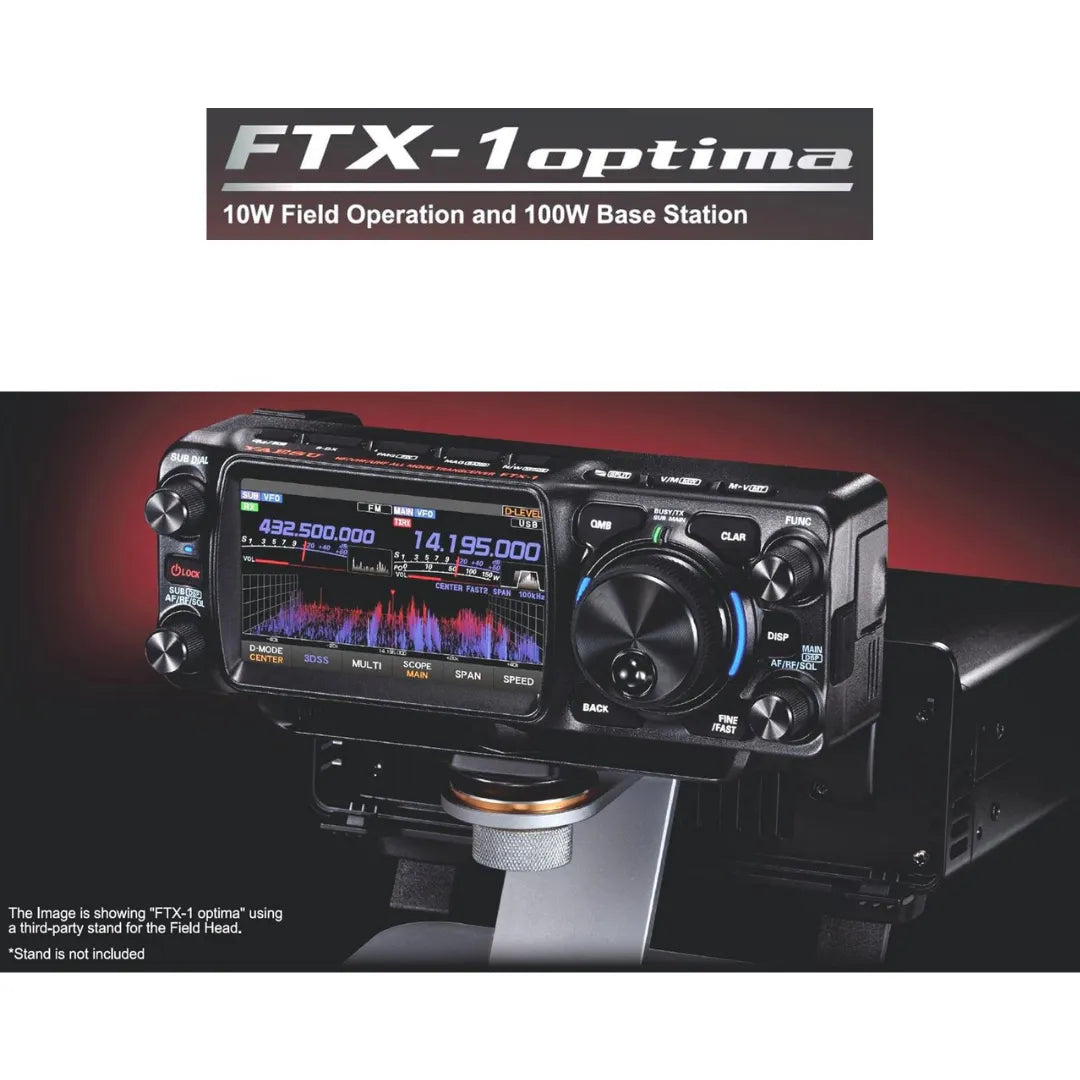

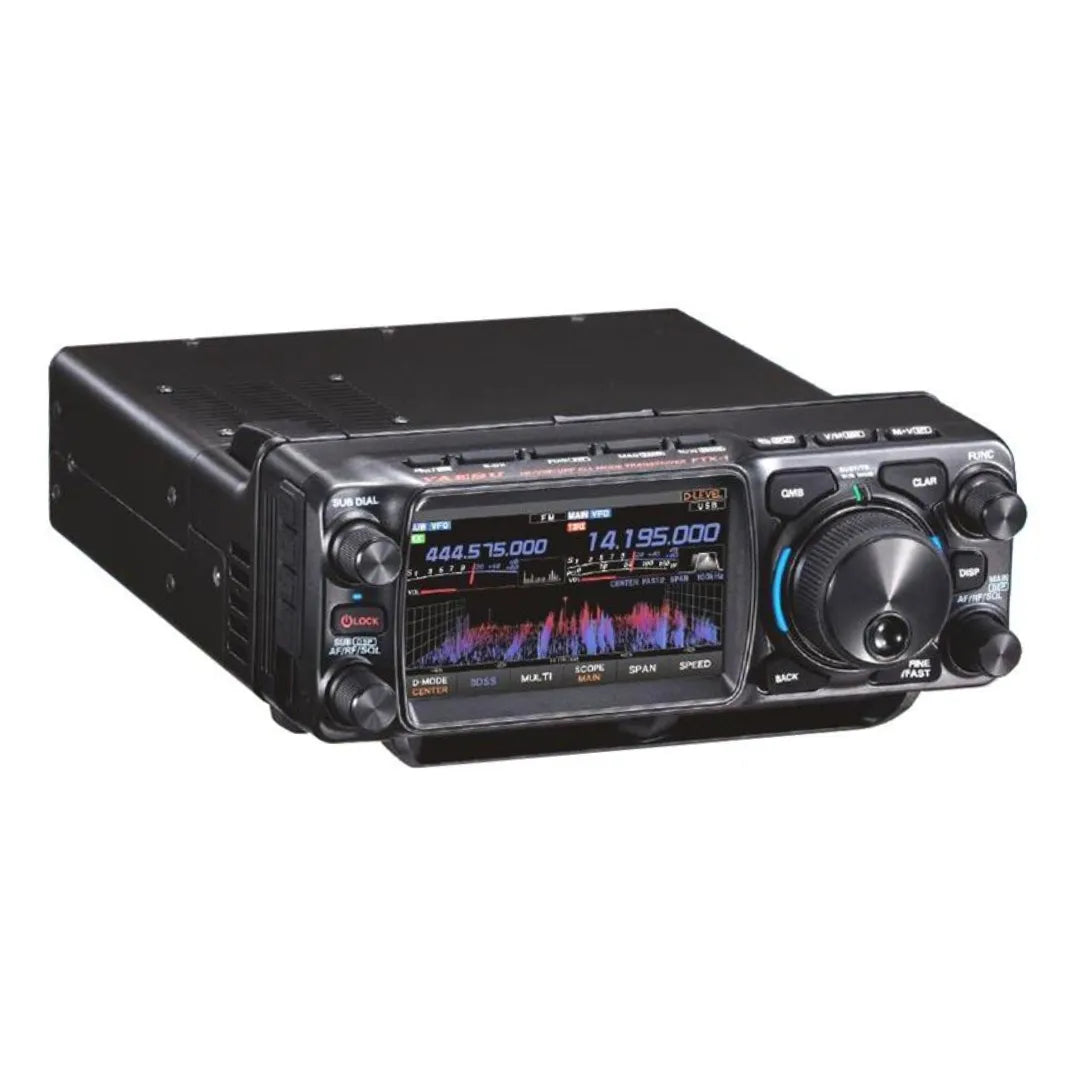

Yaesu FTX-1-OPTIMA HF/50/144/430MHz SDR All Mode Base/Portable Transceiver

The Yaesu FTX-1 Optima is built for operators who refuse to compromise—whether they’re contesting from a full station or chasing DX deep in the field. Combining the compact versatility of the FTX-1 Field Head with the muscle of the SPA-1 100W Power Amplifier, this hybrid SDR transceiver transforms seamlessly from a lightweight portable rig into a full-featured 100-watt HF/50/144/430 MHz station with zero tools and zero hassle.

Attach the amplifier to the Field Head and run a full 100W using any 13.8VDC external power supply. Need to go portable? Pop off the amp and slot in the included 10.8V 6400mAh Li-ion battery for 6W QRP, or hook up an external 13.8V supply for 10W field operation. The Optima adapts instantly to your operating style—backpack-ready one moment, station-class the next.

Despite its compact size, the FTX-1 Optima is packed with modern comforts: true dual-band C4FM capability, simultaneous receive, APRS® support (coming August 2025), FT8-friendly PRESET mode, memory channel scope, and a clear VFO Mode indicator that keeps your operating status obvious at a glance. Its SDR architecture delivers excellent clarity, responsiveness, and reliability across modes, while a powerful 4W audio system ensures loud, clean output.

For operators who value flexibility without sacrificing performance, the FTX-1 Optima stands in a class of its own—rugged, modular, and ready for real-world radio.

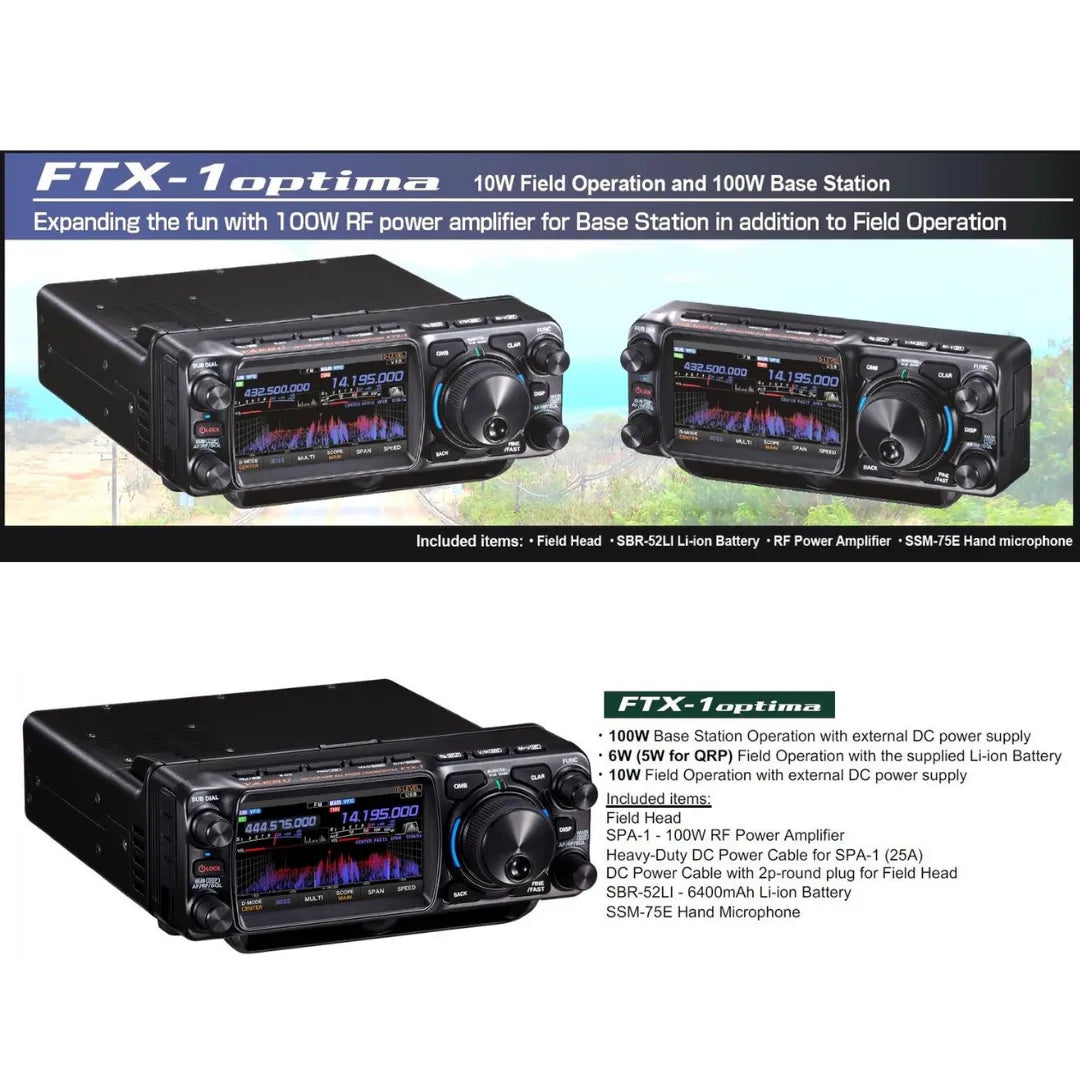

Included Equipment

• FTX-1 Field Head



• SPA-1 100W RF Power Amplifier



• Heavy-duty 25A DC Power Cable for SPA-1



• SBR-52LI – 10.8V 6400mAh Li-ion Battery



• DC Power Cable with 6.3mm OD / 3.1mm ID 2-pin Round Plug



• SSM-75E Hand Microphone



Key Features

Modular Power & Portability

• 6W portable QRP with Li-ion battery



• Up to 10W with external 13.8VDC supply



• Full 100W HF/50MHz and up to 50W VHF/UHF with SPA-1 amplifier



• Instant tool-free switching between Field and Optima configurations



Advanced SDR & Digital Features

• Supports SSB, CW, AM, FM, C4FM



• True dual-band operation with simultaneous receive



• Super-DX mode for extended communication range



• Memory Channel Scope for quick band awareness



• FT8-optimized PRESET mode



• Micro SD card slot for logs, settings, and data



Digital & FM Convenience

• C4FM AMS for automatic mode switching



• Improved audio clarity and noise handling



• APRS® support coming August 2025



• Useful FUNC Dial for fast setting access



CW-Focused Enhancements

• Multiple CW-friendly functions for smooth, accurate operation



• Precise control and clean transmit quality



Specifications

Brand: Yaesu
Part Number: FTX-1OPTIMA
Product Line: Yaesu FTX-1 Series All-Mode SDR Transceivers
FCC License Required: Yes

Performance

• TX Frequency: 1.8–450 MHz (Amateur bands)



• RX Frequency: 30 kHz–174 MHz, 400–470 MHz



• Output Power:



• Field: 0.5–6W (battery) / 0.5–10W (external DC)



• Optima: 5–100W HF/50 MHz, up to 50W VHF/UHF



Power Requirements

• Battery: 10.8VDC



• External: 13.8VDC



• Maximum Current Draw: 21A



Physical

• Antenna Ports: 3 (SO-239 on Optima)



• Dimensions: 8.39" × 3.50" × 9.45"



• Weight: 8.6 lbs (Optima configuration)



• Warranty: 3-year
