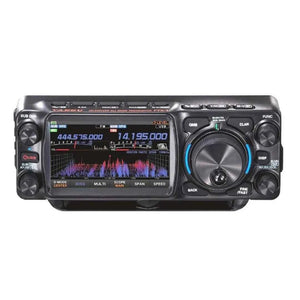

The Yaesu FTX-1 Field is engineered for operators who demand rugged portability without compromising on performance. Designed around Yaesu’s latest SDR architecture, the FTX-1 Field delivers clean, stable transmit audio and exceptional wideband receive sensitivity covering 30 kHz to 470 MHz. Whether you’re operating from a hilltop, campsite, or emergency deployment, this compact powerhouse brings serious capability in a field-ready package.

Running up to 10W RF output with an external 13.8VDC supply, and a solid 6W stand-alone using the included SBR-52LI 10.8V 6400mAh Li-ion battery, the FTX-1 Field is ideal for portable HF, VHF, and UHF operation. Operators can enjoy 8–9 hours of typical activity thanks to its efficient 6-6-48 duty cycle performance. Charging is simple and flexible — use a standard 13.8V power source or modern USB-C PD (45W or greater, 15V/2A) for on-the-go convenience.

With full SSB, CW, AM, FM, and C4FM operation, plus simultaneous receive and true dual-band capabilities, the FTX-1 Field is built to support everything from casual ragchews to emergency comms, FT8 work, APRS® data, WIRES-X (available Aug 2025), and CW-focused operation. A familiar Yaesu interface combined with a FUNC dial, PRESET mode, memory scope, and VFO status indicator provides smooth, efficient control in the field.

Despite its compact footprint, the FTX-1 Field integrates USB-based CAT control, audio I/O, and TX keying, a microSD card slot, and compatibility with Yaesu’s ATAS-120A, ATAS-25, and the FC-40 external tuner. From lightweight field setups to more capable semi-fixed stations, this radio adapts easily to your operating style.

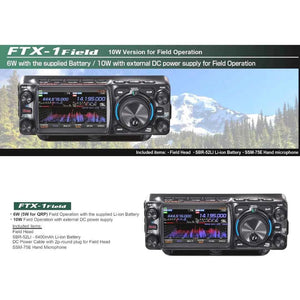

Included Items (FTX-1 Field)

• FTX-1 Field Head


• SBR-52LI 10.8V 6400mAh Li-ion Battery


• DC Power Cable (6.3mm OD / 3.1mm ID, 9.5mm 2-pin round plug)


• SSM-75E Hand Microphone


Key Operating Features

• True dual-band operation incl. C4FM/C4FM simultaneous receive


• Super-DX mode for extended communication range


• Memory Channel Scope


• FUNC dial for rapid setting adjustments


• PRESET Mode optimized for FT8


• APRS® 1200/9600 bps data communication


• WIRES-X compatible (Aug 2025 release)


• QRP Mode (below 5W)


• Micro SD card slot


• CW-friendly functions (Zero-in, Auto Zero-in, shaping, reverse, etc.)


• USB ports for CAT, audio I/O, and TX control


• FM-mode suite: DCS, CTCSS, ARS, DTMF


• AGC

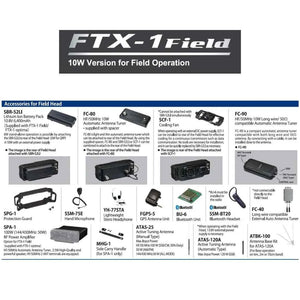

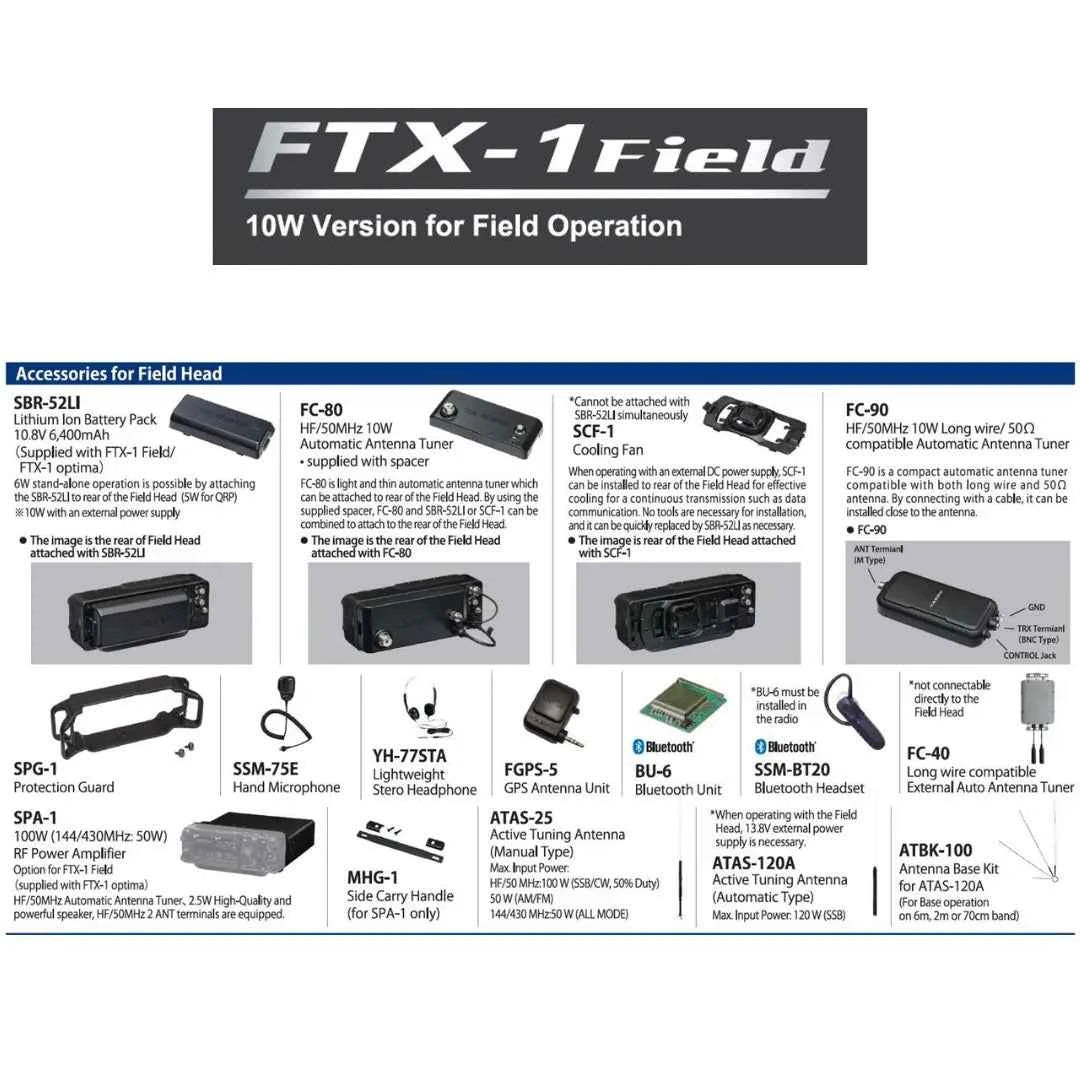

• Compatible with ATAS-120A, ATAS-25, FC-40 tuner


Technical Specifications

Frequency Coverage

• Transmit: 1.8–450 MHz (amateur bands only)


• Receive: 30 kHz–174 MHz / 400–470 MHz


• Modes: CW, AM, LSB, USB, FM, C4FM


• Impedance: 50Ω unbalanced


Power & Consumption

• Supply Voltage:


• 10.8VDC (SBR-52LI battery)


• 13.8VDC (external supply)


• Power Output – FTX-1 Field:


• 0.5–6W (battery)


• 0.5–10W (external 13.8V, AM carrier 0.5–2.5W)


• Current Draw (approx.):


• RX: 0.6A (no signal), 0.9A (signal)


• TX: 2.5A (6W), 3A (10W)


Audio

• Max Audio Output: 1.5W


• Impedance: 4–16Ω


Connections

• Antenna Ports: 2× BNC


• USB ports for CAT & audio


• Micro SD card slot


Physical

• Dimensions: 8.39 × 3.50 × 2.17 in (213 × 89 × 55 mm)


• Weight: 2.76 lb (1.25 kg)


• Warranty: 12 months of Brand WarrantyBrand: Yaesu
