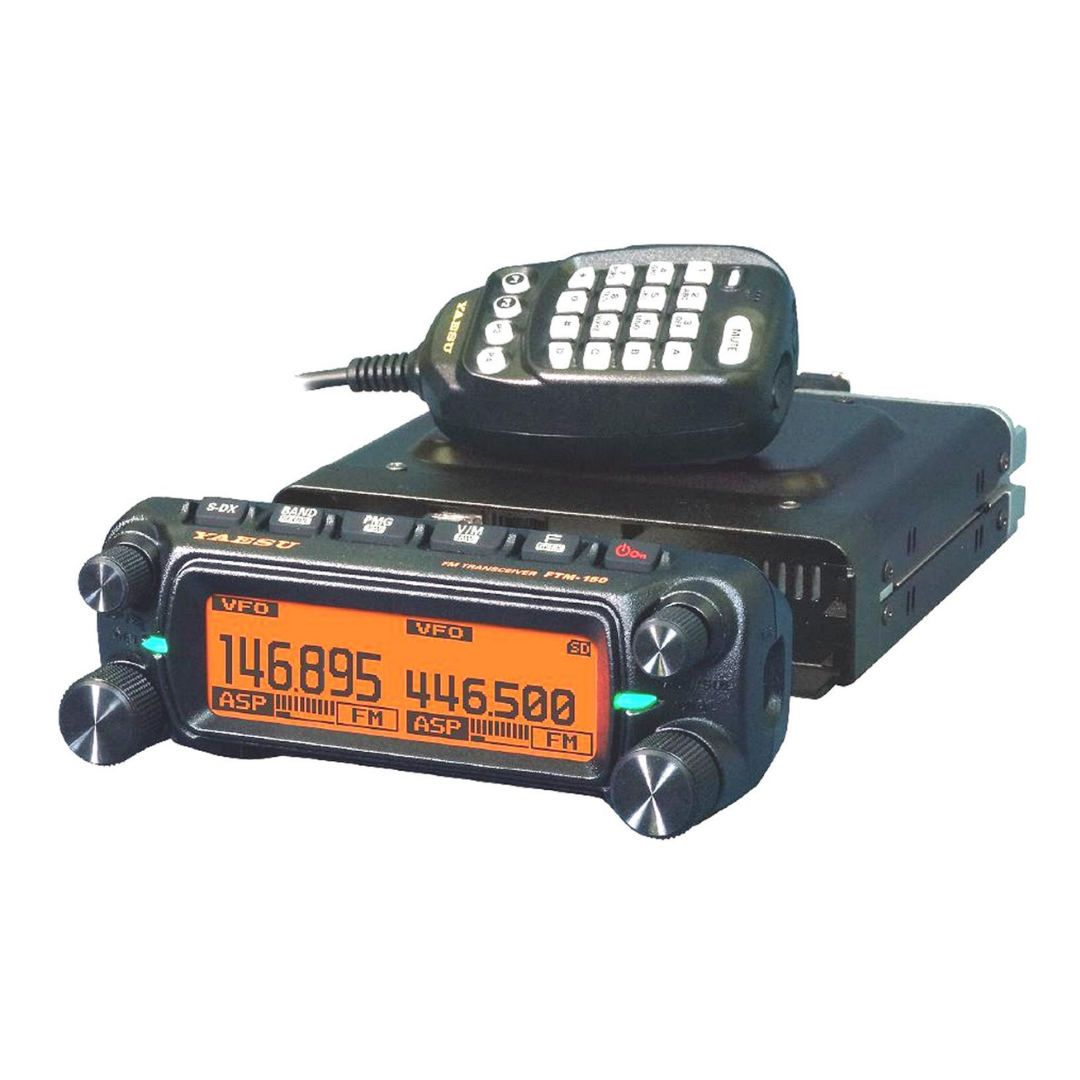

Yaesu FTM-150RASP FM Dual Band Mobile Transceiver

Yaesu FTM-150RASP FM Dual Band Mobile Transceiver – High-Performance Dual-Band Mobile Radio with Advanced DSP & Bluetooth Capability

The Yaesu FTM-150RASP is a state-of-the-art dual-band FM mobile transceiver engineered for operators who demand performance, flexibility, and clarity in their mobile communication setup. Offering true dual-band operation (V+V, U+U, V+U, U+V), this radio enables simultaneous reception on two different frequencies or within the same band — perfect for active amateur operators, emergency responders, and mobile installations.

Delivering 55W of RF output on VHF and 50W on UHF, the FTM-150RASP ensures powerful and stable transmission, backed by Yaesu’s renowned Funnel Air Convection Conductor (FACC) cooling system. Its high-resolution dot-matrix display, front-mounted speakers, and intuitive interface make it an outstanding choice for both mobile and base station operations.

Key Features & Technical Highlights

True Dual-Band Operation (V+V / U+U / V+U / U+V)

• Operate two receivers simultaneously on separate or identical bands.



• Efficient monitoring of multiple channels — ideal for repeaters, emergency nets, and event communications.



• Cross-band repeat function enhances versatility for linking operations.



Powerful & Efficient Transmission

• Selectable RF output levels: 55W / 50W / 25W / 5W for flexible power management.



• Stable power delivery ensured by a heavy-duty heatsink with FACC (Funnel Air Convection Conductor) system for superior heat dissipation.



• Typical current draw: 11A (VHF TX) and 10A (UHF TX) at 13.8V DC.



High-Quality Audio Output

• Dual-speaker design provides a total of 6W of crisp, clear audio — 3W from the front control-head speaker and 3W from the main body speaker.



• Adjustable audio balance (0–100%) between the front and main speakers to match user preference.



• Built-in Audio Digital Signal Processor (DSP) with Super-DX function enhances weak-signal reception and boosts clarity under noisy conditions.



Advanced Operating Features

• High-Resolution Band Scope displays up to 47 channels simultaneously for quick signal visualization.



• PMG (Primary Memory Group) mode allows up to 5 priority channels, monitored in real-time with auto or manual switching.



• MAG (Memory Auto Grouping) organizes up to 1103 memory channels by band or custom groups.



• CFL (Customized Function List) gives instant access to 9 frequently used menu items.



• VFO Band Skip hides unused bands for simplified navigation.



User-Centric Design

• Detachable faceplate with optional SJMK-500 swing-head mount allows adjustable viewing angles for easy mobile installation.



• Graphical Dot-Matrix Display offers sharp visibility and clear operational feedback.



• Convenient microphone connections on both the main body and control head.



• Direct frequency entry and DTMF functions via the supplied SSM-85D microphone.



Connectivity & Expandability

• Optional Bluetooth® unit (BU-5) enables hands-free communication with compatible headsets like the SSM-BT20 or other Bluetooth devices.



• MicroSD card slot supports up to 32GB for memory backup and firmware updates.



• Supports Automatic Repeater Shift (ARS), Time-Out Timer (TOT), and Automatic Power-Off (APO) to enhance safety and efficiency.

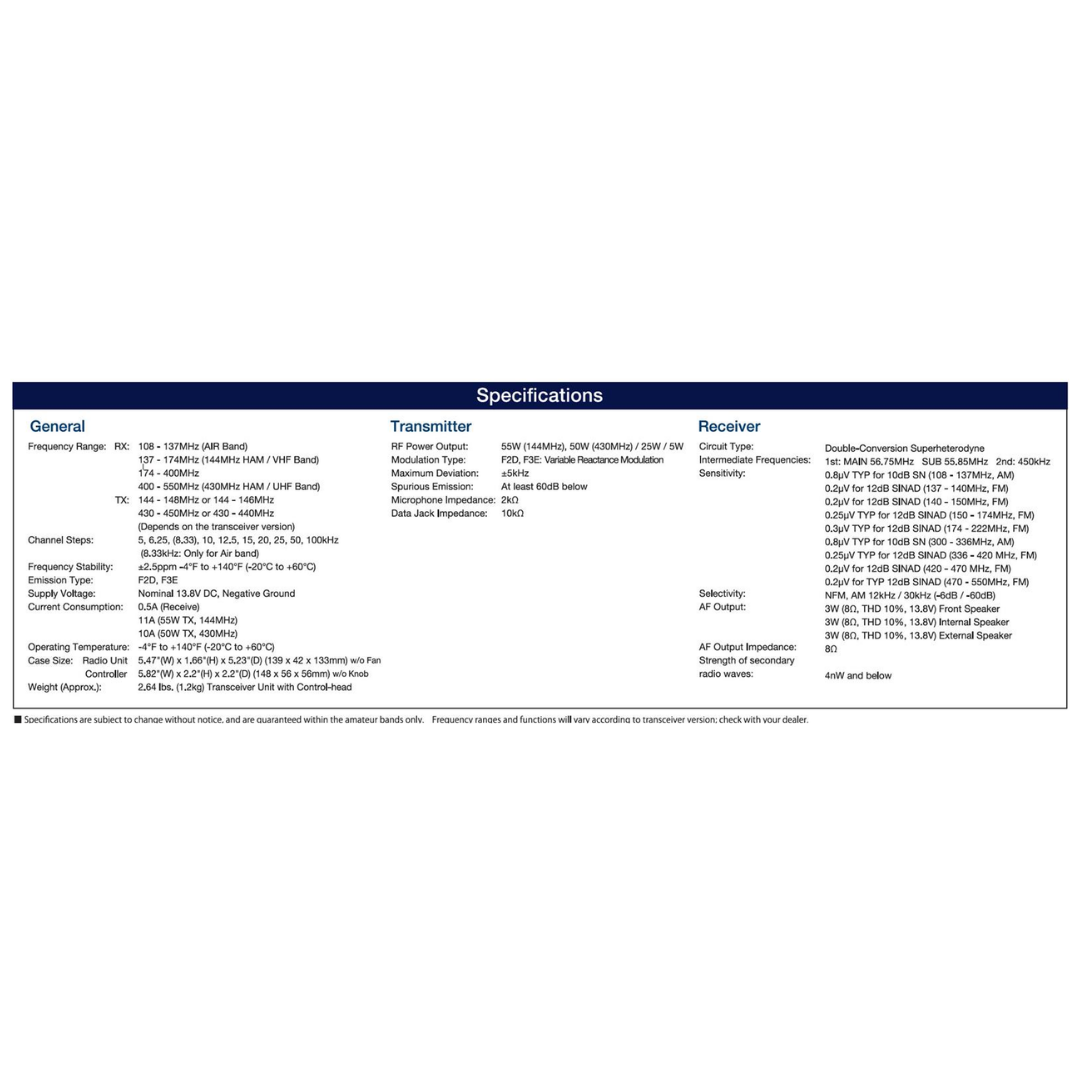

Technical Specifications

• Transmit Range: 144–148 MHz / 430–450 MHz



• Receive Range: 108–550 MHz (Air Band, VHF, UHF, Weather)



• RF Power Output: 55W (144 MHz) / 50W (430 MHz)



• Selectable Power Levels: 55W / 25W / 5W



• Input Voltage: 13.8 VDC ±15%



• Current Draw: 11A Max (TX) / 0.5A (RX)



• Audio Output: 6W (3W + 3W)



• Memory Channels: 1103



• Antenna Connector: 1 × Standard SO-239



• Dimensions (W×H×D): 5.5 × 1.7 × 5.24 in.



• Weight: 2.65 lbs



• Warranty: 3 Years (Manufacturer)



What’s in the Box

✔ Yaesu FTM-150RASP Transceiver Unit
✔ DTMF Microphone (SSM-85D)
✔ DC Power Cable (with fuse attached)
✔ Mounting Bracket for Main Body
✔ Spare Fuse (15A)
✔ Operating Manual

Ideal For

✔ Amateur Radio Enthusiasts (HAM)
✔ Mobile & Base Station Installations
✔ Emergency Communication Teams
✔ Off-Road & Adventure Operators
✔ Field & Public Safety Applications
