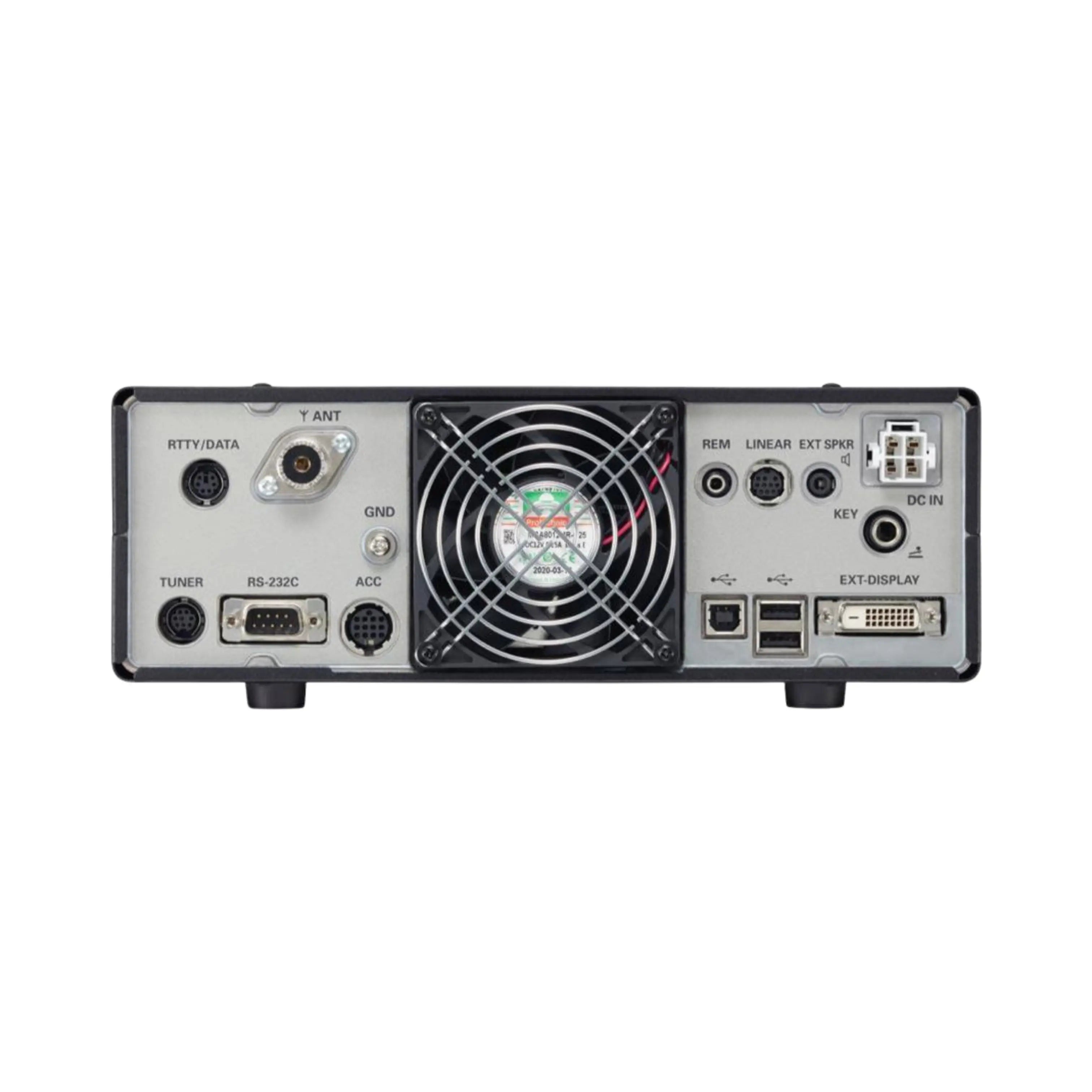

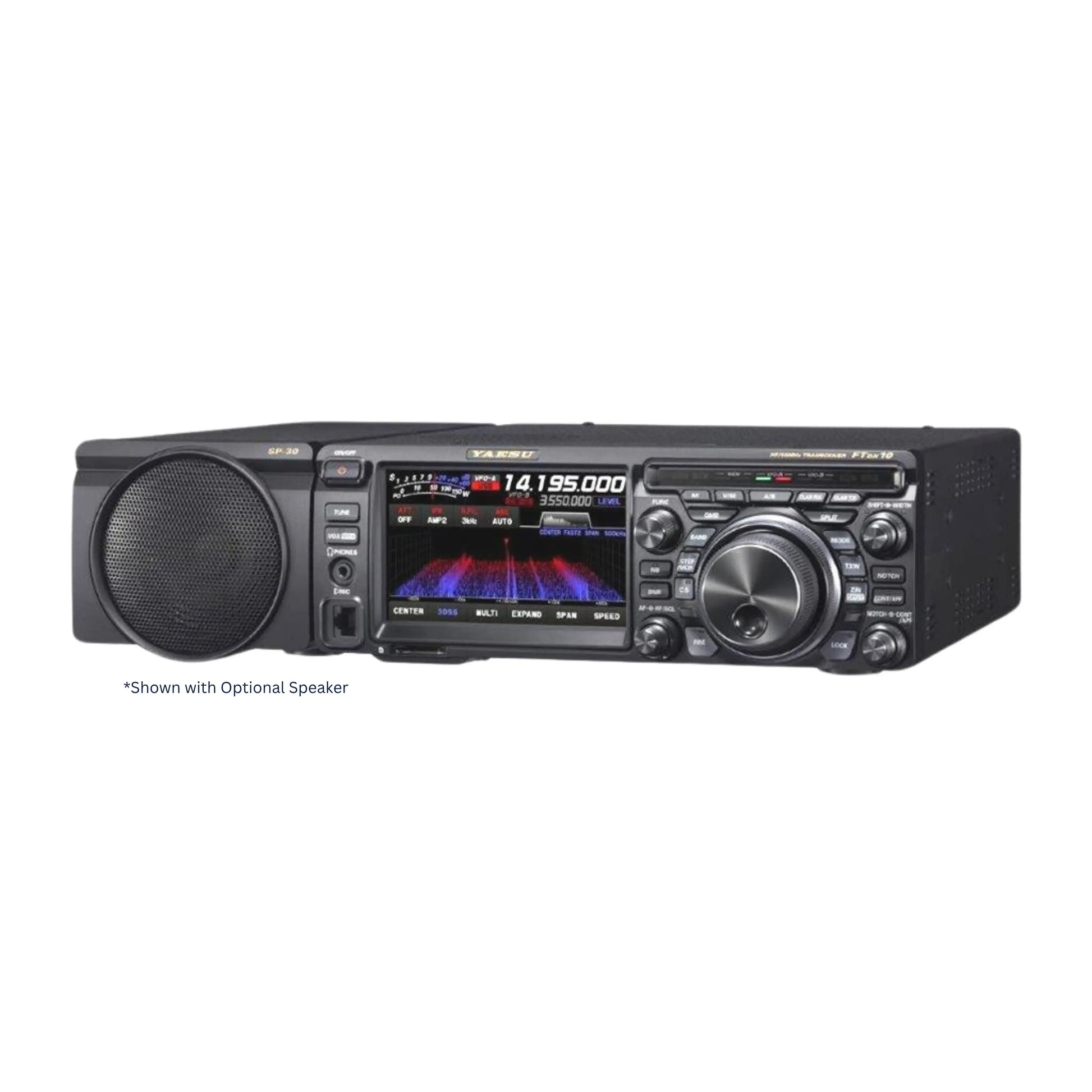

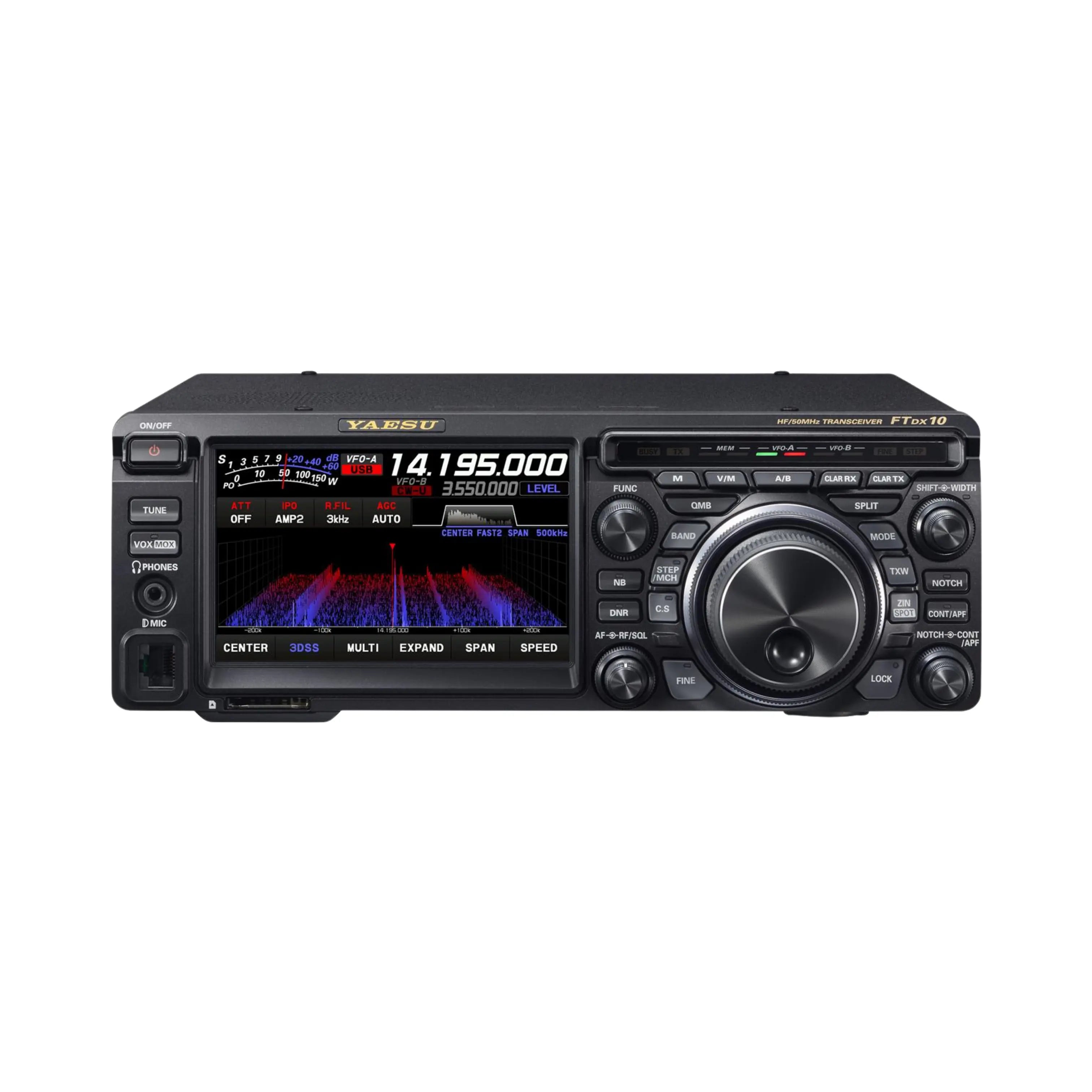

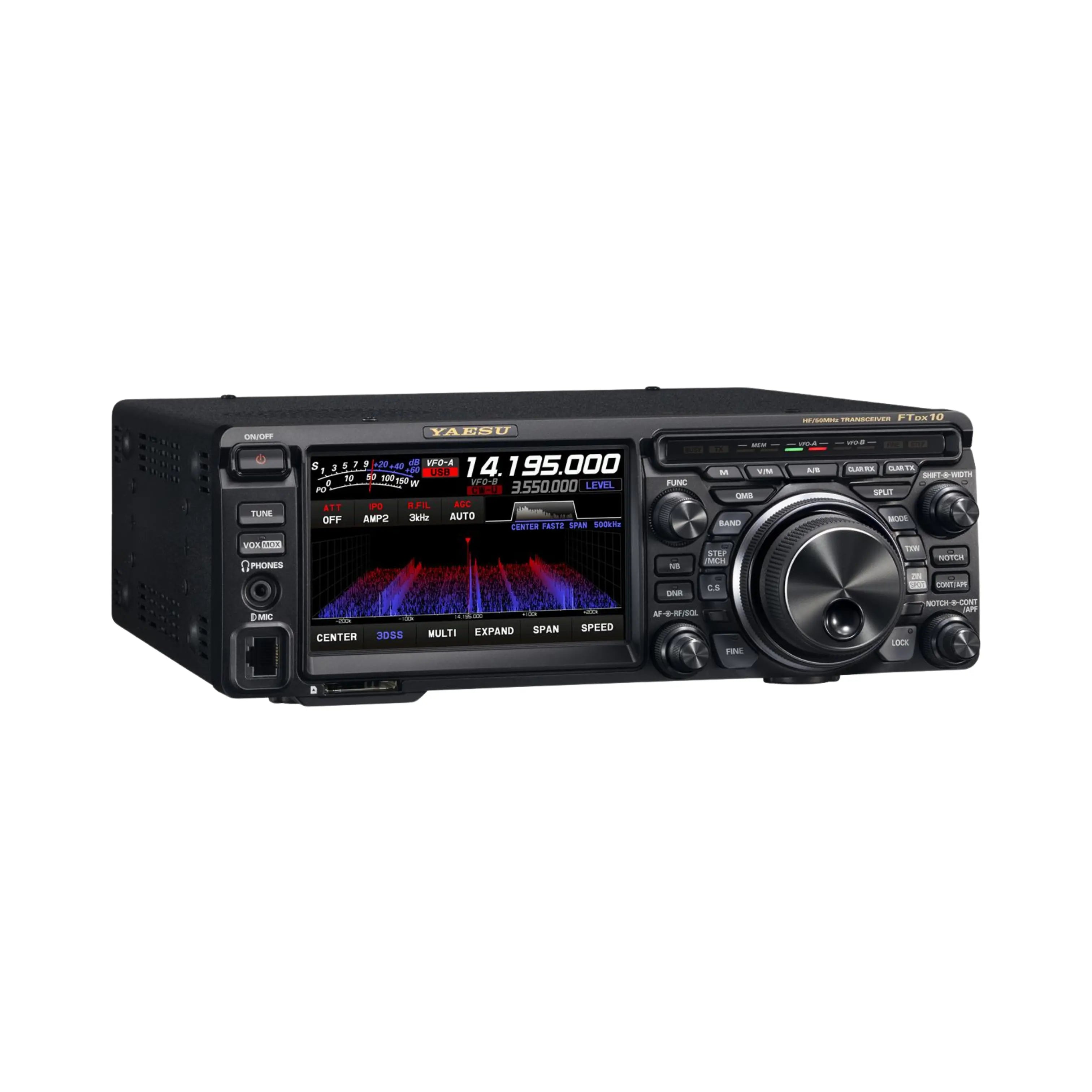

Yaesu FTDX10 Compact HF/50 MHz 100W SDR Transceiver
Brand:
Yaesu
Yaesu FTDX10 Compact HF/50 MHz 100W SDR Transceiver
Yaesu FTDX10 Compact HF/50 MHz 100W SDR Transceiver
Yaesu FTDX10 Compact HF/50 MHz 100W SDR Transceiver
The Yaesu FTDX10 is a high-performance HF and 50 MHz hybrid SDR transceiver designed for serious DXing, contesting, and advanced amateur radio operation. Incorporating technology derived from the flagship FTDX101 series, the FTDX10 combines a Narrow Band SDR receiver with Direct Sampling SDR spectrum analysis to deliver outstanding receiver selectivity, dynamic range, and operating efficiency in a compact 100-watt desktop platform.
Key Features
- HF and 50 MHz all-mode amateur radio transceiver
- 100 Watt RF output power for HF and 6-meter operation
- Hybrid SDR architecture combining Narrow Band SDR and Direct Sampling SDR technologies
- Receiver design derived from the flagship FTDX101 series
- 9 MHz first IF down-conversion receiver architecture
- Three selectable roofing filters including 500 Hz, 3 kHz, and 12 kHz
- Exceptional close-in dynamic range and multi-signal receiving performance
- RMDR performance exceeding 116 dB at 2 kHz spacing
- Blocking Dynamic Range exceeding 141 dB at 2 kHz spacing
- 250 MHz HRDDS (High Resolution Direct Digital Synthesizer) local oscillator system
- Ultra-low phase noise receiver design for improved weak-signal reception
- 15 dedicated band-pass filters for enhanced front-end selectivity
- 5-inch full-color TFT touchscreen display
- 3DSS (3-Dimensional Spectrum Stream) real-time spectrum scope
- High-resolution waterfall display for signal monitoring
- Touchscreen frequency entry and direct tuning functionality
- MPVD (Multi-Purpose VFO Outer Dial) for rapid control access
- Advanced IF DSP filtering with SHIFT, WIDTH, NOTCH, DNR, CONTOUR, and APF functions
- Digital Noise Reduction and Digital Notch Filter systems
- Built-in CW decoder and advanced CW operating tools
- CW Auto Zero-In and CW Reverse functions
- RTTY (FSK), PSK31, and PSK63 encode/decode capability
- Quick Split function for DX and contest operation
- Quick Memory Bank (QMB) and Band Stack functionality
- Built-in high-speed automatic antenna tuner
- 100-channel antenna tuner memory system
- Three-stage parametric microphone equalizer
- RF and AF transmit monitoring functions
- SD card slot for recordings, memories, backups, and firmware updates
- USB interface for CAT control, digital modes, and computer integration
- Optional SCU-LAN10 support for remote operation via LAN or Internet
- Heavy-duty MOSFET final amplifier stage with efficient cooling system
- Designed for contesting, DXing, digital modes, and premium HF station installations
Typical Uses
- HF DX chasing and weak-signal operation
- Single and multi-operator contest stations
- FT8, RTTY, PSK31, and digital communications
- CW contesting and DX operation
- 6-meter propagation monitoring and DXing
- Remote station operation with optional LAN interface
- Advanced amateur radio base station installations
In the Box
- Yaesu FTDX10 Transceiver
- SSM-75E Hand Microphone
- DC Power Cable with Fuses
- Spare Fuse
- 6.3 mm Accessory Plug
- Operating Manual
| Brand | Yaesu |
| Model Number | FTDX10 |
| Product Type | HF/50MHz Hybrid SDR Transceiver |
| Frequency Coverage TX | 1.8-54 MHz Amateur Bands |
| Frequency Coverage RX | 30 kHz-75 MHz |
| Operating Modes | SSB/CW/AM/FM/RTTY/PSK31/PSK63 |
| RF Output Power | 5-100 W |
| AM Output Power | 5-25 W |
| Receiver Architecture | Hybrid SDR |
| Receiver Configuration | Narrow Band SDR and Direct Sampling SDR |
| First IF Frequency | 9.005 MHz |
| Second IF Frequency | 24 kHz |
| Roofing Filters | 500 Hz/3 kHz/12 kHz |
| Spectrum Scope | 3DSS Real-Time Spectrum Scope |
| Display | 5 in TFT Color Touchscreen |
| Signal Processing | IF DSP |
| HRDDS Oscillator | 250 MHz |
| Band Pass Filters | 15 |
| Automatic Antenna Tuner | Built-In |
| ATU Memory Channels | 100 |
| Noise Reduction | DNR |
| Digital Notch Filter | DNF |
| Contour Control | Built-In |
| Audio Peak Filter | APF |
| CW Decoder | Built-In |
| CW Auto Zero-In | Supported |
| RTTY Decode | Built-In |
| PSK31 Decode | Built-In |
| PSK63 Decode | Built-In |
| Quick Split | Supported |
| Quick Memory Bank | QMB |
| Band Stack Function | Supported |
| USB Interface | Built-In |
| CAT Control | Supported |
| Memory Storage | SD Card |
| Remote Operation | Optional SCU-LAN10 |
| Frequency Stability | ±0.5 ppm |
| Antenna Impedance | 50 Ohm |
| Supply Voltage | 13.8 VDC ±15% |
| Current Consumption RX | Approx. 2.3 A |
| Current Consumption TX | Approx. 22 A |
| Dimensions | 266 x 91 x 263 mm |
| Weight | 5.9 kg |
| Microphone | SSM-75E Included |
