Yaesu FTDX-101MP HF+50MHz 200W Transceiver
Rs. 545,000.00
(Inclusive of GST)
Available for Pre-Order
This product is currently available at our warehouse in Kawasaki, Kanagawa, Japan and is not stocked at our Kolkata facility.
Upon order confirmation, we will arrange sourcing and shipment through our global fulfillment network.
Estimated Delivery: Within 2 Weeks
Reserve your unit today by placing a pre-order.
Yaesu FTDX-101MP HF+50MHz 200W Transceiver
Yaesu FTDX-101MP HF+50MHz 200W Transceiver
Yaesu FTDX-101MP HF+50MHz 200W Transceiver

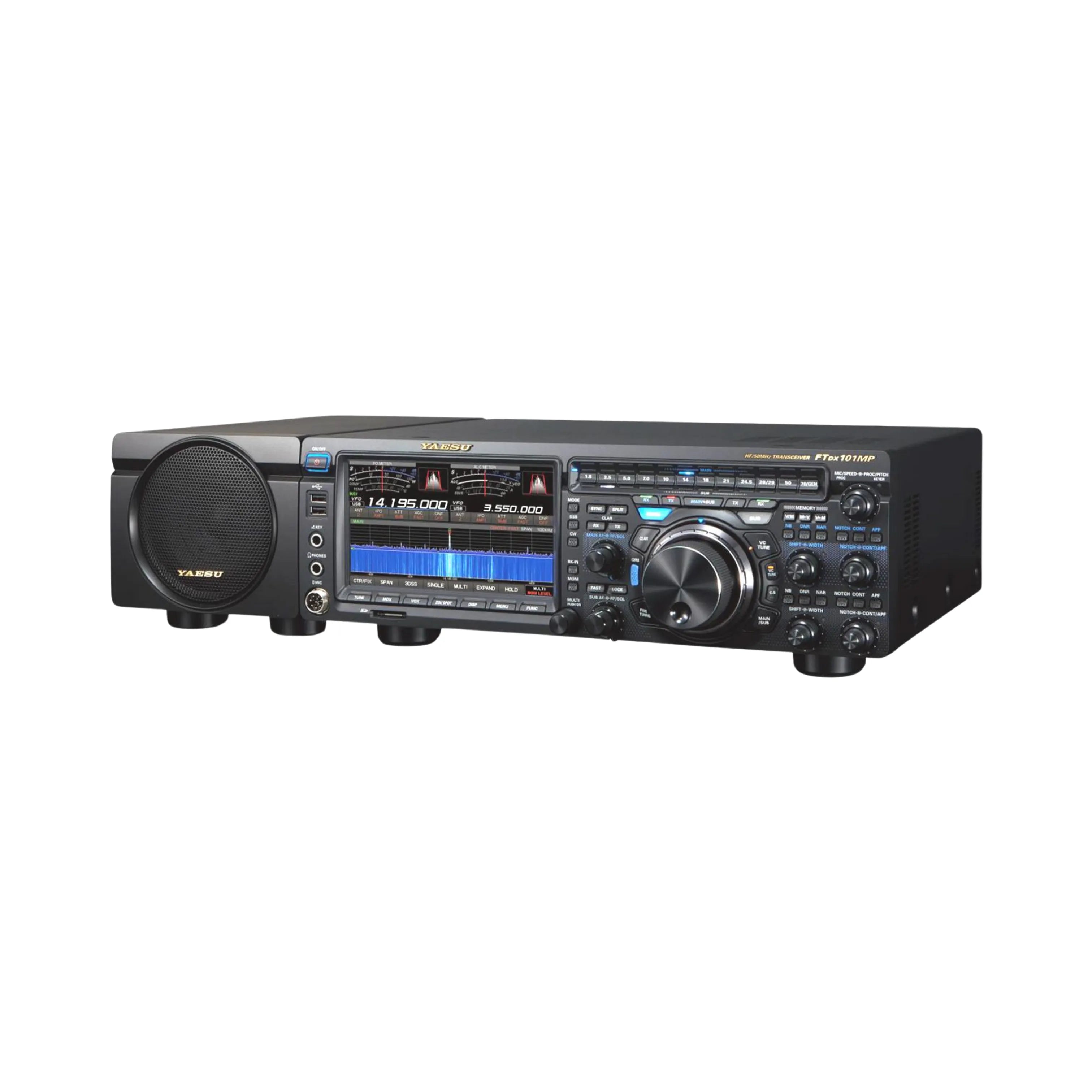

The Yaesu FTDX-101MP is a flagship HF and 50 MHz Hybrid SDR transceiver delivering 200 watts of output power and uncompromising receiver performance for demanding DX, contest, and weak-signal operation. Combining dual independent receivers, advanced VC-TUNE preselection, Hybrid SDR architecture, and a high-resolution real-time spectrum scope, the FTDX-101MP is engineered for operators seeking maximum signal handling capability and world-class station performance.
Key Features
- HF and 50 MHz all-mode amateur radio transceiver
- 200 Watt RF output power for demanding station applications
- Advanced Hybrid SDR architecture combining Narrow Band SDR and Direct Sampling SDR technologies
- Dual independent receivers with separate signal processing paths
- Outstanding receiver dynamic range for contest and DX environments
- 123 dB+ RMDR performance at 2 kHz spacing
- 150 dB+ blocking dynamic range performance
- 110 dB+ third-order intermodulation dynamic range
- 400 MHz HRDDS (High Resolution Direct Digital Synthesizer) local oscillator system
- Ultra-low phase noise performance for enhanced weak-signal reception
- VC-TUNE continuously variable RF preselector system
- Up to 70 dB attenuation of strong out-of-band signals
- 15 dedicated RF band-pass filters for improved front-end selectivity
- 9 MHz first IF down-conversion receiver architecture
- Standard roofing filters including 600 Hz, 3 kHz, and 12 kHz
- Optional 300 Hz and 1.2 kHz crystal roofing filters available
- Large 7-inch TFT color touchscreen display
- 3DSS (3-Dimensional Spectrum Stream) real-time spectrum scope
- Dual spectrum scope display for Main and Sub receivers
- High-speed waterfall display with smooth signal tracking
- Active Band Indicator (ABI) with illuminated band status display
- MPVD multi-function VFO outer dial for advanced receiver control
- Digital Noise Reduction, Contour, Notch, and APF filtering functions
- Advanced IF DSP signal processing system
- Built-in CW decoder and CW operating enhancements
- RTTY, PSK31, and PSK63 encode/decode support
- Built-in automatic antenna tuner with fast memory recall
- High-duty-cycle 200 W amplifier design utilizing LDMOS technology
- Large-capacity cooling system for continuous operation
- USB interface for CAT control, digital modes, and audio connectivity
- RS-232 interface for station automation and control
- Built-in LAN connectivity for network integration and remote operation
- DVI-D output for external monitor support
- SD card support for memories, recordings, screenshots, and firmware updates
- Independent controls for Main and Sub receiver operation
- Optimized for contest stations, DXpeditions, digital modes, and premium HF installations
Typical Uses
- Elite HF DX chasing and pileup management
- Single and multi-operator contest stations
- Weak-signal and low-band operation
- CW contesting and DX communications
- FT8, RTTY, PSK31, and advanced digital mode operation
- 6-meter DX and propagation monitoring
- Remote station operation via LAN or Internet
- High-performance amateur radio base station installations
In the Box
- Yaesu FTDX-101MP Transceiver

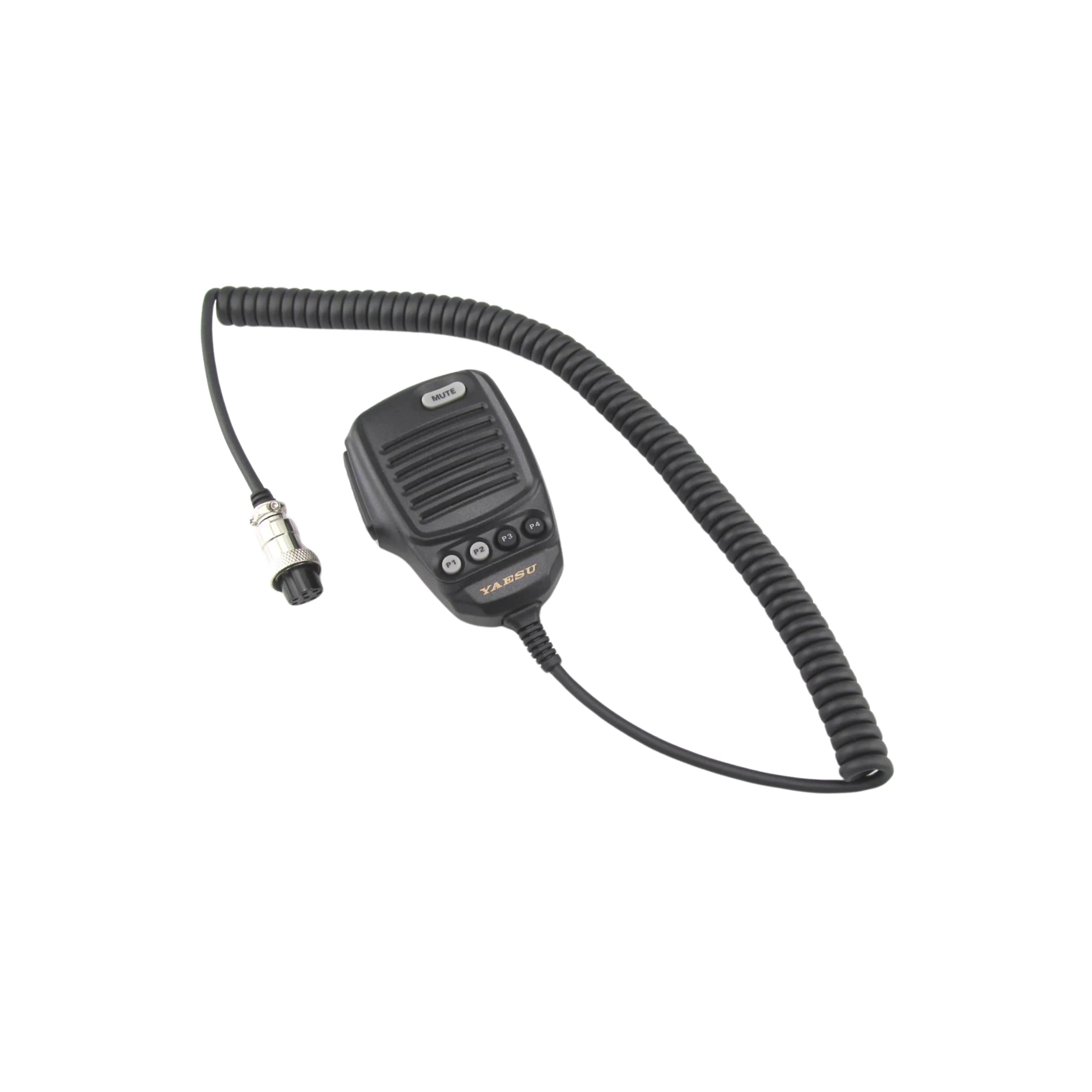

- SSM-75G Hand Microphone
- AC Power Cord
- Spare Fuses
- Accessory Connectors
- Operating Manual
| Brand | Yaesu |
| Model Number | FTDX-101MP |
| Product Type | HF/50MHz Hybrid SDR Base Transceiver |
| Frequency Coverage TX | 160m-6m Amateur Bands |
| Frequency Coverage RX | 30 kHz-75 MHz |
| Operating Modes | SSB/CW/AM/FM/RTTY/PSK31/PSK63 |
| RF Output Power | 5-200 W |
| AM Output Power | 5-50 W |
| Receiver Architecture | Hybrid SDR |
| Receiver Configuration | Dual Independent Receivers |
| First IF Frequency | 9 MHz |
| Signal Processing | 32-Bit DSP |
| HRDDS Oscillator | 400 MHz |
| RMDR | 123 dB+ @ 2 kHz |
| Blocking Dynamic Range | 150 dB+ @ 2 kHz |
| Third Order IMD Dynamic Range | 110 dB+ @ 2 kHz |
| Phase Noise | Ultra-Low Phase Noise Design |
| VC-TUNE | Continuously Variable RF Preselector |
| VC-TUNE Attenuation | Up to 70 dB |
| Band Pass Filters | 15 |
| Roofing Filters | 600 Hz/3 kHz/12 kHz |
| Optional Roofing Filters | 300 Hz/1.2 kHz |
| Display | 7 in TFT Color Touchscreen |
| Display Resolution | 800 x 480 |
| Spectrum Scope | 3DSS Real-Time |
| Waterfall Display | Built-In |
| Automatic Antenna Tuner | Built-In |
| Power Amplifier Technology | LDMOS |
| USB Interface | Built-In |
| RS-232 Interface | Built-In |
| LAN Connectivity | Built-In |
| Remote Operation | LAN and Internet Capable |
| External Display Output | DVI-D |
| Memory Storage | SD Card |
| CW Decoder | Built-In |
| RTTY Decode | Built-In |
| PSK31 Decode | Built-In |
| PSK63 Decode | Built-In |
| Frequency Stability | High-Stability OCXO |
| Power Supply | AC Mains |
| Current Consumption TX | High-Power 200 W Class |
| Dimensions | 420 x 130 x 319 mm |
| Weight | Approximately 17 kg |
| Microphone | SSM-75G Included |
| Antenna Connectors | 3 |
