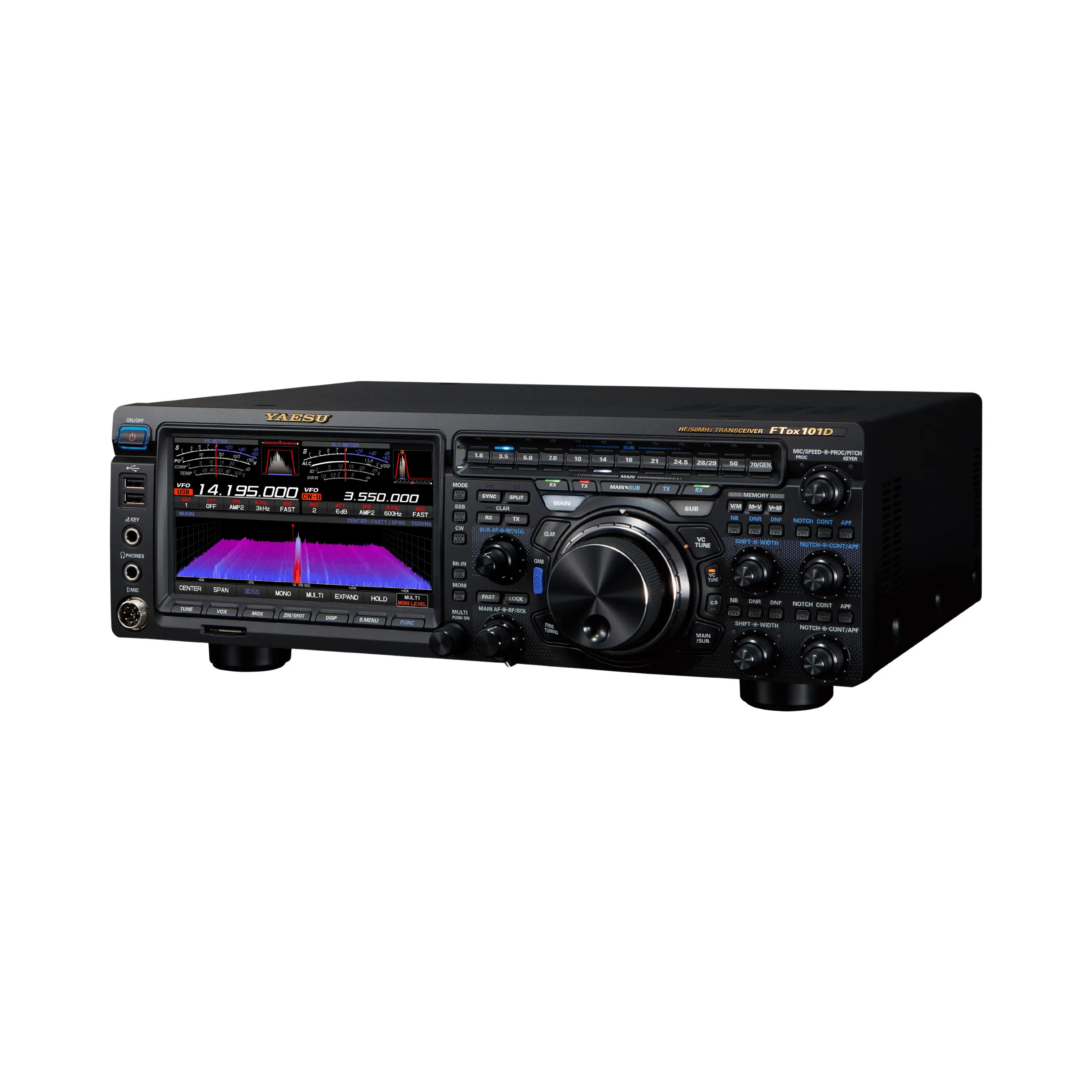

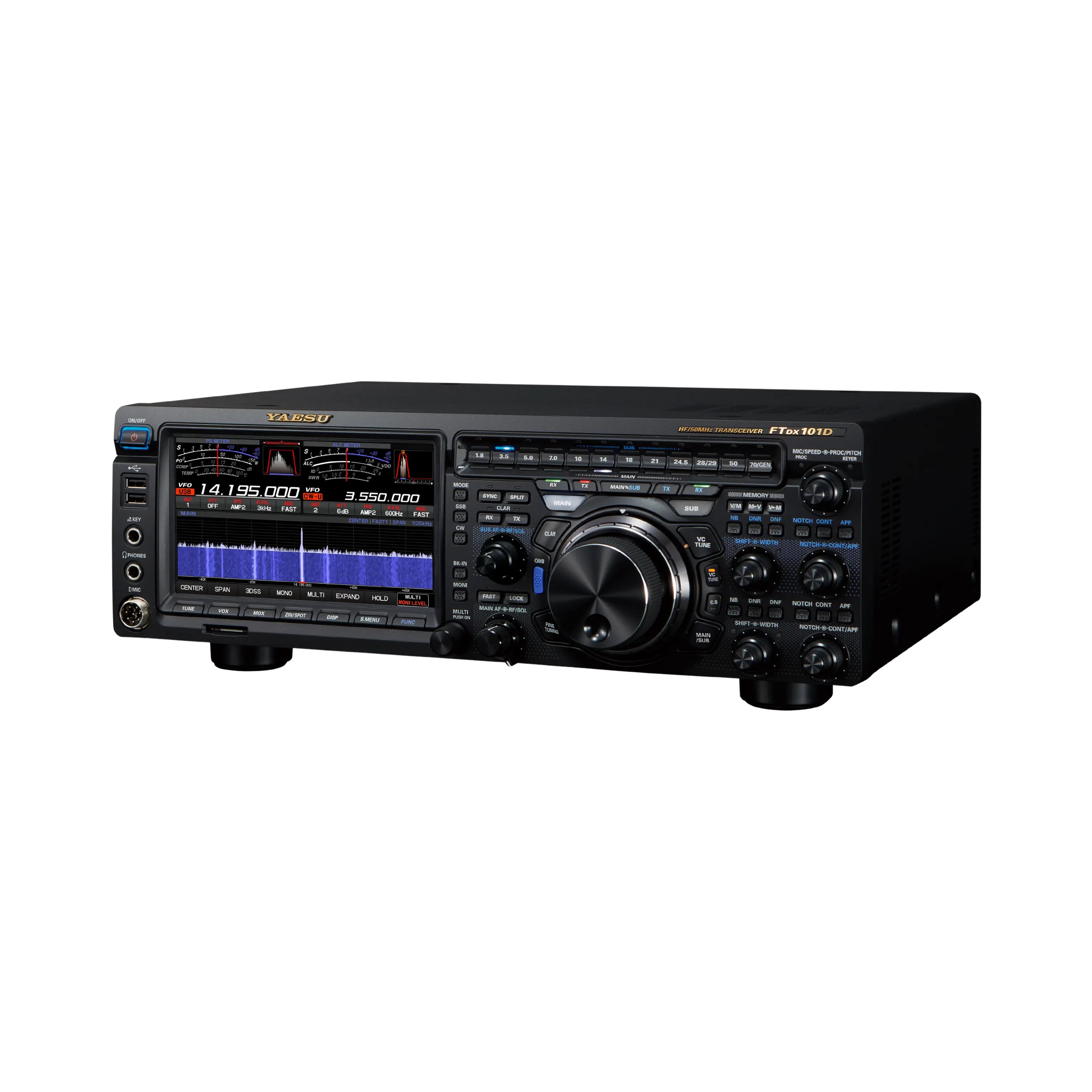

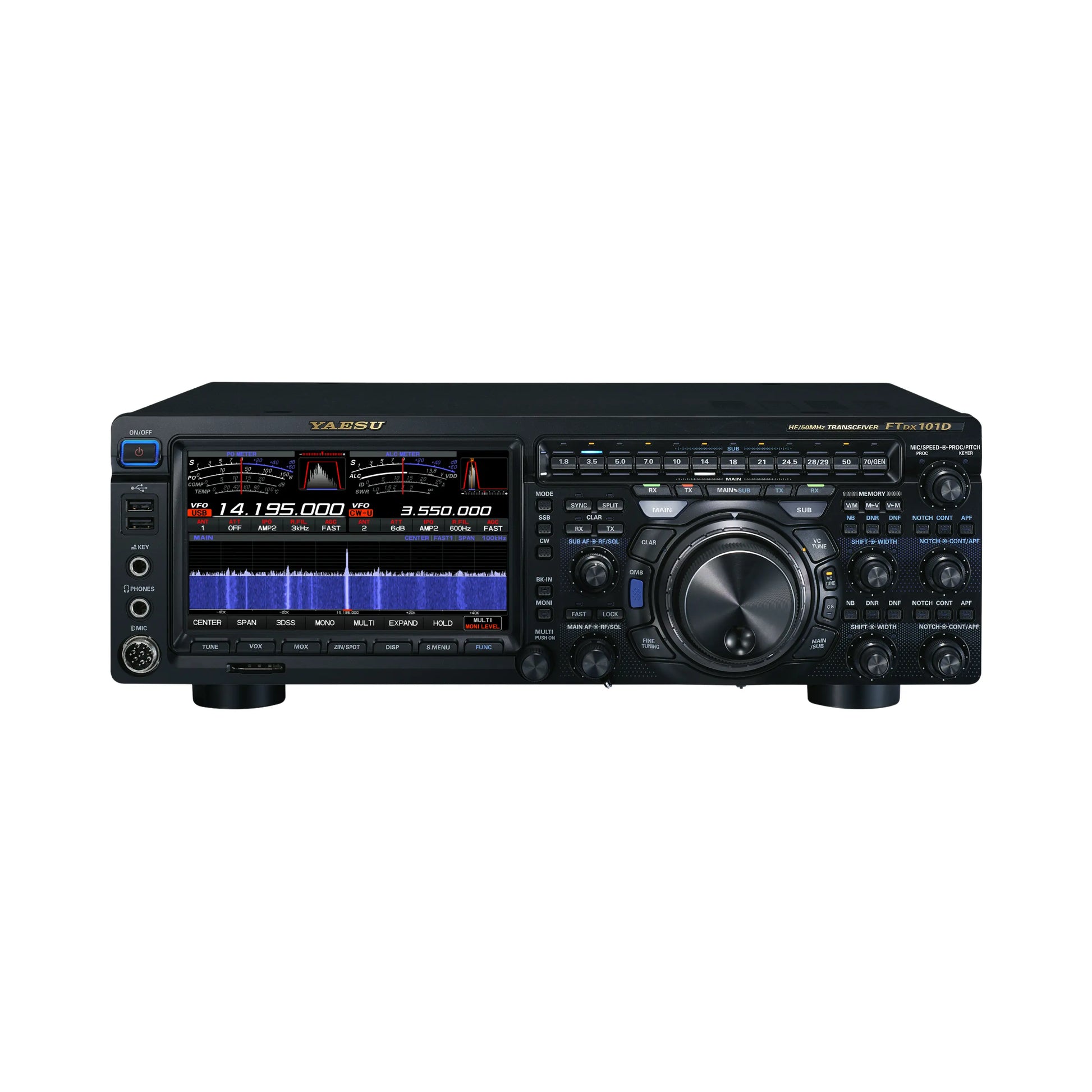

Yaesu FTDX-101D HF/50MHz 100W Transceiver

Yaesu FTDX-101D HF/50MHz 100W Transceiver

The Yaesu FTDX-101D is a flagship-class HF and 50 MHz transceiver designed for elite DXing, contesting, and weak-signal operation. Utilizing Yaesu's advanced Hybrid SDR architecture that combines a narrow-band SDR receiver with a direct-sampling SDR spectrum scope system, the FTDX-101D delivers exceptional dynamic range, superior adjacent-signal rejection, and outstanding receiver performance in demanding RF environments.

Key Features

• HF and 50 MHz all-mode amateur radio transceiver
• 100 Watt RF output power for HF and 6-meter operation
• Advanced Hybrid SDR architecture combining Narrow Band SDR and Direct Sampling SDR technologies
• Dual independent receivers for simultaneous monitoring of multiple frequencies
• Outstanding receiver dynamic range optimized for contest and DX environments
• 123 dB+ RMDR performance at 2 kHz spacing
• 150 dB+ Blocking Dynamic Range performance
• 110 dB+ Third-Order Intermodulation Dynamic Range performance
• 400 MHz HRDDS (High Resolution Direct Digital Synthesizer) local oscillator system
• Ultra-low phase noise performance of approximately -150 dBc/Hz at 2 kHz spacing
• High-Q VC-TUNE continuously variable RF preselector system
• Up to 70 dB attenuation of unwanted off-frequency signals using VC-TUNE
• 15 dedicated RF band-pass filters for enhanced front-end selectivity
• 9 MHz first IF down-conversion receiver architecture
• Standard roofing filters including 600 Hz, 3 kHz, and 12 kHz selections
• Optional 300 Hz and 1.2 kHz crystal roofing filters available

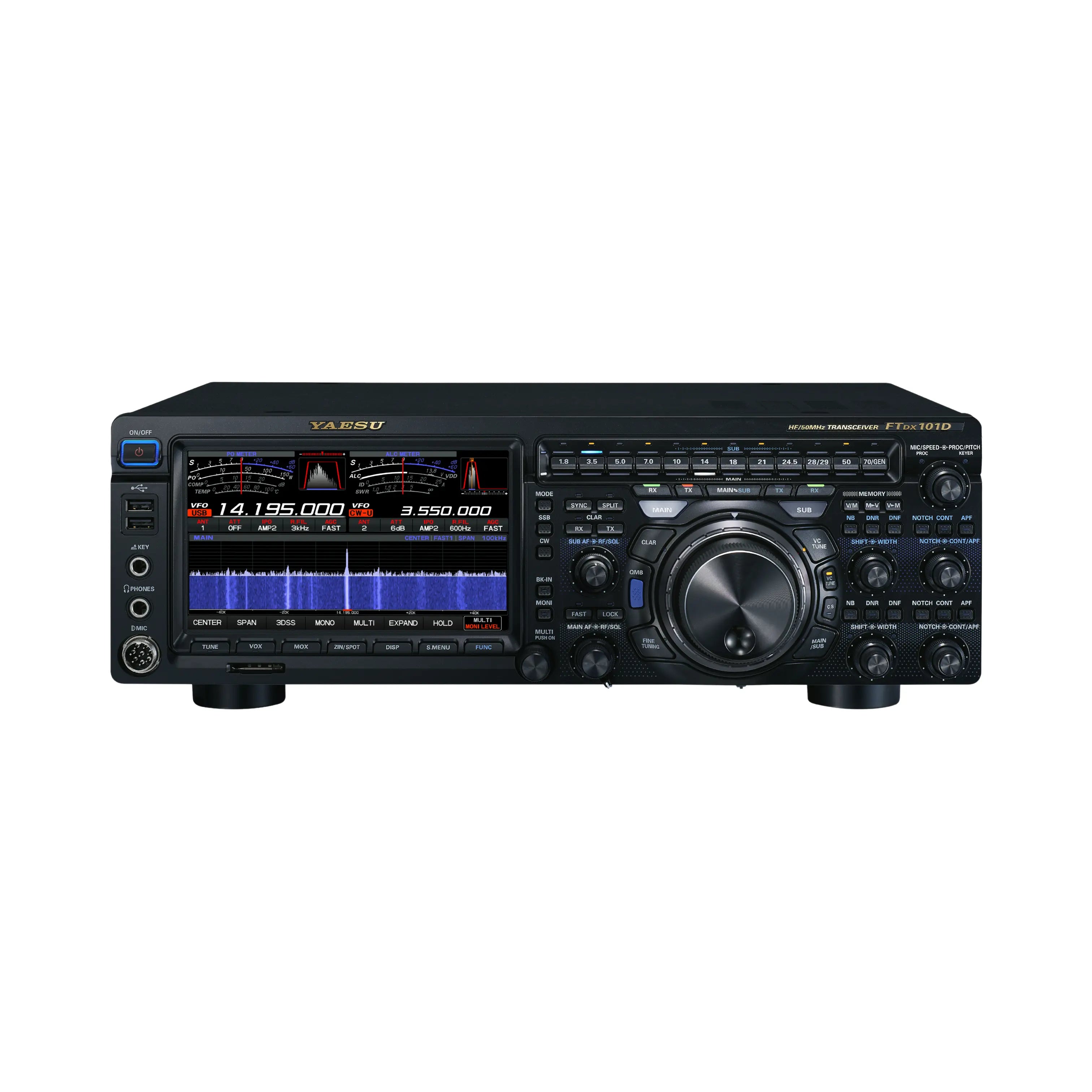

• Large 7-inch TFT color touchscreen display
• 800 × 480 pixel display resolution
• 3DSS (3-Dimensional Spectrum Stream) real-time spectrum scope
• High-speed waterfall display with up to 30 FPS refresh rate
• Dual spectrum scope display capability for Main and Sub receivers
• Active Band Indicator (ABI) with illuminated band status display
• MPVD (Multi-Purpose VFO Outer Dial) for VC-TUNE, clarifier, fine tuning, and custom controls
• Advanced IF DSP processing for effective QRM and interference reduction
• Digital Noise Reduction, Notch, Contour, and Audio Peak Filter functions
• Built-in CW decoder and advanced CW operating tools
• RTTY, PSK31, and PSK63 encode/decode support
• Built-in automatic antenna tuner

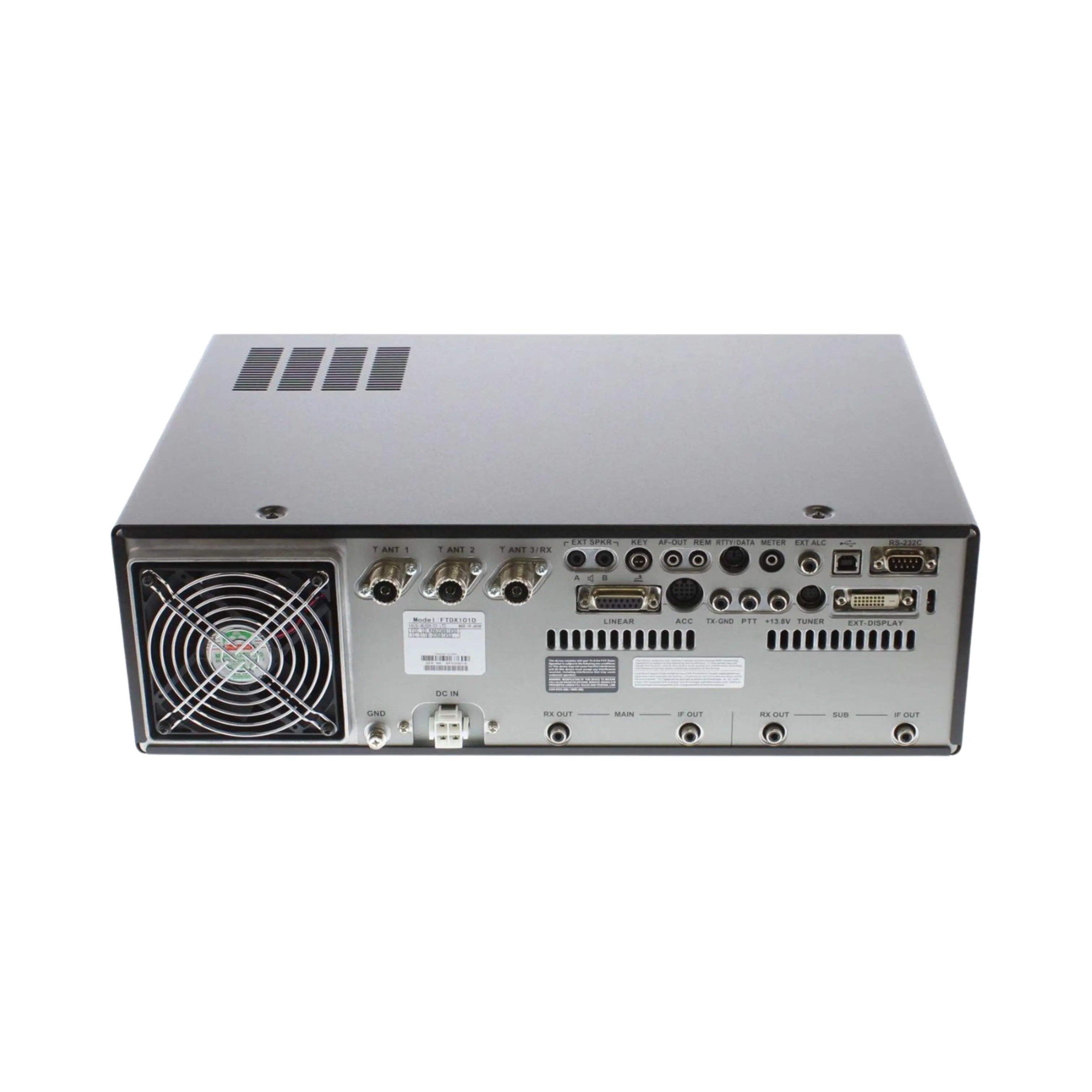

• USB and RS-232 connectivity for CAT control and station integration
• DVI display output for external monitor connection
• LAN connectivity supporting remote operation over local networks and the Internet
• SD card support for memories, recordings, firmware updates, and station backup
• Independent Main and Sub receiver controls for serious contest operation
• Designed for top-tier DX, contest, CW, and weak-signal amateur radio applications

Typical Uses

• Elite HF DX chasing and pileup management
• Single-operator and multi-operator contest stations
• CW contesting and weak-signal operation
• FT8, RTTY, PSK31, and advanced digital communications
• 6-meter DX and propagation monitoring
• Remote station operation via LAN or Internet
• Premium amateur radio base station installations

In the Box

• Yaesu FTDX-101D Transceiver

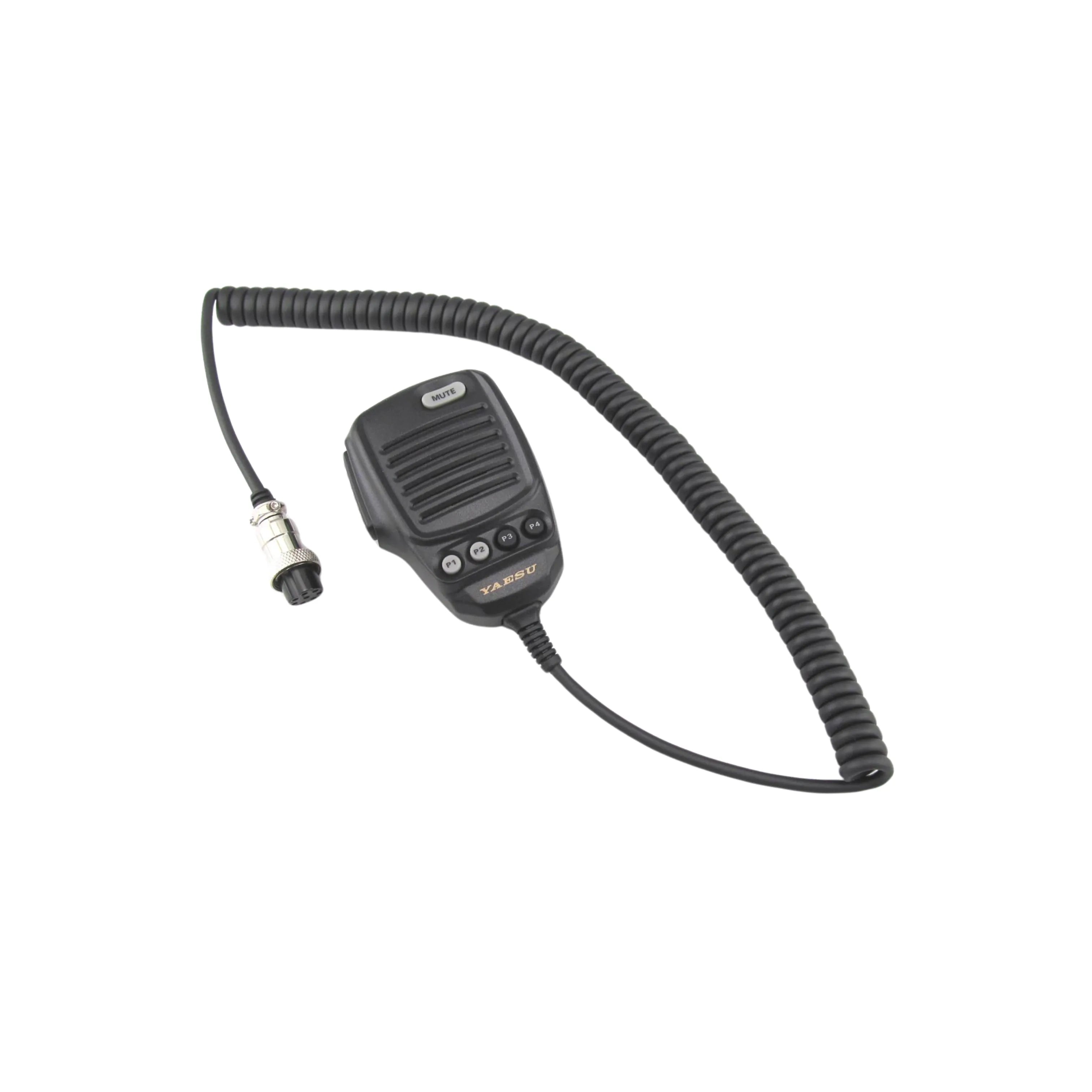

• SSM-75G Hand Microphone
• DC Power Cable
• Spare Fuses
• Accessory Connectors
• Operating Manual
