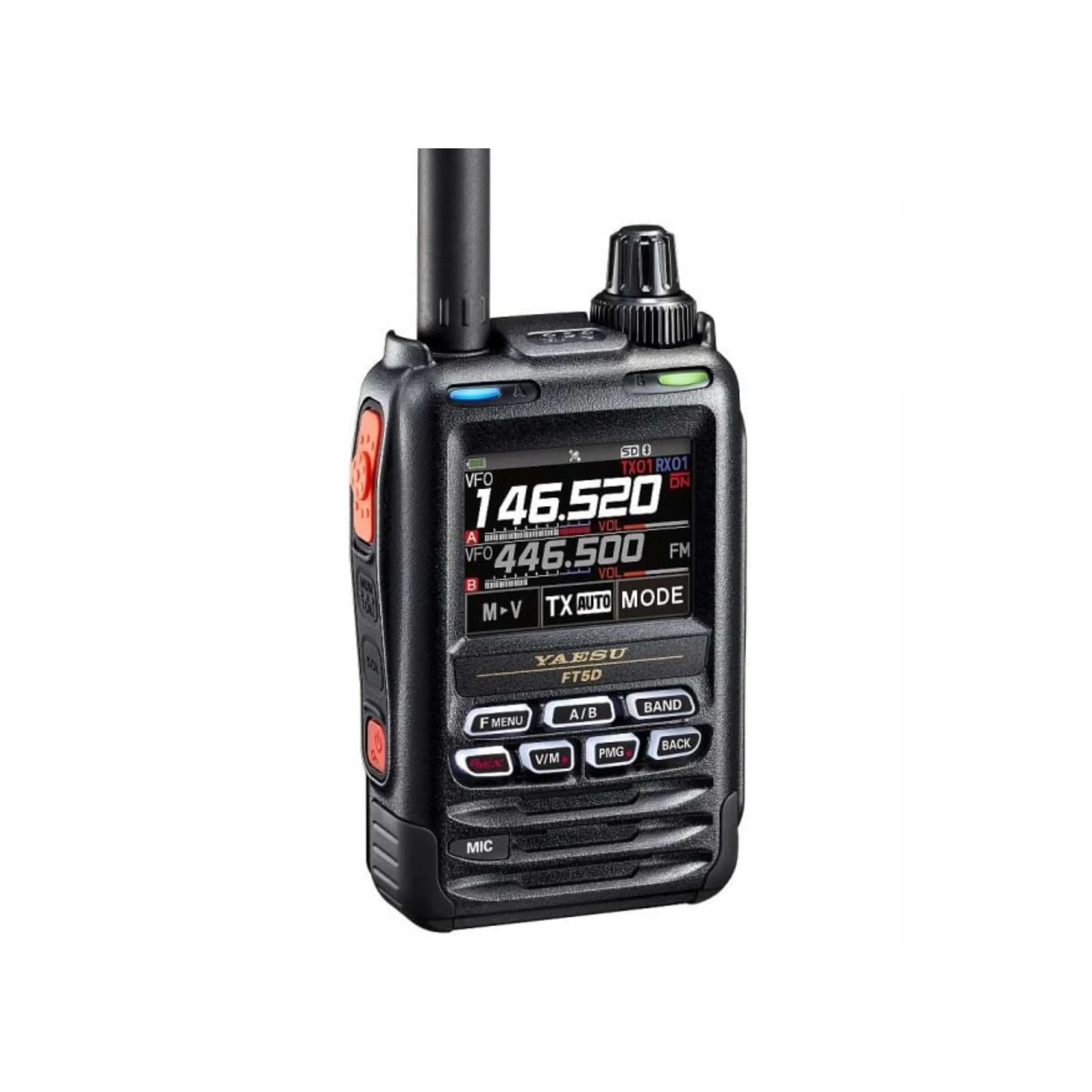

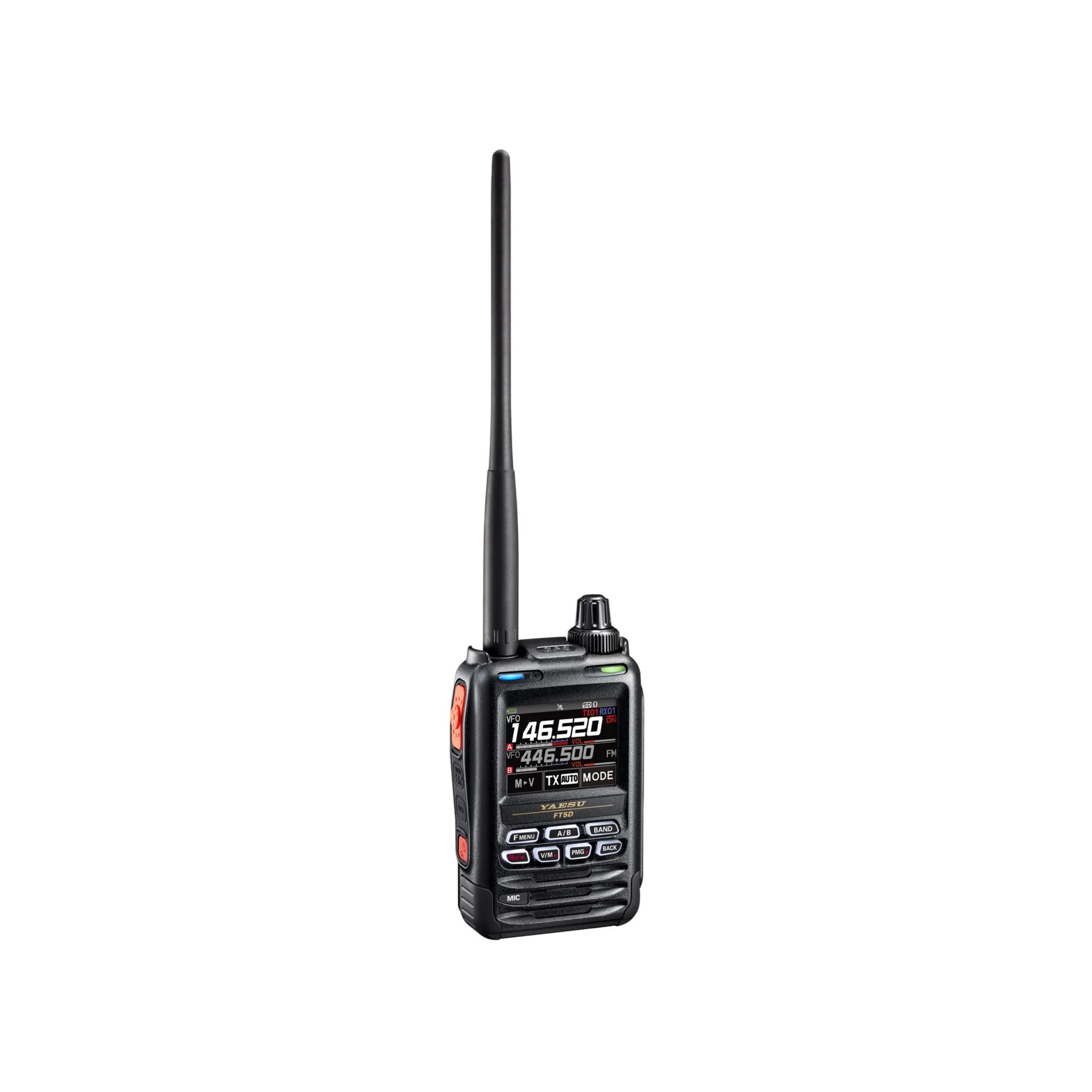

Yaesu FT5D 2m/70cm C4FM/FM Digital Handheld Transceiver
Brand:
Yaesu
Yaesu FT5D 2m/70cm C4FM/FM Digital Handheld Transceiver
Yaesu FT5D 2m/70cm C4FM/FM Digital Handheld Transceiver
Yaesu FT5D 2m/70cm C4FM/FM Digital Handheld Transceiver
The Yaesu FT5D is a premium dual-band VHF/UHF handheld transceiver featuring C4FM System Fusion® digital voice technology, integrated APRS®, Bluetooth®, and GPS functionality. Designed for advanced amateur radio operators, the FT5D combines dual-receive capability, a high-resolution color touchscreen, and extensive digital communication features in a rugged, compact portable platform.
Key Features
- Dual-band 144 MHz and 430 MHz amateur radio operation
- C4FM System Fusion® digital voice and conventional FM modes
- AMS (Automatic Mode Select) for seamless FM and C4FM operation
- True dual-receive capability with simultaneous monitoring of two frequencies
- A-Band and B-Band independent operation
- High-resolution 2.4-inch color touchscreen display
- Enhanced touch-panel user interface with intuitive navigation
- Built-in APRS® modem with transmit and receive functionality
- Integrated GPS receiver for position reporting and navigation
- Built-in Bluetooth® for wireless audio accessories and smartphone connectivity
- Smart Navigation and Backtrack navigation functions
- Digital Group Monitor (GM) function for System Fusion users
- Portable Digital Node Function (PDN) support
- WIRES-X portable node compatibility
- High-quality C4FM digital voice communication
- Voice recording and playback capability
- MicroSD card slot for memory backup, logging, and firmware updates
- Wideband receiver coverage including VHF airband reception
- AM/FM broadcast receive capability
- Built-in 1000-channel memory system
- Memory channel grouping and management functions
- Snapshot image transfer support when used with compatible accessories
- USB connectivity for programming and data functions
- IPX7 waterproof construction for outdoor operation
- High-capacity lithium-ion battery system
- Loud and clear audio output optimized for portable use
- Compact, lightweight design for field and travel operation
- Ideal for System Fusion networks, APRS operation, emergency communications, and portable amateur radio activities
Typical Uses
- C4FM System Fusion digital communications
- APRS position reporting and tracking
- Portable VHF/UHF amateur radio operation
- Emergency and disaster communications
- Travel and outdoor field activities
- Repeater and WIRES-X network access
- Airband and broadcast monitoring
In the Box
- Yaesu FT5D Handheld Transceiver
- SBR-14LI 2200 mAh Lithium-Ion Battery Pack
- SAD-25B AC Adapter
- SBH-52 Charging Cradle
- SRA-15A Flexible Antenna
- Belt Clip
- USB Cable
- User Documentation
| Brand | Yaesu |
| Model Number | FT5D |
| Product Type | Dual-Band C4FM/FM Handheld Transceiver |
| Frequency Coverage TX VHF | 144-148 MHz |
| Frequency Coverage TX UHF | 430-450 MHz |
| Frequency Coverage RX | 0.5-999.99 MHz |
| Operating Modes | C4FM/FM/AM/WFM |
| RF Output Power | 5W/2.5W/1W/0.3W |
| Digital Voice System | C4FM System Fusion |
| AMS | Automatic Mode Select |
| Dual Receive | True Dual Receive |
| APRS | Built-In |
| GPS Receiver | Built-In |
| Bluetooth | Built-In |
| Display | 2.4in Color Touchscreen TFT |
| Memory Channels | 1000 |
| Memory Groups | 99 |
| Digital Group Monitor | Supported |
| Portable Digital Node | Supported |
| WIRES-X Portable Node | Supported |
| Voice Recording | Supported |
| Memory Storage | microSD Card |
| USB Interface | Supported |
| Waterproof Rating | IPX7 |
| Battery Type | Li-Ion |
| Battery Capacity | 2200mAh |
| Audio Output | 1W |
| Antenna Connector | SMA Female |
| Frequency Stability | ±2.5ppm |
| Dimensions | 62 x 100 x 34 mm |
| Weight | Approx. 282g |
| Battery Pack | SBR-14LI Included |
| Charging Cradle | SBH-52 Included |
| Bluetooth Audio | Supported |
