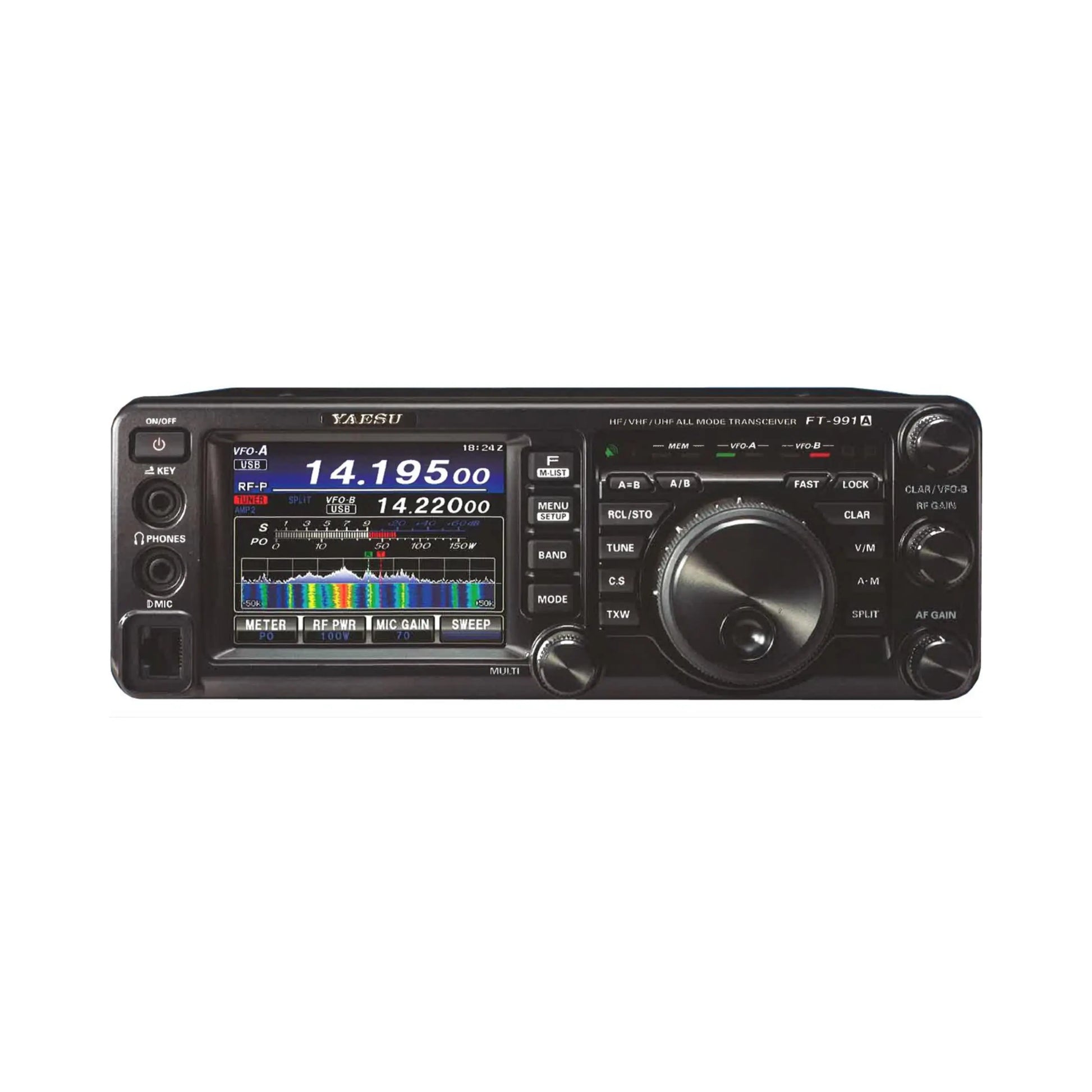

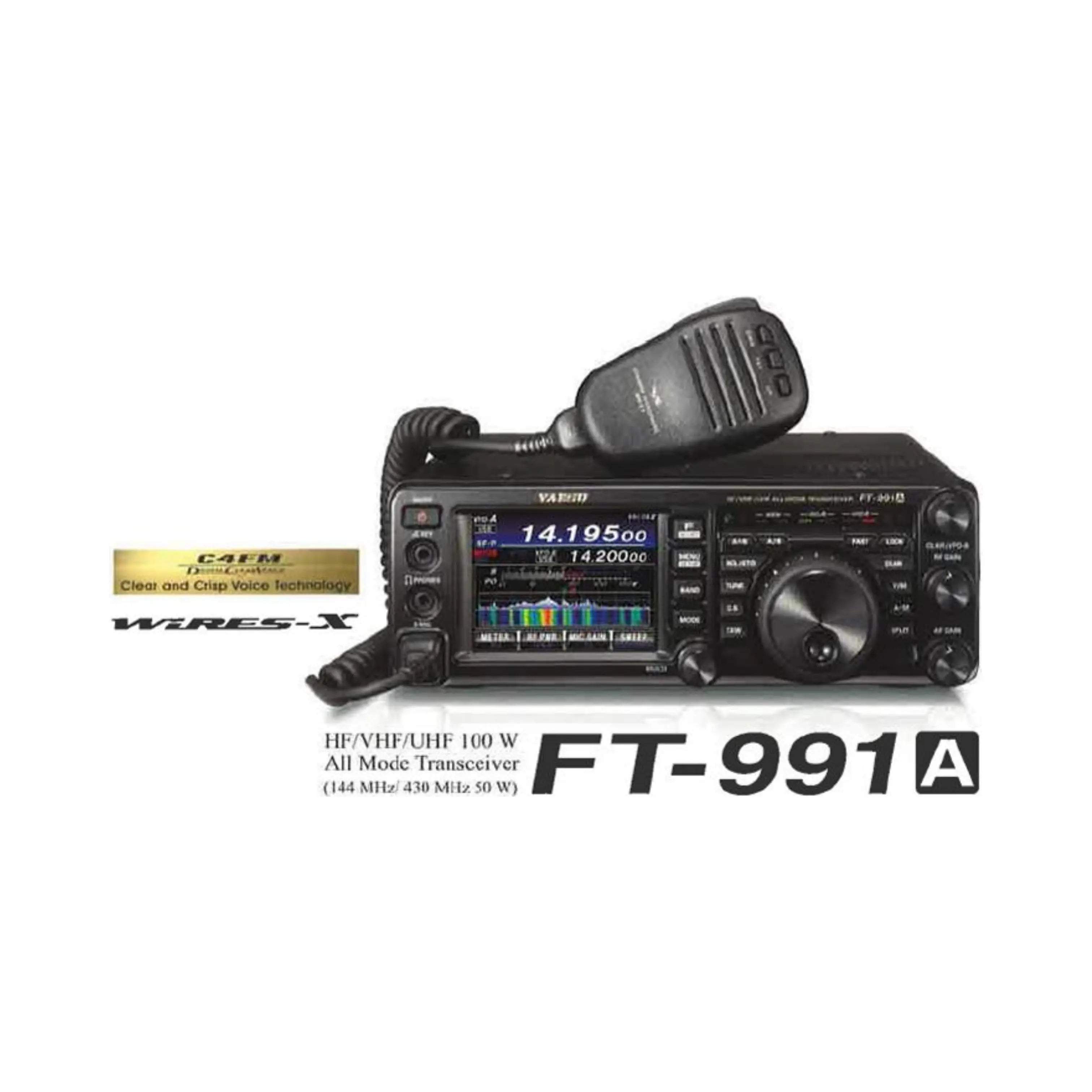

Yaesu FT-991A HF/VHF/UHF Multi-Mode Transceiver

The Yaesu FT-991A is a full-featured, all-band, all-mode HF/VHF/UHF transceiver built for operators who want powerful performance in a compact footprint. Equipped with C4FM (System Fusion) Digital capability, real-time spectrum analysis, and a high-resolution color display, the FT-991A delivers exceptional versatility whether you're operating at home, in the field, or on the move.

Designed as an upgrade to the popular FT-991, the FT-991A adds two major enhancements:

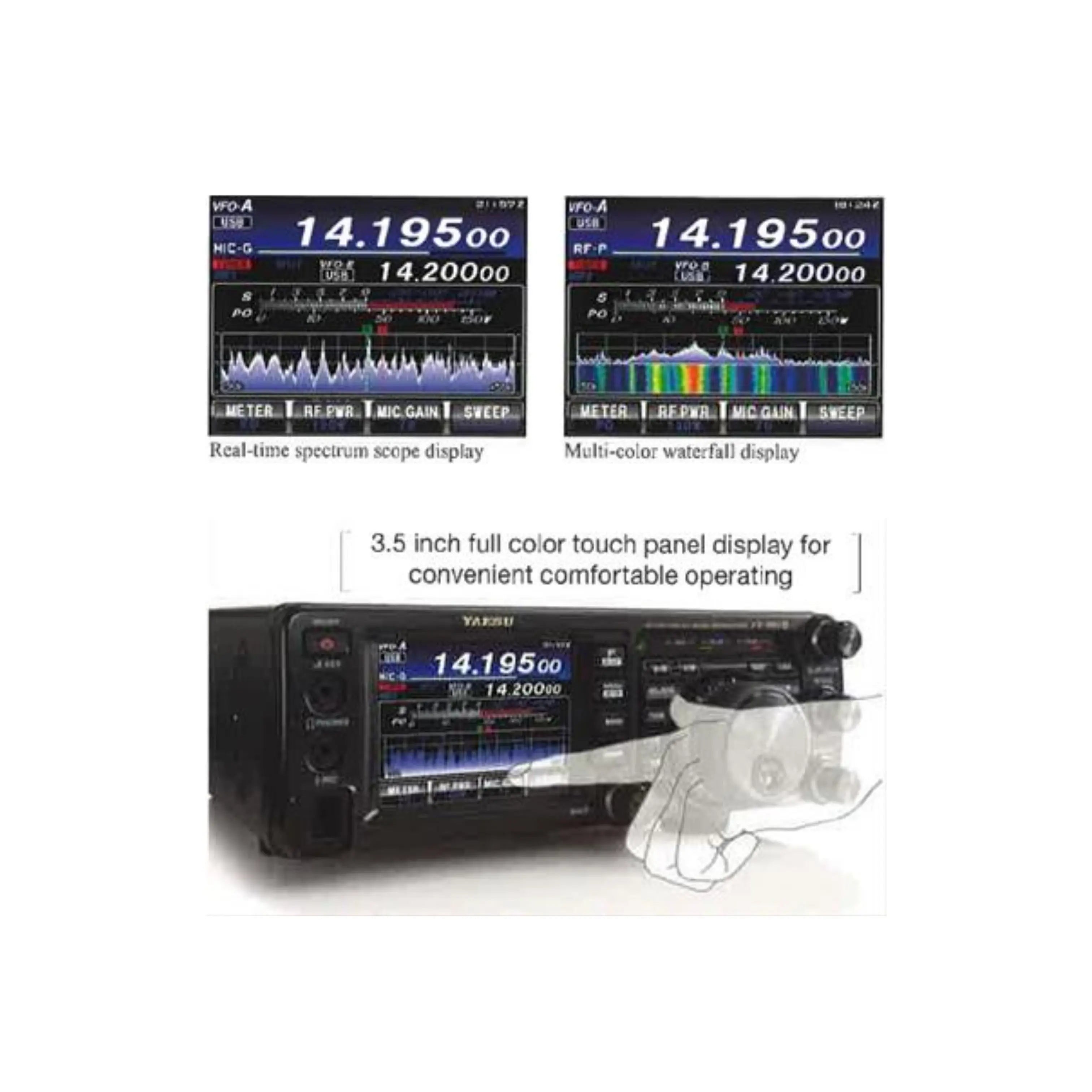

✔ Real-Time Spectrum Scope
✔ Multi-Color Waterfall Display
These provide immediate visual insight into band activity, making it faster and easier to locate and work signals across the spectrum.

The FT-991A covers all major Amateur Radio bands (HF/50/144/430 MHz) and supports a wide range of modes including SSB, CW, AM, FM, Packet, PSK31, RTTY, and C4FM. With 100W output on HF/6m and 50W on VHF/UHF, plus an internal automatic antenna tuner with 100-channel memory, this radio is built for serious, long-term operation.

Its rugged triple-conversion superheterodyne receiver, TI floating-point DSP, and selectable 3/6/15 kHz roofing filters provide top-tier signal handling and interference rejection — even in congested band conditions.

Despite its power and feature depth, the FT-991A maintains a compact form factor and intuitive touchscreen interface, making it an ideal choice for base, portable, or mobile setups.

Supplied Accessories

• MH-31A8J Hand Microphone



• DC Power Cord



• Spare Fuse (25A)



• Operating Manual



• Warranty Card



Technical Specifications

Brand

Yaesu

Manufacturer’s Part Number

FT-991A

Part Type

Base Transceivers

Product Line

Yaesu FT-991A HF/VHF/UHF Multi-Mode Transceivers

DXE Part Number

YSU-FT-991A

UPC

788026156290

FCC License Required to Transmit

Yes

Receive Coverage

• 0.030–56.000 MHz



• 136.000–164.000 MHz



• 420.000–470.000 MHz



Transmit Coverage

• 1.8–54 MHz



• 144–148 MHz



• 430–450 MHz



Receiver System

• Single Receiver



• Roofing Filters: 15 kHz / 6 kHz / 3 kHz



• Circuit Type: Triple-Conversion (SSB/CW/AM) / Double-Conversion (FM/C4FM)



• Spectrum Scope & Multi-Color Waterfall: Yes



Modes Supported

• SSB (USB/LSB)



• CW



• AM



• FM



• C4FM Digital (System Fusion)



• Packet, PSK31, RTTY



Power Output

• HF/6m: 100W



• VHF/UHF: 50W



• AM: 25W (max), 2W (min)



• Minimum SSB/CW Power: 5W

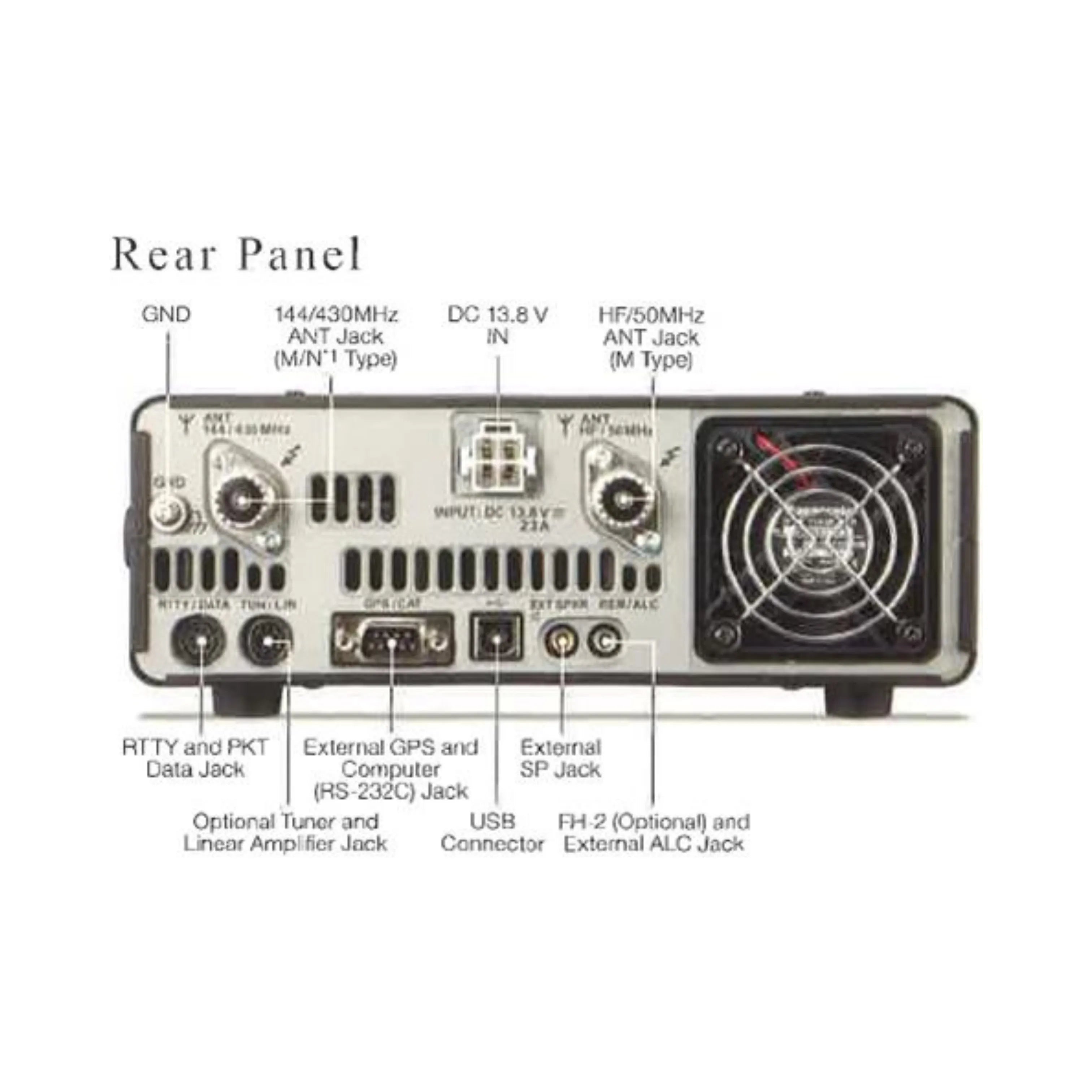

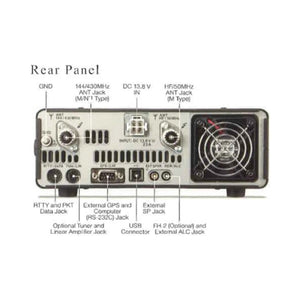

Antenna & Connectivity

• Antenna Ports: 2



• Dedicated RX Antenna Input: No



• Internal ATU: Yes (100-channel memory)



• Computer Interface: RS-232



• Digital Interface: 6-pin mini-DIN



• External Display Capability: No



Power Requirements

• 13.8 VDC (External supply, not included)



• Max Current Draw: 23.0 A



Dimensions & Weight

• Width: 9.000 in.



• Height: 3.200 in.



• Depth: 9.300 in.



• Weight: 9.500 lbs.
