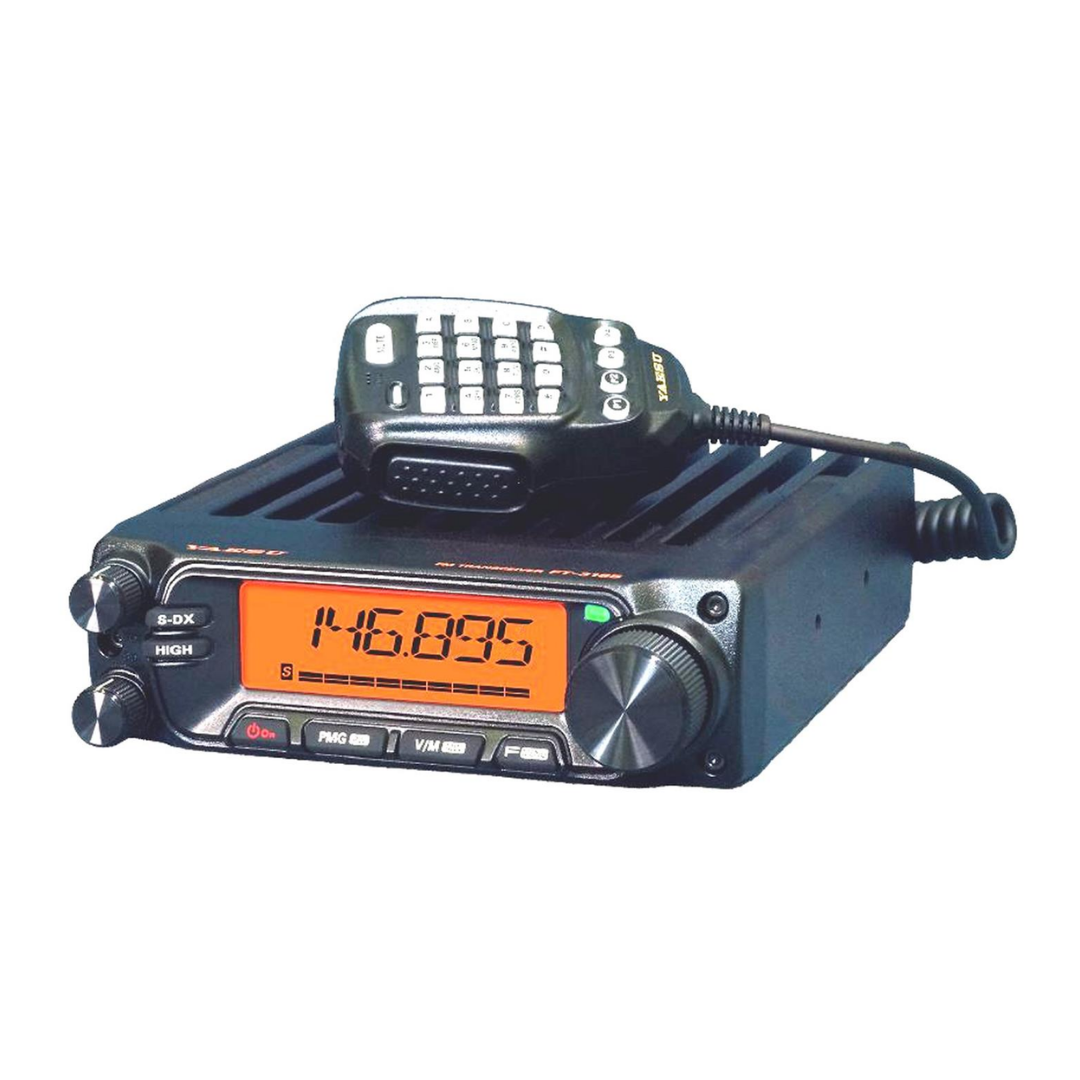

Yaesu FT-3185RASP VHF FM Mobile Transceiver

The Yaesu FT-3185RASP is a robust, high-output VHF FM mobile transceiver designed for operators who demand power, reliability, and clean audio in every transmission. Delivering a massive 85W of RF output, this radio ensures strong, stable communication even in demanding environments — whether in mobile installations, base stations, or field operations.

Engineered with a massive fanless heatsink, the FT-3185RASP maintains optimal thermal control for consistent, reliable performance over long duty cycles. Its advanced Audio Digital Signal Processor (DSP) with Super-DX mode enhances weak-signal reception, ensuring crystal-clear audio even under challenging conditions.

Packed with intelligent memory management, intuitive operation, and Yaesu’s legendary build quality, the FT-3185RASP stands as a top choice for VHF professionals and amateur radio enthusiasts alike.

Key Features & Technical Highlights

High-Power, Reliable Transmission

• Delivers up to 85W of RF output for long-distance VHF communication.


• Four selectable power levels: 85W, 50W, 20W, and 5W for flexible operation and energy efficiency.


• Rugged, fanless cooling design ensures quiet operation and sustained RF performance.


Enhanced Receiver Sensitivity with DSP & Super-DX Mode

• Built-in Audio Digital Signal Processor (ASP) enhances clarity and boosts weak-signal reception.


• Super-DX function activates advanced audio filtering for improved range and intelligibility in noisy environments.


• Ideal for emergency communications and weak-signal conditions.


Intelligent Channel & Memory Features

• Primary Memory Group (PMG) allows up to five VFO or memory channels to be displayed and monitored in real time with bar graphs.


• AUTO and MANUAL PMG modes provide flexibility in how received and transmitted channels are managed.


• Customized Function List (CFL) lets users assign up to nine favorite functions from 44 available menus for quick access.


• 221 memory channels with alphanumeric 6-character labeling for easy organization and recall.


User-Friendly Design & Operation

• Direct frequency entry via DTMF microphone (SSM-85D) for quick tuning and channel input.


• VFO Scan, Preferential Memory Scan, and Priority Channel Scan (Dual Watch) enhance monitoring efficiency.


• RF Squelch and CTCSS/DCS encode-decode for selective calling and repeater access.


• EPCS (Enhanced Paging & Code Squelch) enables selective group or individual calls.


• Adjustable display illumination, Time-Out Timer (TOT), Automatic Power-Off (APO), and Busy Channel Lockout (BCLO) for safety and convenience.


• NOAA Weather Channels (10 presets with weather alert, U.S. version only) for real-time updates in the field.

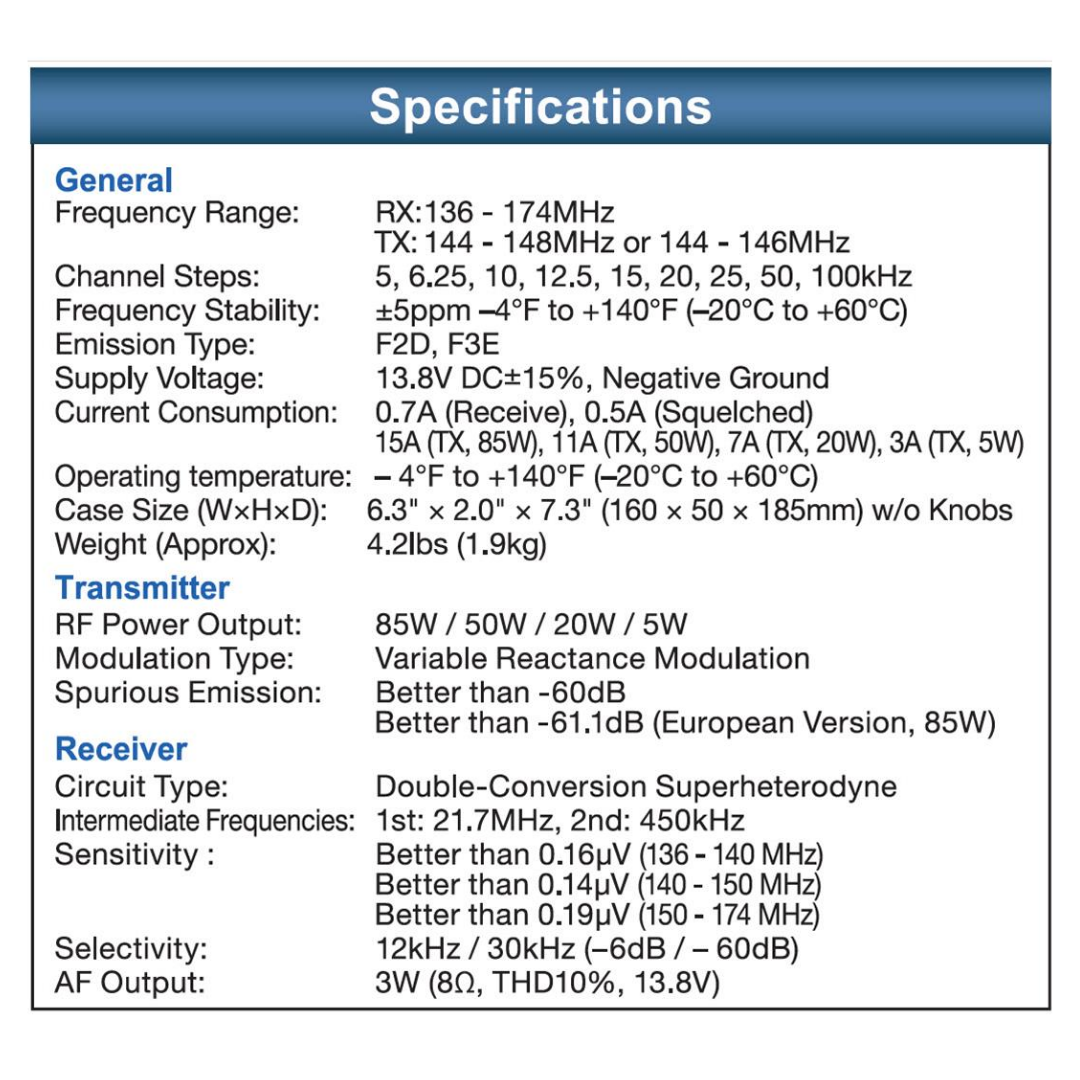

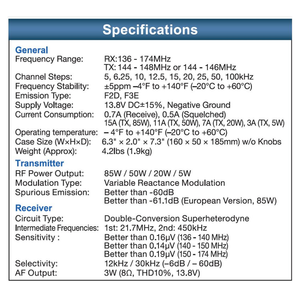

Technical Specifications

• Frequency Range (TX): 144.000–148.000 MHz


• Receive Range: 136.000–174.000 MHz


• Band Coverage: 2M (Monoband VHF)


• RF Power Output: 85W / 50W / 20W / 5W (Selectable)


• Power Supply: 13.8V DC (External, not included)

• Current Consumption:
  • 0.5A (Squelched)
  • 0.7A (Receive)
  • 15A (TX 85W)
  • 11A (TX 50W)
  • 7A (TX 20W)
   • 3A (TX 5W)


• Modulation Type: Variable Reactance


• Memory Channels: 221 + PMG + VFO


• Antenna Connector: 1 × SO-239

Ideal For

✔ Amateur (HAM) Radio Operators
✔ Mobile & Base Station Applications
✔ Emergency & Public Safety Communications
✔ Repeater Linking & VHF Networks
✔ Off-Road and Outdoor Enthusiasts
