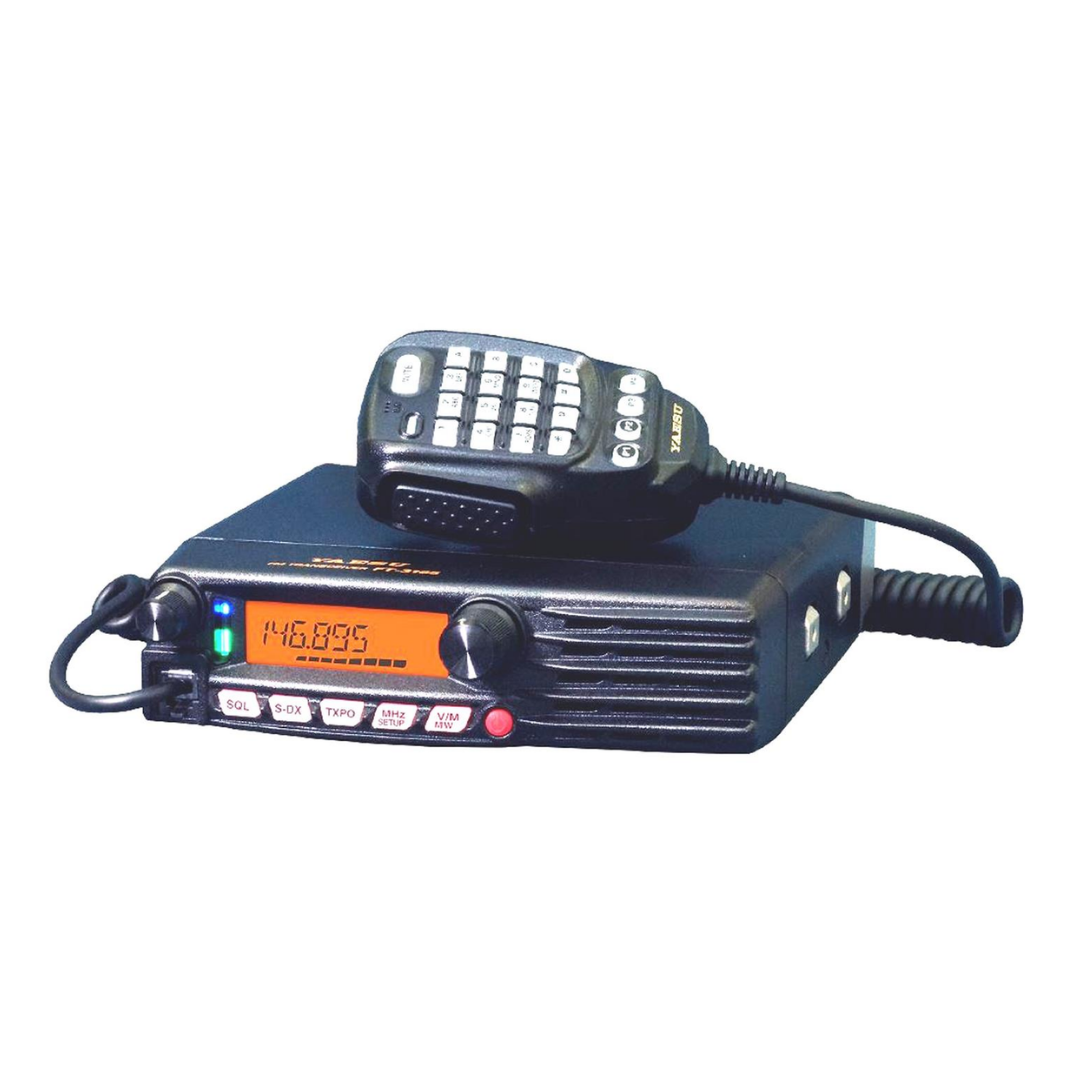

Yaesu FT-3165R VHF FM Mobile Transceiver

The Yaesu FT-3165R is a rugged, high-performance mobile transceiver engineered for dependable 2-meter amateur radio communication. Delivering a powerful 65W of RF output, with selectable power levels of 65W, 30W, or 5W, the FT-3165R ensures reliable transmission in both mobile and fixed installations. Its integrated high-efficiency cooling fan maintains stable performance during extended operation, making it ideal for demanding environments.

Designed for superior audio clarity, the FT-3165R features a newly developed 5W front-facing speaker, optimized to deliver crisp, clear sound even in noisy surroundings. For operators seeking enhanced audio performance, the optional SPU-1 Audio Digital Signal Processing Unit (ASP) (sold separately) offers digital noise reduction and improved intelligibility of weak signals—perfect for long-distance QSOs and challenging RF conditions.

The Super-DX function enhances weak-signal reception by increasing receiver sensitivity, extending communication range when every decibel counts. In addition, the NOAA Weather Channel function with Weather Alert capability ensures users stay informed about critical weather conditions in real time.

The transceiver includes 220 programmable memory channels with alphanumeric labeling, keypad frequency entry via the supplied DTMF microphone, and a suite of user-focused functions such as CTCSS/DCS encoding and decoding, Automatic Repeater Shift (ARS), Time-Out Timer (TOT), Automatic Power-Off (APO), and Busy Channel Lock-Out (BCLO).

Supplied Accessories

• SSM-85D DTMF Microphone



• MMB-83 Mobile Mounting Bracket



• DC Power Cable with Fuse



• Spare 25A Fuse



• USB A-B Cable



• Operating Manual



Key Features

• Super-DX Function: Boosts receiver sensitivity for weak signals, expanding communication range.



• Optional SPU-1 DSP Unit: Enhances audio clarity by digitally reducing noise (sold separately).



• Durable 5W Front Speaker: Optimized for clear, powerful sound even in high-noise environments.



• Large-Capacity Memory: 220 channels with 8-character alphanumeric labels.



• Efficient Cooling System: Integrated cooling fan maintains optimal temperature for high-power operation.



• Expanded Receiver Coverage: 136–174 MHz receive range.



• NOAA Weather Channels: 10 channels with Weather Alert functionality.



• Multiple Scan Modes: VFO Scan, Preferential Memory Scan, and Dual-Watch Priority Channel Scan.



• Advanced Communication Features: CTCSS/DCS, EPCS (Enhanced Paging & Code Squelch), RF Squelch.



• User Convenience: Adjustable display illumination, APO, TOT, and BCLO functions.



Technical Specifications

General:

• Frequency Range: TX: 144–148 MHz / RX: 136–174 MHz



• Channel Step: 5/6.25/10/12.5/15/20/25/50/100 kHz



• Standard Repeater Shift: ±600 kHz



• Frequency Stability: ±10 ppm (–20°C to +60°C)



• Modes: F2D, F3E



• Antenna Impedance: 50 Ω (unbalanced)



• Supply Voltage: 13.8 VDC ±15% (negative ground)



• Current Consumption: RX <0.7A, TX 11A (65W) / 8A (30W) / 5A (5W)



• Operating Temperature: –4°F to +140°F (–20°C to +60°C)



• Case Dimensions (W x H x D): 6.06 × 1.69 × 6.10 in. (154 × 43 × 155 mm)



• Weight: 2.87 lbs. (1.3 kg)



Transmitter:

• Output Power: 65W / 30W / 5W



• Modulation Type: Variable Reactance



• Maximum Deviation: ±5 kHz (Wide) / ±2.5 kHz (Narrow)



• Spurious Radiation: < –60 dB



• Microphone Impedance: 2 kΩ



Receiver:

• Circuit Type: Double Conversion Superheterodyne



• IFs: 1st: 47.25 MHz / 2nd: 450 kHz



• Selectivity (–6/–60 dB): 12 kHz / 28 kHz



• Max AF Output: 5W @ 13.8V, 10% THD



Specifications subject to change without notice.
