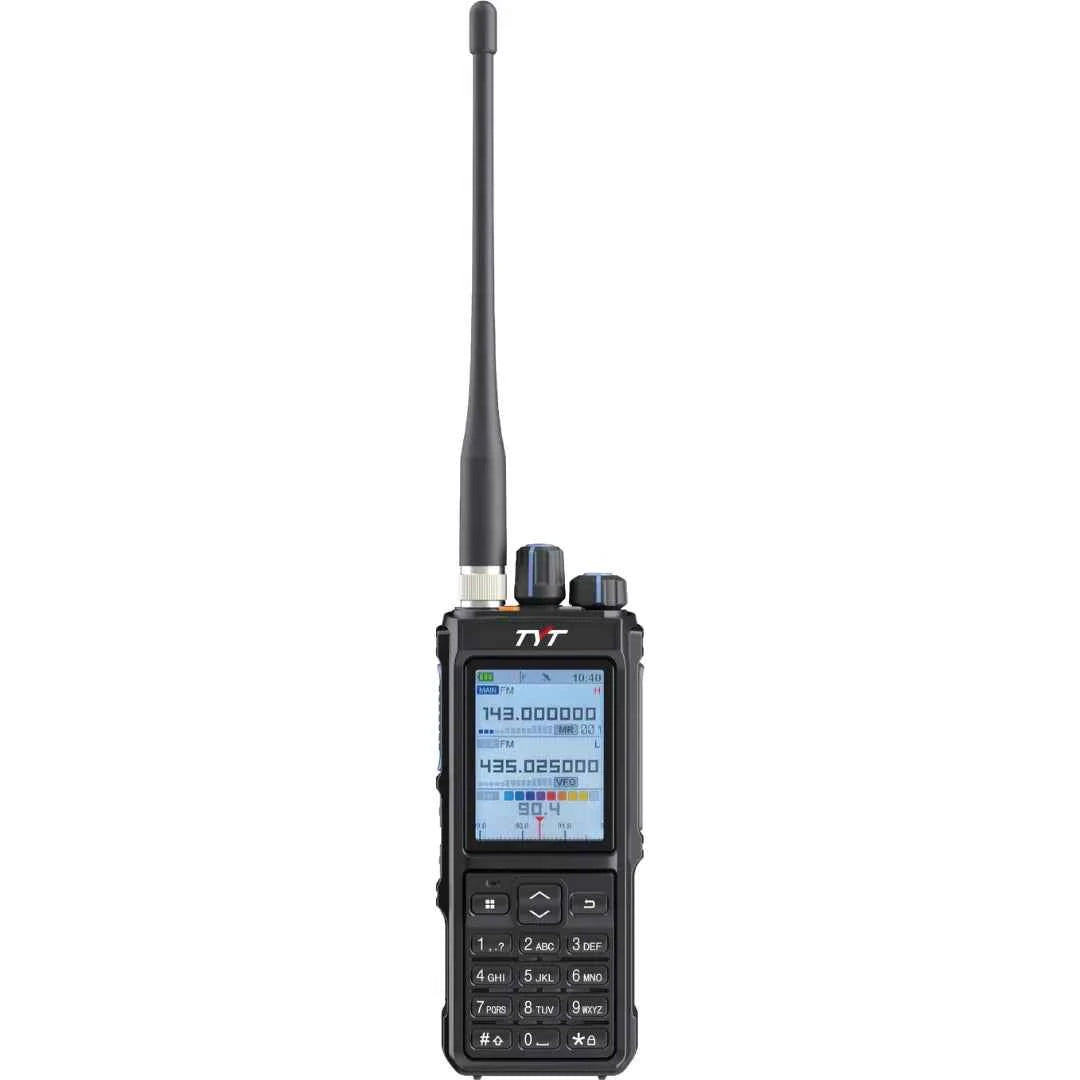

TYT UVL-15W Dual Band FM Transceiver with GPS, APRS and Airband
Brand:
TYT
TYT UVL-15W Dual Band FM Transceiver with GPS, APRS and Airband
TYT UVL-15W Dual Band FM Transceiver with GPS, APRS and Airband
TYT UVL-15W Dual Band FM Transceiver with GPS, APRS and Airband
The TYT UVL-15W is a high-performance dual-band handheld FM transceiver engineered for amateur radio operators who require extended communication range and advanced operating features. Combining up to 15 watts of RF output power with integrated GPS, APRS, Airband reception, Bluetooth connectivity, dual receivers, and cross-band functionality, the UVL-15W provides a versatile platform for portable, mobile, emergency, and field communications.
Key Features
- High-power dual-band handheld transceiver with up to 15W RF output
- VHF and UHF transmit capability for amateur radio operation
- Integrated GPS receiver for position reporting and navigation functions
- Built-in APRS support for real-time location and messaging applications
- AM Airband reception for aviation monitoring
- Dual independent receivers with simultaneous monitoring capability
- Dual display and dual standby operation
- Cross-band repeater functionality
- Built-in spectrum analyzer for signal monitoring and frequency activity visualization
- Bluetooth support for compatible wireless audio accessories and PTT devices
- NOAA weather channel monitoring
- 999 programmable memory channels
- Channel and frequency scanning functions
- FM broadcast radio reception
- CTCSS and DCS signaling support
- VOX hands-free operation
- PTT ID and DTMF signaling functions
- Time-out timer and programmable radio settings
- Dual-watch monitoring for multiple channels
- Noise suppression circuitry for improved audio clarity
- Programmable keypad and menu-driven operation
- USB Type-C charging support
- Large-capacity rechargeable lithium-ion battery pack
- Color dot-matrix display with enhanced readability
- High-gain removable antenna system
- Field-ready portable design for demanding operating environments
- Wide operating range suitable for amateur, emergency, and outdoor communications
Typical Uses
- Amateur radio VHF/UHF communications
- APRS position tracking and reporting
- Emergency and disaster preparedness communications
- Portable and field radio operations
- Airband monitoring and aviation listening
- Outdoor adventure and expedition communications
- Cross-band relay and repeater applications
- Weather monitoring and situational awareness
In the Box
- TYT UVL-15W handheld transceiver
- Rechargeable Li-ion battery pack
- Desktop charging cradle
- Dual-band antenna
- Belt clip
- Hand strap
- USB Type-C charging cable
- User manual
| Brand | TYT |
| Model Number | UVL-15W |
| Product Type | Dual Band FM Handheld Transceiver |
| Frequency Range VHF | 136-174 MHz |
| Frequency Range UHF | 400-470 MHz |
| Airband Reception | 108-136 MHz AM |
| FM Broadcast Reception | 64-108 MHz |
| RF Output Power | 15W Maximum |
| Channel Capacity | 999 Channels |
| Display Type | Color Dot-Matrix LCD |
| Display Size | 2.4 Inch |
| GPS | Built-In |
| APRS | Built-In |
| Bluetooth | Supported |
| Cross-Band Repeater | Supported |
| Dual Receiver | Supported |
| Dual Watch | Supported |
| Dual Display | Supported |
| Spectrum Analyzer | Built-In |
| NOAA Weather Channels | Supported |
| CTCSS | Dupported |
| DCS | Supported |
| VOX | Supported |
| DTMF | Supported |
| PTT ID | Supported |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Modulation | FM |
| Airband Mode | AM Receive |
| Battery Capacity | 3800mAh |
| Charging Method | USB Type-C and Desktop Charger |
| Antenna Impedance | 50 Ohm |
| Operating Voltage | 11.1V DC |
| IP Rating | IP55 |
| Operating Temperature | -25°C to +65°C |
| Audio Accessories | Bluetooth Compatible |
