TYT TH-UV98 Dual Band FM Transceiver
Rs. 7,500.00
(Inclusive of GST)
TYT TH-UV98 Dual Band FM Transceiver
TYT TH-UV98 Dual Band FM Transceiver
TYT TH-UV98 Dual Band FM Transceiver

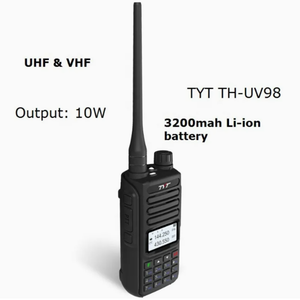

The TYT TH-UV98 is a high-power dual-band FM handheld transceiver designed for amateur radio operators requiring extended communication range and dependable field performance. Featuring up to 10 watts of RF output, dual-watch operation, a large 3200mAh battery, 200 memory channels, and advanced signaling functions, the TH-UV98 delivers reliable VHF/UHF communications for portable, emergency, and everyday radio applications.
Key Features
- High-power dual-band VHF/UHF FM handheld transceiver
- Up to 10 Watts RF output power for extended communication range
- Dual-band operation covering amateur VHF and UHF frequencies
- Dual display and dual standby capability
- 200 programmable memory channels
- Large-capacity 3200mAh lithium-ion battery
- Dot-matrix LCD display with backlighting
- High, medium, and low power selection
- Built-in FM broadcast radio receiver
- Frequency and channel scan functions
- VOX hands-free operation
- CTCSS and DCS encode/decode support
- DTMF signaling capability
- 2-Tone and 5-Tone selective calling support
- 1750Hz repeater access tone burst
- Voice scrambler function
- Programmable side keys and menu functions
- Independent A/B band operation
- Battery saver mode for extended operating time
- Low battery warning indication
- Time-out timer protection
- Wide and narrow channel bandwidth selection
- PC programmable for custom channel management
- High-gain removable antenna system
- Compact and rugged handheld design
- Suitable for amateur radio, emergency communications, and outdoor use
- Clear transmit and receive audio performance
- Portable field-ready construction with ergonomic controls
Typical Uses
- Amateur radio VHF and UHF communications
- Repeater operation and local networking
- Emergency preparedness communications
- Outdoor activities, hiking, and camping
- Public service and volunteer events
- Portable field operations
- Monitoring local radio activity and FM broadcasts

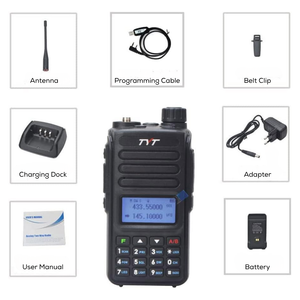

In the Box
- TYT TH-UV98 Dual Band FM Transceiver
- 3200mAh Li-Ion battery pack
- Dual-band antenna

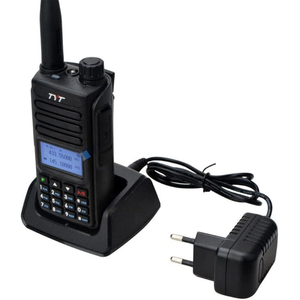

- Desktop charging cradle
- AC power adapter
- Belt clip
- Programming cable
- User manual
| Brand | TYT |
| Model Number | TH-UV98 |
| Product Type | Dual Band FM Handheld Transceiver |
| Frequency Range VHF | 136-174 MHz |
| Frequency Range UHF | 400-480 MHz |
| Operating Modes | FM |
| RF Output Power | 1W / 5W / 10W |
| Channel Capacity | 200 Channels |
| Display Type | Dot-Matrix LCD |
| Dual Display | Supported |
| Dual Standby | Supported |
| Battery Type | Li-Ion Rechargeable |
| Battery Capacity | 3200mAh |
| Battery Voltage | 7.4V DC |
| FM Broadcast Receiver | 66-108 MHz |
| CTCSS | Supported |
| DCS | Supported |
| DTMF | Supported |
| 2-Tone Signaling | Supported |
| 5-Tone Signaling | Supported |
| VOX | Supported |
| Voice Scrambler | Supported |
| 1750Hz Tone Burst | Supported |
| Channel Bandwidth | 6.25kHz / 12.5kHz / 25kHz |
| Frequency Stability | ±5ppm |
| Operating Voltage | 7.4V DC |
| Receiver Sensitivity | ≤0.2μV |
| Audio Output Power | >500mW |
| Operating Temperature | -10°C to +50°C |
| Antenna Connector | SMA Female |
| Dimensions | 121 x 59 x 34 mm |
| Weight | 225 g |
| PC Programmable | Yes |
