SKU: RF-TH-9800

TYT TH-9800 Plus 2M Quad VFO FM Transceiver

Regular price Rs. 19,500.00 (Including GST)
Sale price Rs. 19,500.00 (Including GST) Regular price
Unit price
Brand: TYT
Estimated Domestic Ship Date: 15 days lead time
Estimated International Ship Date: 15 days lead time
Estimated Domestic Delivery: Standard: 5-7 Days | Express: 1-4 Days
Estimated International Delivery: Standard: 10-20 Days
Ask a question

Ask a Question

* Required fields

 Size guide

Share this product:

TYT TH-9800 Plus 2M Quad VFO FM Transceiver - RFCharge

TYT TH-9800 Plus 2M Quad VFO FM Transceiver

Regular price Rs. 19,500.00 (Including GST)
Sale price Rs. 19,500.00 (Including GST) Regular price
Unit price

Earn 0 points on this purchase.

Learn more
Product description
What's in the Box
Technical Specifications
Overview
Warranty
Documentation

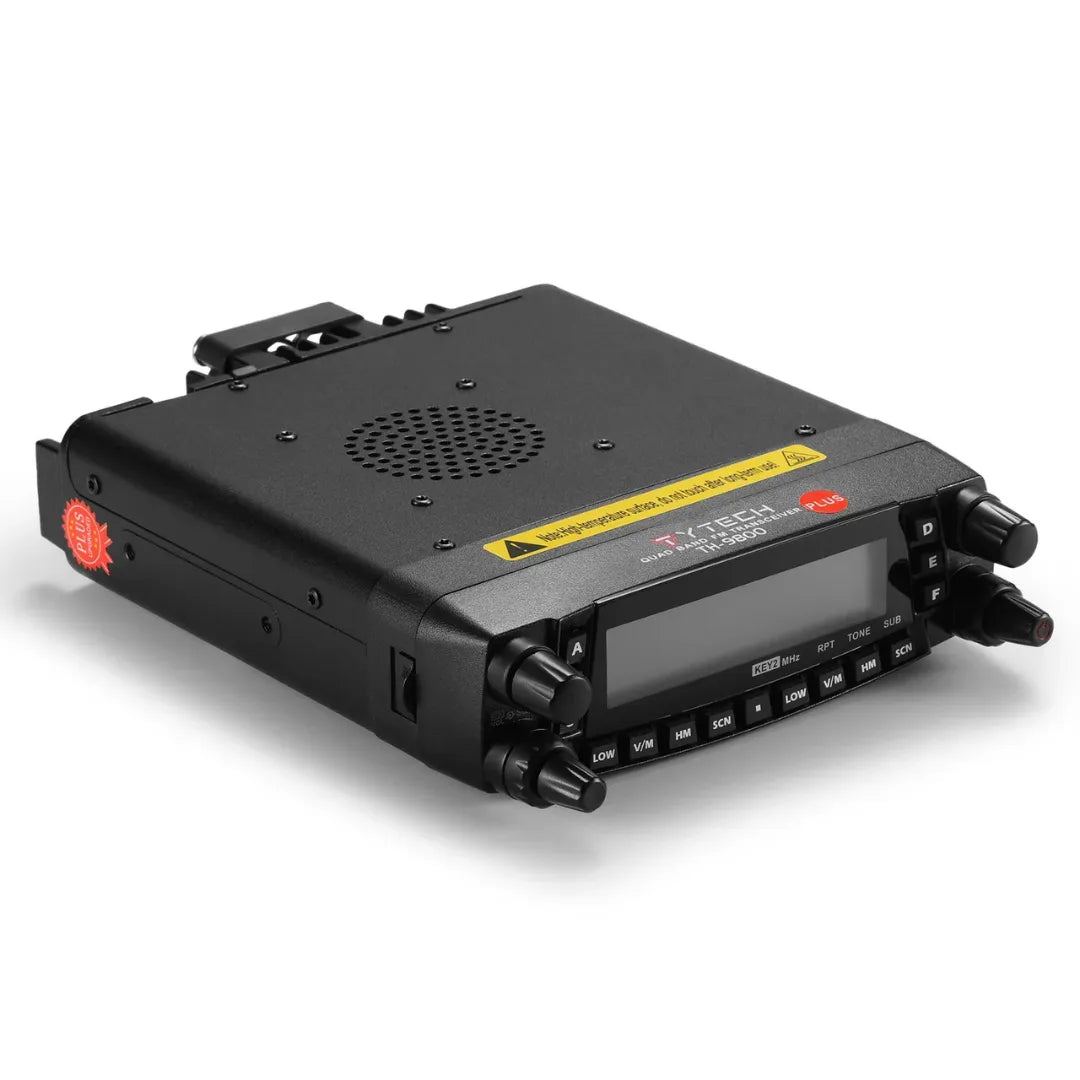

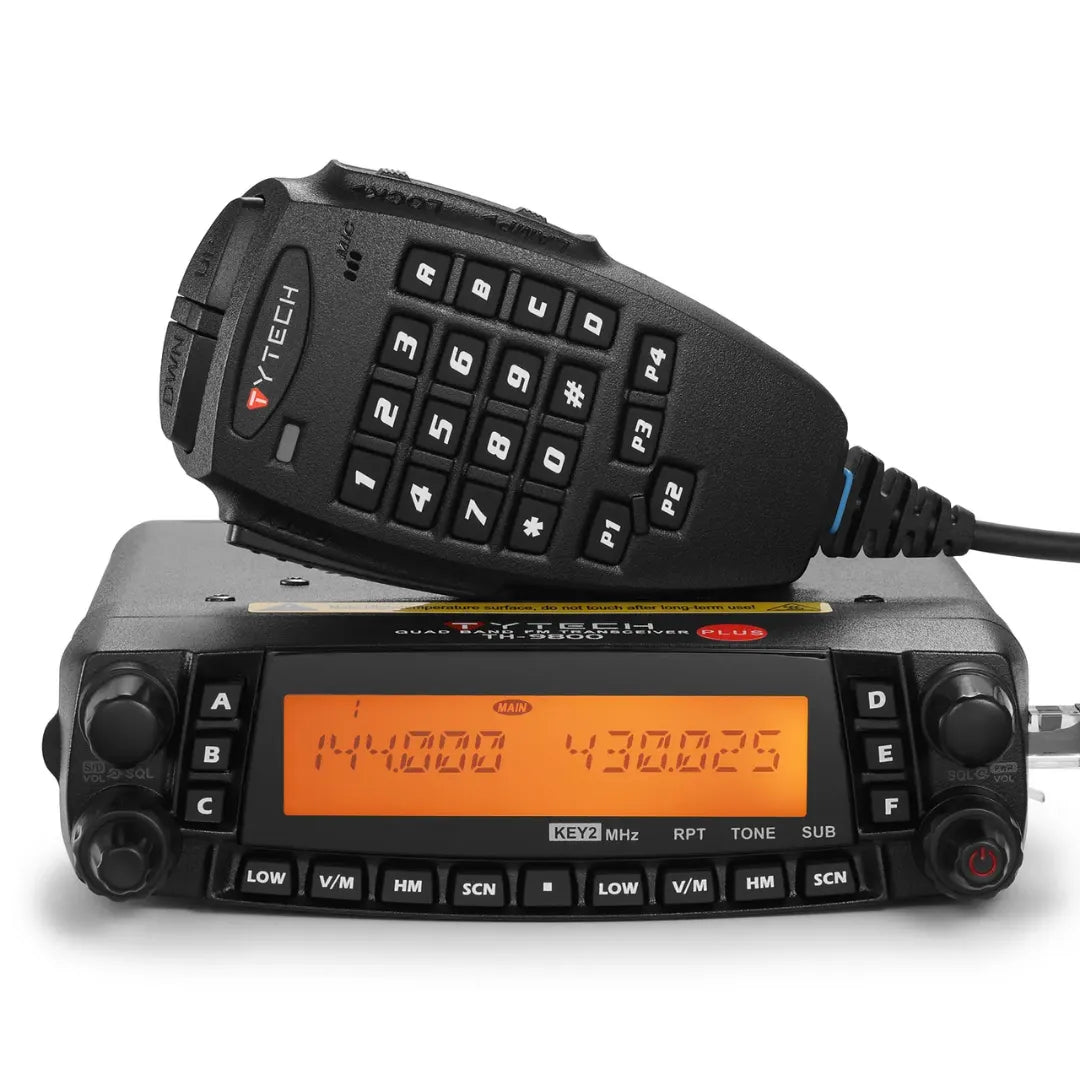

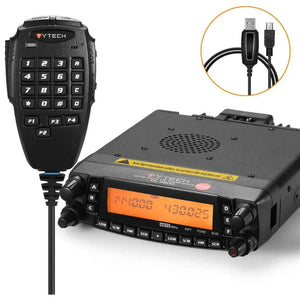

The TYT TH-9800 Plus is a compact quad-band FM mobile transceiver engineered to deliver repeater-grade RF performance with selectable transmit output levels of 50W / 20W / 10W / 5W across 10m, 6m, and 2m bands, and 40W / 20W / 10W / 5W on the 70cm band.

Designed with dual-watch receiver architecture, the transceiver enables simultaneous monitoring of independent frequencies across configurable band combinations (V+V / U+U / V+U). Integrated cross-band repeat mode allows the TH-9800 Plus to function as an RF relay node between handheld devices and fixed repeater infrastructure in field communication environments.

Supporting programmable channel spacing from 2.5 kHz to 50 kHz, along with tone signaling including 50 CTCSS and 1024 DCS codes, the TH-9800 Plus ensures compatibility with coordinated analog repeater networks and narrowband FM communication systems.

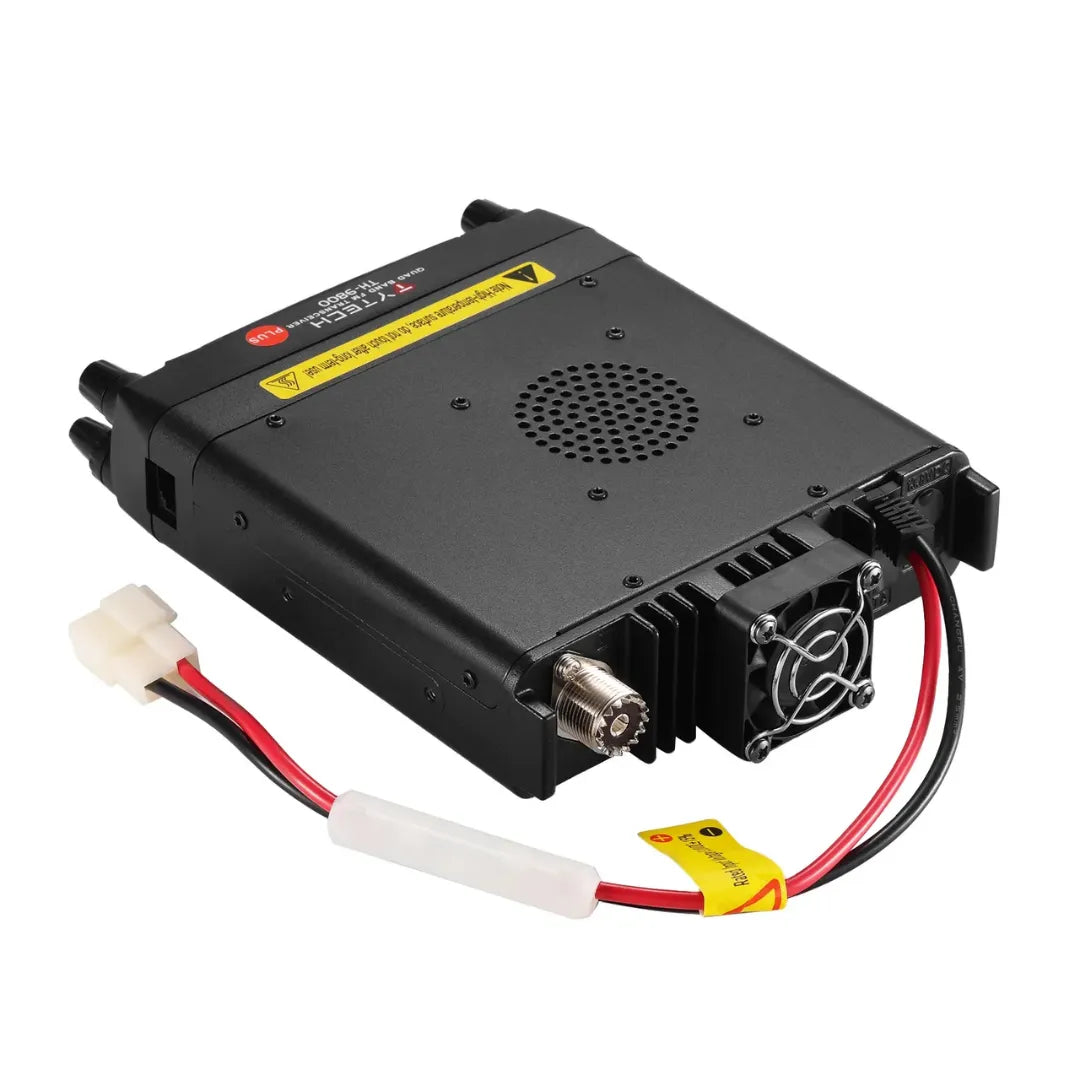

A detachable remote-mountable control head and integrated cooling system allow flexible installation within vehicle dashboards or base-station mobile racks while maintaining thermal stability during prolonged transmission cycles.

Key Features

  • Quad-Band TX: 10m / 6m / 2m / 70cm

  • 50W (29/50/144 MHz) / 40W (430 MHz) RF Output

  • Twin Simultaneous Dual Receive

  • Full Duplex V+U Operation

  • Automatic Cross-Band Repeater Mode

  • 800+ Programmable Memory Channels

  • Wide / Mid / Narrow FM Bandwidth Support

  • CTCSS / DCS / DTMF / 2-Tone / 5-Tone Signaling

  • Detachable Remote-Mountable Control Head

  • PC Programmable via Software

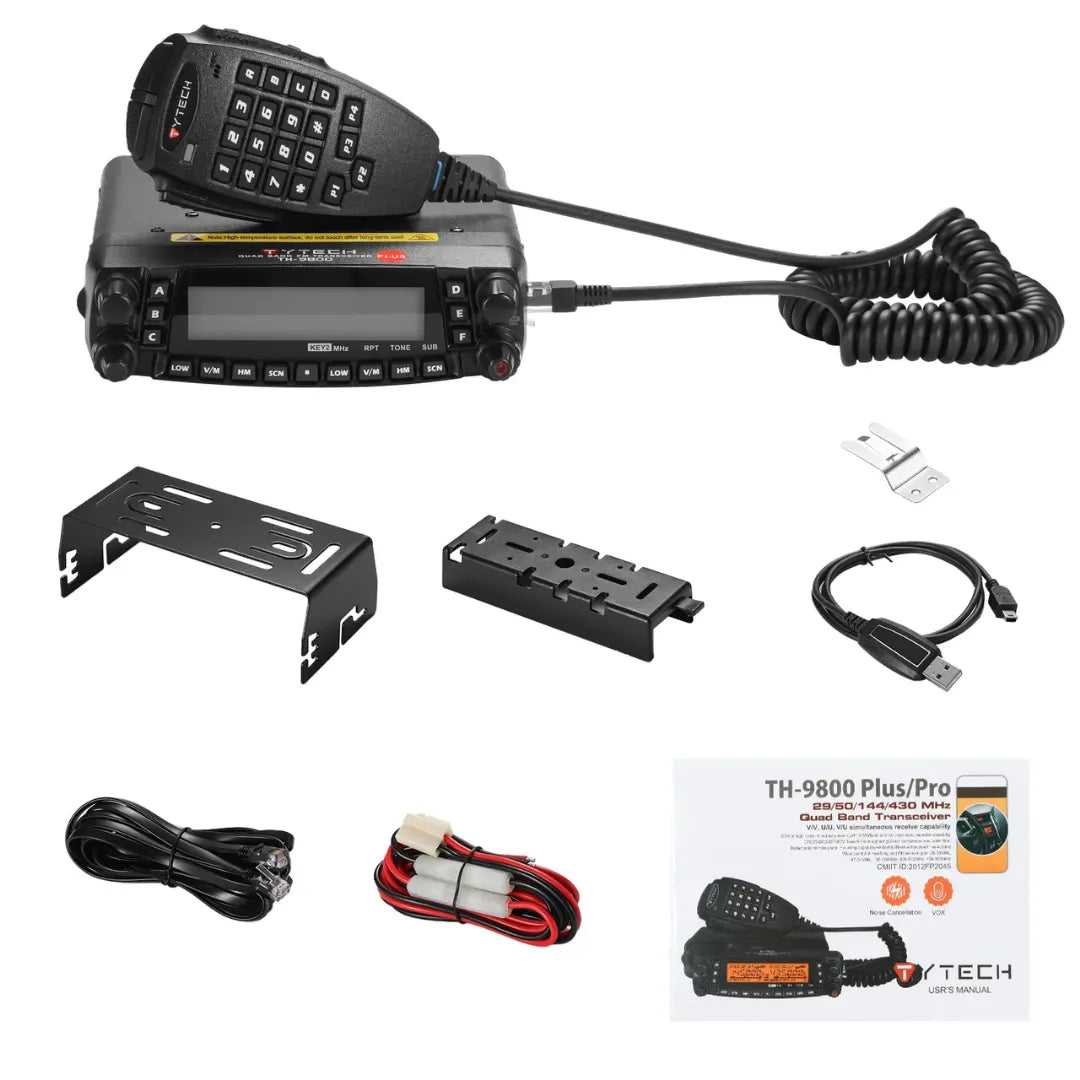

✔ TH-9800 Plus Quad-Band Mobile Transceiver Unit

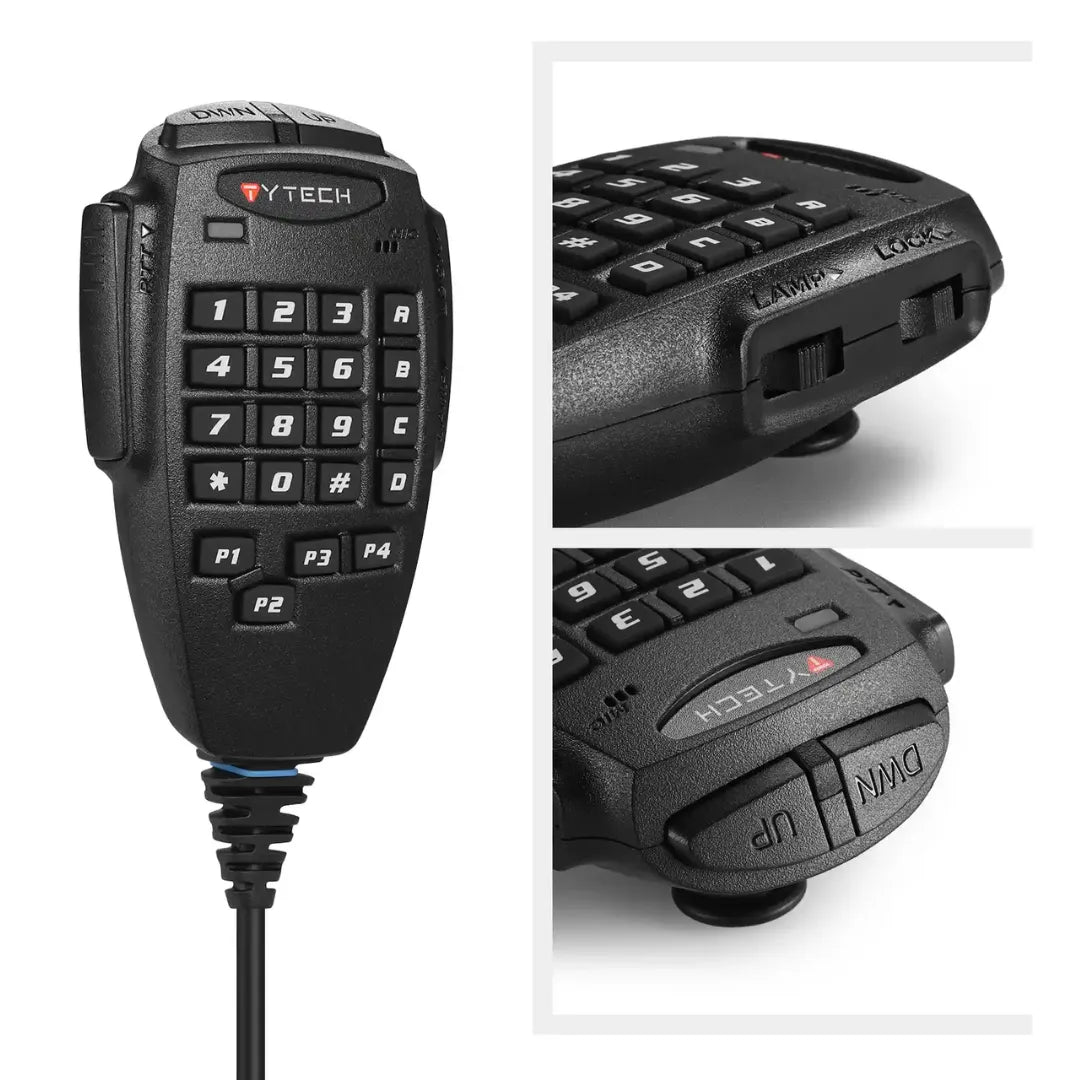

✔ DTMF Hand Microphone
✔ Mobile Mounting Bracket
✔ DC Power Cable with Fuse
✔ Front Panel Separation Cable
✔ Controller Mounting Bracket
✔ Mounting Hardware Kit
✔ Spare Fuses
✔ Operating Manual / Documentation

Note: External antenna system and optional programming cable are not included with the standard TH-9800 Plus package.

Brand: TYT
Model Number: TH-9800 Plus
Product Type: Quad-Band FM Mobile Transceiver
RFCharge Category: Multi-Band Analog Mobile Radios
Frequency Coverage (TX): 28 – 29.7 / 50 – 54 / 144 – 148 / 430 – 450 MHz
Frequency Coverage (RX): 26 – 33 / 47 – 54 / 108 – 180 / 320 – 480 MHz
Operating Modes: FM / NFM
RF Output Power (10m / 6m / 2m): 50W / 20W / 10W / 5W
RF Output Power (70cm): 40W / 20W / 10W / 5W
Number of Memory Channels: 809
Channel Spacing: 2.5 / 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz
Power Supply Requirement: 13.8V DC ±5%
Current Consumption (RX): Approx. 0.5A
Current Consumption (TX): Approx. 8.5A
Antenna Connector: SO-239
Dimensions (W × H × D): 140 × 41.5 × 168 mm
Weight: Approx. 1.0 – 1.2 kg

The TYT TH-9800 Plus is a high-power quad-band FM mobile transceiver designed for amateur radio communication across the 10m, 6m, 2m, and 70cm bands. Delivering up to 50W RF output on 29 MHz / 50 MHz / 144 MHz and up to 40W on 430 MHz, the TH-9800 Plus supports extended repeater and simplex operation across multiple amateur bands from a single mobile platform.

Featuring twin simultaneous receive architecture, full-duplex V+U operation, and integrated automatic cross-band repeater functionality, the TH-9800 Plus enables simultaneous monitoring or relay-mode operation between handheld radios and distant repeaters—ideal for mobile gateway or emergency communication deployments.

With support for over 800 programmable memory channels, selectable wide / mid / narrow FM bandwidth, and integrated signaling standards including CTCSS, DCS, DTMF, 2-Tone, and 5-Tone, the transceiver ensures interoperability with analog repeater networks across multi-band operating environments.

Positioned within the RFCharge lineup as a multi-band analog mobile platform, the TH-9800 Plus provides full-duplex cross-band relay capability and quad-band transmit coverage for mobile amateur radio infrastructure deployments.

12 Months of Brand Warranty
