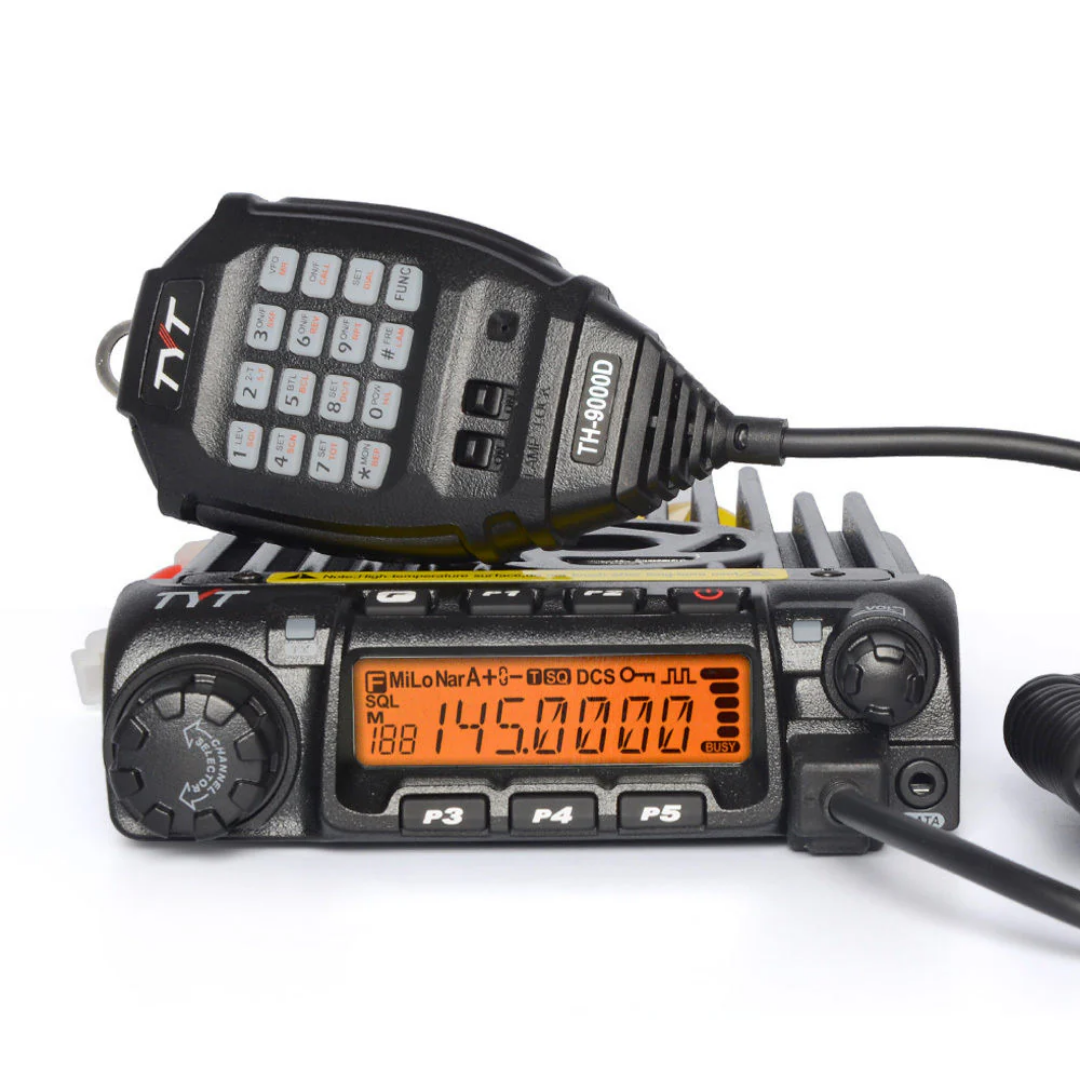

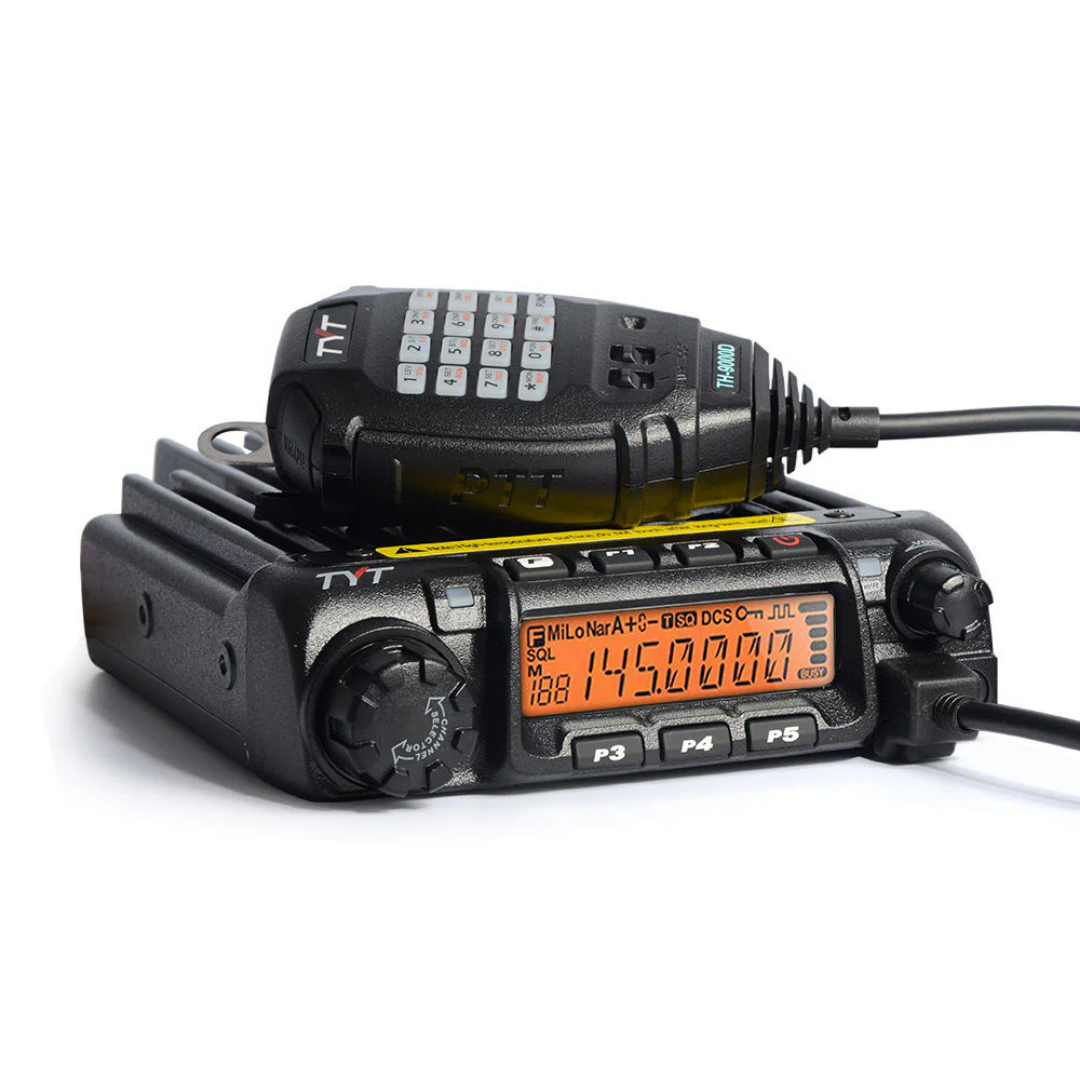

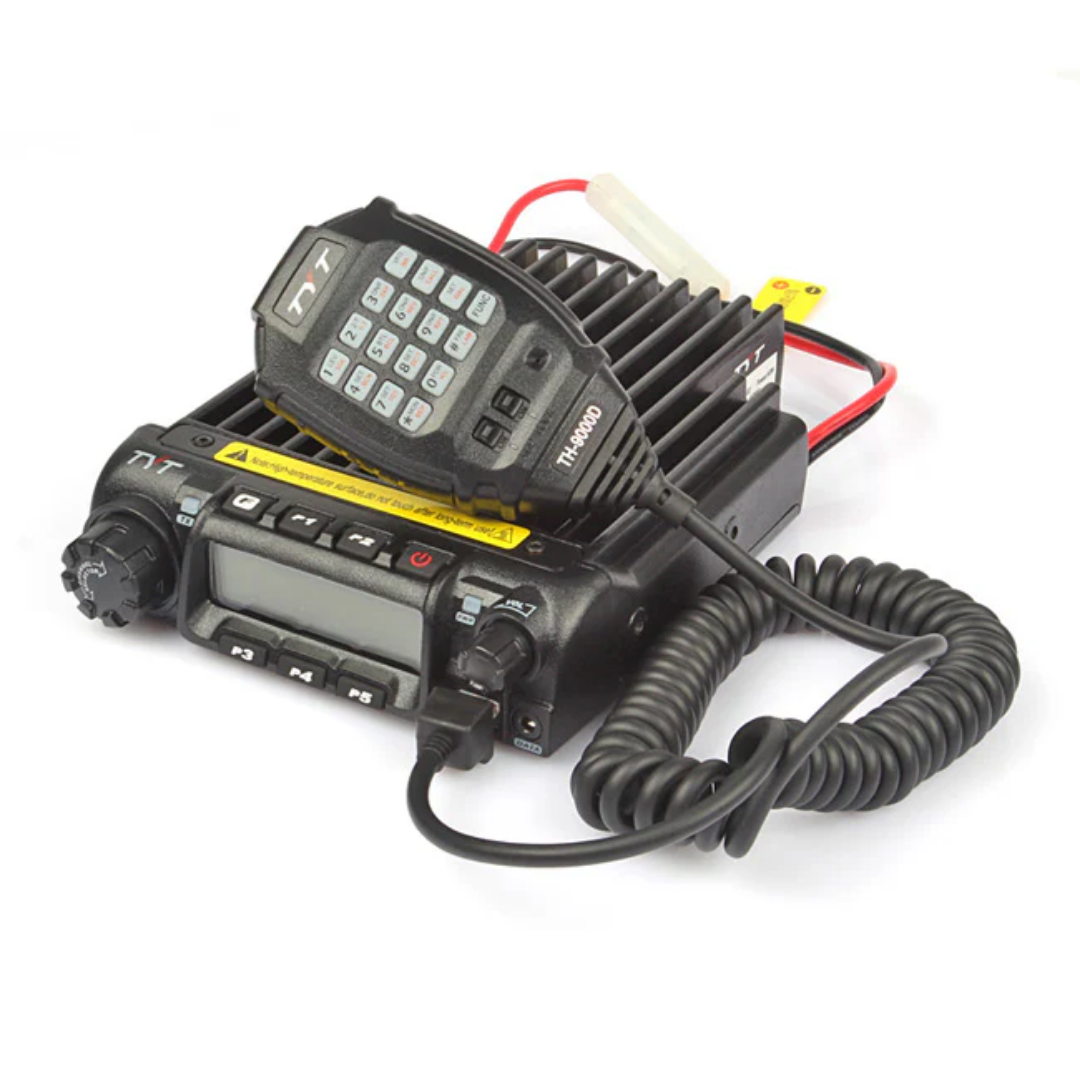

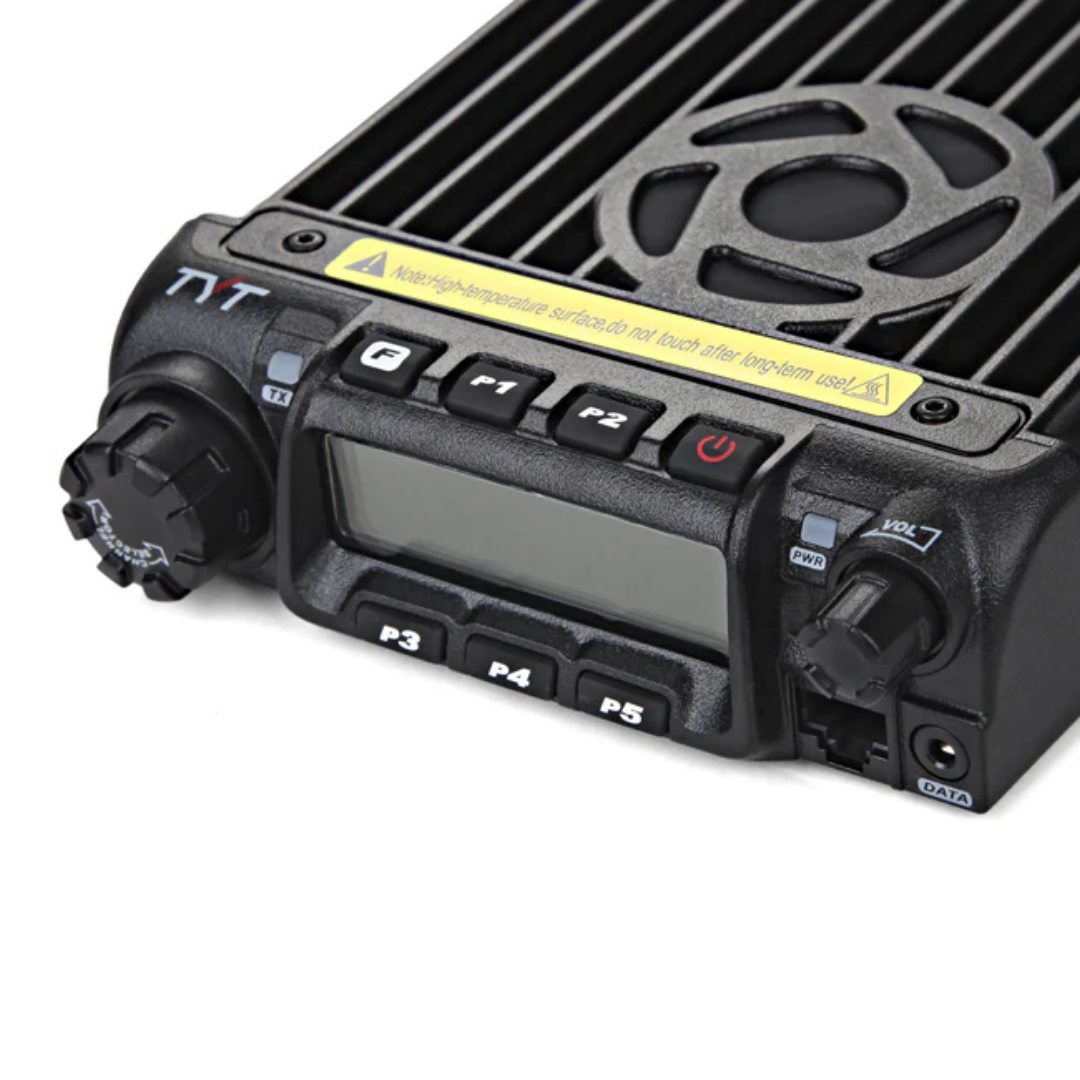

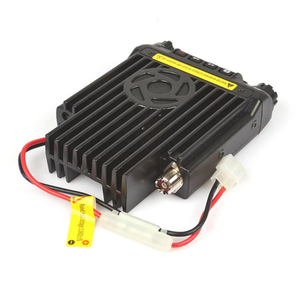

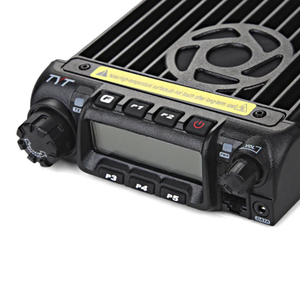

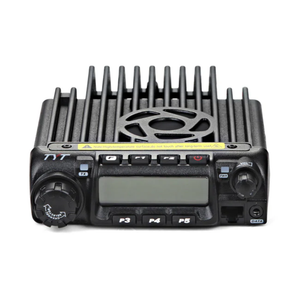

TYT TH-9000D 2M FM Transceiver
Rs. 13,500.00
(Inclusive of GST)
TYT TH-9000D 2M FM Transceiver
TYT TH-9000D 2M FM Transceiver
TYT TH-9000D 2M FM Transceiver

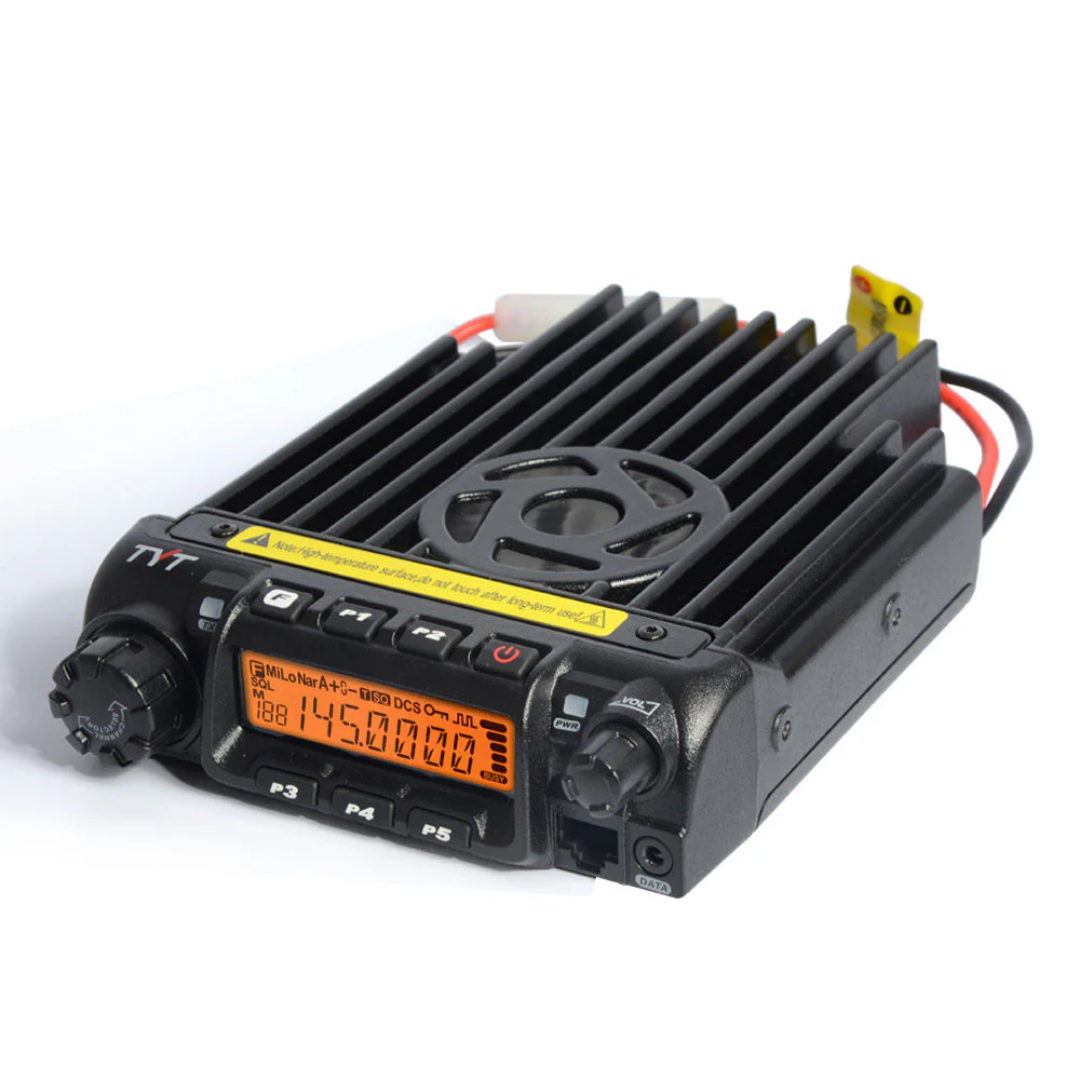

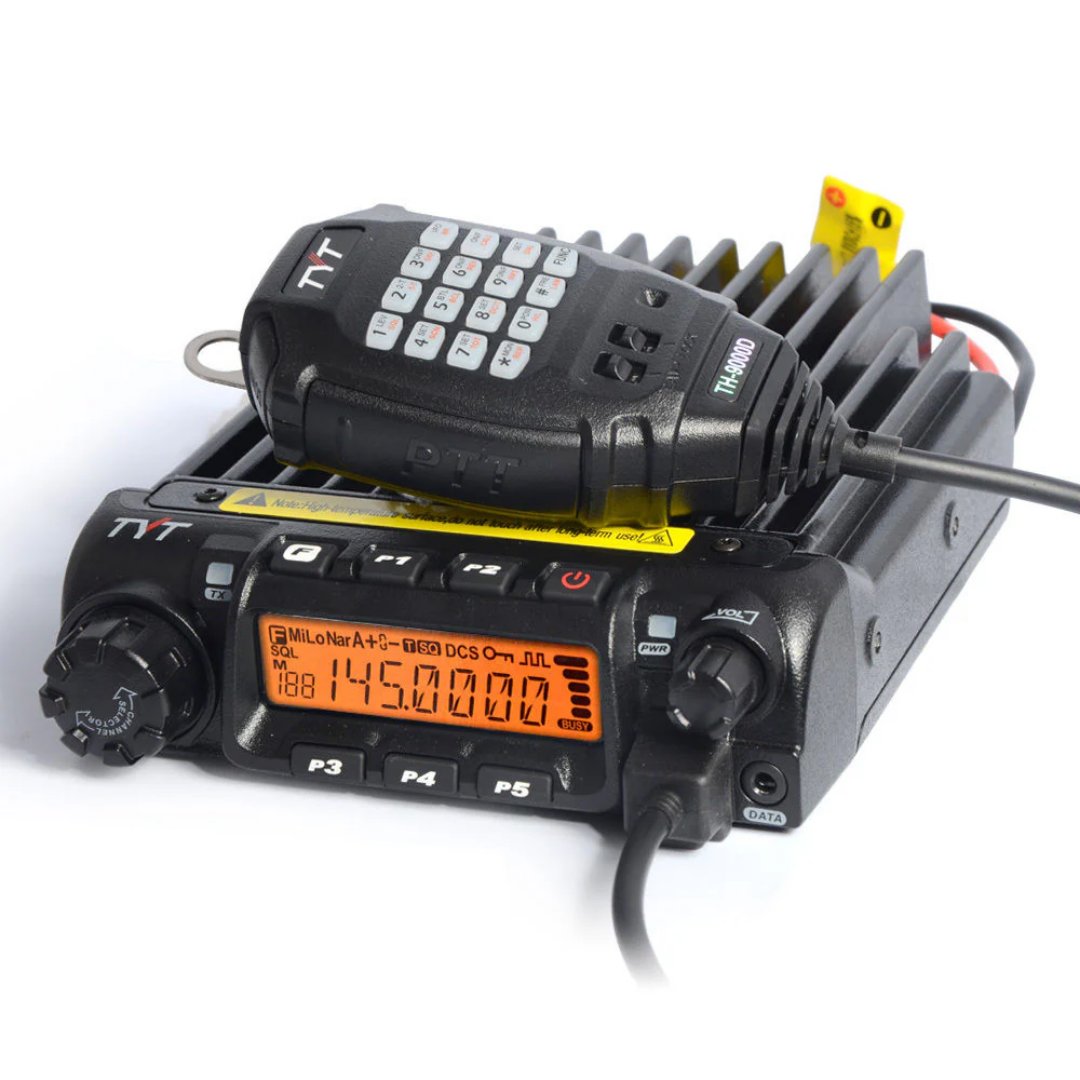

The TYT TH-9000D is a high-power 2-meter VHF FM mobile transceiver designed for amateur radio operators requiring reliable long-range communication and robust mobile performance. Featuring up to 65 watts of RF output power, a compact chassis, extensive memory capacity, and built-in repeater functions, the TH-9000D is well suited for mobile, base station, and emergency communication applications.
Key Features
- 2-meter VHF FM mobile transceiver
- High-power 65 Watt RF output for extended communication range
- Selectable transmit power levels for mobile and base station operation
- Compact mobile radio design with efficient heat dissipation
- 200 programmable memory channels
- Alphanumeric channel naming capability
- Built-in CTCSS encoder and decoder
- Built-in DCS encoder and decoder
- Tone scan and repeater access functions
- Automatic repeater shift support
- Wide and narrow FM operation modes
- DTMF encode and decode functionality
- Programmable microphone keypad functions
- Priority channel monitoring capability
- Channel scan and memory scan functions
- Busy channel lockout protection
- Time-out timer functionality
- VOX operation support through compatible accessories
- Large backlit LCD display for easy viewing
- Adjustable display illumination settings
- Built-in speaker with clear audio output
- External speaker connection support
- PC programming compatibility
- Radio-to-radio cloning capability
- Front-panel controls optimized for mobile operation
- Stable operation from standard 13.8 VDC power systems
- Suitable for repeater operation, emergency communications, public service activities, and daily amateur radio use
Typical Uses
- 2-meter FM repeater communications
- Mobile amateur radio installations
- Emergency and disaster communications
- Public service and event support communications
- Fixed-station VHF operation
- Community emergency response networks
- Daily local and regional amateur radio communications

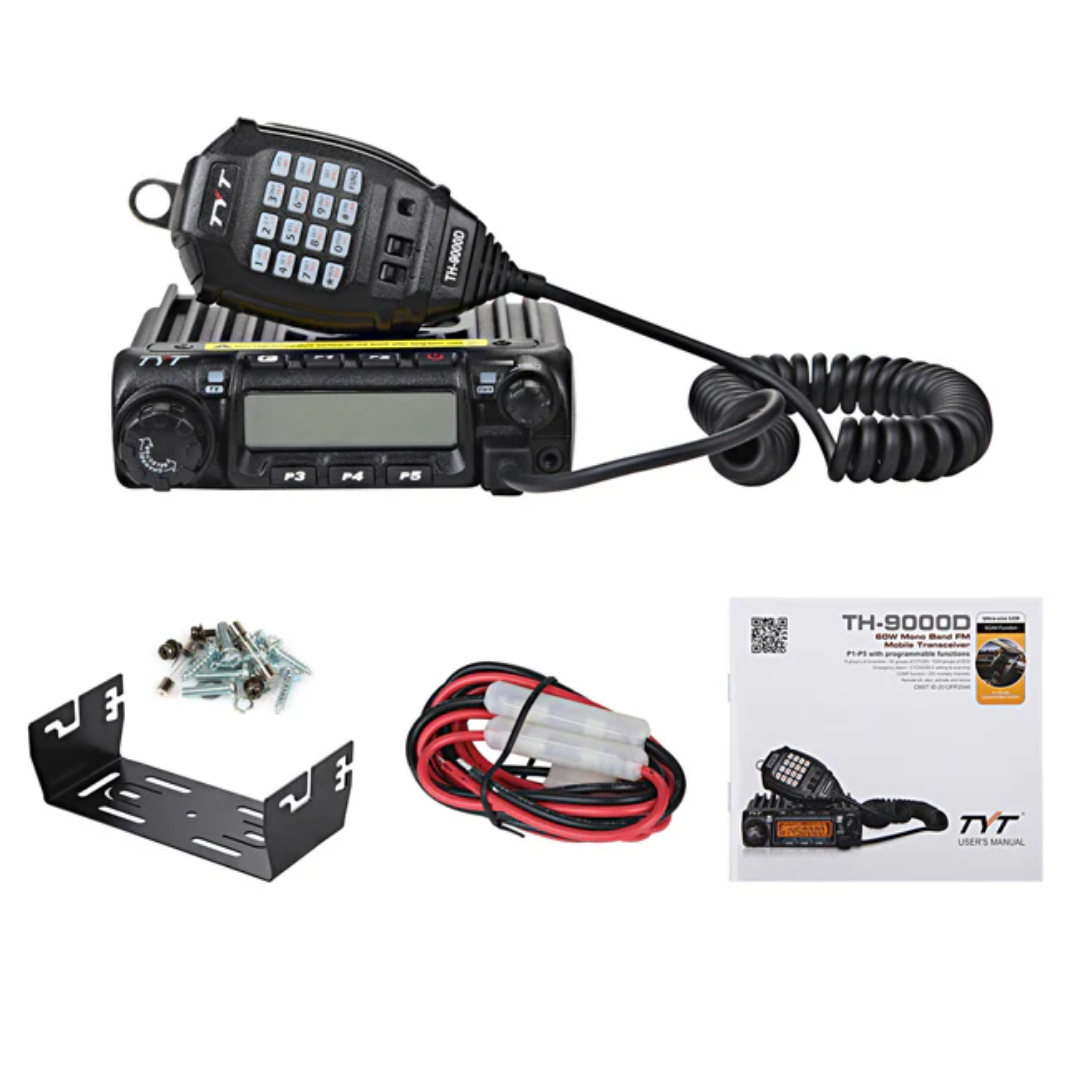

In the Box
- TYT TH-9000D Transceiver

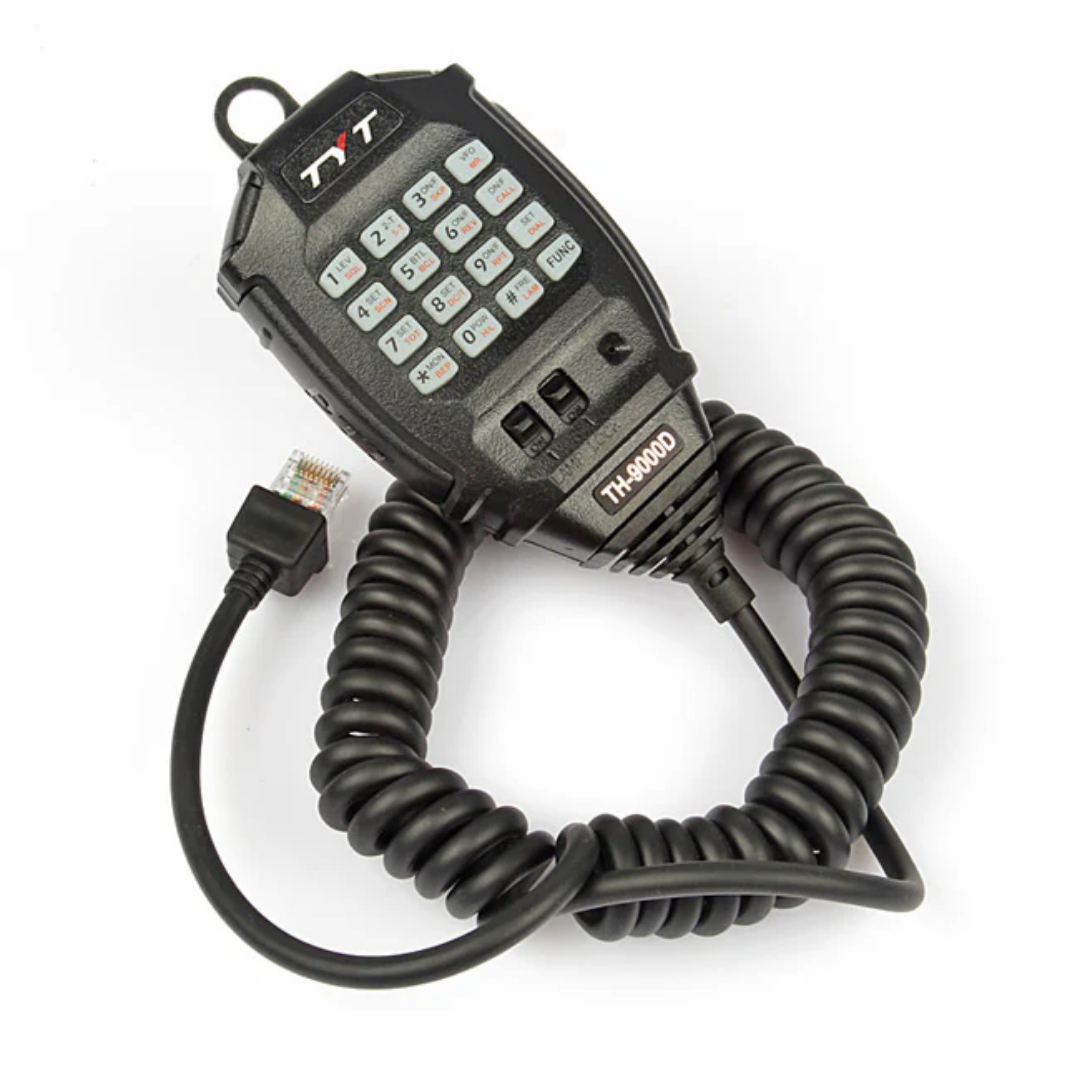

- DTMF Hand Microphone
- DC Power Cable
- Mobile Mounting Bracket
- Microphone Hanger
- Mounting Hardware Kit
- User Documentation
| Brand | TYT |
| Model Number | TH-9000D |
| Product Type | 2 Meter VHF FM Mobile Transceiver |
| Frequency Coverage TX | 136-174 MHz |
| Frequency Coverage RX | 136-174 MHz |
| Operating Modes | FM/NFM |
| RF Output Power | 65W/25W/10W |
| Channel Capacity | 200 |
| Memory Channels | 200 |
| Channel Naming | Supported |
| CTCSS Encoder | Built-In |
| CTCSS Decoder | Built-In |
| DCS Encoder | Built-In |
| DCS Decoder | Built-In |
| DTMF Encode | Supported |
| DTMF Decode | Supported |
| Tone Scan | Supported |
| Automatic Repeater Shift | Supported |
| Priority Channel | Supported |
| Scan Functions | Channel and Memory Scan |
| Busy Channel Lockout | Supported |
| Time Out Timer | Supported |
| VOX | Accessory Supported |
| Display | Backlit LCD |
| Speaker | Built-In |
| External Speaker Jack | Supported |
| Programming | PC Programmable |
| Cloning Function | Supported |
| Channel Spacing | 12.5kHz/25kHz |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 Ohm |

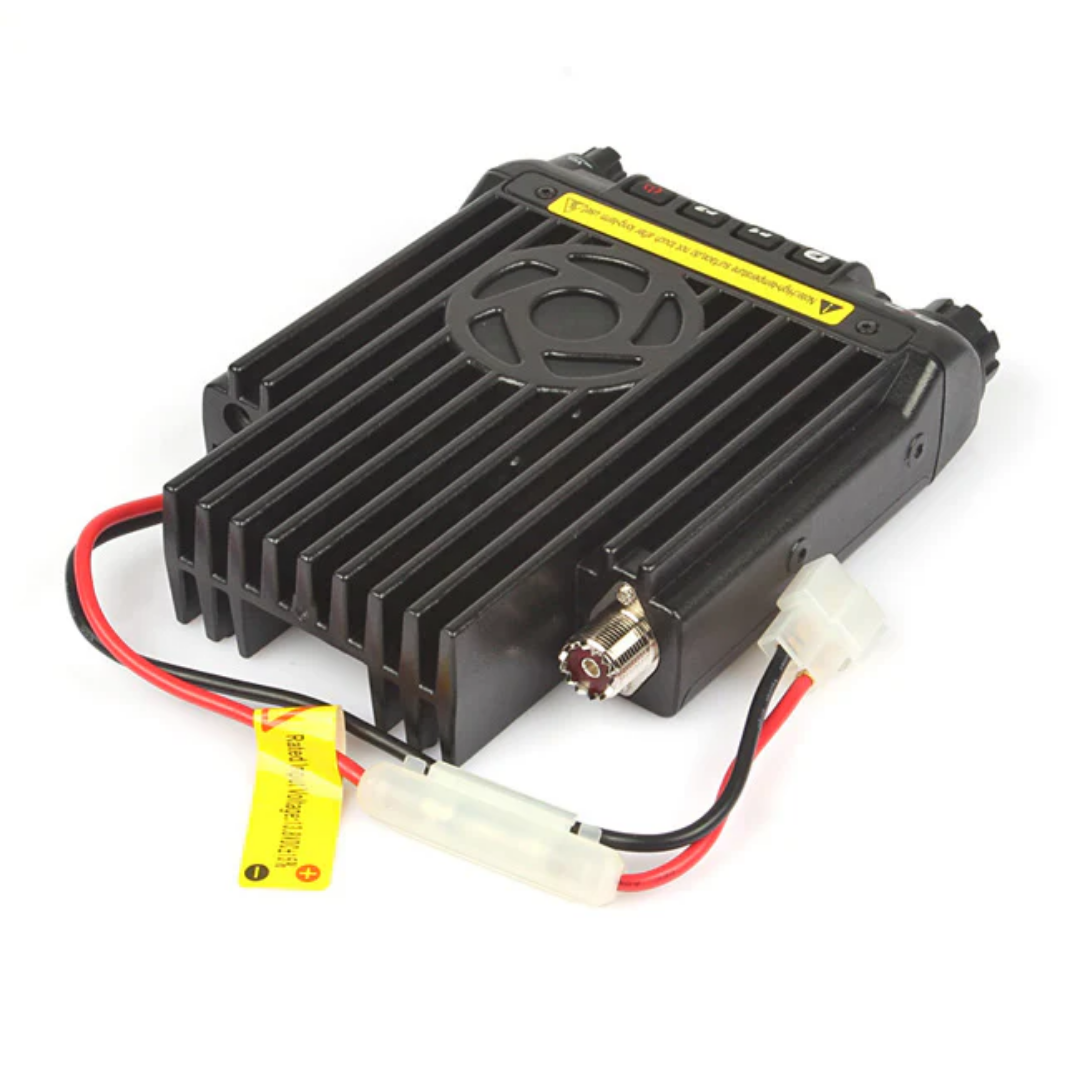

| Antenna Connector | SO-239 |
| Power Supply | 13.8VDC ±15% |
| Current Consumption RX | Less Than 0.5A |
| Current Consumption TX | Up To 12A |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 140 x 43 x 168 mm |
| Weight | Approx. 1.2kg |
| Microphone | DTMF Hand Microphone Included |
