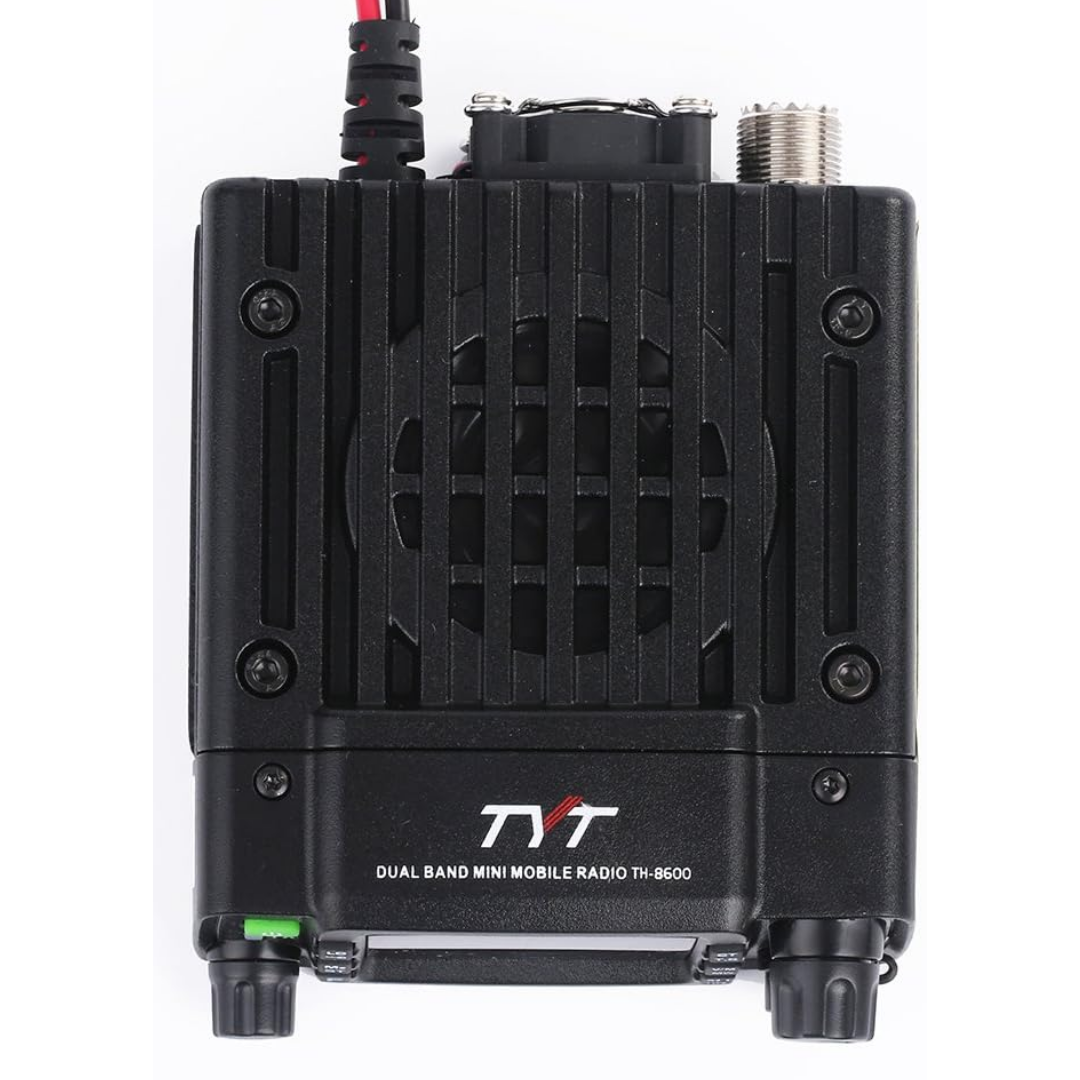

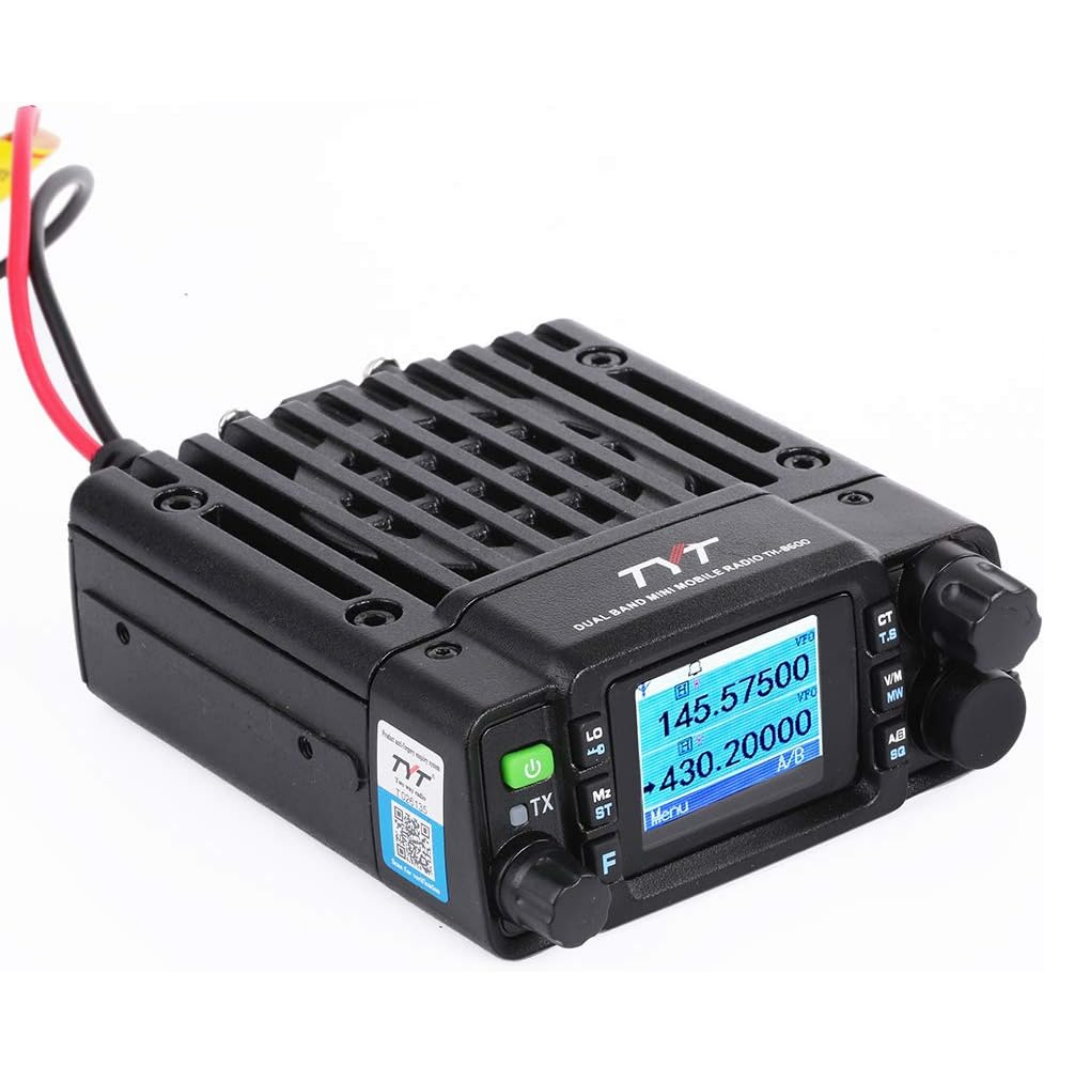

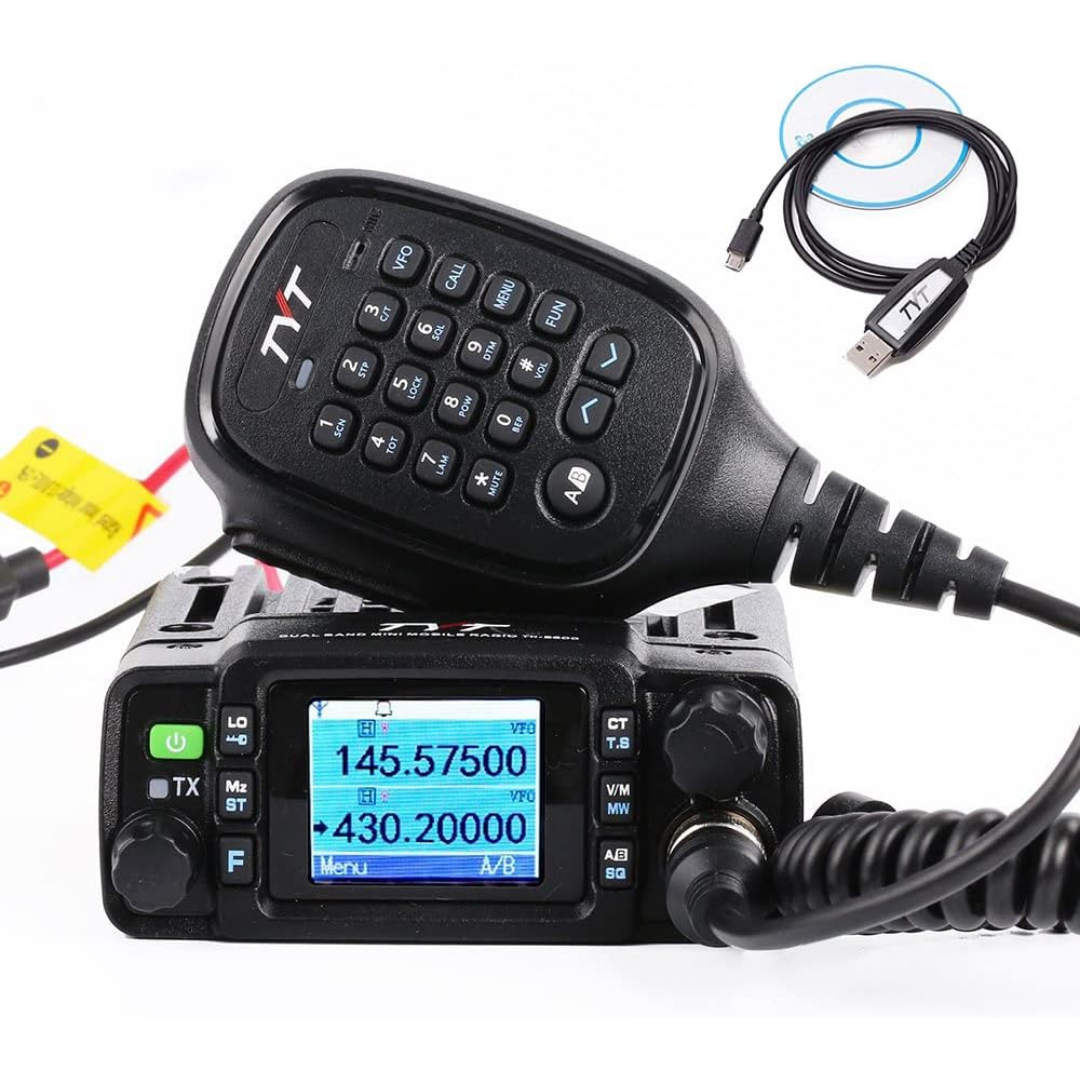

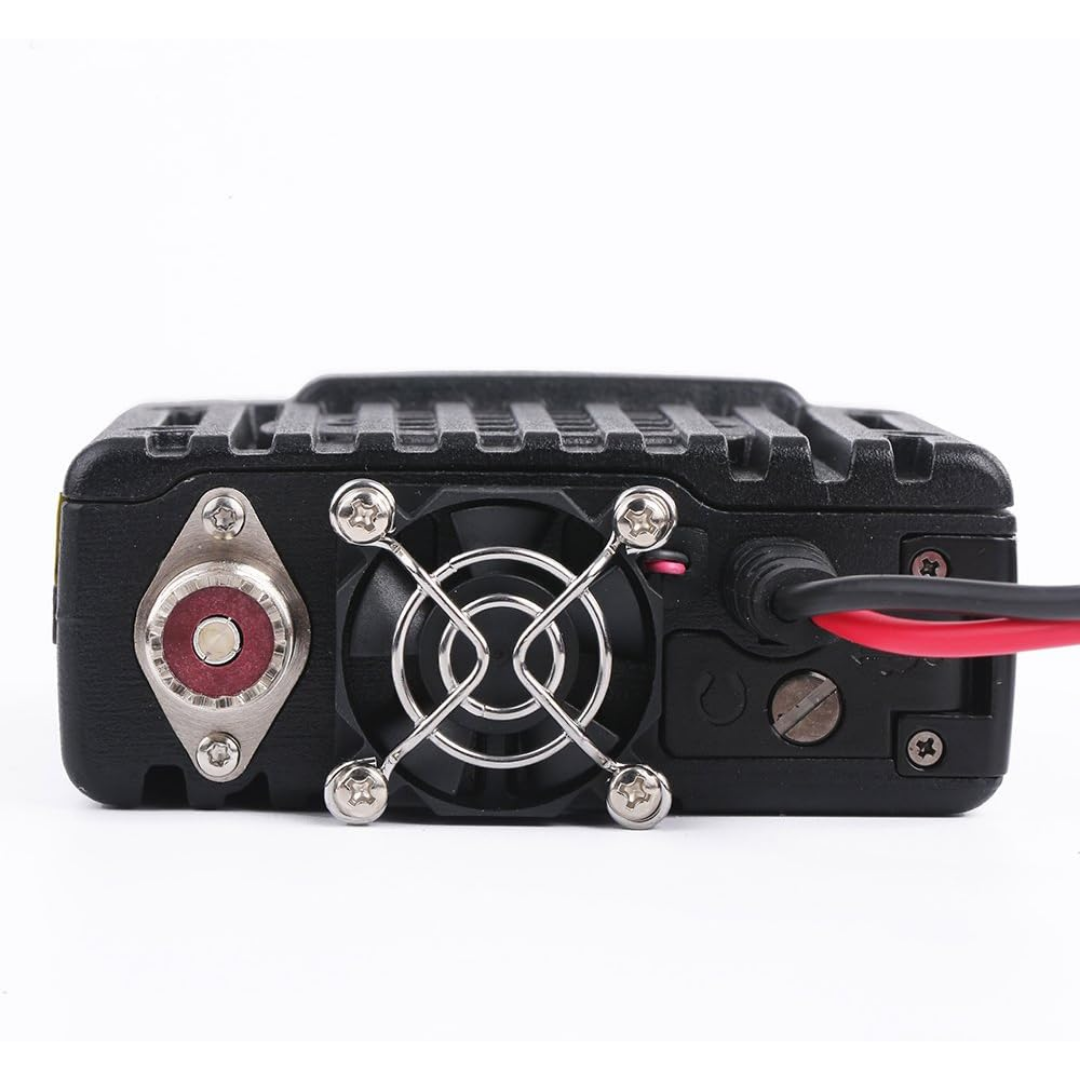

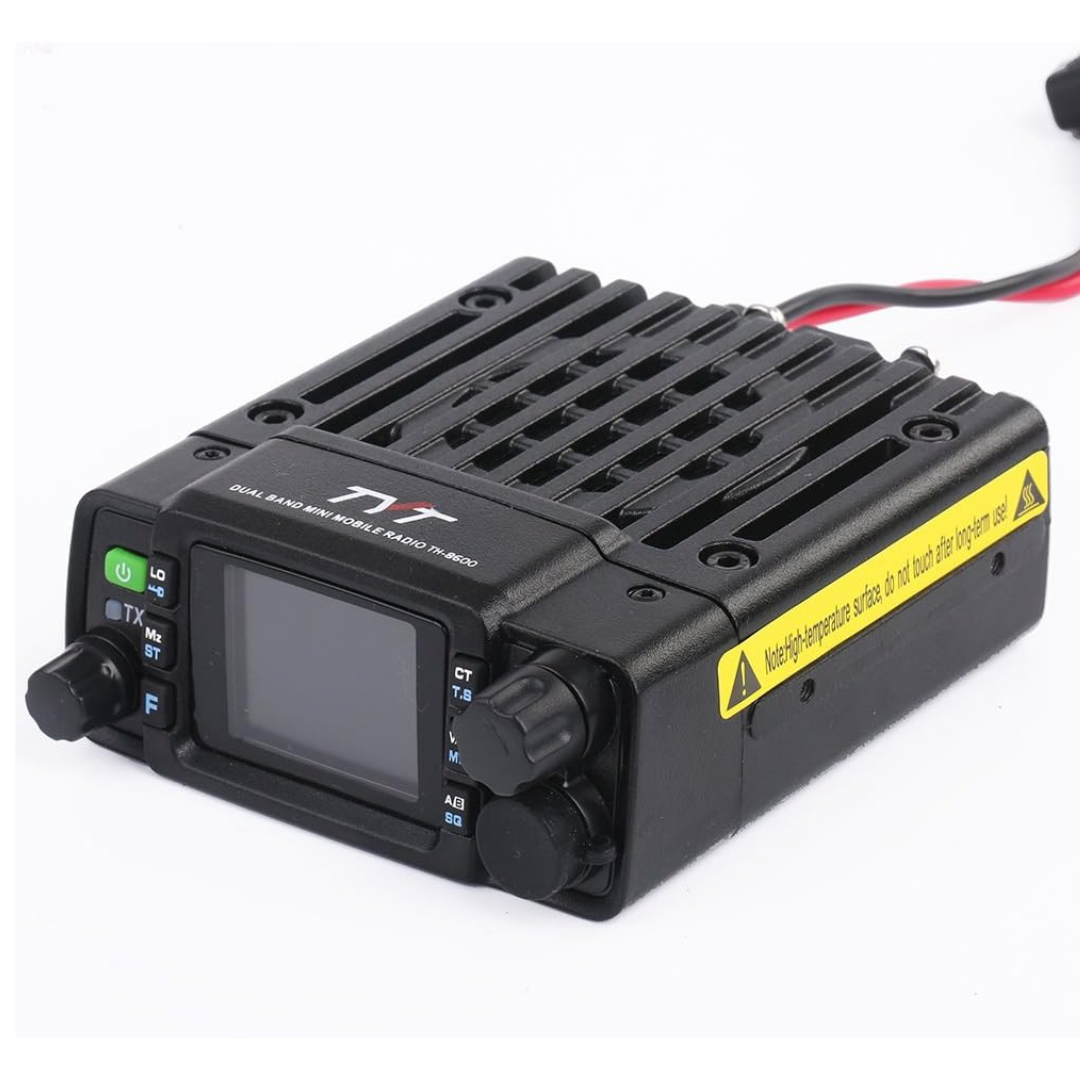

TYT TH-8600 VHF UHF FM Transceiver with IP67 Rating
Brand:
TYT
TYT TH-8600 VHF UHF FM Transceiver with IP67 Rating
TYT TH-8600 VHF UHF FM Transceiver with IP67 Rating
TYT TH-8600 VHF/UHF FM Transceiver with IP67 Rating
The TYT TH-8600 is a rugged dual-band VHF/UHF FM mobile transceiver designed for reliable operation in demanding environments. Featuring an IP67-rated front panel, dual-band capability, high-power output, extensive memory capacity, and advanced signaling functions, the TH-8600 is well suited for amateur radio, emergency communications, mobile installations, and outdoor applications where durability is essential.
Key Features
- Dual-band VHF and UHF FM mobile transceiver
- IP67-rated front panel for enhanced dust and water resistance
- 50 Watt transmit output on VHF bands
- 40 Watt transmit output on UHF bands
- Selectable high, medium, and low power settings
- Dual-band dual-watch operation
- Large backlit LCD display with clear frequency presentation
- 809 programmable memory channels
- Alphanumeric memory channel naming capability
- Detachable front panel for flexible mobile installation
- Built-in CTCSS encoder and decoder
- Built-in DCS encoder and decoder
- Tone scan and repeater access support
- DTMF encode and decode functionality
- Automatic repeater shift support
- Wide and narrow FM operation modes
- Priority channel monitoring
- Programmable scan and memory management functions
- Emergency alarm functionality
- Busy channel lockout protection
- Time-out timer protection
- Programmable function keys for rapid feature access
- Front-panel microphone connection
- Integrated cooling system for stable high-power operation
- PC programming support for channel management and configuration
- Radio cloning capability for simplified deployment
- External speaker connectivity
- Designed for mobile communication, emergency response, outdoor installations, and amateur radio repeater operation
Typical Uses
- Dual-band VHF/UHF repeater operation
- Mobile amateur radio installations
- Emergency and disaster communications
- Outdoor and off-road vehicle communications
- Public service and event support activities
- Fixed-station VHF/UHF operation
- General amateur radio communication networks

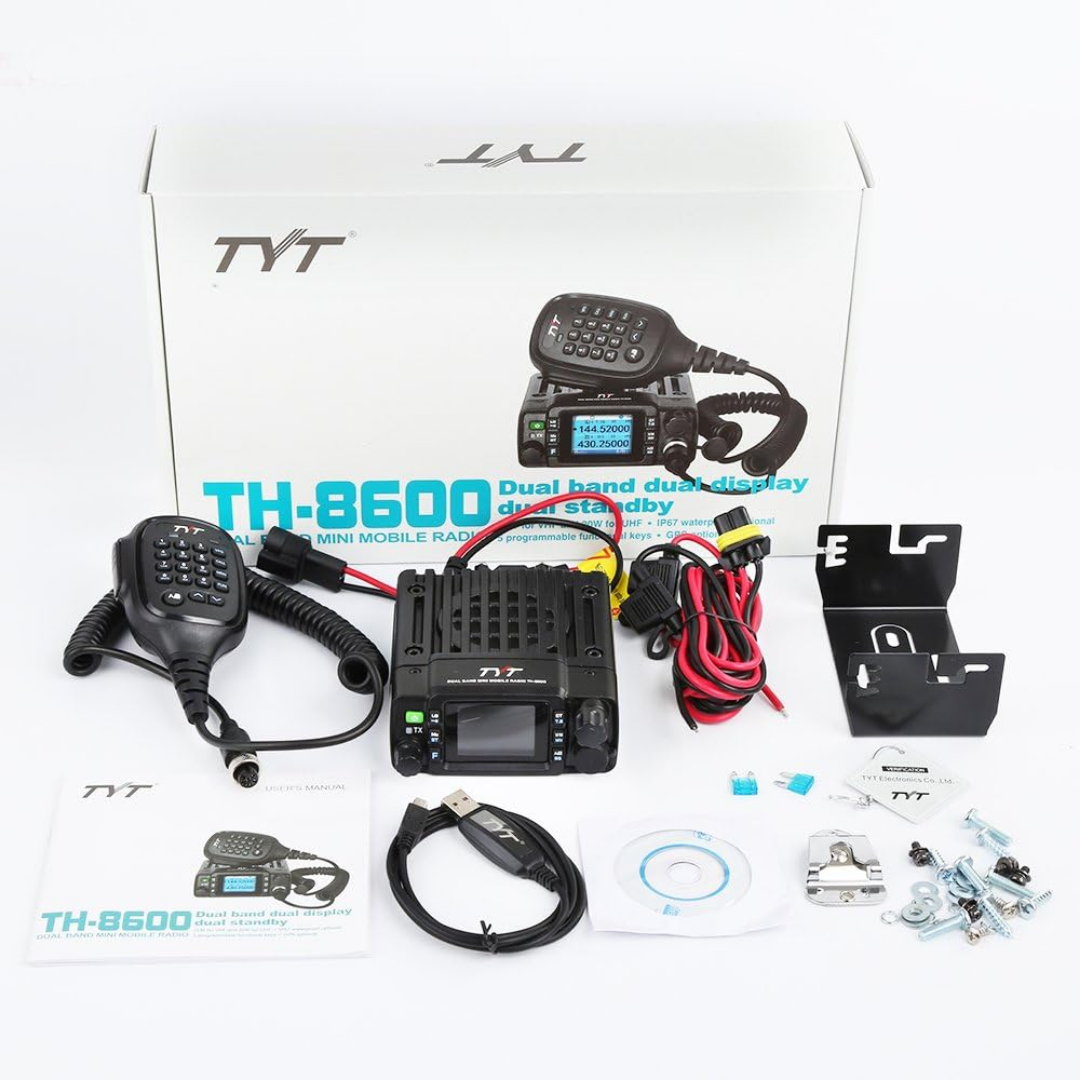

In the Box
- TYT TH-8600 Dual-Band Transceiver
- DTMF Hand Microphone
- DC Power Cable
- Detachable Front Panel
- Control Head Separation Cable
- Mobile Mounting Bracket
- Microphone Hanger
- Mounting Hardware Kit
- User Documentation
| Brand | TYT |
| Model Number | TH-8600 |
| Product Type | Dual-Band VHF/UHF FM Mobile Transceiver |
| Frequency Coverage TX VHF | 136-174 MHz |
| Frequency Coverage TX UHF | 400-480 MHz |
| Frequency Coverage RX VHF | 136-174 MHz |
| Frequency Coverage RX UHF | 400-480 MHz |
| Operating Modes | FM/NFM |
| RF Output Power VHF | 50W/25W/10W |
| RF Output Power UHF | 40W/20W/10W |
| IP Rating | IP67 Front Panel |
| Memory Channels | 809 |
| Channel Naming | Supported |
| Dual Watch | Supported |
| Display | Backlit LCD |
| Control Head | Detachable |
| CTCSS Encoder | Built-In |
| CTCSS Decoder | Built-In |
| DCS Encoder | Built-In |
| DCS Decoder | Built-In |
| DTMF Encode | Supported |
| DTMF Decode | Supported |
| Tone Scan | Supported |
| Automatic Repeater Shift | Supported |
| Priority Channel | Supported |
| Emergency Alarm | Supported |
| Busy Channel Lockout | Supported |
| Time Out Timer | Supported |
| Wide/Narrow FM | Supported |
| Programming | PC Programmable |
| Cloning Function | Supported |
| External Speaker Jack | Supported |
| Cooling System | Built-In |
| Frequency Stability | ±2.5ppm |
| Channel Spacing | 12.5kHz/25kHz |
| Antenna Impedance | 50 Ohm |
| Antenna Connector | SO-239 |
| Power Supply | 13.8VDC ±15% |
| Current Consumption RX | Less Than 0.8A |
| Current Consumption TX | Up To 11A |
| Dimensions | 140 x 43 x 168 mm |
| Weight | Approx. 1.2kg |
| Microphone | DTMF Hand Microphone Included |
