TYT TH-7800 VHF UHF FM Transceiver with IP67 Rating
Rs. 18,500.00
(Inclusive of GST)
TYT TH-7800 VHF UHF FM Transceiver with IP67 Rating
TYT TH-7800 VHF UHF FM Transceiver with IP67 Rating
TYT TH-7800 VHF/UHF FM Transceiver with IP67 Rating
The TYT TH-7800 is a dual-band VHF/UHF FM mobile transceiver designed for reliable amateur radio communication in mobile and fixed-station environments. Featuring simultaneous dual-band monitoring, high-power transmit capability, cross-band repeat functionality, extensive memory capacity, and a rugged design with IP67-rated control panel protection, the TH-7800 delivers flexible communications for everyday operation, emergency response, and repeater applications.
Key Features
- Dual-band VHF and UHF FM transceiver
- IP67-rated detachable control panel for enhanced environmental protection
- Simultaneous dual-band receive capability
- Independent VHF and UHF operation with dual-display monitoring
- 50 Watt RF output on VHF
- 40 Watt RF output on UHF
- Selectable high, medium, and low power levels
- Cross-band repeat functionality for extended coverage applications
- 809 programmable memory channels
- Alphanumeric memory channel naming support
- Large backlit LCD display with dual-frequency presentation

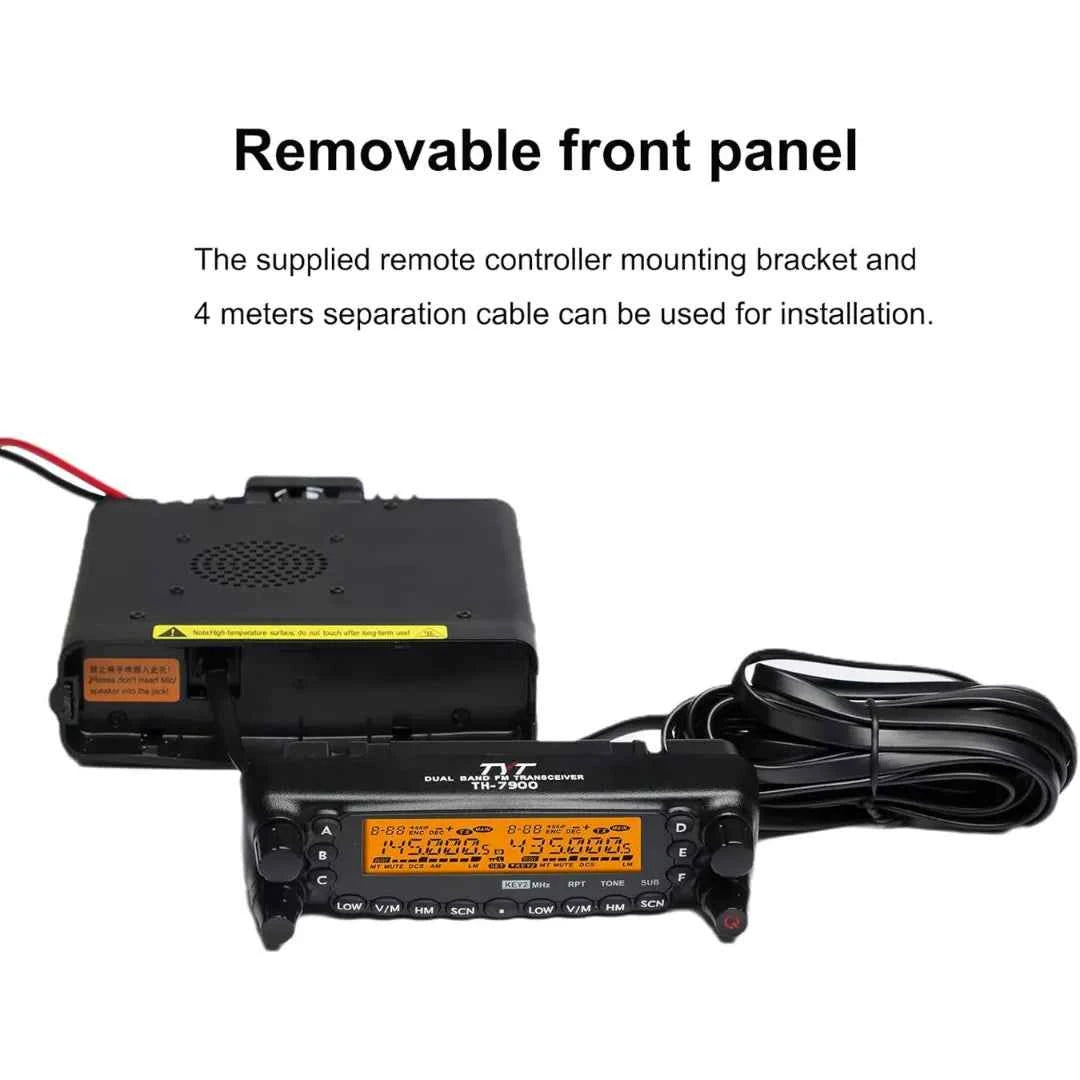

- Detachable control head for flexible vehicle installations
- Built-in CTCSS encoder and decoder
- Built-in DCS encoder and decoder
- Tone scan and repeater access support
- DTMF encoding and decoding capability
- Automatic repeater shift functionality
- Wide and narrow FM operation modes
- Priority channel monitoring function
- Programmable scan and memory management features
- Emergency alarm function
- Busy channel lockout protection
- Time-out timer protection
- Programmable front-panel and microphone functions

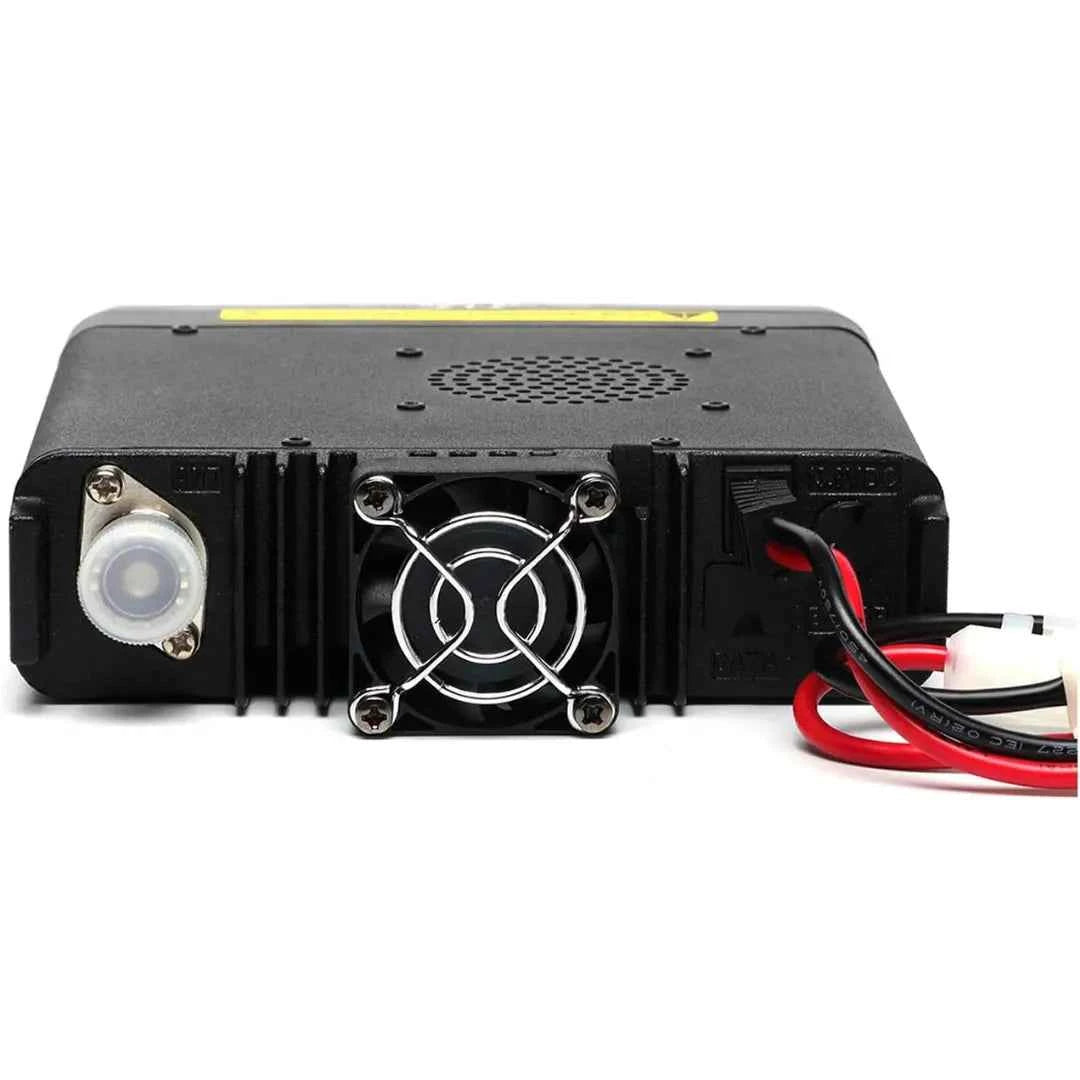

- Integrated cooling system for stable high-power operation
- PC programming support for channel and memory management
- Radio cloning capability for simplified setup
- External speaker connectivity
- Suitable for mobile communications, repeater operation, emergency response, and public service activities
Typical Uses
- Dual-band VHF/UHF repeater operation
- Cross-band repeat applications
- Mobile amateur radio installations
- Emergency and disaster communications
- Public service and event support communications
- Off-road and outdoor vehicle communications
- Fixed-station VHF/UHF operation

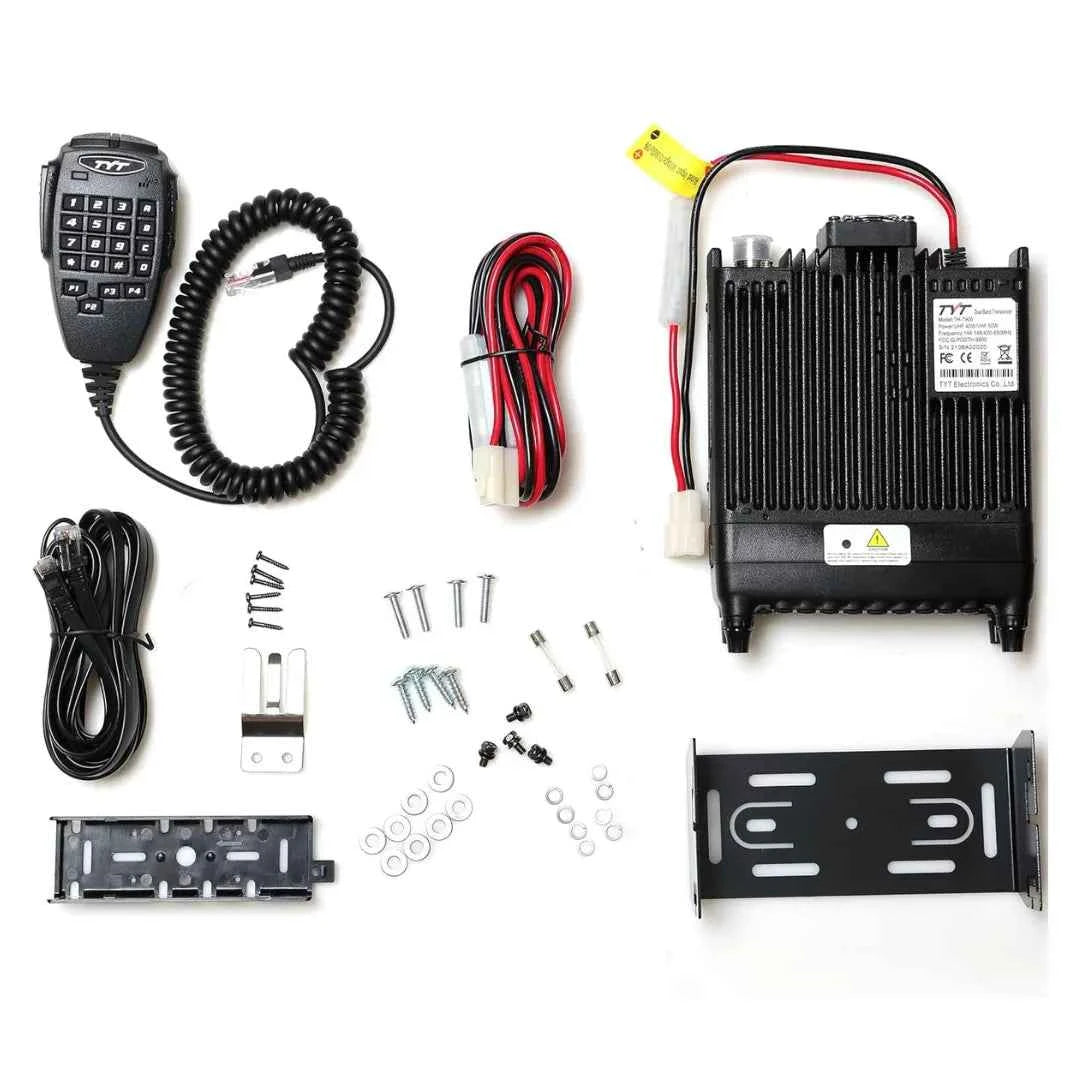

In the Box
- TYT TH-7800 Dual-Band Transceiver
- DTMF Hand Microphone
- Detachable Control Panel
- Control Head Separation Cable
- DC Power Cable
- Mobile Mounting Bracket
- Microphone Hanger
- Mounting Hardware Kit
- User Documentation
| Brand | TYT |
| Model Number | TH-7800 |
| Product Type | Dual-Band VHF/UHF FM Mobile Transceiver |
| Frequency Coverage TX VHF | 136-174 MHz |
| Frequency Coverage TX UHF | 400-480 MHz |
| Frequency Coverage RX VHF | 136-174 MHz |
| Frequency Coverage RX UHF | 400-480 MHz |
| Operating Modes | FM/NFM |
| RF Output Power VHF | 50W/25W/10W |
| RF Output Power UHF | 40W/20W/10W |
| Dual Receive | Simultaneous Dual Receive |
| Cross-Band Repeat | Supported |
| IP Rating | IP67 Control Panel |
| Memory Channels | 809 |
| Channel Naming | Supported |
| Display | Dual-Frequency Backlit LCD |
| Control Head | Detachable |
| CTCSS Encoder | Built-In |
| CTCSS Decoder | Built-In |
| DCS Encoder | Built-In |
| DCS Decoder | Built-In |
| DTMF Encode | Supported |
| DTMF Decode | Supported |
| Tone Scan | Supported |
| Automatic Repeater Shift | Supported |
| Priority Channel | Supported |
| Emergency Alarm | Supported |
| Busy Channel Lockout | Supported |
| Time Out Timer | Supported |
| Wide/Narrow FM | Supported |
| Programming | PC Programmable |
| Cloning Function | Supported |
| External Speaker Jack | Supported |
| Cooling System | Built-In |
| Frequency Stability | ±2.5ppm |
| Channel Spacing | 12.5kHz/25kHz |
| Antenna Impedance | 50 Ohm |
| Antenna Connector | SO-239 |
| Power Supply | 13.8VDC ±15% |
| Current Consumption RX | Less Than 0.8A |
| Current Consumption TX | Up To 11A |

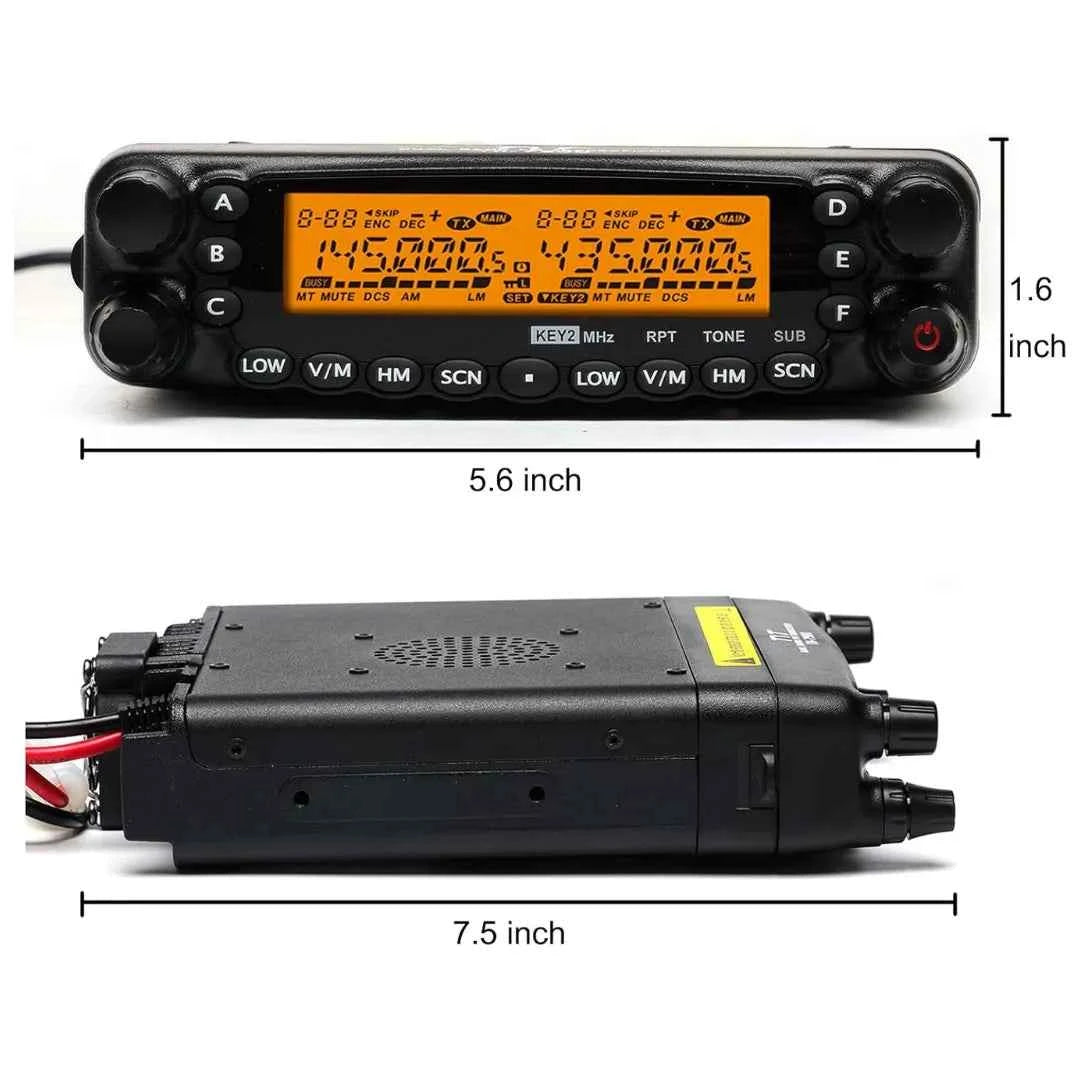

| Dimensions | 140 x 43 x 168 mm |
| Weight | Approx. 1.2kg |
| Microphone | DTMF Hand Microphone Included |
