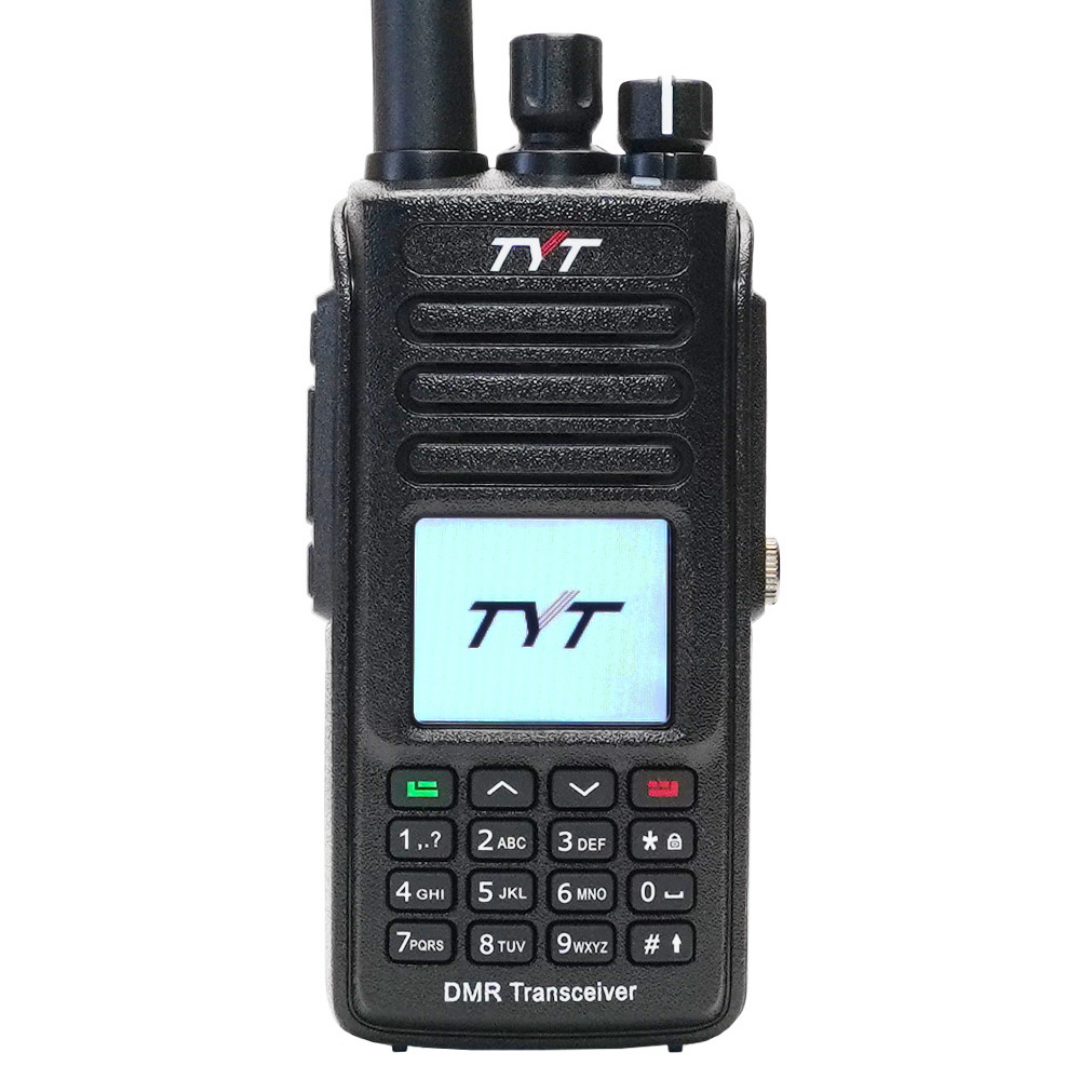

TYT MD-UV390 Plus Dual Band DMR Handheld Transceiver with GPS, AES and IP67 Rating
Brand:
TYT
TYT MD-UV390 Plus Dual Band DMR Handheld Transceiver with GPS, AES and IP67 Rating
TYT MD-UV390 Plus Dual Band DMR Handheld Transceiver with GPS, AES and IP67 Rating
TYT MD-UV390 Plus Dual Band DMR Handheld Transceiver with GPS, AES and IP67 Rating
The TYT MD-UV390 Plus is a rugged dual-band VHF/UHF handheld transceiver supporting DMR Tier II digital and analog FM operation. Designed for demanding field use, it combines GPS positioning, AES encryption, IP67 waterproof protection, extensive channel capacity, and high-capacity battery performance, making it ideal for amateur radio, emergency communications, outdoor activities, and digital network operation.
Key Features
- Dual-band VHF/UHF handheld transceiver
- DMR Tier II digital and analog FM operation
- Integrated GPS receiver for position reporting and tracking applications
- AES digital encryption for enhanced communication security
- IP67-rated waterproof and dustproof construction
- Rugged housing designed for outdoor and field operations
- Dual time-slot TDMA technology for efficient spectrum utilization
- Up to 5 Watts RF output power
- Private Call, Group Call, and All Call functionality
- 3,000 programmable memory channels
- 10,000 digital contact capacity
- 250 programmable zones
- High-resolution color display with intuitive menu system
- Dual-mode digital and analog channel operation
- Built-in voice recording functionality
- Text messaging support in DMR mode
- Emergency alarm and lone worker protection features
- Remote monitor, radio check, and call alert functions
- GPS position transmission and reception support
- Digital contact management and talkgroup support
- CTCSS and DCS signaling for analog FM operation
- Priority scan and programmable scan functions
- VOX operation capability
- Programmable side keys for rapid feature access
- Firmware upgrade support
- PC programmable using TYT CPS software
- High-capacity lithium-ion battery for extended operating time
- Wide accessory compatibility including speaker microphones and earpieces
- Suitable for DMR networks, emergency communications, outdoor activities, travel, and portable amateur radio operation
Typical Uses
- DMR digital voice communications
- GPS tracking and position reporting
- Emergency and disaster communications
- Outdoor and field operations
- Amateur radio repeater and hotspot access
- Public service and event communications
- Travel and portable radio activities

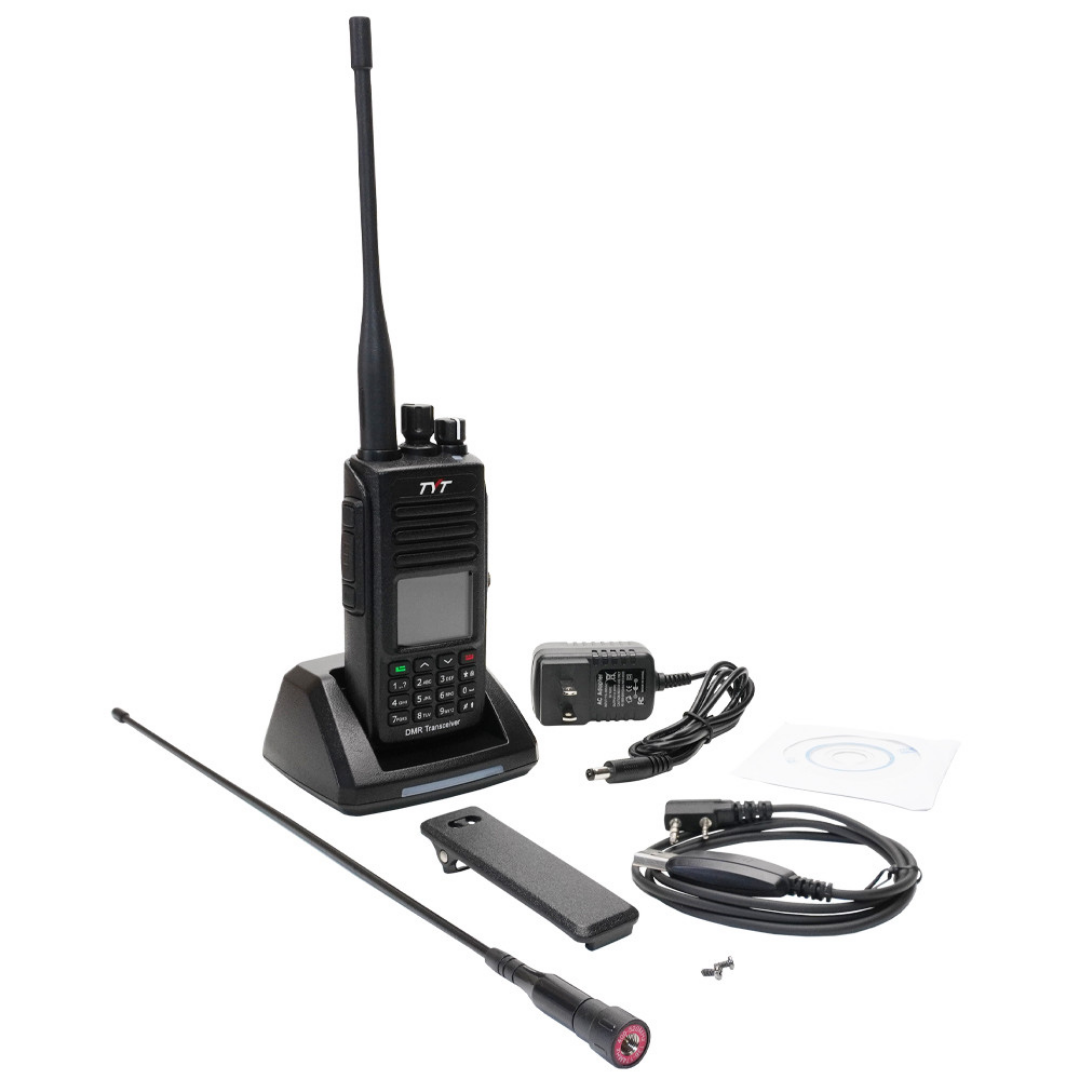

In the Box
- TYT MD-UV390 Plus Handheld Transceiver
- GPS Enabled Lithium-Ion Battery Pack
- Dual-Band Flexible Antenna
- Desktop Charging Cradle
- AC Power Adapter
- Belt Clip
- Hand Strap
- User Documentation
| Brand | TYT |
| Model Number | MD-UV390 Plus |
| Product Type | Dual-Band DMR/FM Handheld Transceiver |
| Frequency Coverage TX VHF | 136-174 MHz |
| Frequency Coverage TX UHF | 400-480 MHz |
| Frequency Coverage RX VHF | 136-174 MHz |
| Frequency Coverage RX UHF | 400-480 MHz |
| Operating Modes | DMR Tier II/FM |
| RF Output Power | 5W/2.5W/1W |
| Digital Protocol | DMR ETSI Tier II |
| TDMA | 2-Slot TDMA |
| GPS Receiver | Built-In |
| AES Encryption | Supported |
| Waterproof Rating | IP67 |
| Display | Color LCD |
| Memory Channels | 3000 |
| Zones | 250 |
| Digital Contacts | 10000 |
| Call Types | Private/Group/All Call |
| Text Messaging | Supported |
| Voice Recording | Supported |
| Emergency Alarm | Supported |
| Lone Worker | Supported |
| Remote Monitor | Supported |
| Radio Check | Supported |
| VOX | Supported |
| CTCSS | Supported |
| DCS | Supported |
| Scan Function | Supported |
| Programming | PC Programmable |
| Firmware Upgrade | Supported |
| Battery Type | Li-Ion |
| Battery Capacity | 2200mAh |
| Audio Output Power | 1W |
| Antenna Connector | SMA Female |
| Frequency Stability | ±1.0ppm |
| Channel Spacing | 12.5kHz/25kHz |

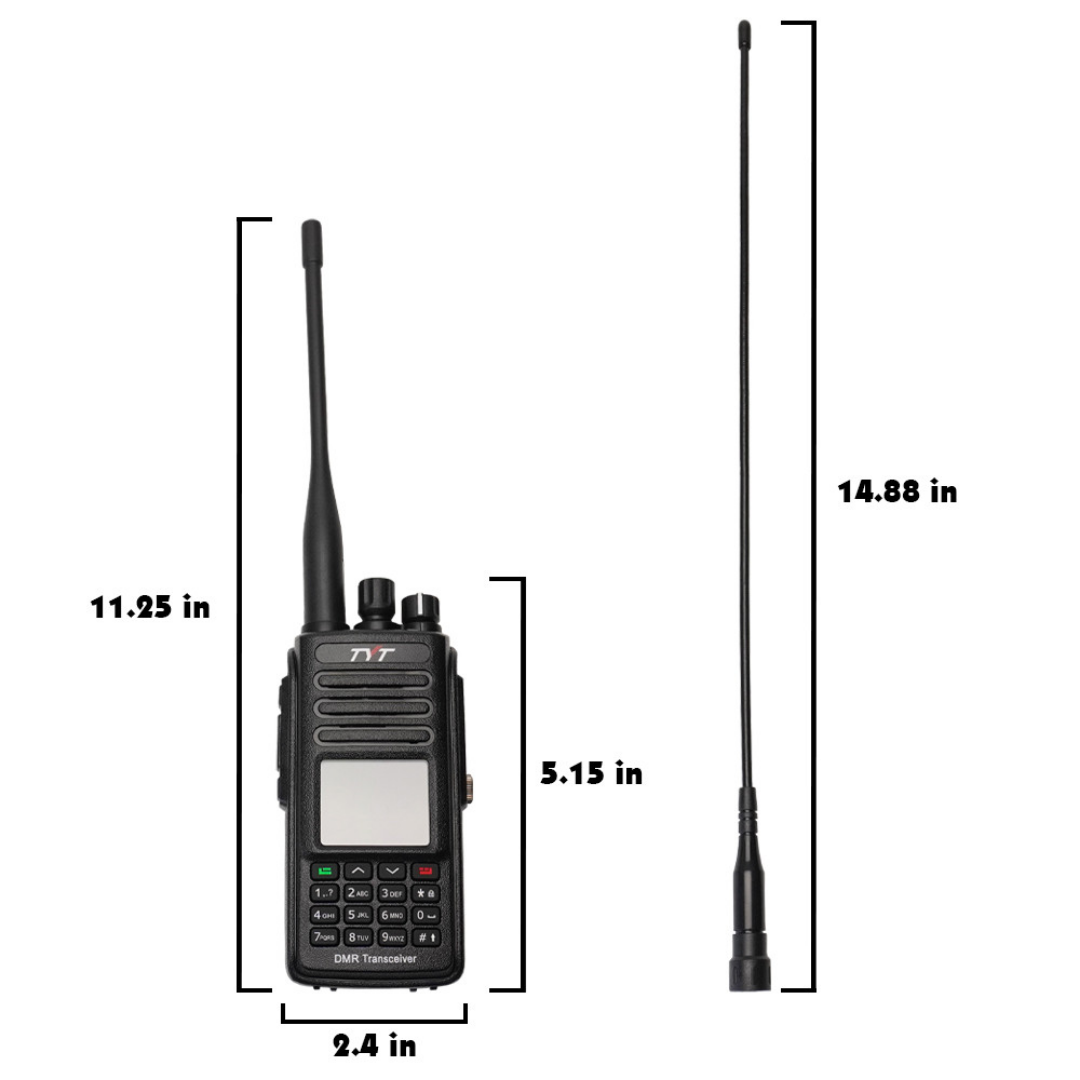

| Dimensions | 131 x 61 x 36 mm |
| Weight | Approx. 300g |
| Charging Method | Desktop Charger |
| GPS Position Reporting | Supported |
