TYT MD-9600 Dualband DMR with GPS
Brand:
TYT
TYT MD-9600 Dualband DMR with GPS
TYT MD-9600 Dualband DMR with GPS
TYT MD-9600 Dualband DMR with GPS

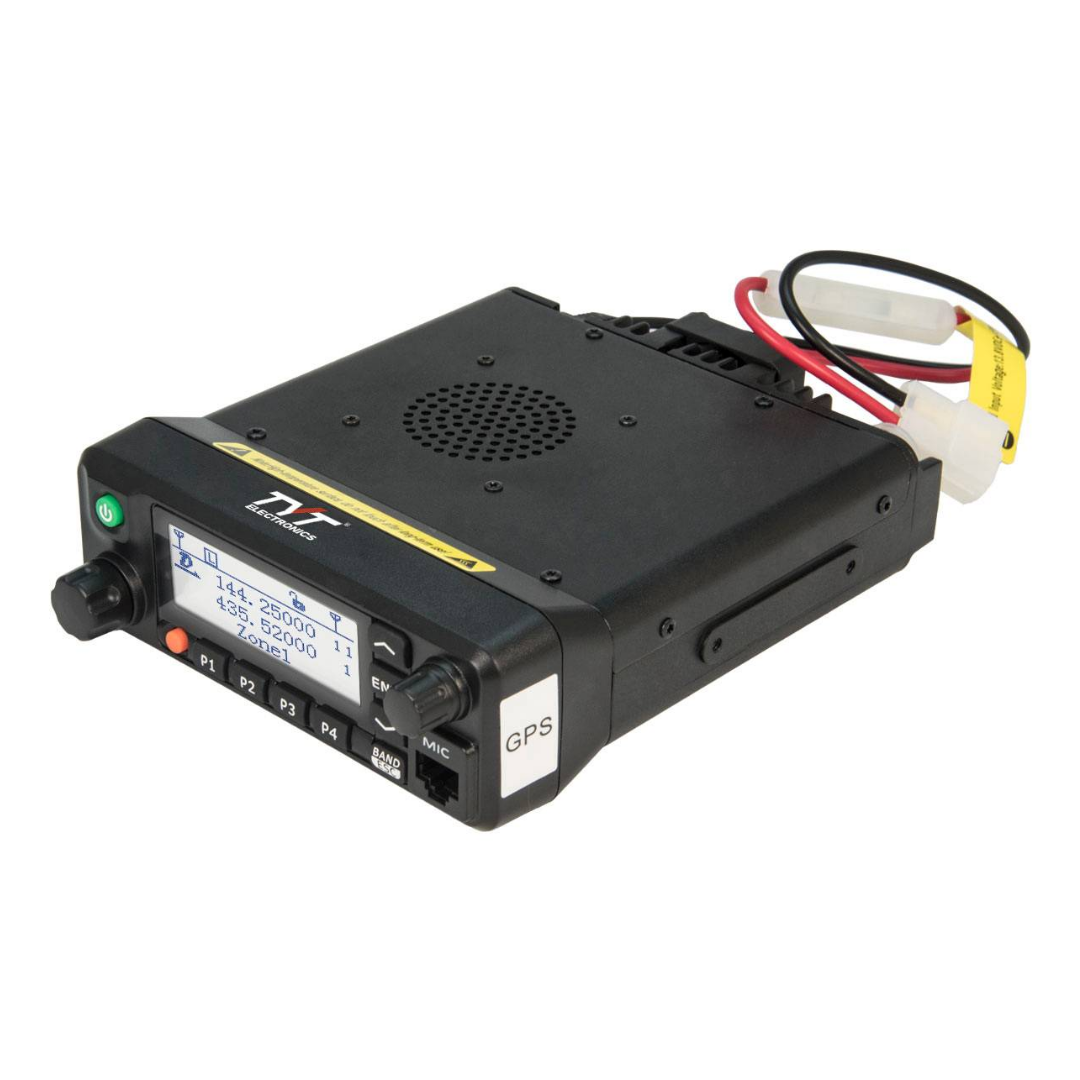

The TYT MD-9600 GPS is a dual-band VHF/UHF mobile transceiver supporting both DMR Tier II digital and conventional FM operation. Designed for mobile, base station, and emergency communication applications, it combines dual time-slot DMR technology, integrated GPS functionality, high-power operation, extensive channel capacity, and flexible digital communication features in a rugged mobile platform.
Key Features
- Dual-band VHF and UHF operation
- Supports DMR Tier II digital and analog FM communication
- Integrated GPS receiver for location reporting and tracking applications
- Dual-slot TDMA technology for efficient spectrum utilization
- Simultaneous monitoring of digital and analog channels
- High-power mobile transceiver design
- 50 Watt VHF transmit output
- 45 Watt UHF transmit output

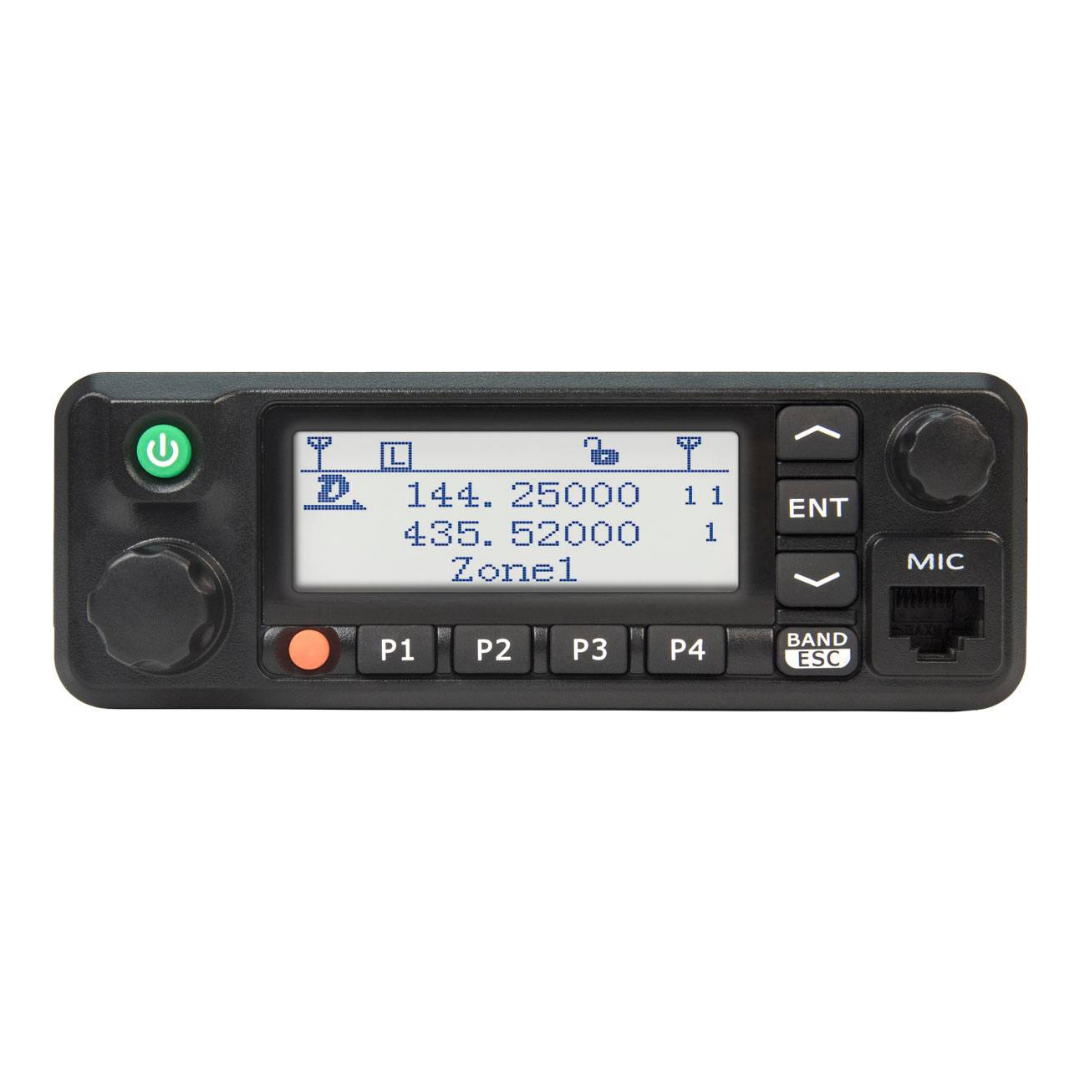

- Large color TFT display with intuitive menu navigation
- Dual-band dual-watch capability
- Private Call, Group Call, and All Call support
- Individual contact and talkgroup management
- Text messaging functionality in DMR mode
- Digital voice encryption support
- Remote monitor and radio check functions
- Lone worker and emergency alarm features
- GPS position transmission and reception support
- Extensive channel and zone storage capacity
- Programmable function keys for rapid access to features
- Built-in recording and digital communication management functions
- Channel scan and priority scan modes
- CTCSS and DCS support in analog FM mode
- DTMF signaling capability
- PC programming through dedicated software
- Upgradeable firmware architecture
- Front-panel speaker with high-output audio performance
- Detachable control head for flexible mobile installation
- Suitable for amateur radio, emergency communications, mobile operation, and DMR network access
Typical Uses
- DMR amateur radio network operation
- Dual-band VHF/UHF mobile communications
- GPS tracking and position reporting
- Emergency and disaster communications
- Repeater and hotspot operation
- Public service and event communications
- Fixed-station digital voice operation

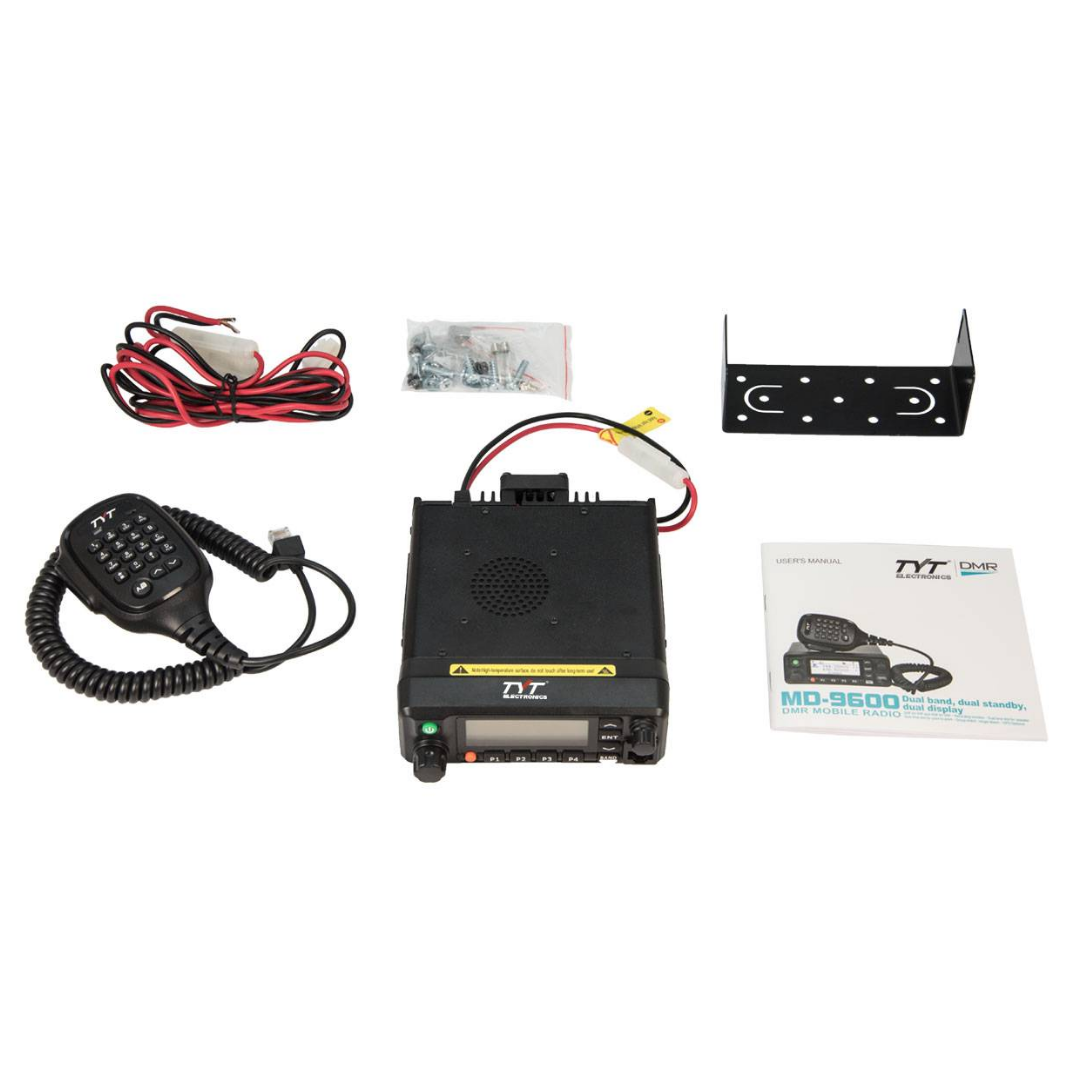

In the Box
- TYT MD-9600 GPS Dual-Band DMR Mobile Transceiver

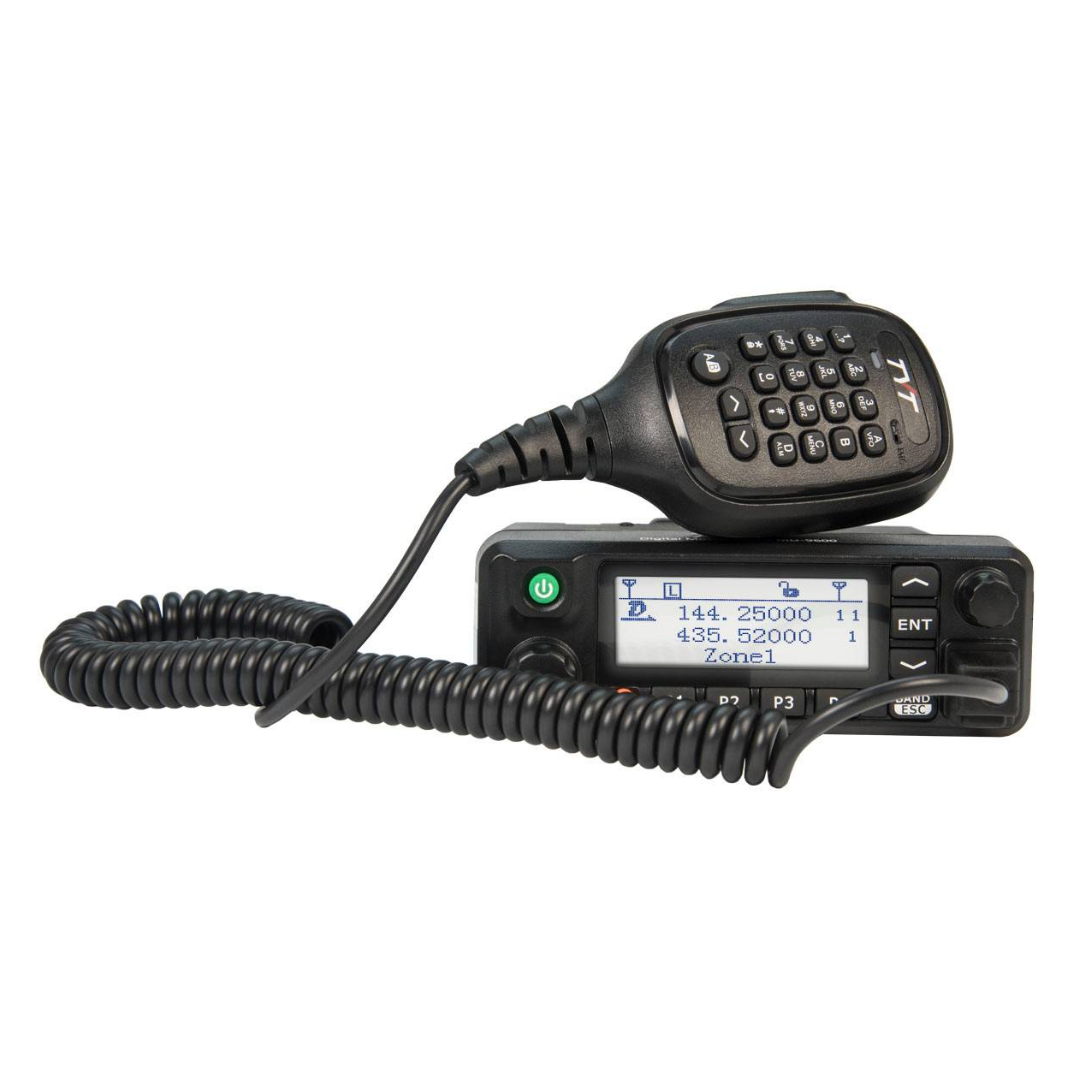

- DTMF Hand Microphone
- GPS Antenna
- DC Power Cable
- Mobile Mounting Bracket
- Control Head Separation Hardware
- Programming Cable
- User Documentation
| Brand | TYT |
| Model Number | MD-9600 GPS |
| Product Type | Dual-Band DMR/FM Mobile Transceiver |
| Frequency Coverage TX VHF | 136-174 MHz |
| Frequency Coverage TX UHF | 400-480 MHz |
| Frequency Coverage RX VHF | 136-174 MHz |
| Frequency Coverage RX UHF | 400-480 MHz |
| Operating Modes | DMR Tier II/FM |
| Digital Protocol | DMR ETSI Tier II |
| TDMA | 2-Slot TDMA |
| RF Output Power VHF | 50W/25W/5W |
| RF Output Power UHF | 45W/25W/5W |
| GPS Receiver | Built-In |
| Display | Color TFT LCD |
| Dual Watch | Supported |
| Channel Capacity | 3000 |
| Zone Capacity | 250 |
| Channels Per Zone | 64 |
| Contacts Capacity | 10000 |
| Call Types | Private/Group/All Call |
| Text Messaging | Supported |
| Encryption | Supported |
| Emergency Alarm | Supported |
| Lone Worker | Supported |
| Remote Monitor | Supported |
| Radio Check | Supported |
| CTCSS | Supported |
| DCS | Supported |
| DTMF | Supported |
| Scan Function | Supported |
| Programming | PC Software Programmable |
| Firmware Upgrade | Supported |
| Speaker Audio Output | High Power Front Speaker |
| Control Head | Detachable |
| Antenna Impedance | 50 Ohm |
| Power Supply | 13.8VDC |
| Frequency Stability | ±0.5ppm |
| Dimensions | 177 x 175 x 60 mm |
| Weight | Approx. 1.5kg |
| GPS Antenna | Included |
| Microphone | DTMF Hand Microphone Included |
