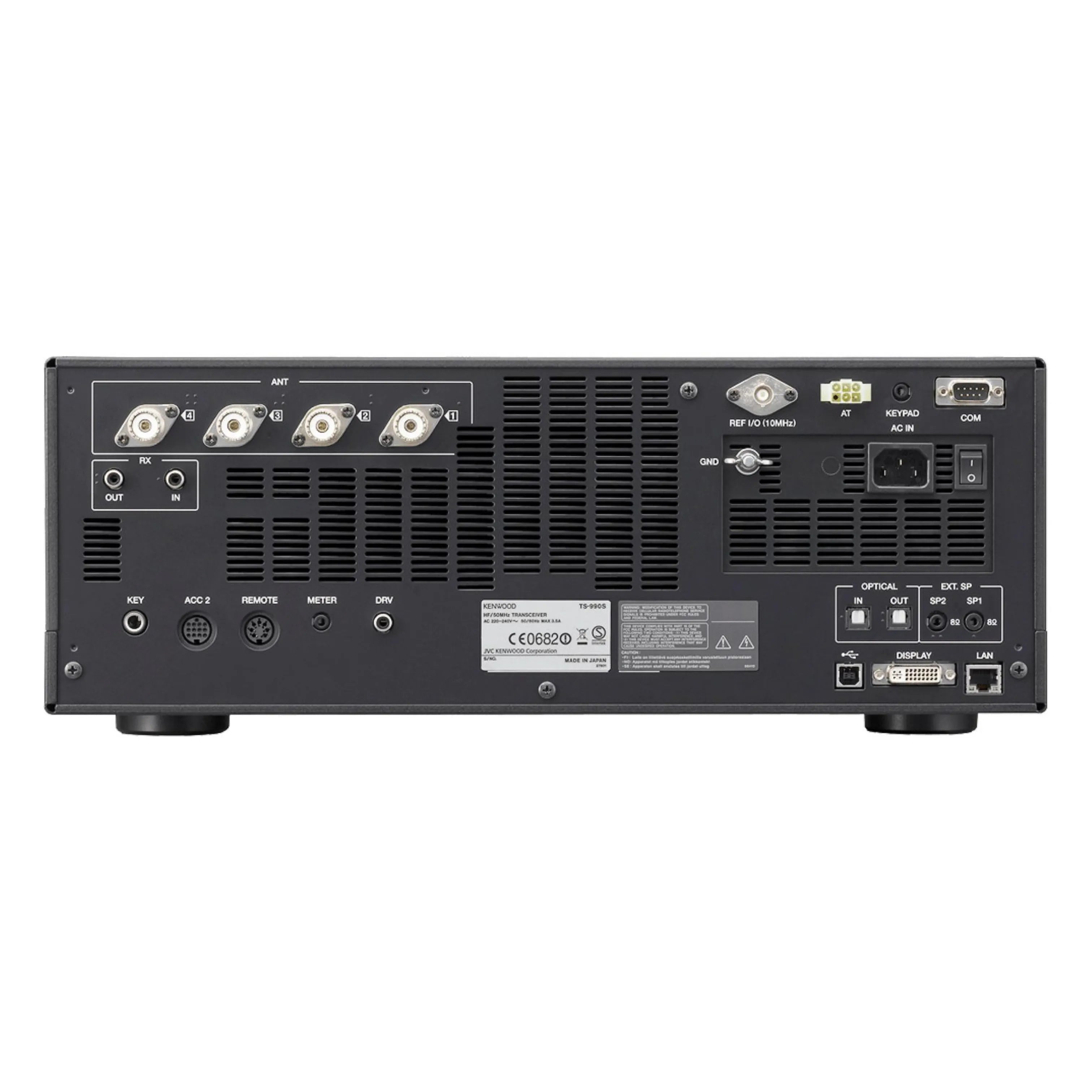

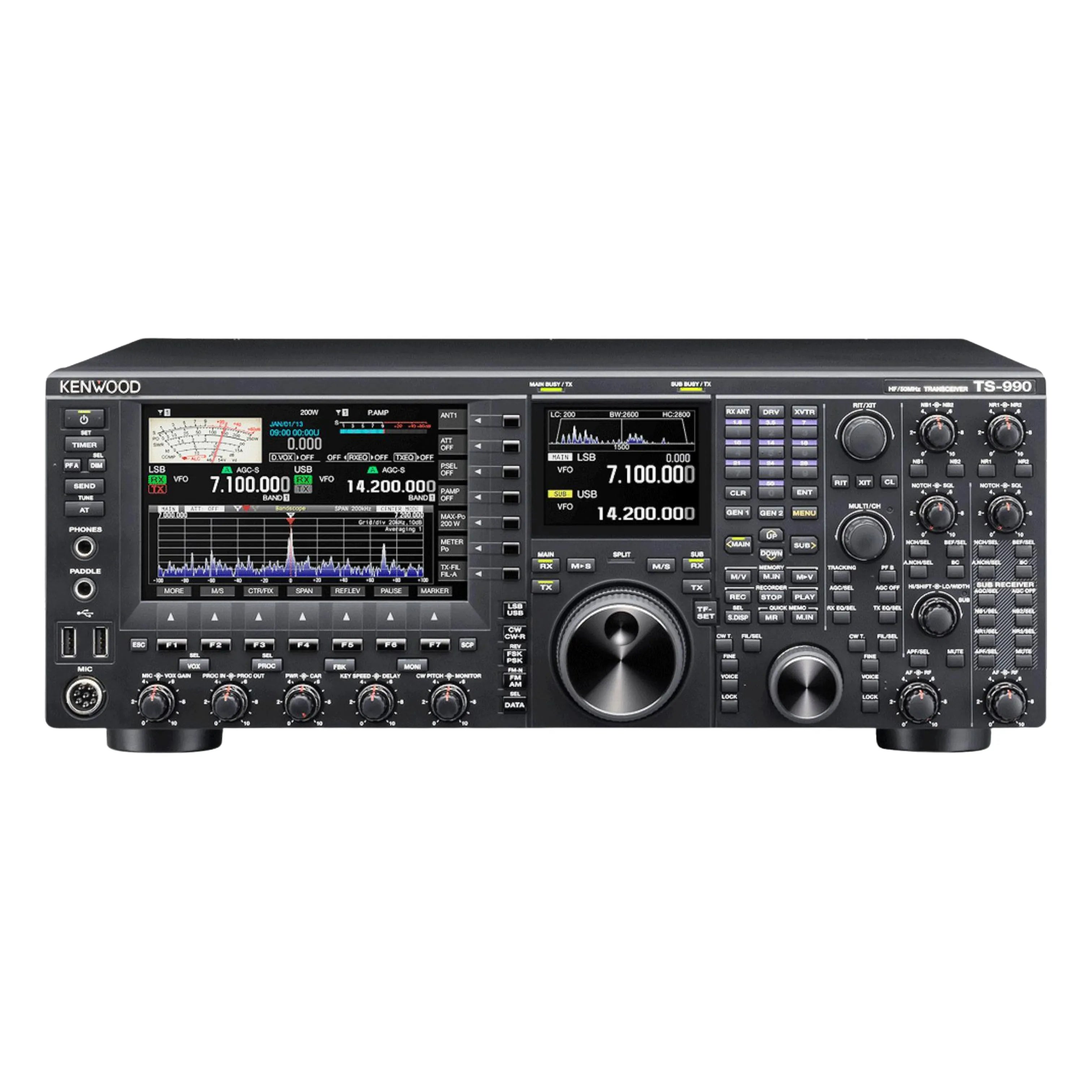

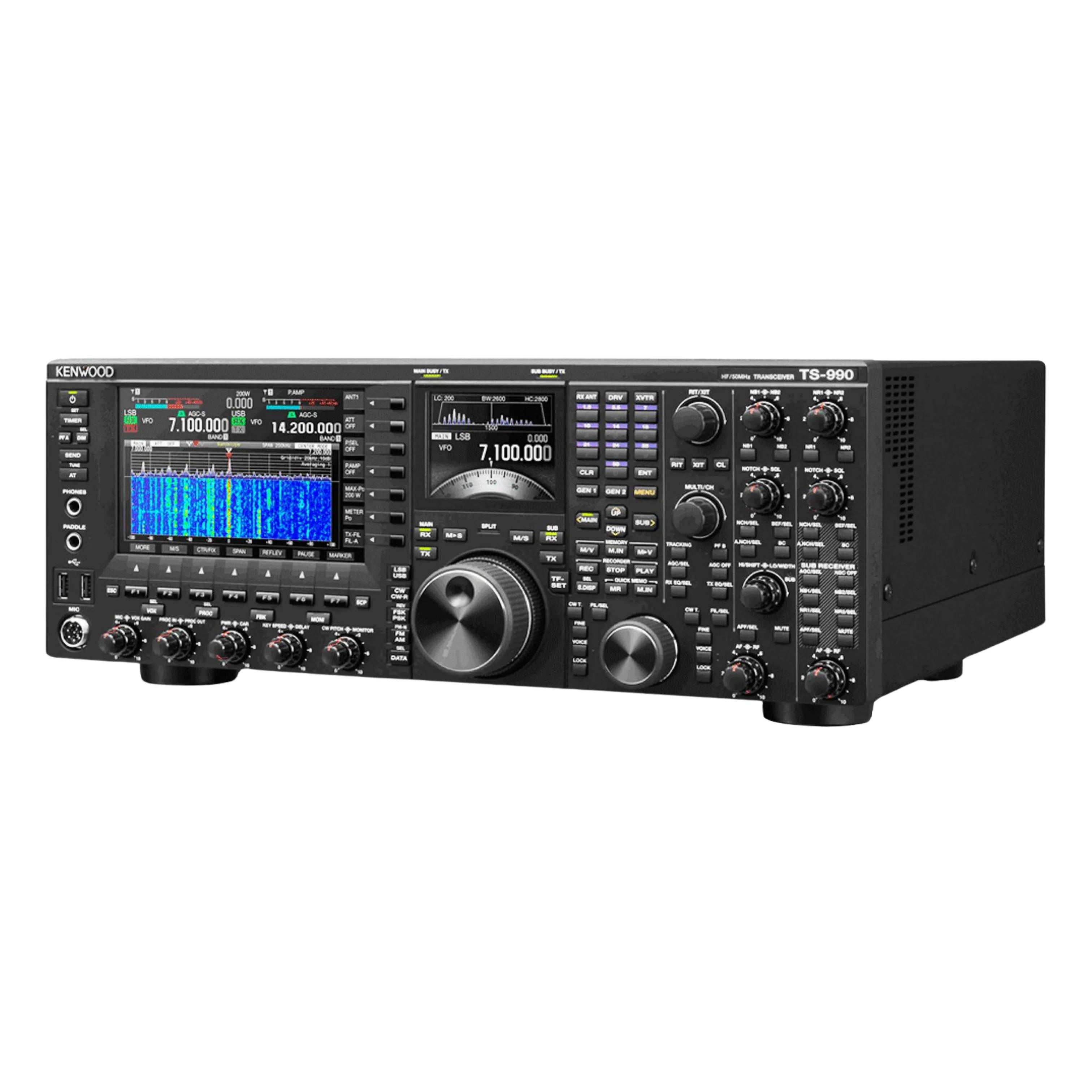

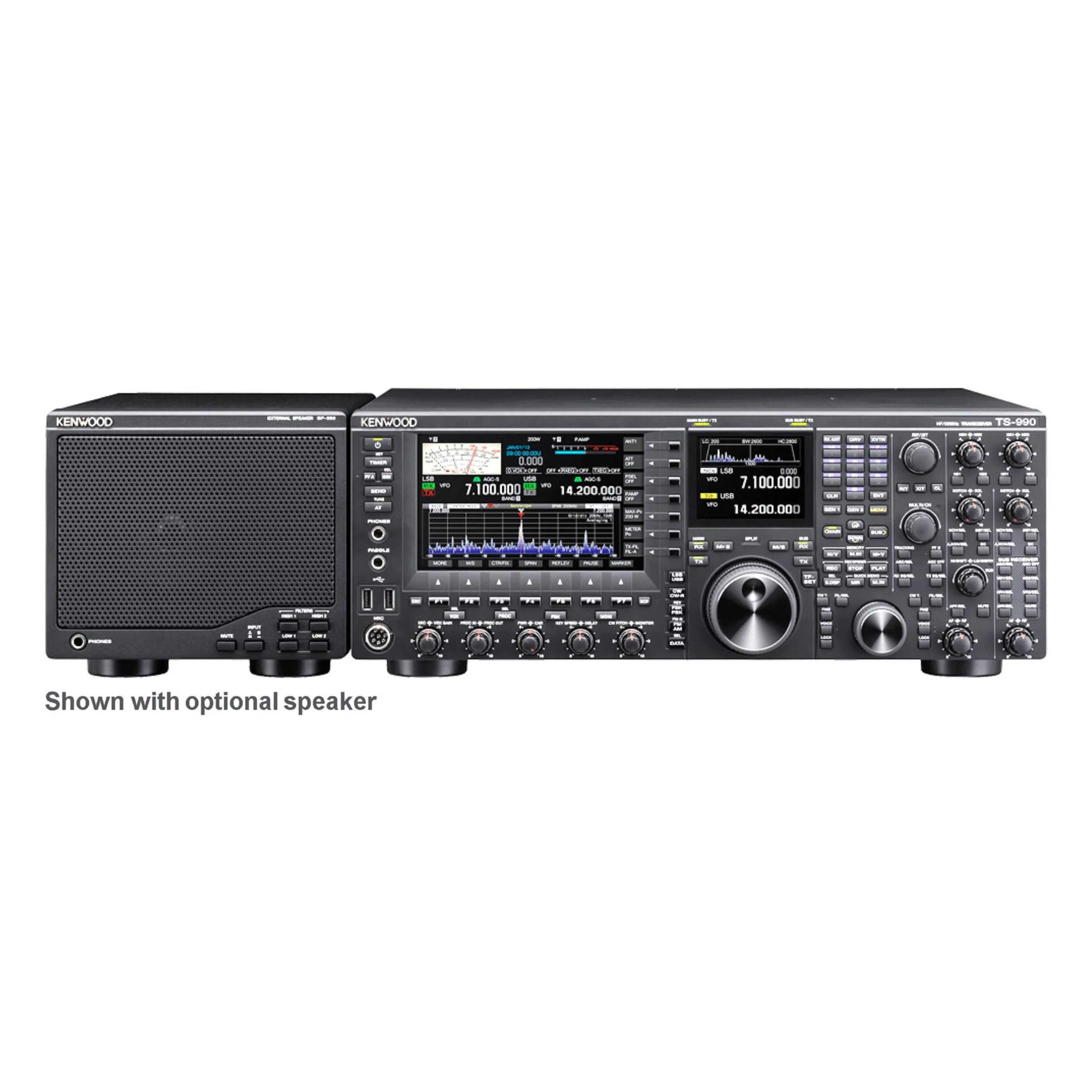

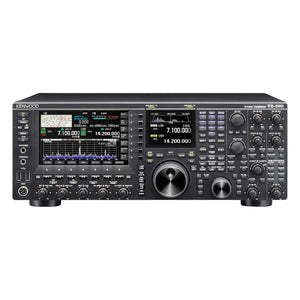

Kenwood TS-990S HF/6 Meter Base Transceiver
Brand:
Kenwood
Available for Pre-Order
This product is currently available at our warehouse in Kawasaki, Kanagawa, Japan and is not stocked at our Kolkata facility.
Upon order confirmation, we will arrange sourcing and shipment through our global fulfillment network.
Estimated Delivery: Within 2 Weeks
Reserve your unit today by placing a pre-order.
Kenwood TS-990S HF/6 Meter Base Transceiver
Kenwood TS-990S HF/6 Meter Base Transceiver
Kenwood TS-990S HF/6 Meter Base Transceiver
The Kenwood TS-990S is Kenwood's flagship HF and 6-meter all-mode transceiver, engineered for elite DXing, contesting, and advanced amateur radio applications. Featuring dual independent receivers, triple-conversion receiver architecture, high-performance DSP processing, a large color TFT display, and integrated antenna tuning systems, the TS-990S delivers exceptional receiver performance, operating flexibility, and station integration capabilities for serious operators.
Key Features
- HF and 50 MHz amateur band coverage
- All-mode operation including SSB, CW, AM, FM, FSK, and PSK
- 200 Watt transmitter output on HF and 6 meters
- Dual independent receivers for simultaneous monitoring of multiple frequencies
- Main receiver utilizing triple-conversion superheterodyne architecture
- Sub receiver with dedicated independent signal processing chain
- Excellent close-in dynamic range and strong-signal handling performance
- High-performance roofing filter system for enhanced selectivity
- 32-bit floating-point DSP signal processing
- Large 7-inch TFT color display with intuitive operating interface
- Real-time spectrum scope with waterfall display capability
- Dedicated sub-display for enhanced dual-receiver operation
- Built-in automatic antenna tuner with fast memory recall
- Dual antenna connectors with flexible receiver assignment
- Dedicated receive antenna input for specialized receiving systems
- Digital Noise Reduction (DNR) with multiple processing algorithms
- Advanced Noise Blanker for impulse noise suppression
- Automatic and manual notch filtering
- Beat Cancel functions for interference reduction
- Twin Passband Tuning for precise signal shaping
- CW auto-tune and advanced CW operating features
- Built-in electronic keyer with memory functionality
- Integrated RTTY, PSK31, and PSK63 encode/decode functions
- Voice guidance and digital voice recorder capabilities
- USB interface for CAT control, audio, and digital-mode operation
- Ethernet LAN connectivity for network integration
- External display support for enhanced station monitoring
- High-quality receive audio system with multiple speaker outputs
- Independent controls for Main and Sub receivers
- Designed for contest stations, DXpeditions, weak-signal work, and premium base station installations
Typical Uses
- High-performance HF DX operation
- Single and multi-operator contest stations
- CW and weak-signal communications
- Digital mode operation including FT8 and RTTY
- 6-meter DX and propagation monitoring
- Remote and network-integrated station operation
- Premium amateur radio base station installations
In the Box
- Kenwood TS-990S Transceiver
- Hand Microphone
- DC Power Cable
- Accessory Connectors
- Fuses
- Operation Manual
| Brand | Kenwood |
| Model Number | TS-990S |
| Product Type | HF/50MHz Flagship Base Transceiver |
| Frequency Coverage TX | 160m-6m Amateur Bands |
| Frequency Coverage RX | 30 kHz-60 MHz |
| Operating Modes | SSB/CW/AM/FM/FSK/PSK31/PSK63 |
| RF Output Power | 5-200 W |
| AM Output Power | 5-50 W |
| Receiver Configuration | Dual Independent Receivers |
| Receiver Architecture | Triple Conversion Superheterodyne |
| Signal Processing | 32-Bit Floating Point DSP |
| Display | 7 in TFT Color Display |
| Sub Display | Dedicated Receiver Display |
| Spectrum Scope | Real-Time |
| Waterfall Display | Supported |
| Roofing Filters | Multiple Selectable Roofing Filters |
| Automatic Antenna Tuner | Built-In |
| Antenna Connectors | 2 x SO-239 |
| Receive Antenna Input | Dedicated RX ANT Input |
| Preamplifiers | Selectable |
| RF Attenuator | Selectable |
| Noise Reduction | Digital DSP |
| Noise Blanker | Built-In |
| Auto Notch Filter | Built-In |
| Manual Notch Filter | Built-In |
| Twin Passband Tuning | Supported |
| RTTY Decode | Built-In |
| PSK31 Decode | Built-In |
| PSK63 Decode | Built-In |
| Electronic Keyer | Built-In |
| Voice Recorder | Built-In |
| USB Interface | Built-In |
| Ethernet Port | Built-In |
| External Display Output | Supported |
| Frequency Stability | ±0.1 ppm |
| Supply Voltage | 13.8 VDC |
| Current Consumption RX | Approx. 3.5 A |
| Current Consumption TX | Approx. 41 A |
| Dimensions | 460 x 188 x 420 mm |
| Weight | Approx. 22 kg |
| Microphone | Included |
