SA6 6GHz Spectrum Analyzer
SA6 6GHz Spectrum Analyzer

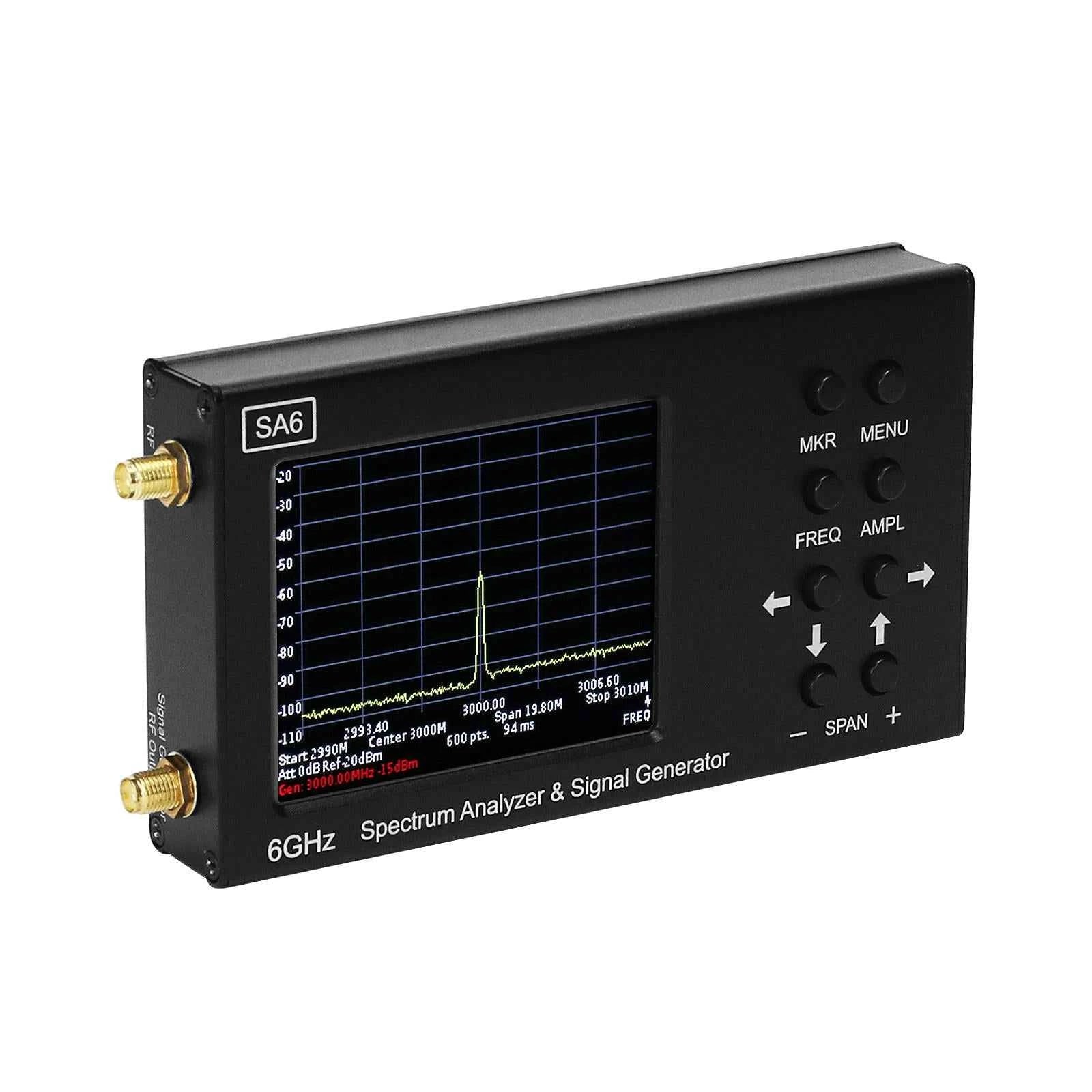

The SA6 6GHz Spectrum Analyzer is a compact handheld RF test instrument combining a wideband spectrum analyzer with an integrated tracking signal generator. Covering frequencies from 35 MHz to 6.2 GHz for spectrum display, it is designed for RF troubleshooting, wireless communication analysis, amateur radio, filter testing, and field service applications. Its touchscreen interface, rechargeable battery, and PC connectivity make it an ideal portable solution for RF engineers and radio enthusiasts.
Key Features
- Portable handheld spectrum analyzer with integrated tracking generator
- Spectrum display frequency range from 35 MHz to 6.2 GHz
- Measurement frequency range up to 4.5 GHz
- Suitable for Wi-Fi, Bluetooth, GSM, LTE, ISM, GNSS and amateur radio applications
- Integrated tracking generator for filter and amplifier testing
- Supports return loss and VSWR measurements with an external directional coupler
- 3.2-inch color resistive touchscreen display
- Fast spectrum sweep speed up to 700 MHz/second
- High dynamic range for accurate RF measurements
- Programmable internal attenuator from 0–30 dB
- Real-time RF spectrum visualization
- Marker functions for frequency and signal level measurements
- USB interface for PC control and data transfer
- Compatible with Windows-based software
- Rechargeable lithium battery for portable operation
- Compact lightweight aluminum enclosure

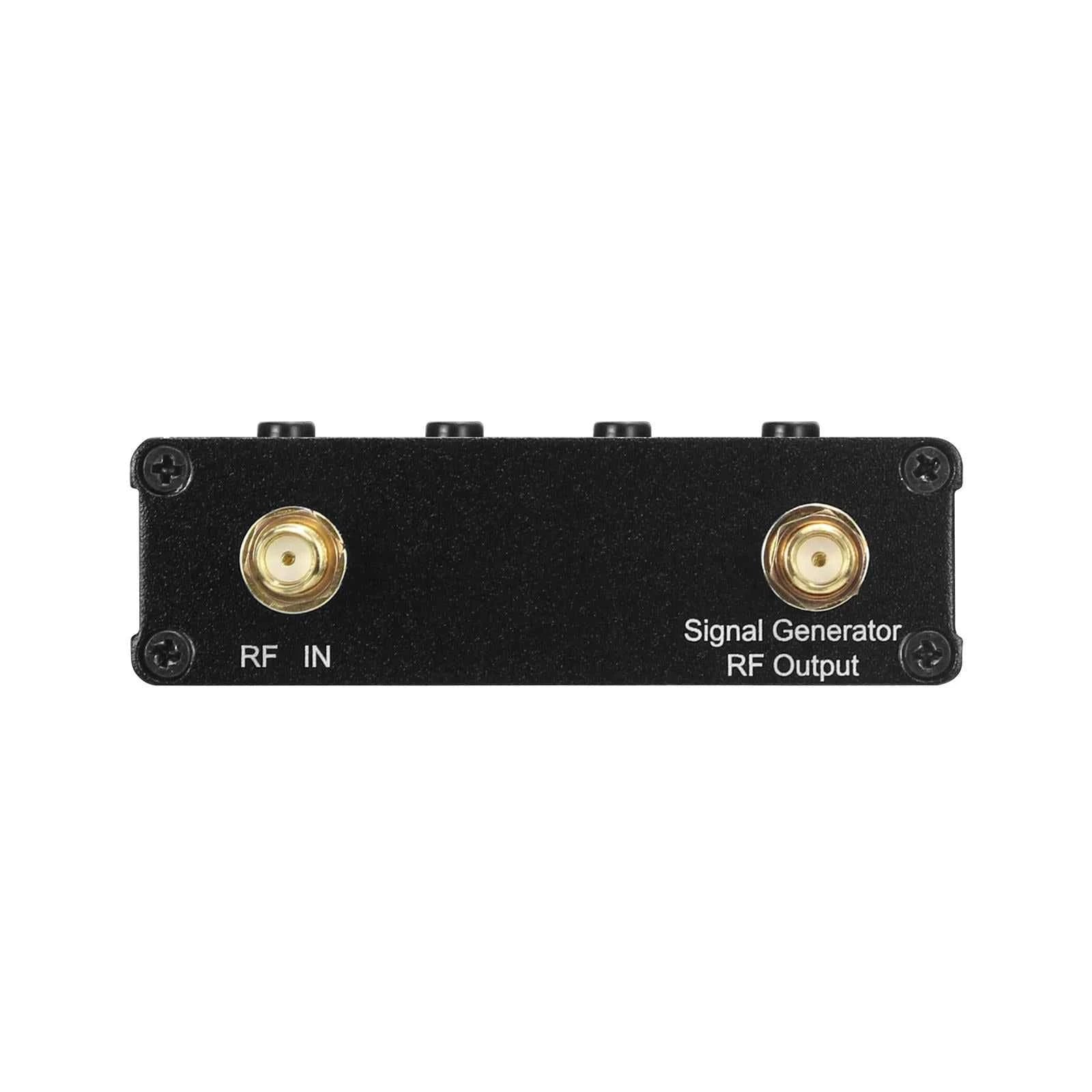

- 50 Ohm RF input and output impedance
- Ideal for antenna, filter and amplifier testing
- Suitable for RF laboratories and field maintenance
- Excellent tool for amateur radio equipment diagnostics
- Supports continuous spectrum monitoring
- Low power consumption for extended field use
- Simple touchscreen and button-based operation
- Designed for portable RF troubleshooting
- Professional handheld RF measurement solution
Typical Uses
- RF spectrum analysis
- Wireless network troubleshooting
- Amateur radio equipment testing
- Filter and amplifier measurements
- Antenna system evaluation
- EMI and interference detection
- Field RF maintenance and diagnostics

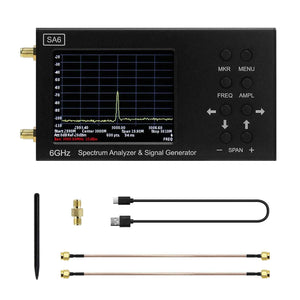

In the Box
- SA6 6GHz Spectrum Analyzer
- USB Type-C cable
- Two SMA RF extension cables
- SMA adapter set
- Touchscreen stylus
- User manual
| Brand | SA6 |
| Model Number | SA6 |
| Product Type | Handheld Spectrum Analyzer and Tracking Generator |
| Display Frequency Range | 35MHz-6200MHz |
| Measurement Frequency Range | 35MHz-4500MHz |
| Tracking Generator Range | 35MHz-6200MHz |
| Display | 3.2-inch Color Resistive Touchscreen |
| Maximum Span | 6165MHz |
| Resolution Bandwidth | 200kHz Fixed |
| Sweep Speed | 700MHz/s |
| Sweep Time 100MHz Span | <0.25s |
| Dynamic Range | 75dB (35-3000MHz) |
| Dynamic Range | 70dB (3000-4500MHz) |
| Noise Floor | <-100dBm (35-3000MHz) |
| Input Impedance | 50 Ohm |
| VSWR | <1.5:1 |
| Internal Attenuator | 0-30dB |
| Tracking Generator Output | -15 to -25dBm |

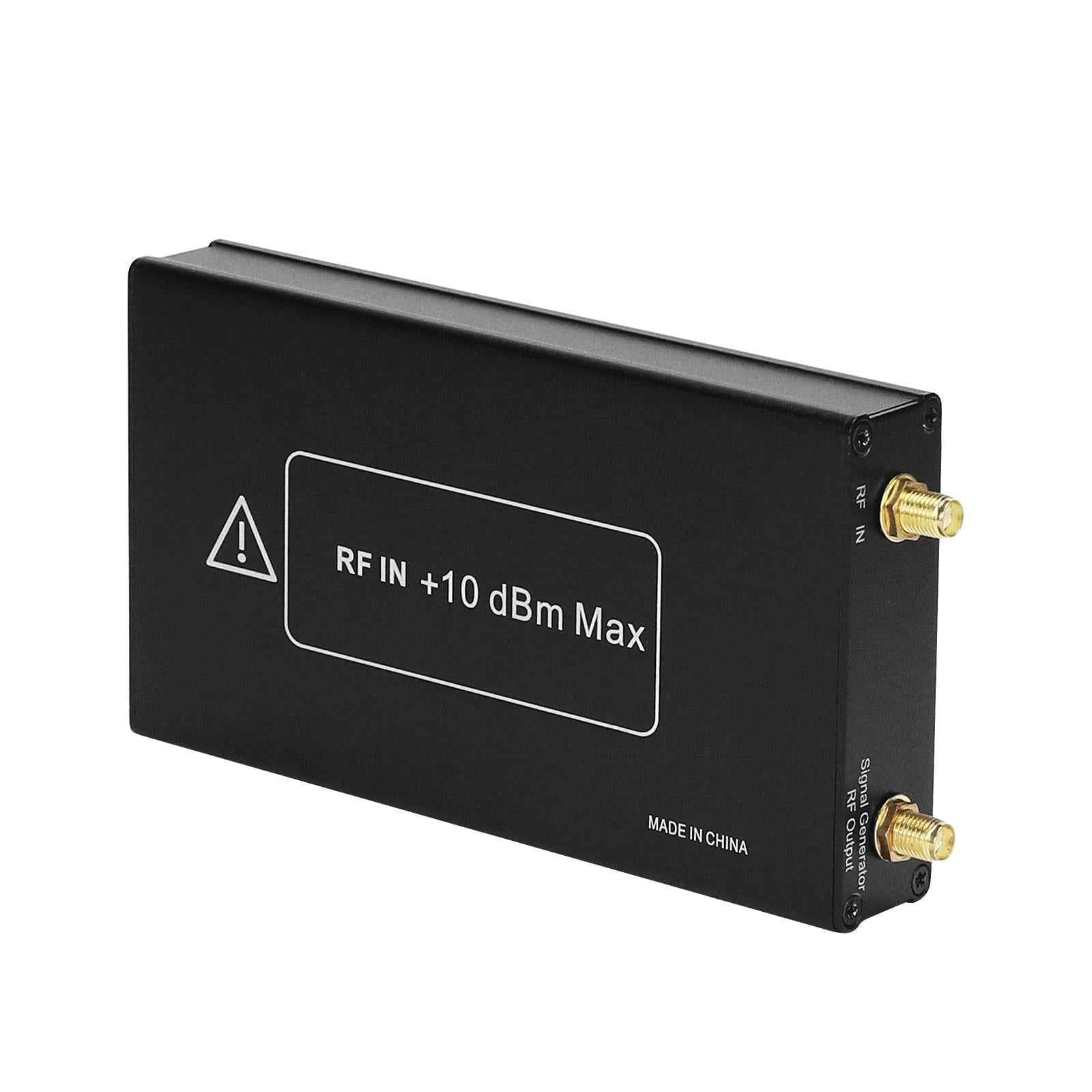

| Maximum Input Power | +10dBm |
| Maximum Input Power With Attenuator | +20dBm |
| Maximum RF Input DC Voltage | 25V |

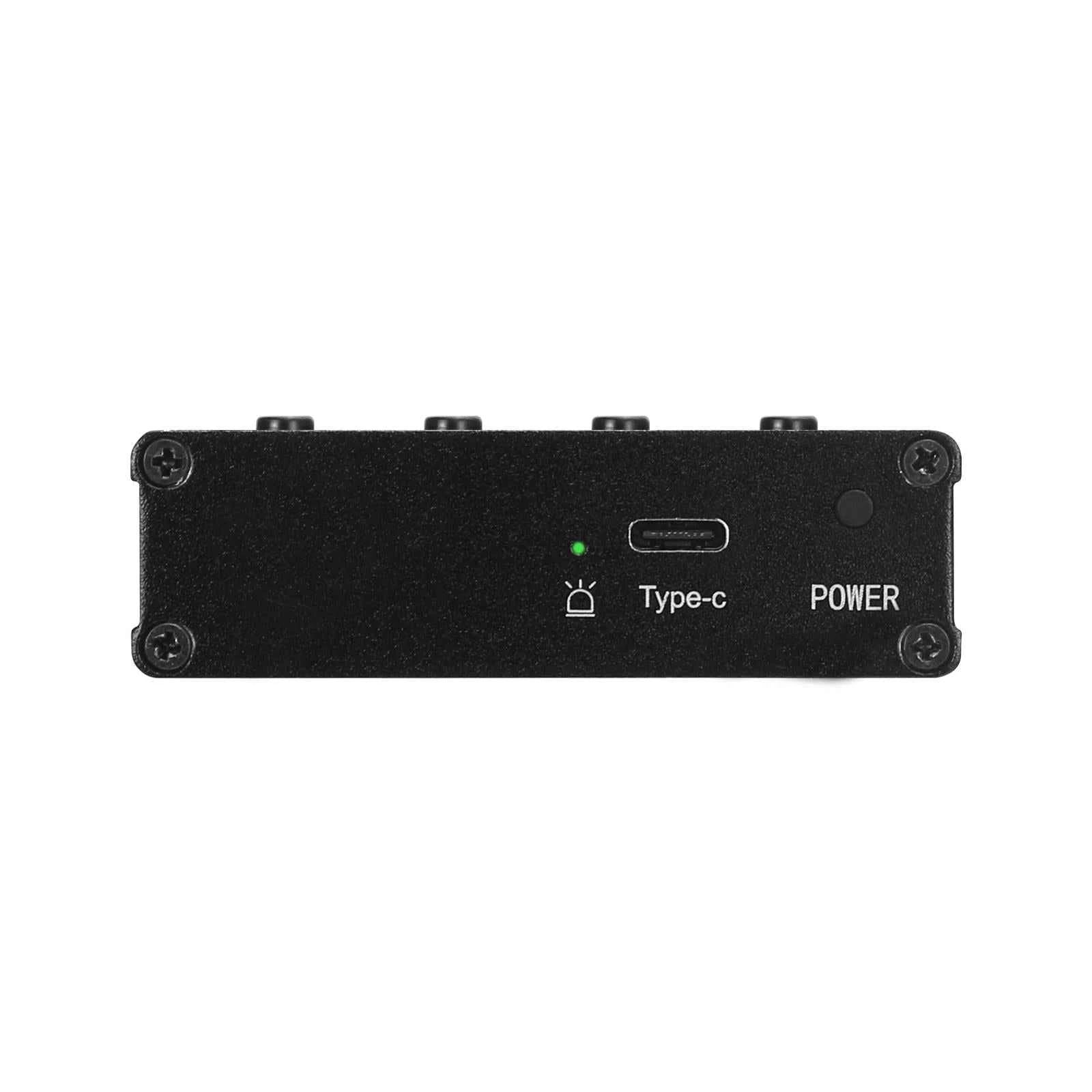

| USB Interface | USB Type-C |
| PC Control | Supported |
| Battery | 2500mAh Rechargeable Lithium |
| Battery Runtime | Up To 3 Hours |
| Charging Time | Approximately 5 Hours |
| Dimensions | 155x81x27mm |
| Weight | 490g |
| Application | RF Spectrum Analysis |
| Application | Signal Generation |
| Application | Filter Testing |
| Application | Amateur Radio |
12 Months of Warranty against Manufacturing Defects Only
