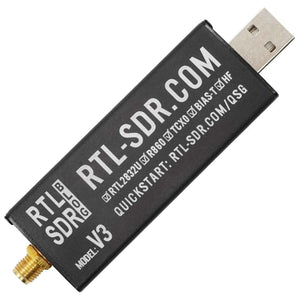

RTL-SDR V3 USB Software Defined Radio Dongle
Rs. 4,500.00
(Inclusive of GST)
RTL-SDR V3 USB Software Defined Radio Dongle
RTL-SDR V3 USB Software Defined Radio Dongle
RTL-SDR V3 USB Software Defined Radio Dongle
The RTL-SDR V3 is a versatile wideband USB software defined radio receiver designed for RF monitoring, signal analysis, amateur radio, satellite reception, and wireless experimentation. Featuring the RTL2832U chipset, R820T2 tuner, direct sampling capability for HF reception, a 1 PPM TCXO, software-selectable bias tee, and an aluminum shielded enclosure, the V3 provides an affordable and powerful SDR platform for beginners and advanced users alike.
Key Features
- Wideband USB software defined radio receiver

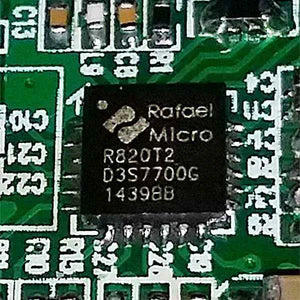

- RTL2832U ADC with R820T2 tuner architecture
- Frequency coverage from approximately 500 kHz to 1.75 GHz
- Direct sampling mode for HF reception without an external upconverter
- 1 PPM temperature compensated crystal oscillator (TCXO)
- Enhanced frequency stability for digital modes and satellite applications
- Software-selectable 4.5V bias tee support
- Compatible with active antennas and low-noise amplifiers
- Up to 3.2 MHz instantaneous bandwidth
- Aluminum enclosure provides shielding and thermal management
- SMA female antenna connector
- Integrated ESD protection circuit
- Low phase-noise oscillator design
- USB-powered operation with simple plug-and-play connectivity
- Compatible with Windows, Linux, macOS, Android, and Raspberry Pi platforms
- Supports SDR#, HDSDR, SDR Console, GQRX, CubicSDR, and other SDR applications
- Suitable for HF, VHF, UHF, and L-band monitoring
- Excellent for ADS-B aircraft tracking applications
- Supports NOAA weather satellite reception
- Ideal for amateur radio monitoring and experimentation
- Suitable for public service, aviation, marine, and utility signal monitoring
- Compatible with trunked radio decoding applications
- Low-cost entry into software defined radio technology
- Compact design for portable and desktop operation
- Widely supported by SDR software and community-developed applications
Typical Uses
- Software Defined Radio (SDR) applications
- HF, VHF, and UHF signal monitoring
- ADS-B aircraft tracking
- NOAA weather satellite reception
- Amateur radio monitoring
- Spectrum analysis and RF experimentation
- Aviation, marine, and utility signal reception
In the Box
- RTL-SDR V3 USB SDR Dongle
- Aluminum enclosure with integrated shielding
- User documentation and software resources
| Brand | RTL-SDR |
| Model Number | V3 |
| Product Type | USB Software Defined Radio Receiver |
| Chipset | RTL2832U |
| Tuner | R820T2 |
| Frequency Coverage | 500kHz-1.75GHz |
| Operation | Receive Only |
| HF Reception | Direct Sampling Mode |
| Instantaneous Bandwidth | 3.2MHz Maximum |
| Stable Bandwidth | 2.4MHz |
| TCXO Stability | 1PPM |
| Bias Tee | 4.5V Software Selectable |
| Bias Tee Current | 180mA Maximum |
| ADC Resolution | 8-Bit |
| Connector Type | SMA Female |
| Impedance | 50 Ohm |
| ESD Protection | Integrated |
| USB Interface | USB 2.0 |
| Cooling | Aluminum Shielded Enclosure |
| Operating Systems | Windows/Linux/macOS/Android |
| Raspberry Pi Compatible | Yes |
| Software Support | SDR#/HDSDR/GQRX/CubicSDR/SDR Console |
| Application | ADS-B |
| Application | Weather Satellites |
| Application | Amateur Radio |
| Application | Spectrum Analysis |
