RTL-SDR Multipurpose Dipole Antenna Kit
Brand:
RTL-SDR
RTL-SDR Multipurpose Dipole Antenna Kit
RTL-SDR Multipurpose Dipole Antenna Kit
RTL-SDR Multipurpose Dipole Antenna Kit
The RTL-SDR Multipurpose Dipole Antenna Kit is a versatile broadband receiving antenna system designed for SDR enthusiasts, scanner users, satellite reception, and general radio monitoring applications. Featuring adjustable telescopic elements, multiple mounting options, and a modular design, this portable antenna kit allows users to optimize reception across a wide range of VHF and UHF frequencies while maintaining excellent portability for field and home operation.
Key Features
- Multipurpose adjustable dipole antenna system
- Designed for SDR, scanner, and receiver applications
- Adjustable telescopic antenna elements for frequency optimization
- Suitable for VHF, UHF, satellite, aviation, and ADS-B reception
- Portable design ideal for field and temporary installations
- Dipole base with integrated feedline and ferrite choke
- 50-ohm antenna system optimized for SDR receivers
- Supports horizontal and vertical polarization configurations
- Flexible antenna length adjustment for multiple frequency bands
- Detachable telescopic elements for compact storage
- Standard 1/4-inch camera mount compatibility
- Flexible tripod mount included for portable deployment
- Suction cup mount included for window installations
- 3-meter extension cable enables improved antenna placement
- Low-loss coaxial feedline design
- Excellent starter antenna for RTL-SDR users
- Suitable for weather satellite reception at 137 MHz
- Supports ADS-B monitoring at 1090 MHz
- Effective for airband, amateur radio, and public service monitoring
- Quick assembly without specialized tools
- Compact transport-friendly design
- Ideal for portable receiving stations and travel use

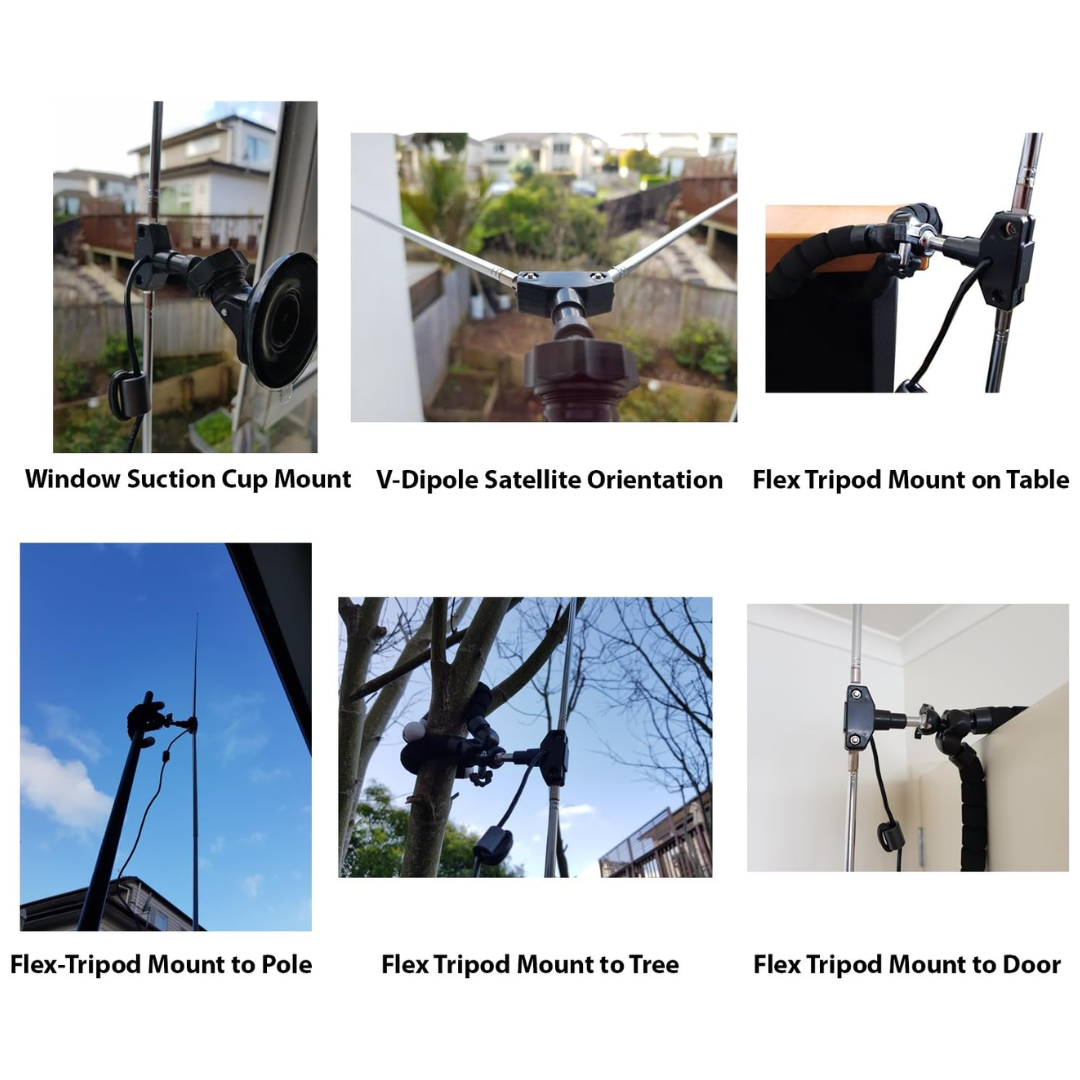

- Can be mounted on poles, branches, railings, windows, and tripods
- Modular design allows future antenna experimentation
- Receive-only antenna system for monitoring applications
Typical Uses
- Software Defined Radio (SDR) reception
- ADS-B aircraft tracking
- NOAA weather satellite reception
- Airband monitoring
- VHF and UHF amateur radio monitoring
- Scanner receiver applications
- Portable radio monitoring stations

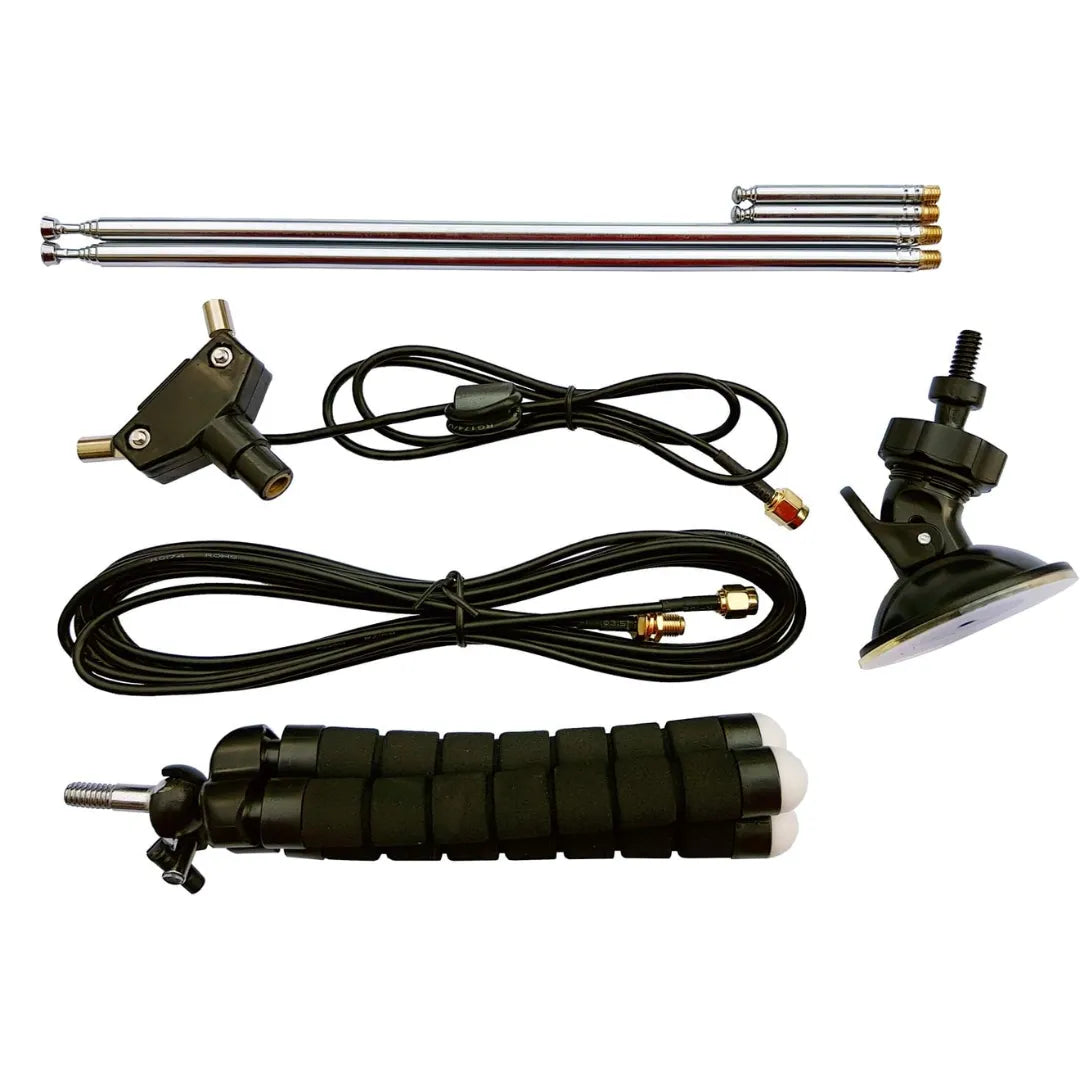

In the Box

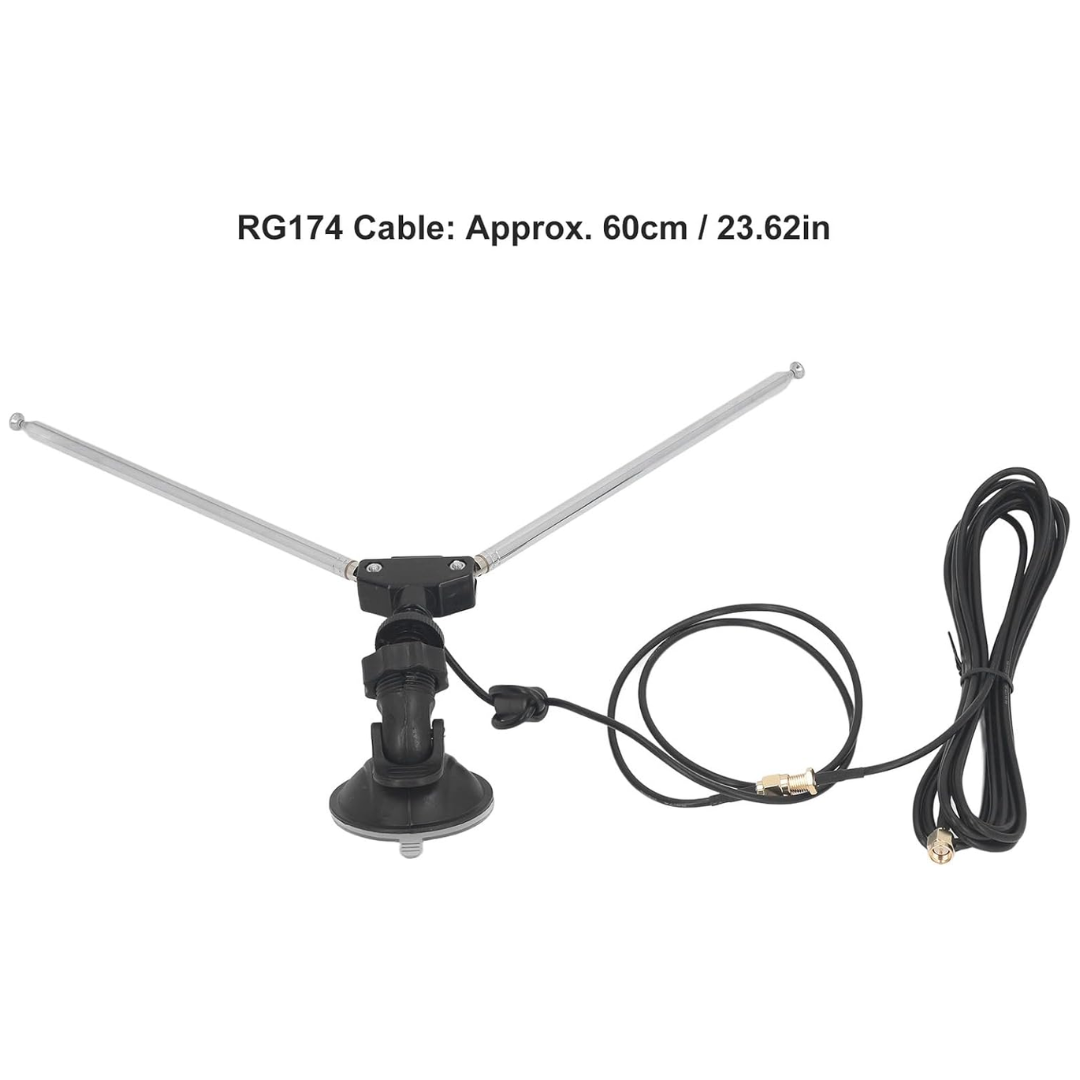

- Dipole antenna base with 60cm RG174 cable

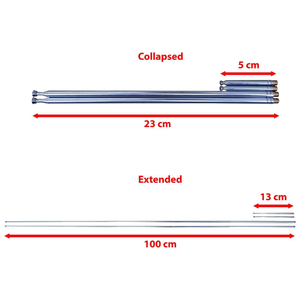

- Two telescopic antennas (23cm to 1m)
- Two telescopic antennas (5cm to 13cm)
- 3m RG174 extension cable
- Flexible tripod mount
- Suction cup mount
| Brand | RTL-SDR |
| Model Number | Multipurpose Dipole Antenna Kit |
| Product Type | Adjustable Receiving Dipole Antenna Kit |
| Antenna Type | Telescopic Dipole |
| Operation | Receive Only |
| Impedance | 50 Ohm |
| Connector Type | SMA Male |
| Dipole Base Cable Length | 60cm RG174 |
| Extension Cable Length | 3m RG174 |
| Long Element Length | 23cm-100cm |
| Short Element Length | 5cm-13cm |
| Mount Type | 1/4 Inch Camera Mount Compatible |
| Tripod Mount | Included |
| Suction Cup Mount | Included |
| Polarization | Horizontal or Vertical |
| Application | SDR Receivers |
| Application | ADS-B Reception |
| Application | Weather Satellite Reception |
| Application | Airband Monitoring |
| Application | VHF/UHF Monitoring |
| Construction | Telescopic Stainless Steel Elements |
| Portable Design | Yes |
