RTL-SDR Bullseye TCXO LNB for QO-100
Brand:
RTL-SDR
RTL-SDR Bullseye TCXO LNB for QO-100
RTL-SDR Bullseye TCXO LNB for QO-100
RTL-SDR Bullseye TCXO LNB for QO-100

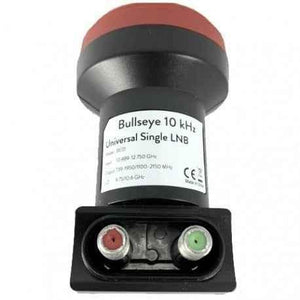

The RTL-SDR Bullseye TCXO LNB is a high-stability Ku-band low-noise block downconverter specifically optimized for QO-100 (Es’hail-2) amateur satellite reception and other Ku-band satellite applications. Featuring a precision temperature-compensated crystal oscillator (TCXO), factory calibration, and excellent frequency stability, the Bullseye LNB minimizes drift and enables reliable reception of narrowband SSB, CW, digital, and DATV signals.
Key Features
- Ultra-stable TCXO-based Ku-band LNB
- Designed specifically for QO-100 / Es’hail-2 satellite reception
- Excellent frequency stability for narrowband satellite operation
- Factory calibrated against precision reference equipment
- Typically maintains less than 10 kHz frequency offset under normal outdoor conditions
- PLL synthesized local oscillator architecture
- Integrated 2 PPM temperature compensated crystal oscillator
- Supports SSB, CW, digital modes, beacon monitoring, and DATV reception
- Low phase-noise design for improved signal clarity
- Universal Ku-band satellite reception capability
- Dual F-type connector configuration
- Dedicated 25 MHz TCXO reference output
- Reference output allows frequency monitoring and external calibration applications
- Suitable for SDR-based satellite receiving systems
- Compatible with RTL-SDR receivers and satellite monitoring setups
- Universal 40 mm feedhorn mounting compatibility
- High conversion stability for weak-signal reception
- Excellent performance in varying outdoor temperatures
- Supports amateur satellite and general Ku-band satellite reception
- Low-noise front-end design
- Ideal for fixed-station satellite receiving installations
- Reduces frequency drift commonly found in standard satellite TV LNBs
- Optimized for QO-100 narrowband transponder reception
- Can be integrated into SDR, transverter, and satellite monitoring systems
- Receive-only satellite downconverter solution
Typical Uses
- QO-100 amateur satellite reception
- Es’hail-2 narrowband transponder monitoring
- Satellite SSB and CW operation
- DATV reception systems
- RTL-SDR satellite receiving stations
- Ku-band satellite signal monitoring
- Amateur radio satellite ground stations
In the Box
- RTL-SDR Bullseye TCXO LNB
- Protective connector caps (where supplied)
- User documentation
| Brand | RTL-SDR |
| Model Number | Bullseye TCXO LNB |
| Product Type | Ku-Band Satellite LNB |
| Application | QO-100 Amateur Satellite Reception |
| Frequency Range Input | 10.489-12.75GHz |
| Local Oscillator Low Band | 9.75GHz |
| Local Oscillator High Band | 10.6GHz |
| IF Output Low Band | 739-1950MHz |
| IF Output High Band | 1100-2150MHz |
| Oscillator Type | TCXO |
| TCXO Stability | 2ppm |
| Frequency Accuracy | Factory Calibrated Within 1kHz |
| Frequency Stability Outdoor | ±10kHz Typical |
| Frequency Stability Temperature Range | ±30kHz |
| Noise Figure | 0.5dB |
| Architecture | PLL Synthesized |
| Reference Output | 25MHz TCXO |
| Connector Type | Dual F-Type |
| Mount Diameter | 40mm Universal Feed Mount |
| Polarization Switching | 11.5-14V Vertical / 16-19V Horizontal |
| Power Requirement | 12-19V DC via Bias Tee |
| Operating Type | Receive Only |
| Satellite Compatibility | QO-100 / Es'hail-2 and Ku-Band Satellites |
