RTL-SDR Active L Band Antenna
Brand:
RTL-SDR
RTL-SDR Active L Band Antenna
RTL-SDR Active L Band Antenna
RTL-SDR Active L Band Antenna
The RTL-SDR Active L Band Antenna is a high-performance amplified patch antenna designed for receiving L-band satellite signals between 1525 MHz and 1660 MHz. Featuring an integrated low-noise amplifier, RF filtering, right-hand circular polarization (RHCP), and weatherproof construction, it provides an efficient solution for receiving Inmarsat, Iridium, GPS, and other L-band satellite services with SDR receivers and satellite monitoring systems.
Key Features
- Active amplified L-band patch antenna design
- Frequency coverage optimized for 1525 MHz to 1660 MHz satellite services
- Integrated low-noise amplifier for improved weak-signal reception
- Built-in RF filtering for enhanced signal-to-noise performance
- Right-Hand Circular Polarization (RHCP) design
- Optimized for Inmarsat satellite reception
- Supports Iridium satellite monitoring applications
- Compatible with GPS and GNSS signal reception projects
- Weatherproof enclosure suitable for outdoor installations
- Low-profile patch antenna construction
- Designed specifically for SDR-based satellite reception systems
- Bias-T powered operation simplifies installation
- Compatible with RTL-SDR Blog SDR receivers with built-in Bias-T support
- Suitable for satellite data decoding and experimentation
- Portable mounting system for temporary and permanent installations

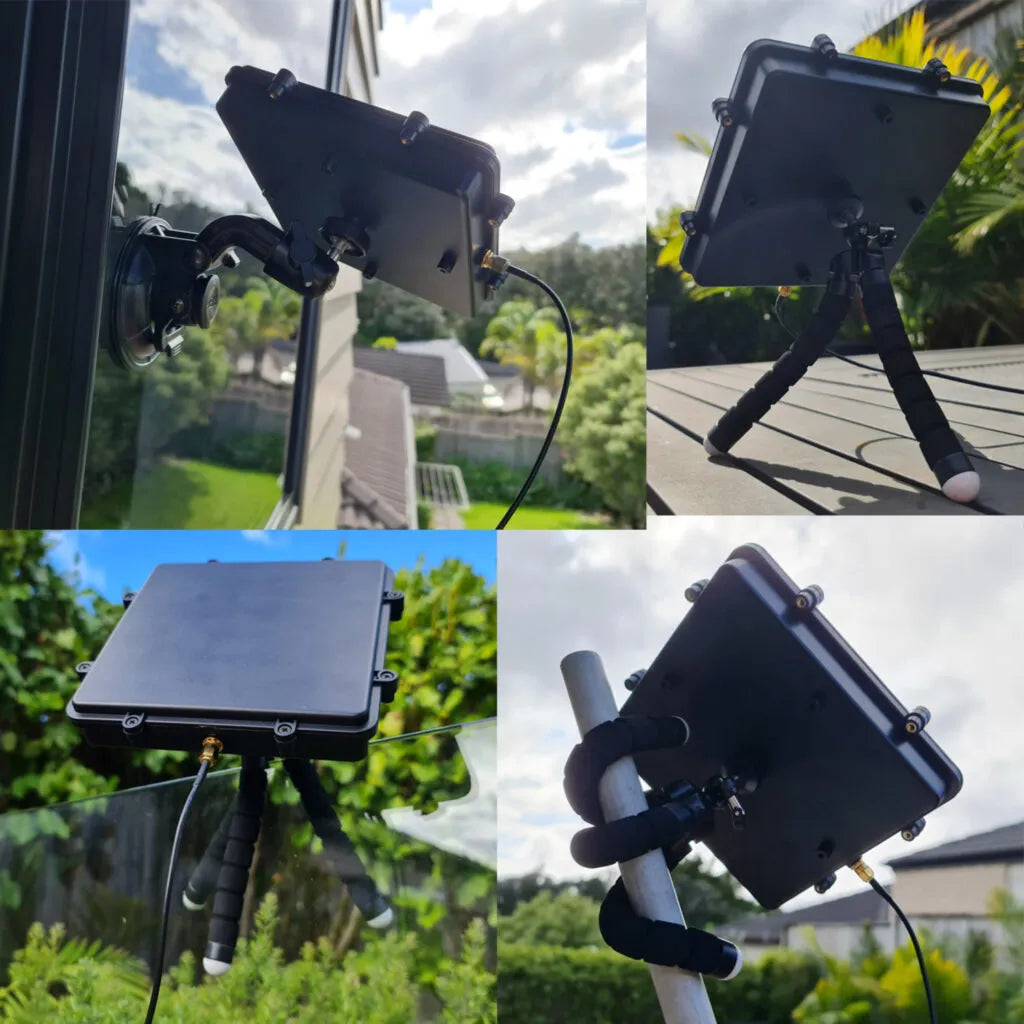

- Can be mounted on windows, poles, masts, and outdoor surfaces
- Excellent performance for satellite AERO, STD-C, and data services
- Integrated filtering helps reduce out-of-band interference
- Optimized for weak L-band satellite signals
- Compact footprint for portable monitoring stations
- Low current consumption for SDR applications
- Ideal for satellite enthusiasts and radio experimenters
- Plug-and-play operation with compatible SDR hardware
- Includes mounting accessories for flexible deployment
- Receive-only antenna system for satellite monitoring applications
Typical Uses
- Inmarsat satellite reception
- Iridium satellite monitoring
- GPS and GNSS experimentation
- Satellite data decoding applications
- Software Defined Radio (SDR) projects
- L-band spectrum monitoring
- Portable satellite receiving stations

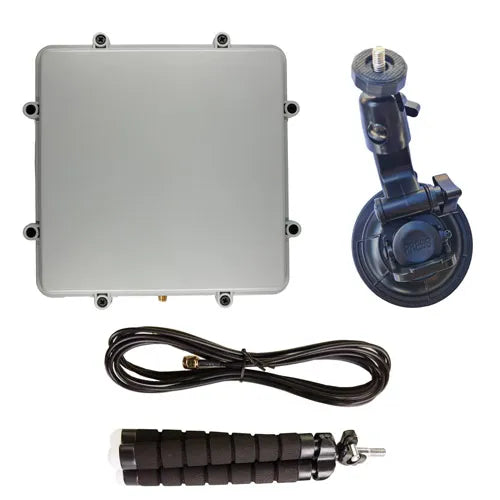

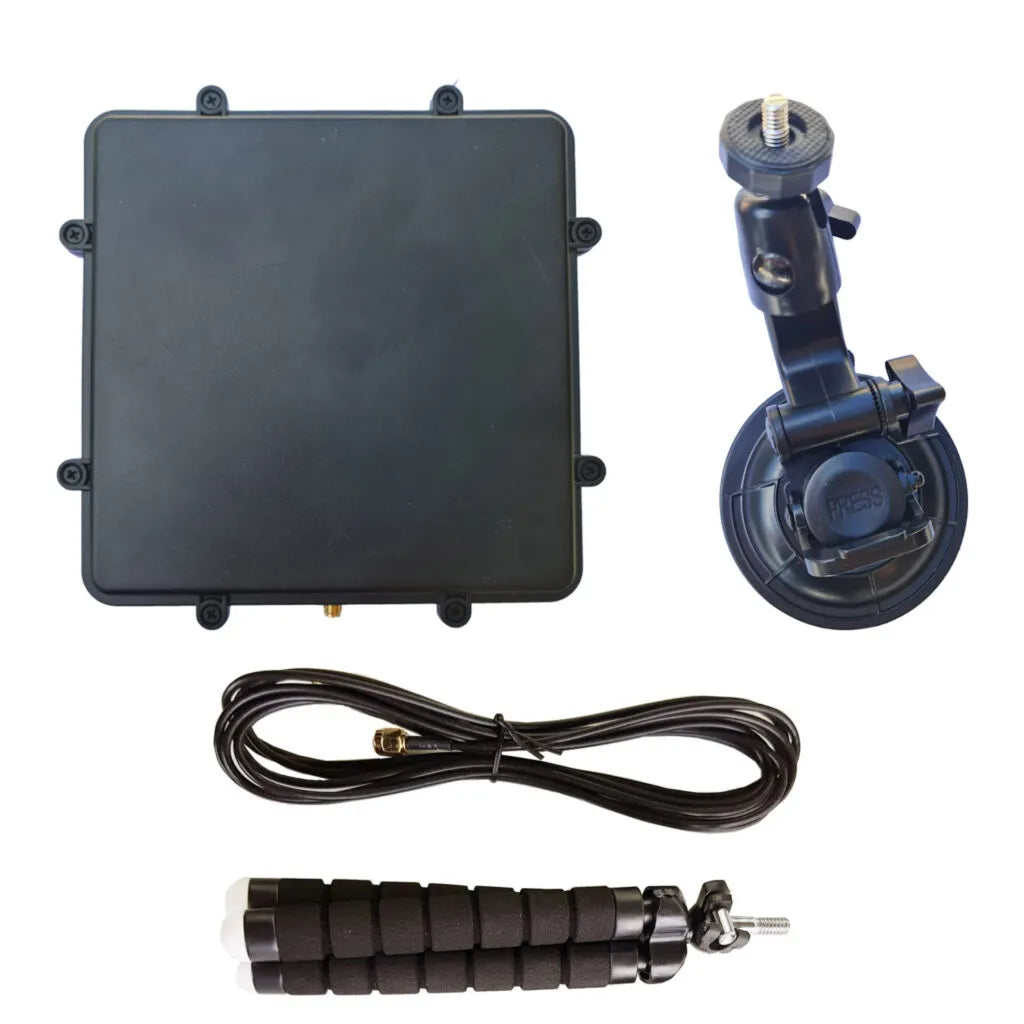

In the Box
- RTL-SDR Active L Band Patch Antenna
- 2m RG174 extension cable
- Flexible tripod mount
- Suction cup mount
- User documentation
| Brand | RTL-SDR |
| Model Number | Active L Band Antenna |
| Product Type | Active L-Band Patch Antenna |
| Antenna Type | RHCP Active Patch Antenna |
| Frequency Coverage | 1525-1660MHz |
| Polarization | RHCP |
| Operation | Receive Only |
| Amplifier Type | Integrated LNA |
| Filtering | Integrated RF Filter |
| Power Requirement | 3.3V-5V DC Bias-T |
| Current Consumption | 20mA |
| Connector Type | SMA Female |
| Cable Length | 2m RG174 |
| Mount Type | Tripod and Suction Cup |
| Construction | Weatherproof Enclosure |
| Application | Inmarsat Reception |
| Application | Iridium Reception |
| Application | GPS Reception |
| Application | SDR Satellite Monitoring |
| Installation | Indoor or Outdoor |
