PORTXVNSA SA5 100K-5.3GHz

PORTXVNSA SA5 100K-5.3GHz

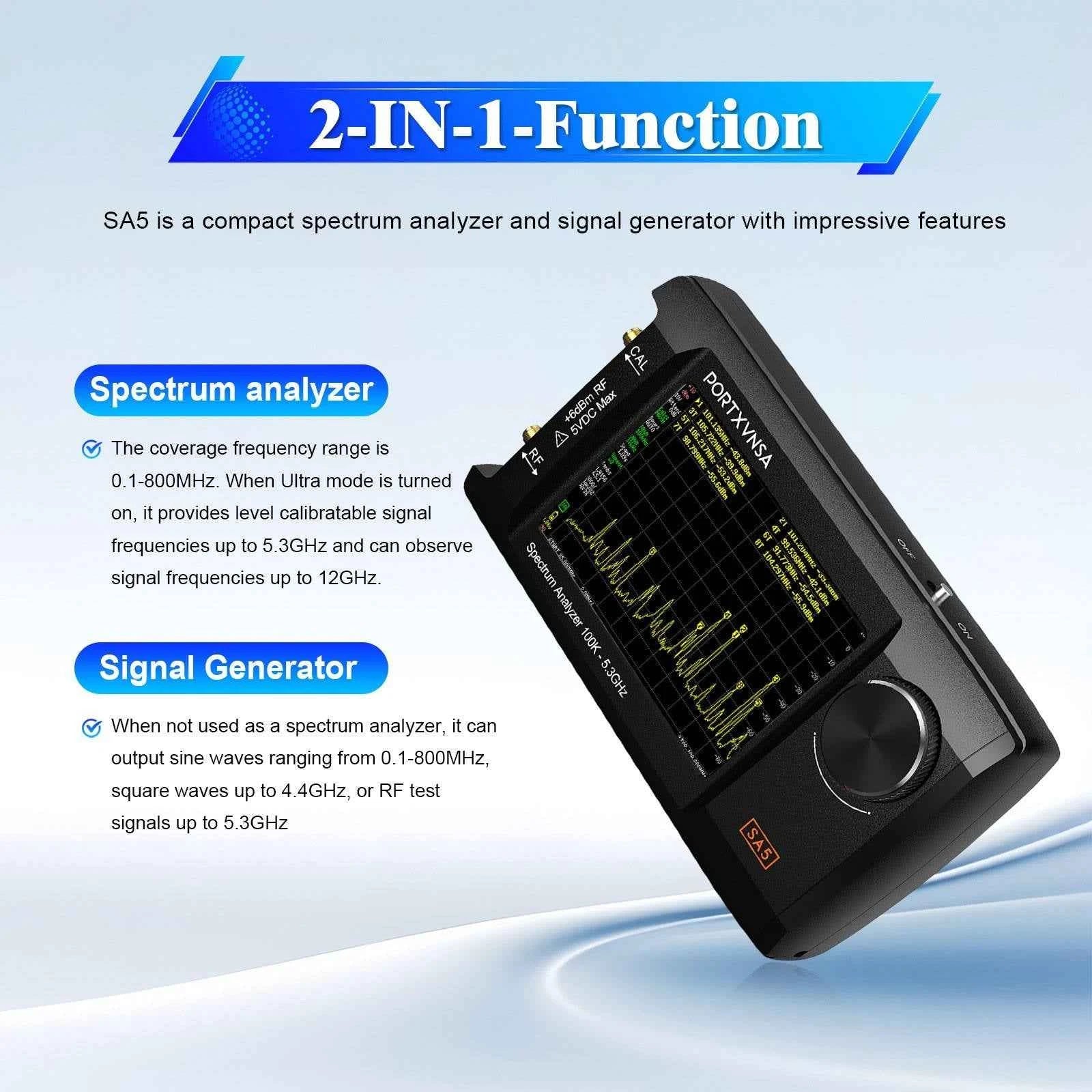

The PORTXVNSA SA5 is a compact handheld spectrum analyzer and RF signal generator designed for RF testing, wireless troubleshooting, amateur radio, and laboratory applications. Covering 100 kHz to 800 MHz in Normal Mode with calibrated Ultra Mode measurements up to 5.3 GHz, it combines spectrum analysis, signal generation, a 4-inch IPS display, built-in LNA, programmable attenuator, and rechargeable battery into a versatile portable RF instrument.

Key Features

• Portable handheld spectrum analyzer and RF signal generator
• Normal Mode spectrum analysis from 100 kHz to 800 MHz
• Ultra Mode calibrated measurements up to 5.3 GHz
• Capable of observing signals up to approximately 12 GHz
• Integrated RF signal generator
• Sine wave output from 100 kHz to 800 MHz
• Square wave generator up to 4.4 GHz
• RF test signal generation up to 5.3 GHz

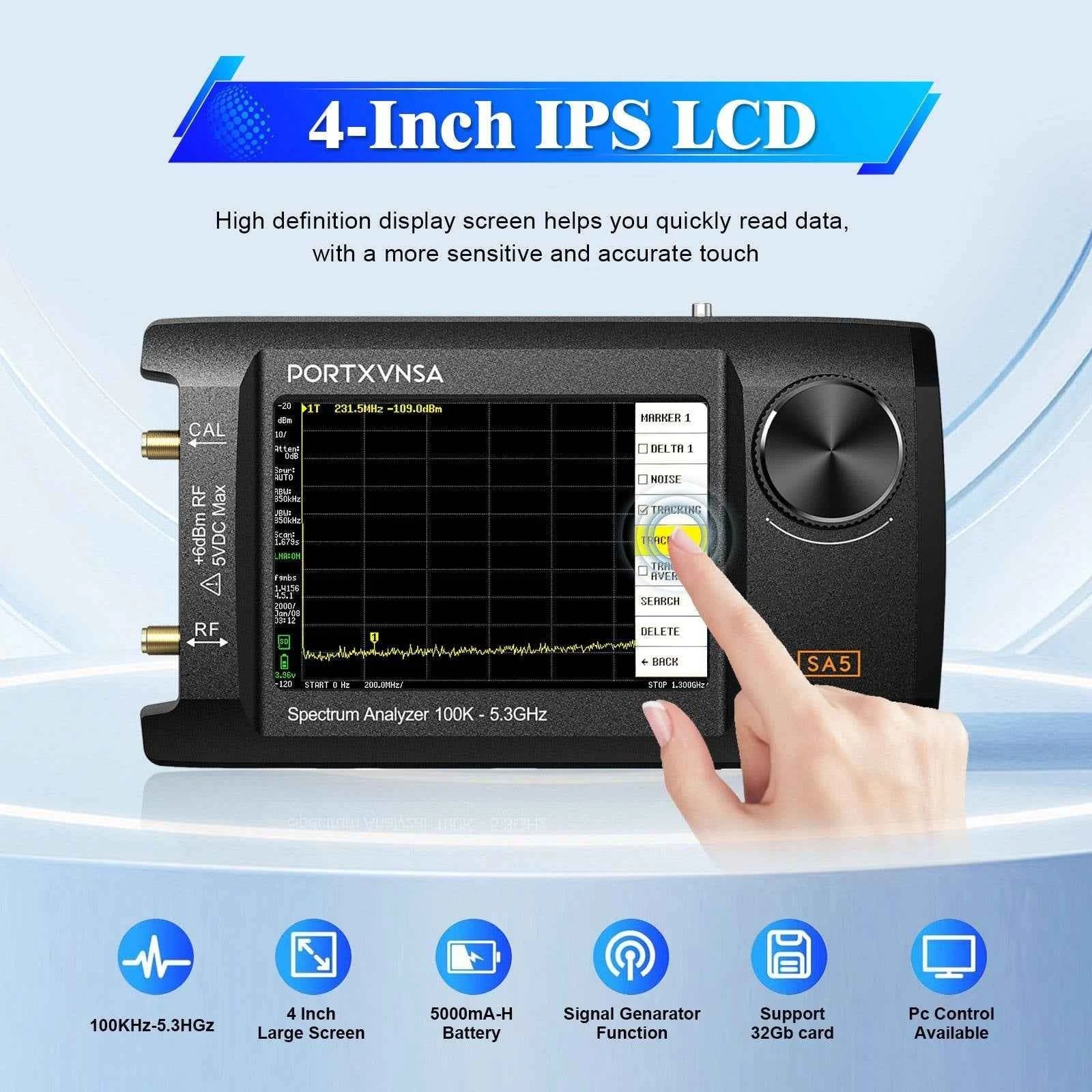

• 4-inch IPS LCD color display with rotary encoder control

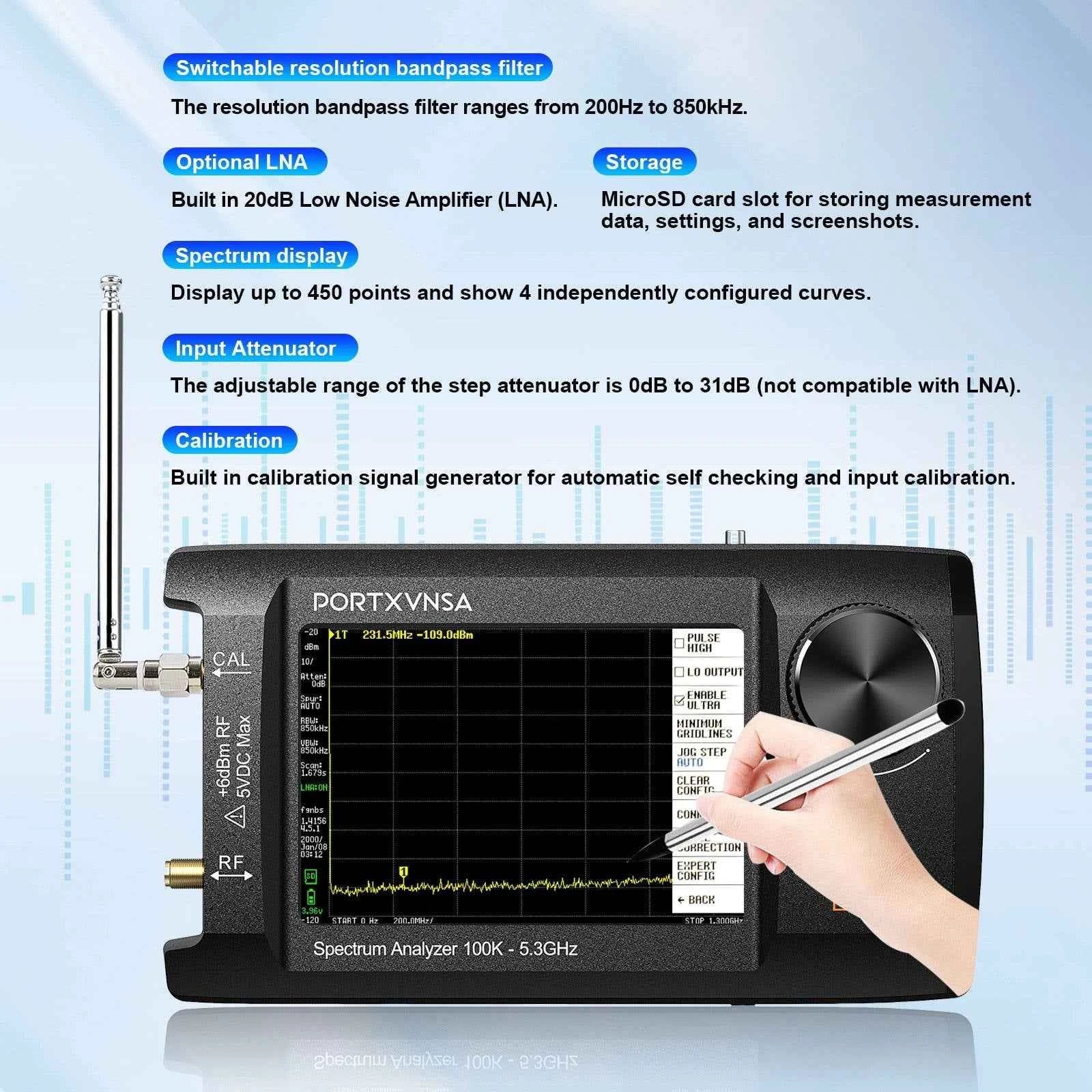

• Built-in 20 dB low-noise amplifier (LNA)
• Programmable 0–31 dB step attenuator
• Selectable resolution bandwidths from 200 Hz to 850 kHz
• Displays up to 450 measurement points
• Supports four independently configurable traces
• Real-time spectrum and waterfall display
• Automatic self-test and calibration using internal reference generator
• Marker, peak search and trace-hold functions

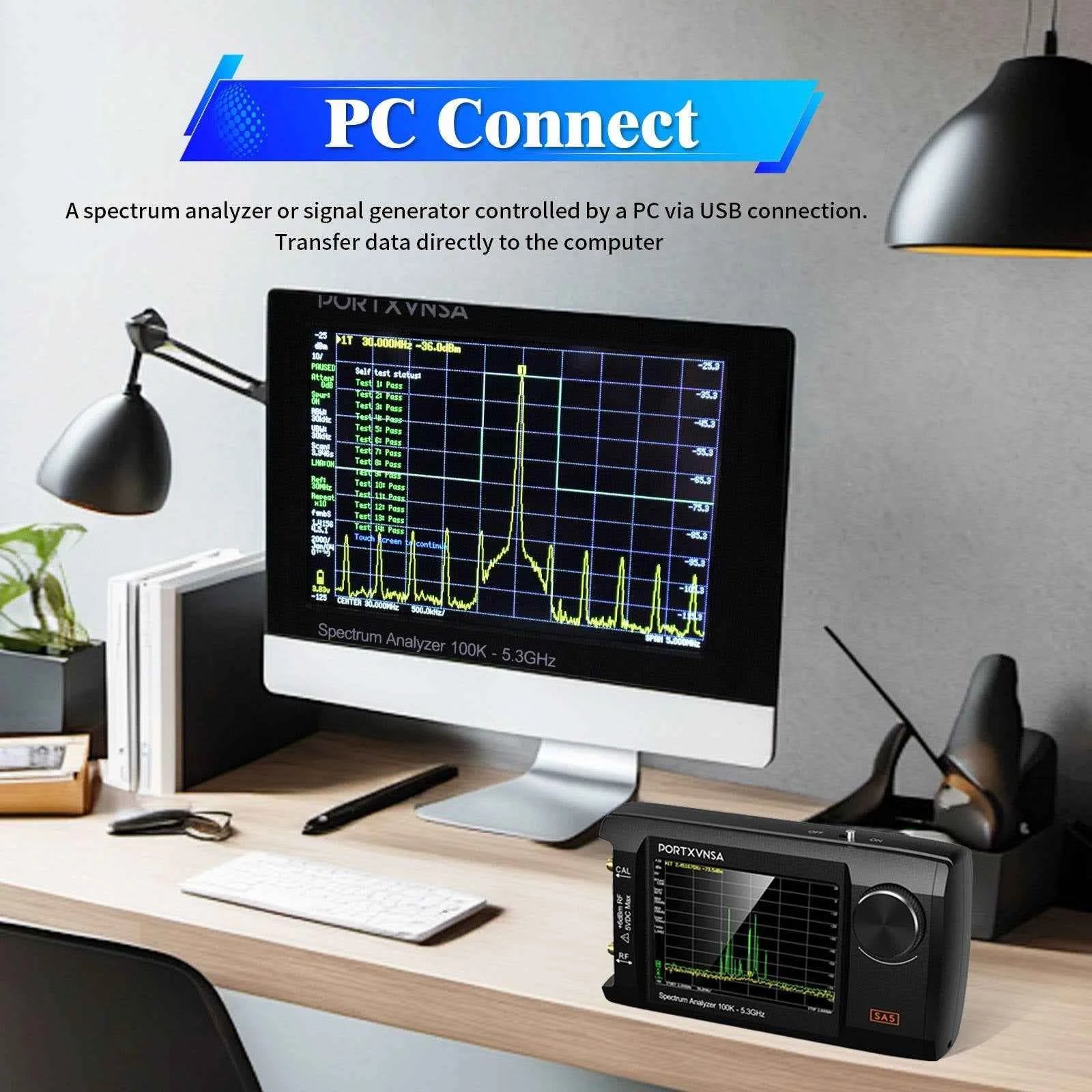

• USB interface for PC control and firmware updates

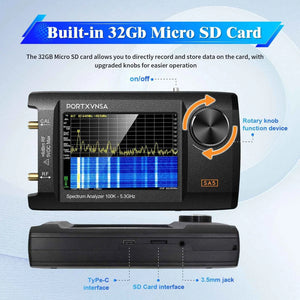

• MicroSD card slot for screenshots, settings and measurement storage
• Rechargeable 5000 mAh lithium battery
• Up to 10 hours of portable operation
• AM audio demodulation with headphone output
• 50 Ohm RF input and output
• Compact lightweight design for field and laboratory use
• Ideal for amateur radio, wireless development, EMC testing and RF troubleshooting

Typical Uses

• RF spectrum analysis
• Amateur radio equipment testing
• Wireless system troubleshooting
• Antenna and filter evaluation
• Signal source verification
• EMI and EMC diagnostics
• Portable RF field measurements

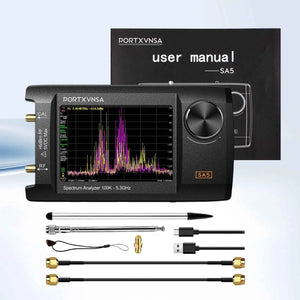

In the Box

• PORTXVNSA SA5 Spectrum Analyzer
• USB charging/data cable
• SMA antenna
• RF test cable set
• User manual
