NanoVNA F-V3 Vector Network Analyzer
NanoVNA F-V3 Vector Network Analyzer

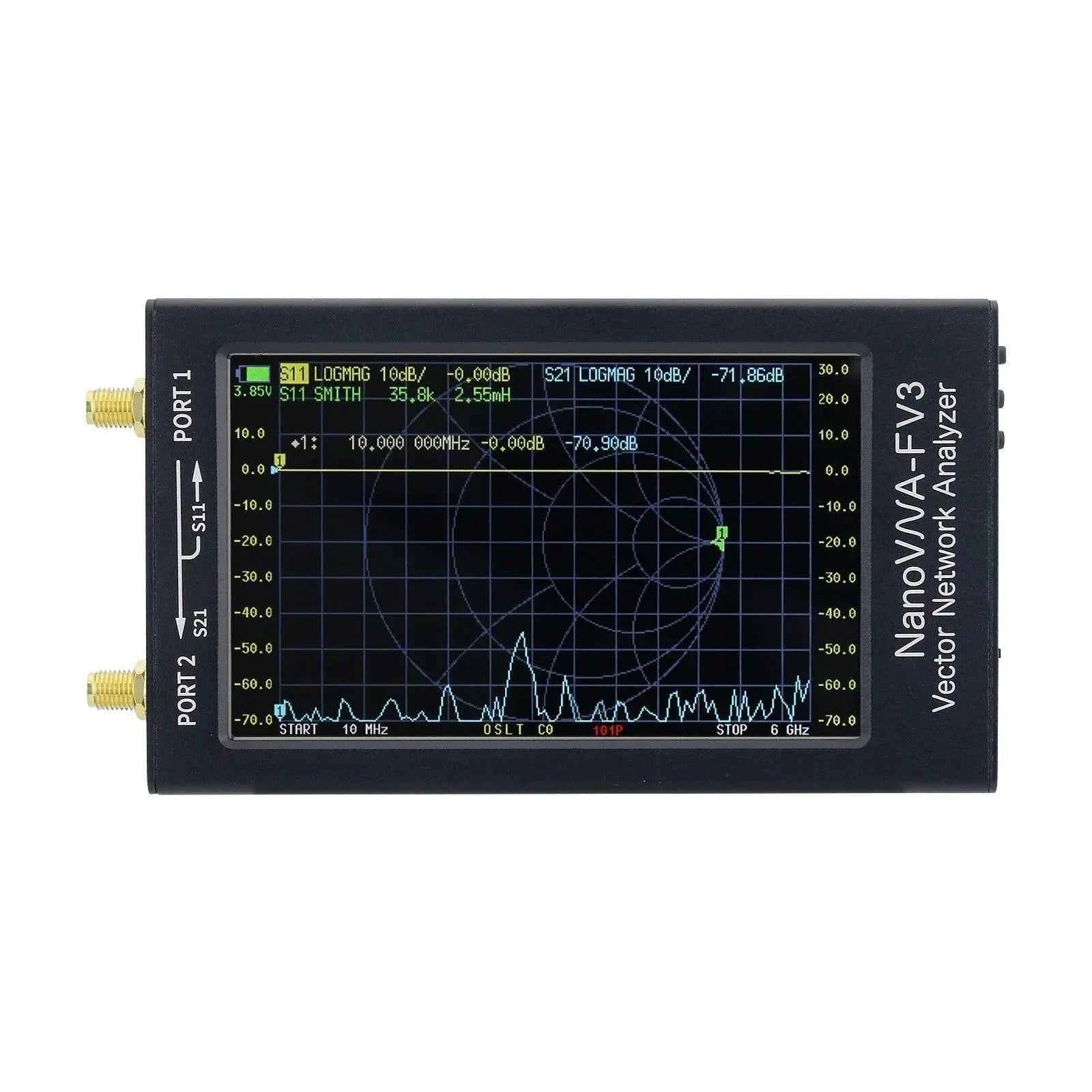

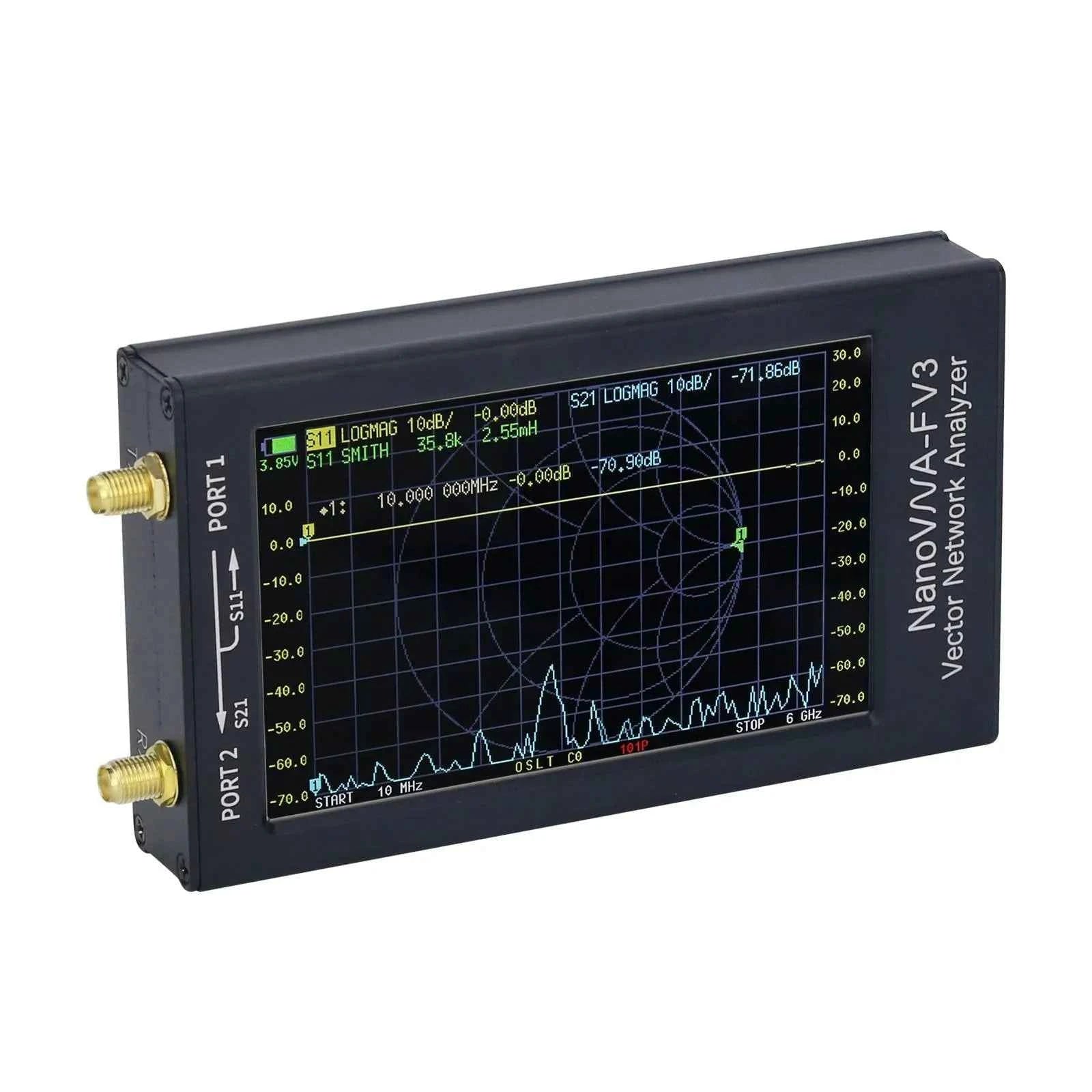

The NanoVNA F-V3 is a high-performance handheld Vector Network Analyzer (VNA) engineered for precision RF measurements, antenna tuning, impedance analysis, cable diagnostics, and filter characterization. Covering frequencies from 50 kHz to 6 GHz, it features an upgraded RF architecture, enhanced dynamic range, a high-resolution 4.3-inch IPS touchscreen, and accurate dual-port S-parameter measurements, making it an ideal instrument for amateur radio operators, RF engineers, laboratories, and field technicians.
Key Features
- Professional handheld Vector Network Analyzer (VNA)
- Wide frequency coverage from 50 kHz to 6 GHz
- Dual-port S11 and S21 network measurements
- Measures SWR, return loss, insertion loss, impedance, phase and cable characteristics
- High dynamic range for precise RF measurements
- Large 4.3-inch IPS color touchscreen display
- 800 × 480 high-resolution LCD
- Up to 501 sweep points for detailed measurements
- Fast real-time frequency sweep and trace updates
- Supports Smith Chart, Polar, Log Magnitude, VSWR, Phase and Group Delay displays
- Complete SOLT (Short, Open, Load, Through) calibration
- Multiple calibration memories for different frequency ranges
- High-stability TCXO reference oscillator
- Four simultaneous trace display capability
- Multiple marker and delta marker functions
- Built-in rechargeable lithium battery for portable operation

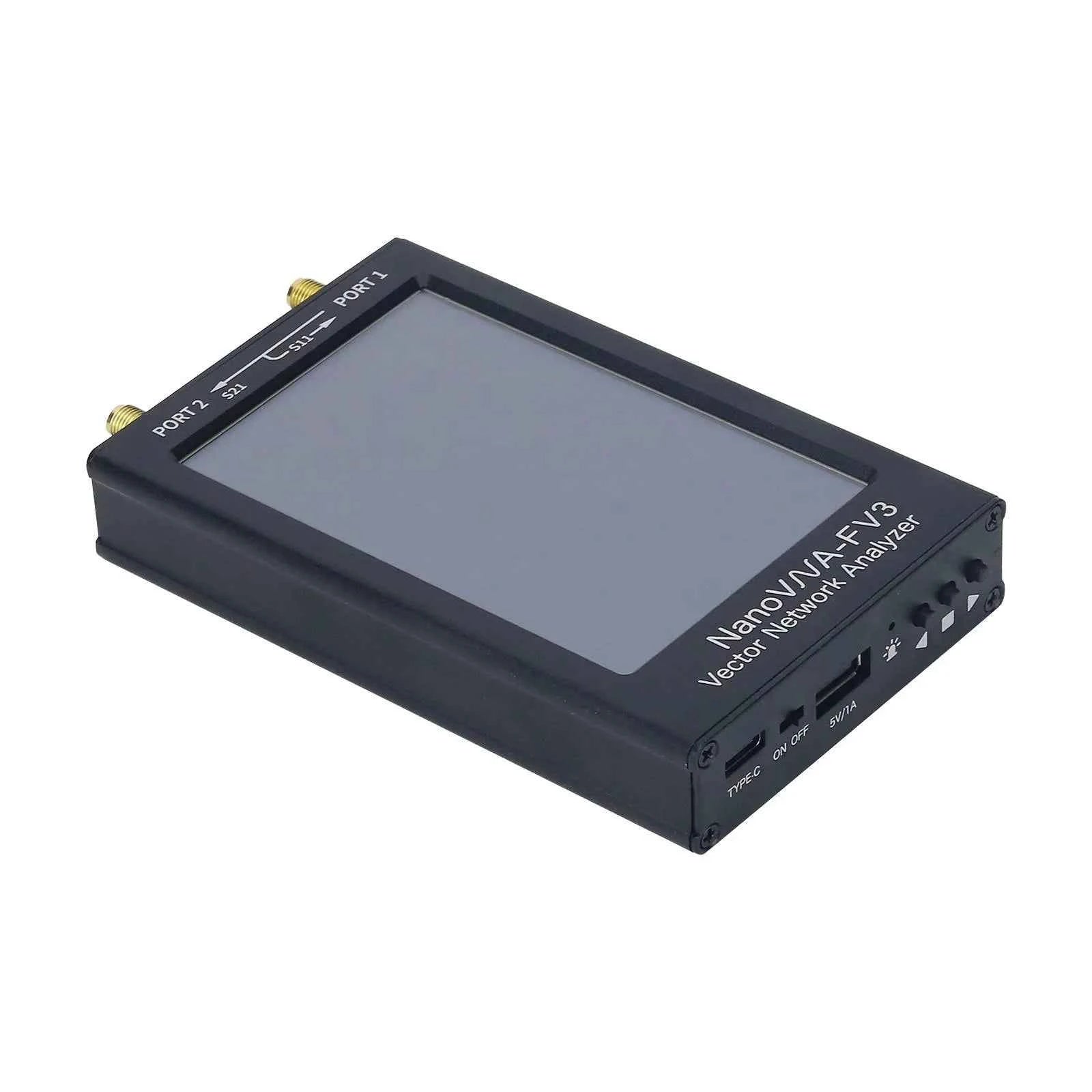

- USB Type-C interface for charging, firmware upgrades and PC connectivity
- Compatible with NanoVNA Saver software
- Supports Touchstone (S1P/S2P) file export
- Precision SMA female RF connectors
- 50 Ohm measurement system
- Durable CNC-machined aluminum enclosure
- Touchscreen and rotary encoder navigation
- Ideal for antenna tuning, RF filter evaluation, duplexer testing and cable analysis
- Suitable for amateur radio, wireless communication, RF laboratories and educational environments
Typical Uses
- Antenna tuning and matching
- Coaxial cable testing and fault location
- RF filter and duplexer characterization
- Amplifier gain measurements
- Smith Chart impedance analysis
- Wireless communication system testing
- RF laboratory and field measurements

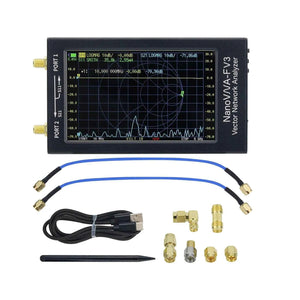

In the Box
- NanoVNA F-V3 Vector Network Analyzer
- SOLT calibration kit (Open, Short, Load and Through)
- 2 × SMA RF test cables
- USB Type-C charging/data cable
- Protective carrying case
- User manual
| Brand | NanoVNA |
| Model Number | F-V3 |
| Product Type | Vector Network Analyzer |
| Frequency Range | 50kHz-6GHz |
| Measurement Ports | 2 |
| Measurement Parameters | S11/S21 |
| Display | 4.3-inch IPS Touchscreen |
| Display Resolution | 800x480 |
| Sweep Points | Up To 501 |
| Dynamic Range | 90dB |
| Frequency Stability | 0.5ppm TCXO |
| Output Power | -9dBm |
| Impedance | 50 Ohm |
| Connector Type | SMA Female |
| Calibration | SOLT |
| Calibration Storage | Supported |
| Trace Display | 4 Simultaneous Traces |
| Touchstone Export | S1P/S2P |
| USB Interface | USB Type-C |
| PC Software | NanoVNA Saver |
| Battery | 5000mAh Rechargeable Lithium |
| Battery Runtime | Up To 7 Hours |
| Enclosure | CNC Aluminum Alloy |
| Application | Antenna Analysis |
| Application | Filter Testing |
| Application | Cable Testing |
| Application | RF Network Measurement |
12 Months of Warranty against Manufacturing Defects Only
