NanoVNA F-V2 Vector Network Analyzer
Brand:
NanoVNA
NanoVNA F-V2 Vector Network Analyzer
NanoVNA F-V2 Vector Network Analyzer
NanoVNA F-V2 Vector Network Analyzer

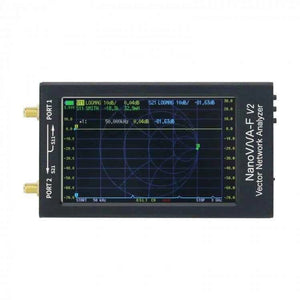

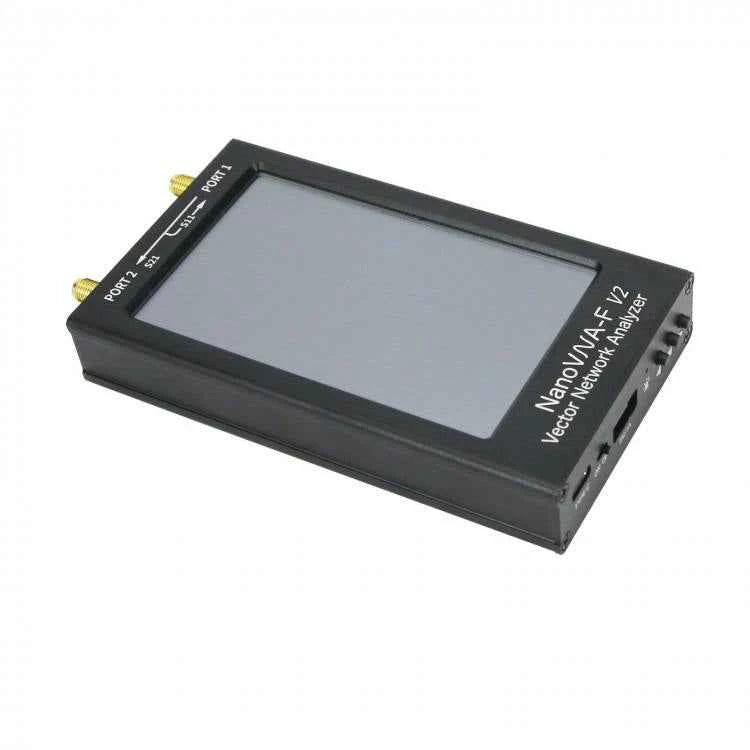

The NanoVNA F-V2 is a professional handheld Vector Network Analyzer (VNA) designed for precision RF measurements, antenna tuning, impedance analysis, cable testing, and filter characterization. Covering frequencies from 50 kHz to 3 GHz, it features an upgraded RF architecture, improved dynamic range, a large 4.3-inch IPS display, and dual-port S-parameter measurements, making it an excellent instrument for amateur radio operators, RF engineers, and laboratory applications.
Key Features
- Professional handheld Vector Network Analyzer (VNA)
- Wide frequency coverage from 50 kHz to 3 GHz

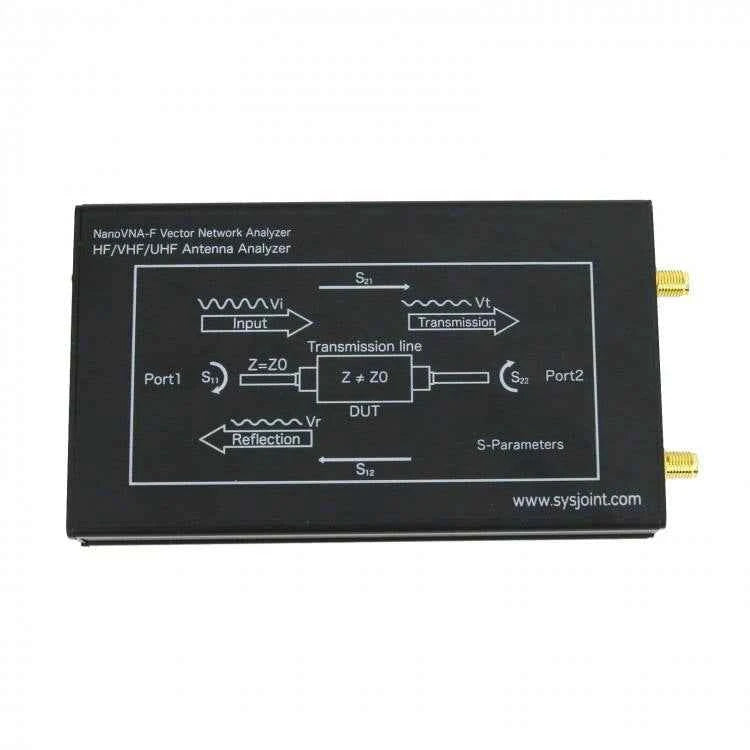

- Dual-port S11 and S21 measurements
- Measures SWR, impedance, return loss, insertion loss, phase and cable characteristics
- High dynamic range for accurate RF measurements
- Large 4.3-inch IPS color touchscreen display
- 800 × 480 high-resolution display
- Up to 401 sweep points per scan
- Real-time graphical sweep display
- Smith Chart, Polar, Log Magnitude, Phase, VSWR and Group Delay display formats
- Full SOLT (Short, Open, Load, Through) calibration support
- Internal calibration storage for multiple frequency ranges
- High-stability TCXO frequency reference
- Built-in rechargeable lithium battery

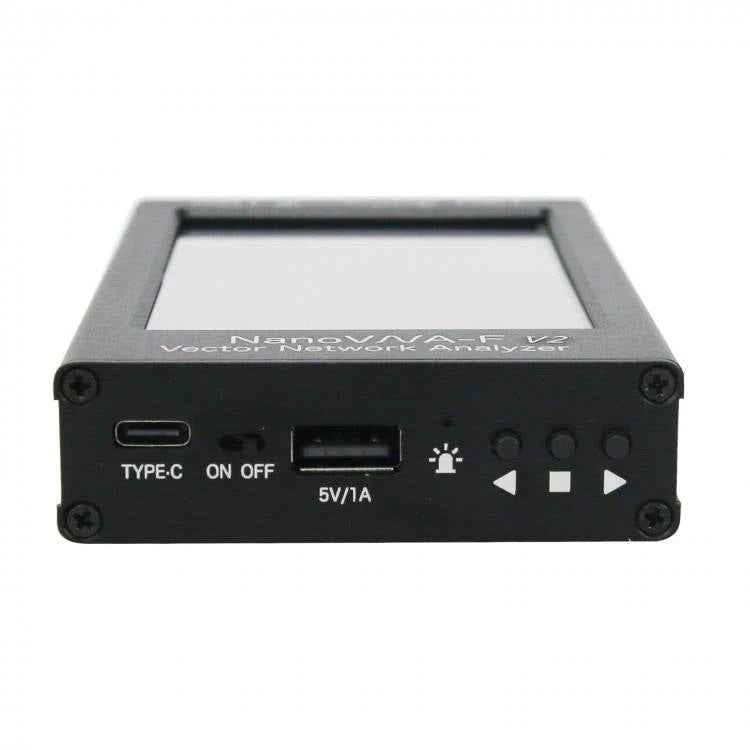

- USB Type-C interface for charging and PC connectivity
- Compatible with NanoVNA Saver software
- Supports Touchstone (S1P/S2P) file export
- Multiple marker and trace display capability
- 50 Ohm measurement system

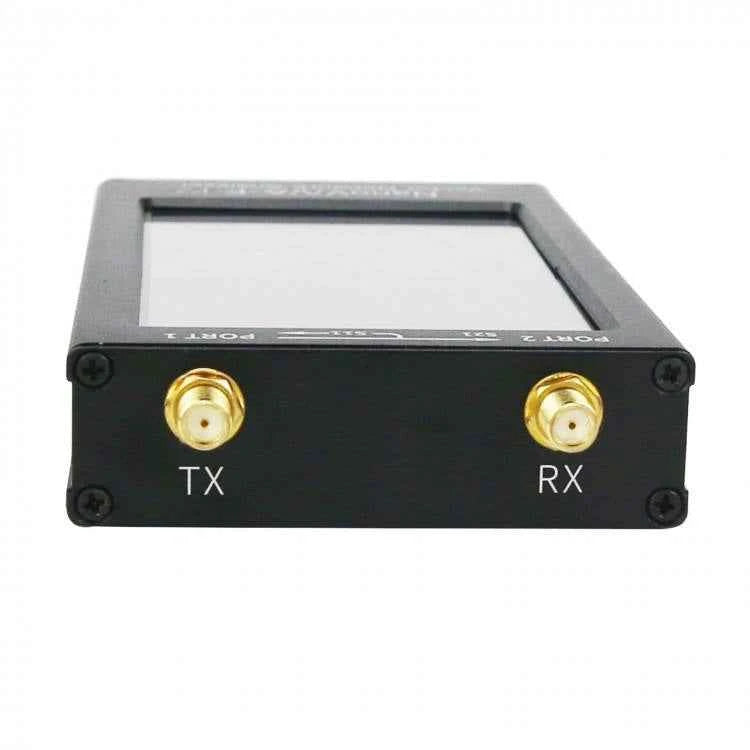

- Precision SMA female RF connectors
- Aluminum alloy enclosure for improved durability
- Touchscreen and rotary encoder operation
- Suitable for antenna tuning and matching
- Ideal for RF filter, duplexer and amplifier testing
- Excellent portable solution for amateur radio, RF laboratories and field measurements
Typical Uses
- Antenna tuning and matching
- Coaxial cable testing
- RF filter characterization
- Amplifier and duplexer measurements
- Impedance and Smith Chart analysis
- Amateur radio station maintenance
- RF laboratory testing

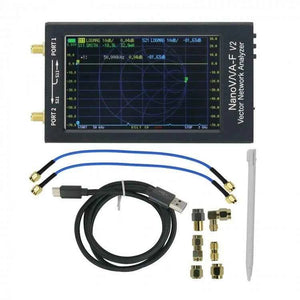

In the Box
- NanoVNA F-V2 Vector Network Analyzer
- SOLT calibration kit (Open, Short, Load and Through)
- 2 × SMA RF test cables
- USB Type-C charging/data cable
- Protective carrying case
- User manual
| Brand | NanoVNA |
| Model Number | F-V2 |
| Product Type | Vector Network Analyzer |
| Frequency Range | 50kHz-3GHz |
| Measurement Ports | 2 |
| Measurement Parameters | S11/S21 |
| Display | 4.3-inch IPS Touchscreen |
| Display Resolution | 800x480 |
| Sweep Points | Up To 401 |
| Dynamic Range | 90dB |
| Frequency Stability | 0.5ppm TCXO |
| Output Power | -9dBm |
| Impedance | 50 Ohm |
| Connector Type | SMA Female |
| Calibration | SOLT |
| Calibration Storage | Supported |
| Trace Display | 4 Simultaneous Traces |
| Touchstone Export | S1P/S2P |
| USB Interface | USB Type-C |
| PC Software | NanoVNA Saver |
| Battery | 5000mAh Rechargeable Lithium |
| Battery Runtime | Up To 7 Hours |
| Enclosure | Aluminum Alloy |
| Application | Antenna Analysis |
| Application | Filter Testing |
| Application | Cable Testing |
| Application | RF Network Measurement |
Warranty:
12 Months of Warranty against Manufacturing Defects Only
