N Type 50W 20DB 3G RF Attenuator

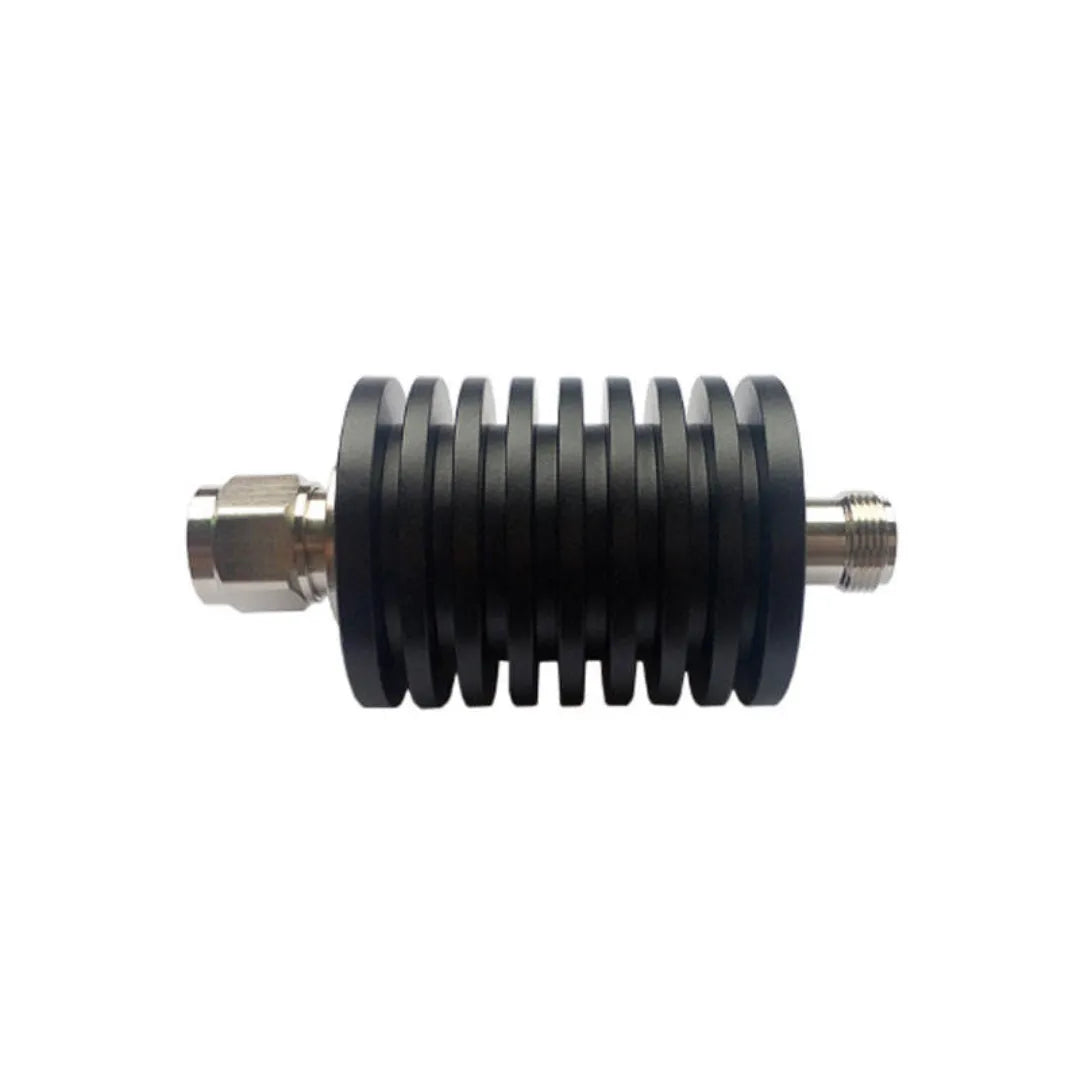

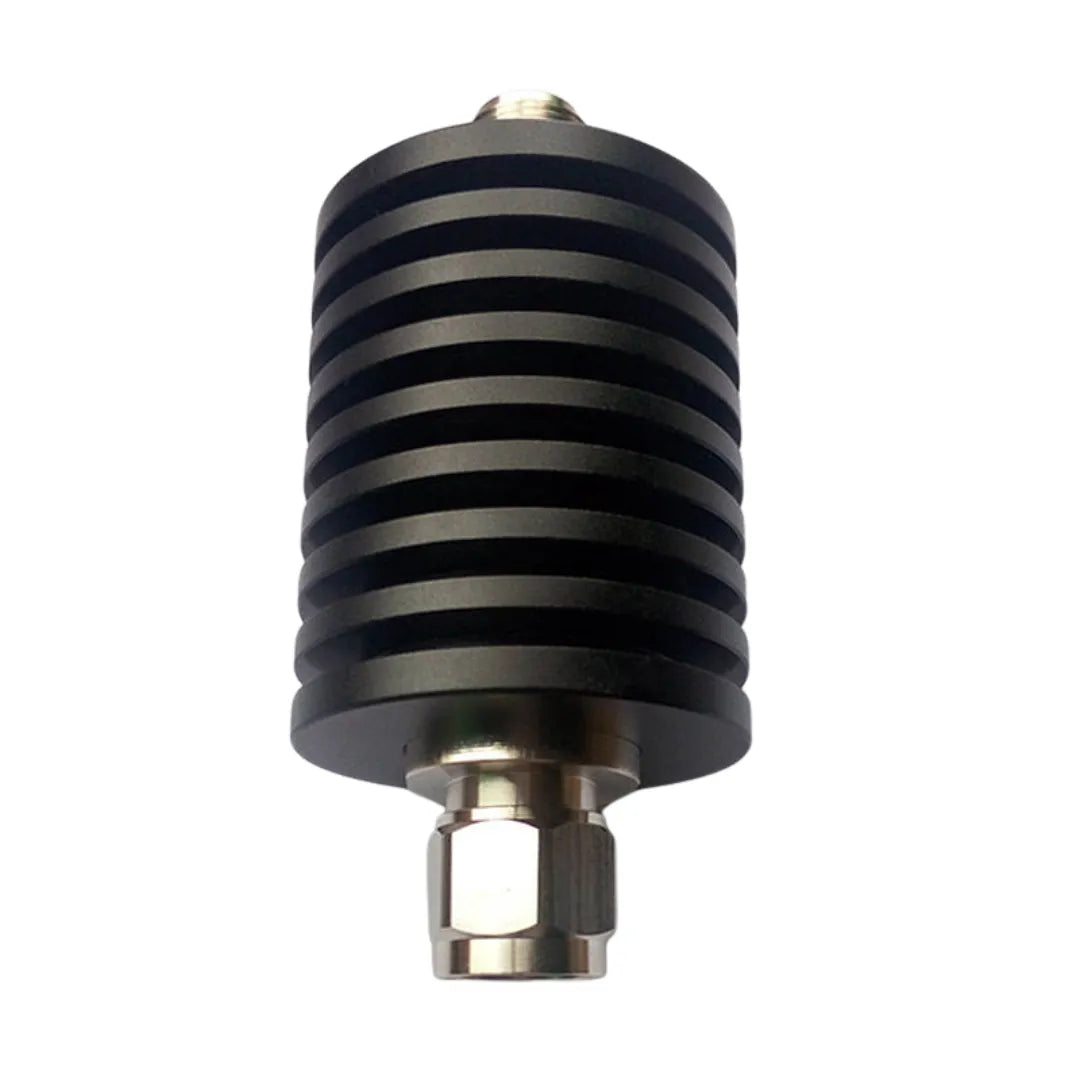

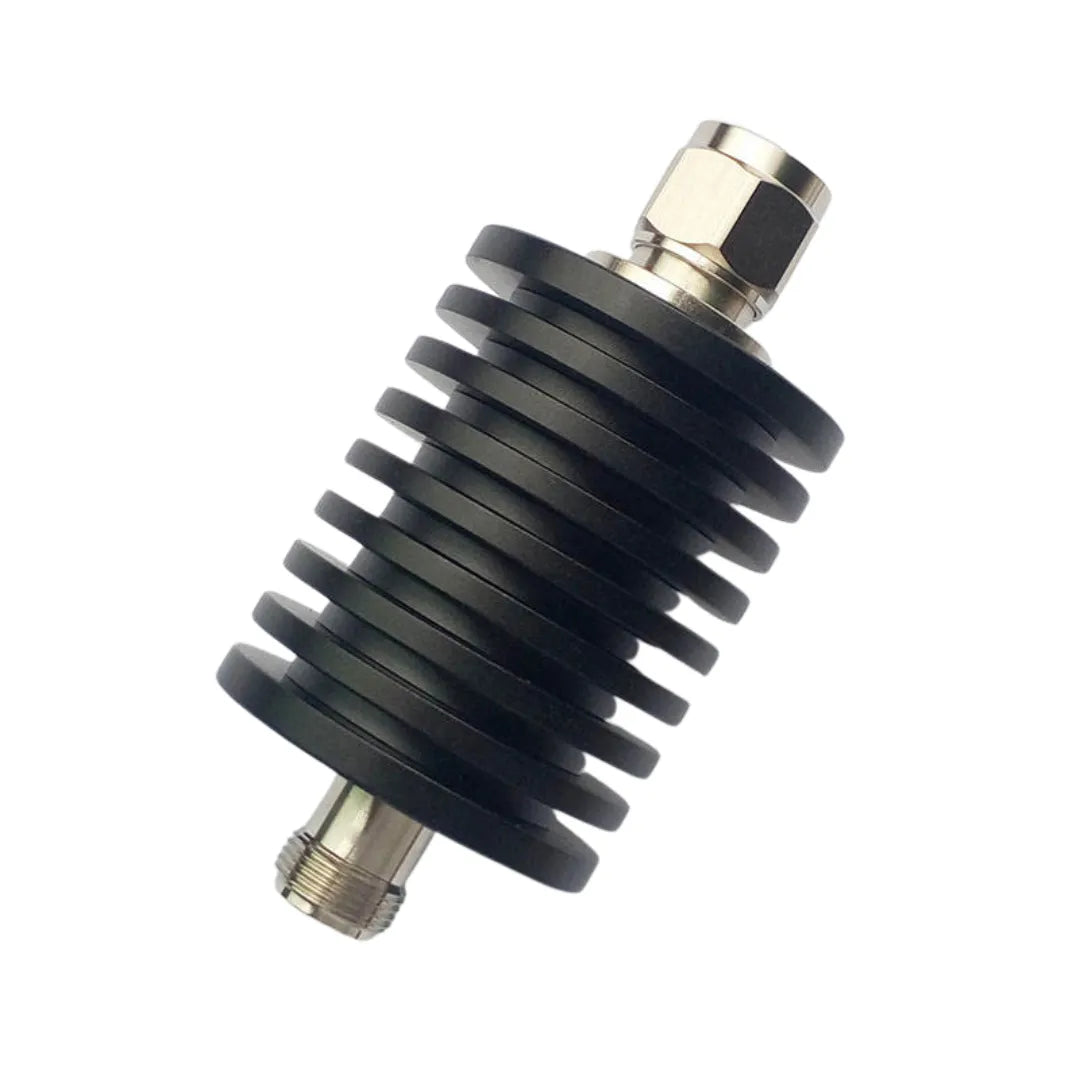

N Type 50W 20dB 3GHz RF Attenuator

The N Type 50W 20dB 3GHz RF Attenuator is a high-power fixed coaxial attenuator designed to reduce RF signal levels while maintaining excellent impedance matching across a wide frequency range. Rated for up to 50 watts of continuous RF power and operating from DC to 3 GHz, it is ideal for amateur radio, wireless communication systems, RF testing, and laboratory measurement applications.

Key Features

• High-power fixed RF attenuator
• 20 dB fixed attenuation
• Frequency coverage from DC to 3 GHz
• 50 Watt continuous RF power rating
• Precision 50 Ohm impedance
• Excellent VSWR across the operating frequency range
• Low insertion loss beyond the specified attenuation
• Maintains accurate signal level reduction
• Protects RF receivers and test equipment from excessive signal levels
• Suitable for transmit and receive applications
• Type N male to Type N female coaxial connectors
• Gold-plated center contacts for reliable conductivity
• Nickel-plated metal housing for durability
• Integrated aluminum heatsink body for efficient heat dissipation
• Designed for continuous-duty RF operation
• Ideal for amateur radio transmitters and amplifiers
• Suitable for spectrum analyzers, signal generators and power meters
• Compatible with RF laboratory and wireless communication equipment
• No external power required
• Compact inline installation
• Reliable attenuation accuracy over a wide frequency range
• Suitable for RF production testing and maintenance
• Excellent thermal stability during high-power operation
• Portable and easy to integrate into RF systems
• Professional-grade RF measurement accessory

Typical Uses

• RF transmitter testing
• Spectrum analyzer protection
• Signal generator output attenuation
• Power amplifier measurements
• Amateur radio stations
• Wireless communication systems
• RF laboratory applications

In the Box

• N Type 50W 20dB 3GHz RF Attenuator
• Protective connector caps
• User documentation
