Malahit-DSP2 SDR

Malahit-DSP2 SDR

The Malahit-DSP2 SDR is a high-performance portable software defined radio receiver designed for professional-grade monitoring from LF through microwave frequencies. Featuring advanced DSP processing, a powerful 480 MHz processor, a responsive 3.5-inch color touchscreen, and wide frequency coverage from 10 kHz to 2 GHz (with a gap between 380 MHz and 404 MHz), it delivers exceptional sensitivity, spectrum display, and digital signal processing for amateur radio, shortwave listening, aviation, satellite, and RF monitoring applications.

Key Features

• Portable software defined radio (SDR) receiver
• Wide frequency coverage from 10 kHz to 380 MHz and 404 MHz to 2 GHz
• Advanced DSP signal processing architecture
• Powerful 480 MHz processor for real-time SDR operation
• High-resolution 3.5-inch color touchscreen display
• Real-time spectrum scope and waterfall display
• Supports AM, SSB, USB, LSB, DSB, CW, NFM and WFM reception
• FM stereo reception with integrated RDS support
• Adaptive noise reduction and noise blanker functions
• Variable DSP IF bandwidth filters
• Automatic and manual gain control
• Adjustable RF gain and attenuator controls
• Built-in equalizer and audio enhancement features
• High sensitivity across HF, VHF, UHF and microwave bands
• Up to 192 kHz spectrum span
• USB CAT control with IQ and audio streaming support
• Compatible with SDR software and computer control
• SMA antenna connector
• Supports 50 Ω and Hi-Z antenna selection below 50 MHz
• Rechargeable 18650 lithium battery operation
• USB charging with integrated battery management

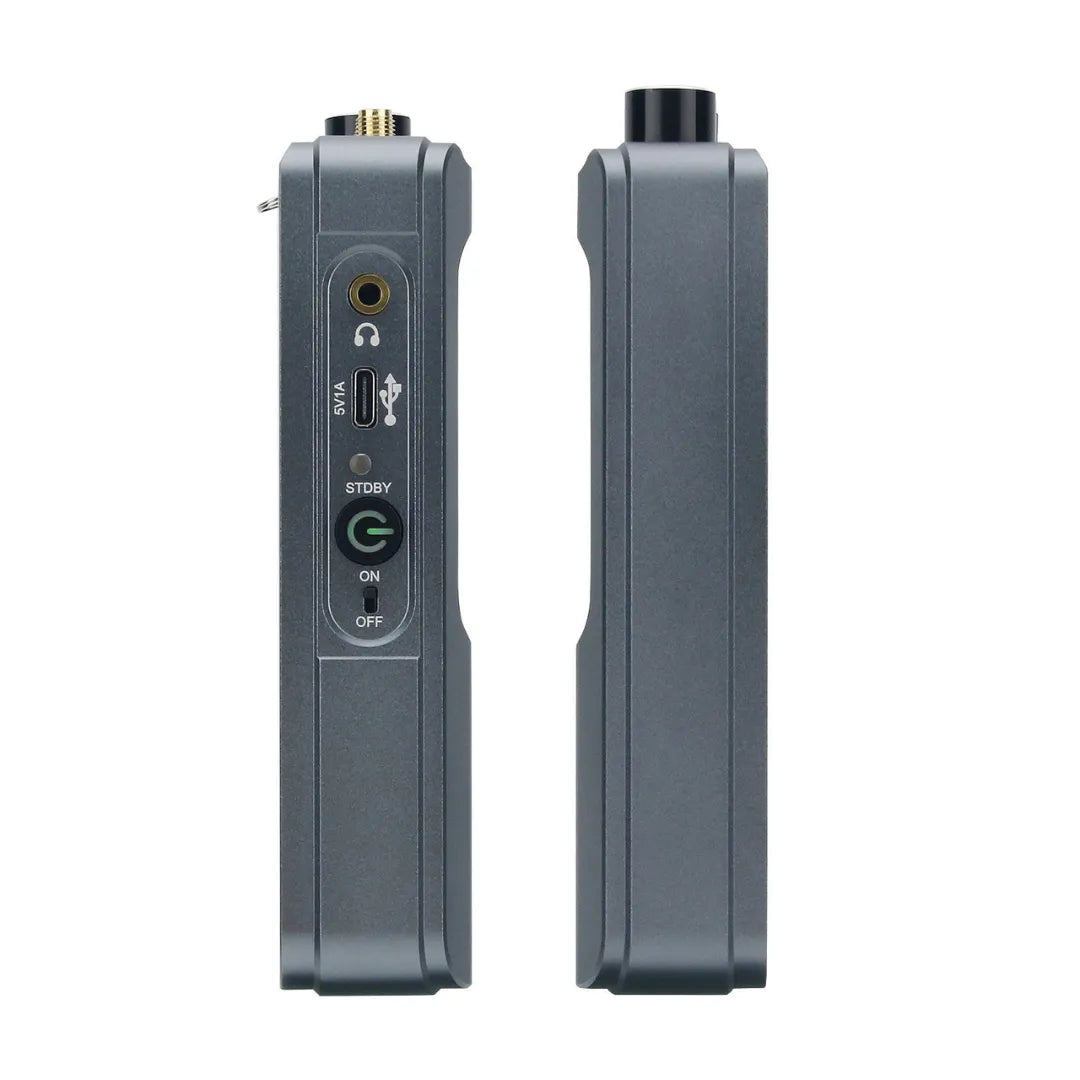

• Built-in speaker and 3.5 mm stereo headphone output
• Compact CNC-machined aluminum enclosure
• Upgradeable firmware with new features and improvements
• Ideal for amateur radio, SWL, aviation, utility monitoring, satellite reception, and RF experimentation

Typical Uses

• Shortwave listening (SWL)
• Amateur radio monitoring
• HF, VHF and UHF communications monitoring
• Airband and marine listening
• Satellite signal reception
• Spectrum analysis and RF experimentation
• Emergency and utility communications monitoring

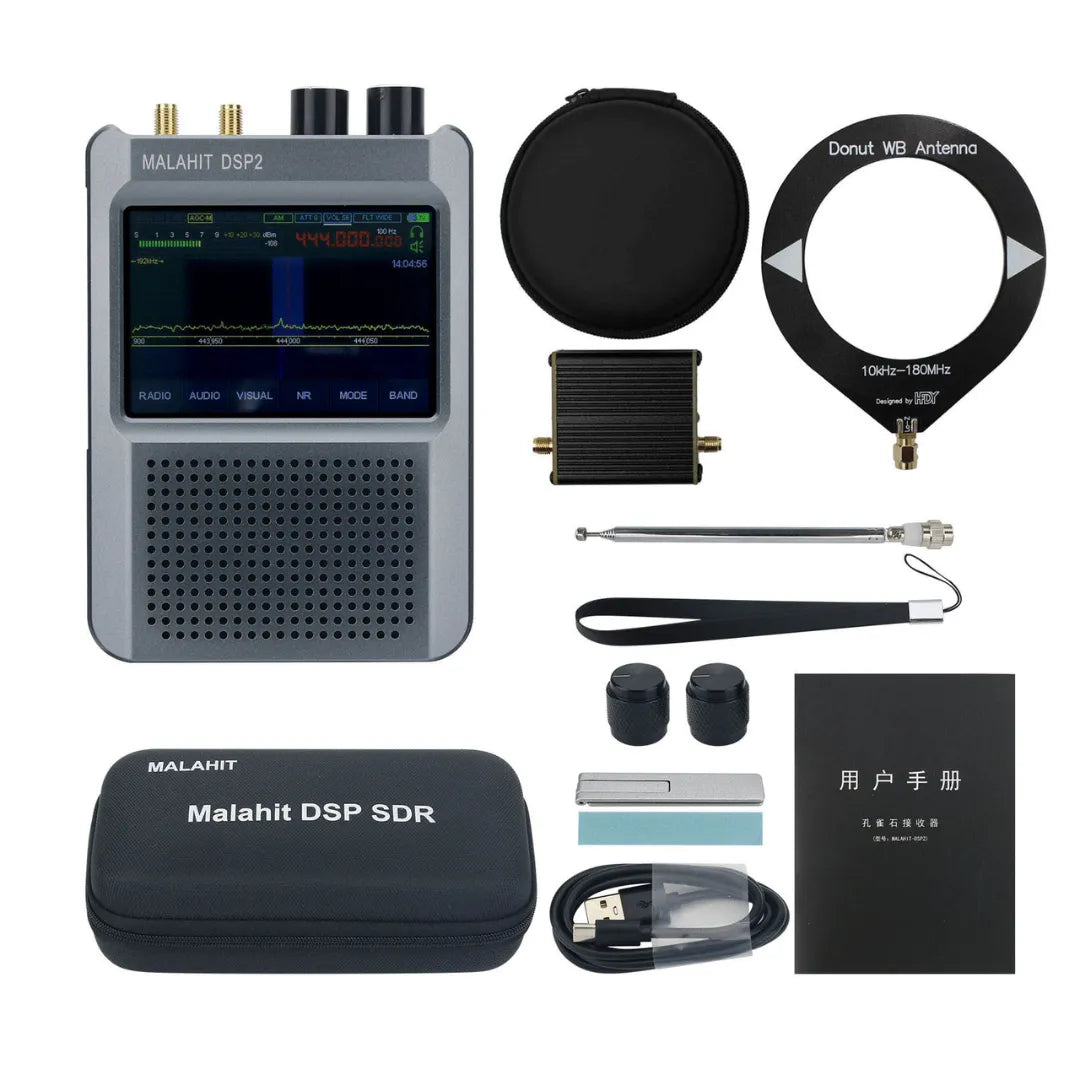

In the Box

• Malahit-DSP2 SDR Receiver
• USB charging/data cable
• Telescopic antenna
• User documentation
