ICOM ID-52A-Plus VHF/UHF Multi Function D-Star Handheld Transceiver
Brand:
ICOM
ICOM ID-52A-Plus VHF/UHF Multi Function D-Star Handheld Transceiver
ICOM ID-52A-Plus VHF/UHF Multi Function D-Star Handheld Transceiver
ICOM ID-52A Plus VHF/UHF Multi Function D-STAR Handheld Transceiver
The ICOM ID-52A Plus is a premium dual-band VHF/UHF handheld transceiver featuring advanced D-STAR digital voice and data communications, integrated Bluetooth®, GPS positioning, and dual-receive capability. Designed for amateur radio operators seeking portable digital communications with worldwide connectivity, the ID-52A Plus combines modern wireless functionality, wideband receive coverage, and a large color display in a rugged handheld platform.
Key Features
- Dual-band VHF/UHF amateur radio handheld transceiver
- D-STAR digital voice and data communication capability
- Conventional FM and D-STAR operating modes
- Dualwatch operation supporting simultaneous monitoring of two frequencies
- Large 2.3-inch full-color TFT display
- Integrated Bluetooth® connectivity for wireless headsets and smartphone integration
- Built-in GPS receiver for location services and D-STAR functionality
- Terminal Mode and Access Point Mode support for direct D-STAR network access
- Expanded memory and communication enhancements in the Plus version
- Band Scope and Waterfall Display for visual signal monitoring
- DR (D-STAR Repeater) mode for simplified repeater operation
- Automatic nearby repeater search using GPS information
- Wideband receiver coverage including VHF airband monitoring
- FM broadcast reception capability
- Integrated microSD card slot for memory backup, recordings, and data storage
- USB connectivity for programming and firmware updates
- Voice recording and playback functionality
- Picture Share capability through compatible software applications
- Support for D-PRS position reporting
- High-quality audio system with powerful internal speaker
- IPX7 waterproof construction for outdoor operation
- Rugged portable design suitable for field and travel use
- Wireless smartphone connectivity using RS-MS1A applications
- Compatible with optional Bluetooth accessories and remote operation functions
- High-capacity lithium-ion battery system for extended operating time
- Ideal for D-STAR networking, emergency communications, repeater operation, travel, and portable amateur radio activities
Typical Uses
- D-STAR digital voice and data communications
- Portable VHF/UHF amateur radio operation
- Worldwide communication through D-STAR networks
- Emergency and disaster communications
- Travel and field operations
- Airband and broadcast monitoring
- Repeater and hotspot communications

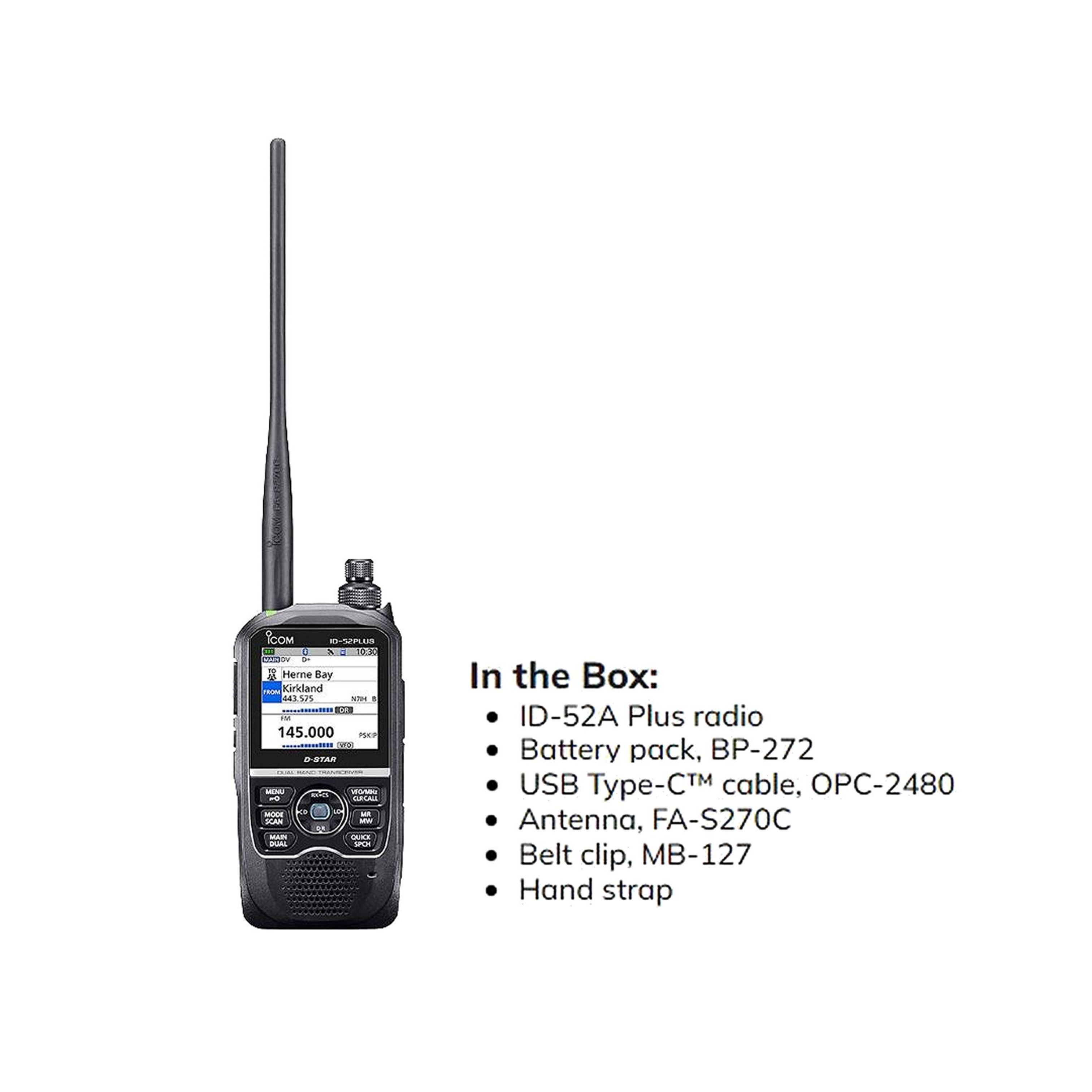

In the Box
- ICOM ID-52A Plus Handheld Transceiver
- BP-272 Lithium-Ion Battery Pack
- Flexible Antenna
- BC-202IP3 AC Adapter
- USB Cable
- Belt Clip
- Hand Strap
- User Documentation
| Brand | ICOM |
| Model Number | ID-52A Plus |
| Product Type | VHF/UHF D-STAR Handheld Transceiver |
| Frequency Coverage TX VHF | 144-148 MHz |
| Frequency Coverage TX UHF | 430-450 MHz |
| Frequency Coverage RX VHF | 108-174 MHz |
| Frequency Coverage RX UHF | 375-550 MHz |
| Airband Receive | 108-136.99166 MHz AM |
| FM Broadcast Receive | 76-108 MHz |
| Operating Modes | FM/FM-N/DV(D-STAR) |
| RF Output Power | 5W/2.5W/1W/0.5W |
| Digital Voice System | D-STAR |
| Dual Watch | Supported |
| GPS Receiver | Built-In |
| Bluetooth | Built-In |
| Terminal Mode | Supported |
| Access Point Mode | Supported |
| Band Scope | Built-In |
| Waterfall Display | Built-In |
| DR Mode | Supported |
| D-PRS | Supported |
| Voice Recording | Supported |
| Picture Share | Supported |
| Display | 2.3in Color TFT LCD |
| Memory Storage | microSD Card |
| USB Interface | Supported |
| Speaker Output | 750mW |
| Waterproof Rating | IPX7 |
| Battery Pack | BP-272 Li-Ion |
| Battery Capacity | 1880mAh |
| Antenna Connector | SMA Female |
| Frequency Stability | ±2.5ppm |
| Dimensions | 61 x 111 x 31 mm |
| Weight | Approx. 295g |
| Bluetooth Audio | Supported |
| Smartphone Control | RS-MS1A Compatible |
