SKU: RF-ID-5100A

ICOM ID-5100A VHF/UHF Digital Transceiver

Regular price Rs. 63,500.00 (Including GST)
Sale price Rs. 63,500.00 (Including GST) Regular price
Unit price
Brand: ICOM
Estimated Domestic Ship Date: 5 days lead time
Estimated International Ship Date: 5 days lead time
Estimated Domestic Delivery: Standard: 5-7 Days | Express: 1-4 Days
Estimated International Delivery: Standard: 10-20 Days
Ask a question

Ask a Question

* Required fields

 Size guide

Share this product:

ICOM ID-5100A VHF/UHF Digital Transceiver - RFCharge

ICOM ID-5100A VHF/UHF Digital Transceiver

Regular price Rs. 63,500.00 (Including GST)
Sale price Rs. 63,500.00 (Including GST) Regular price
Unit price

Earn 0 points on this purchase.

Learn more
Product description
What's in the Box
Technical Specifications
Overview
Warranty
Documentation

The ICOM ID-5100A is a compact dual-mode D-STAR digital voice and analog FM mobile transceiver engineered to deliver repeater-grade RF performance with selectable transmit output levels of 50W / 15W / 5W across amateur VHF/UHF bands.

Supporting DV Fast Data Mode (3480 bps), the transceiver enables high-speed digital data transmission over the D-STAR protocol—facilitating messaging, image transfer, and GPS-based location reporting across network-linked repeater systems.

The integrated SD card slot allows storage of QSO logs, RX history, GPS logs, voice memories, and configuration data—supporting rapid backup and codeplug transfer between networked mobile installations.

Optional Bluetooth® connectivity (via UT-133A module) enables wireless headset support and Android-based remote configuration through the RS-MS1A application, allowing DV message exchange and reflector control from a connected mobile device.

Key Features

  • Dual-band operation with 118–174 MHz and 375–550 MHz coverage

  • 50W transmit power on both VHF and UHF bands

  • Touchscreen interface with intuitive menu-driven control

  • Simultaneous dual receive (FM/FM or FM/DV modes)

  • Integrated GPS for location reporting, repeater search, and logging

  • DV/FM Repeater List function for quick repeater access

  • Enhanced D-PRS functions with position, object, and weather data

  • Built-in CTCSS/DTCS tones and 1750 Hz tone capability

  • Weather channel with alert function

  • Speech function announces frequency, mode, and received call sign

  • Bluetooth-ready (optional UT-133 board)

  • Supplied CS-5100 software for cloning and memory management

Included Accessories

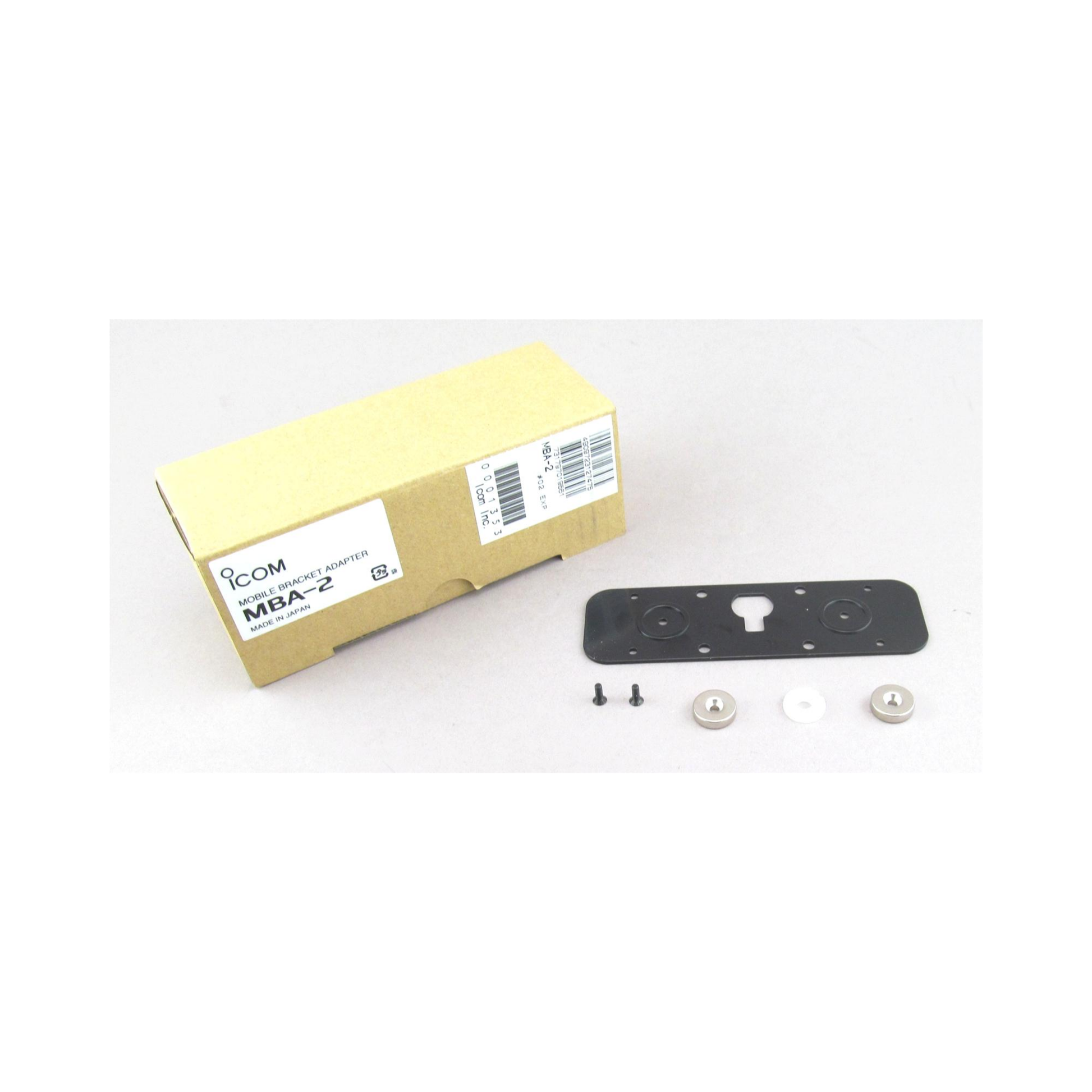

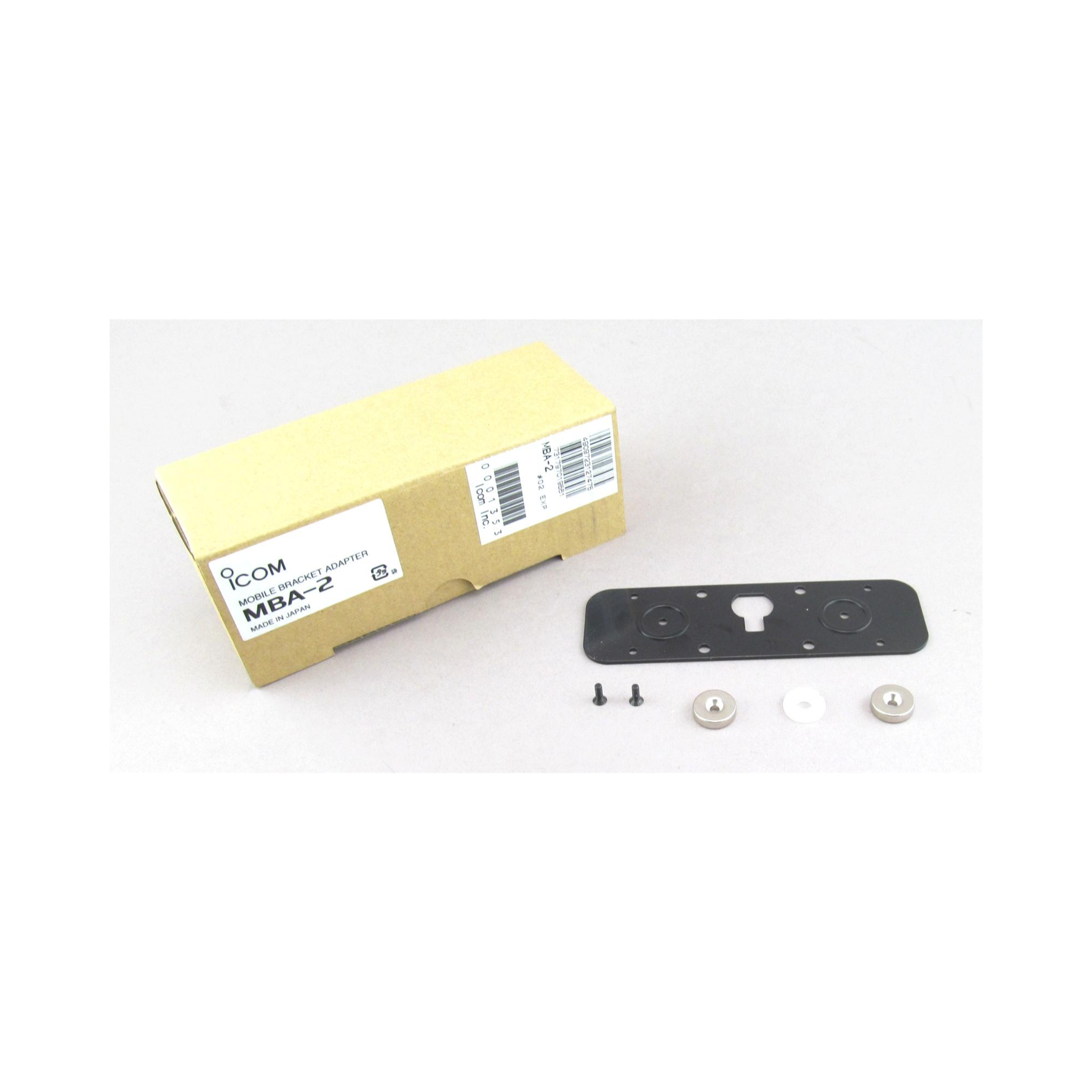

  • MBA-2 remote head mounting bracket

  • HM-207 hand microphone

  • OPC-837 controller cable (3.5 m / 11.4 ft.)

  • Microphone hanger

  • Spare fuse

Technical Specifications

Specification

Details

Brand

ICOM

Model

ID-5100A Deluxe

Part Type

Mobile Transceiver

Frequency Coverage

118.000–174.000 MHz / 375.000–550.000 MHz

Output Power

50 W (High), 5 W (Low)

Band Type

Dual-band

Cross-Band Repeat

Yes

Receiver Type

Dual Receiver

Detachable Faceplate

Yes

Input Voltage

12–15 V DC

Maximum Current

13.0 A

Dimensions (W × H × D)

5.91 × 1.57 × 6.80 in.

Weight

2.87 lbs

Warranty

1-Year Warranty





Why Choose the ID-5100A?

With its smart touchscreen control, integrated GPS, and powerful dual-band digital performance, the ICOM ID-5100A is more than a transceiver—it’s your intelligent command center for modern VHF/UHF communication. Whether you’re operating mobile, stationary, or remotely via Bluetooth, this transceiver keeps you connected with crystal-clear digital audio, precision control, and advanced repeater management.

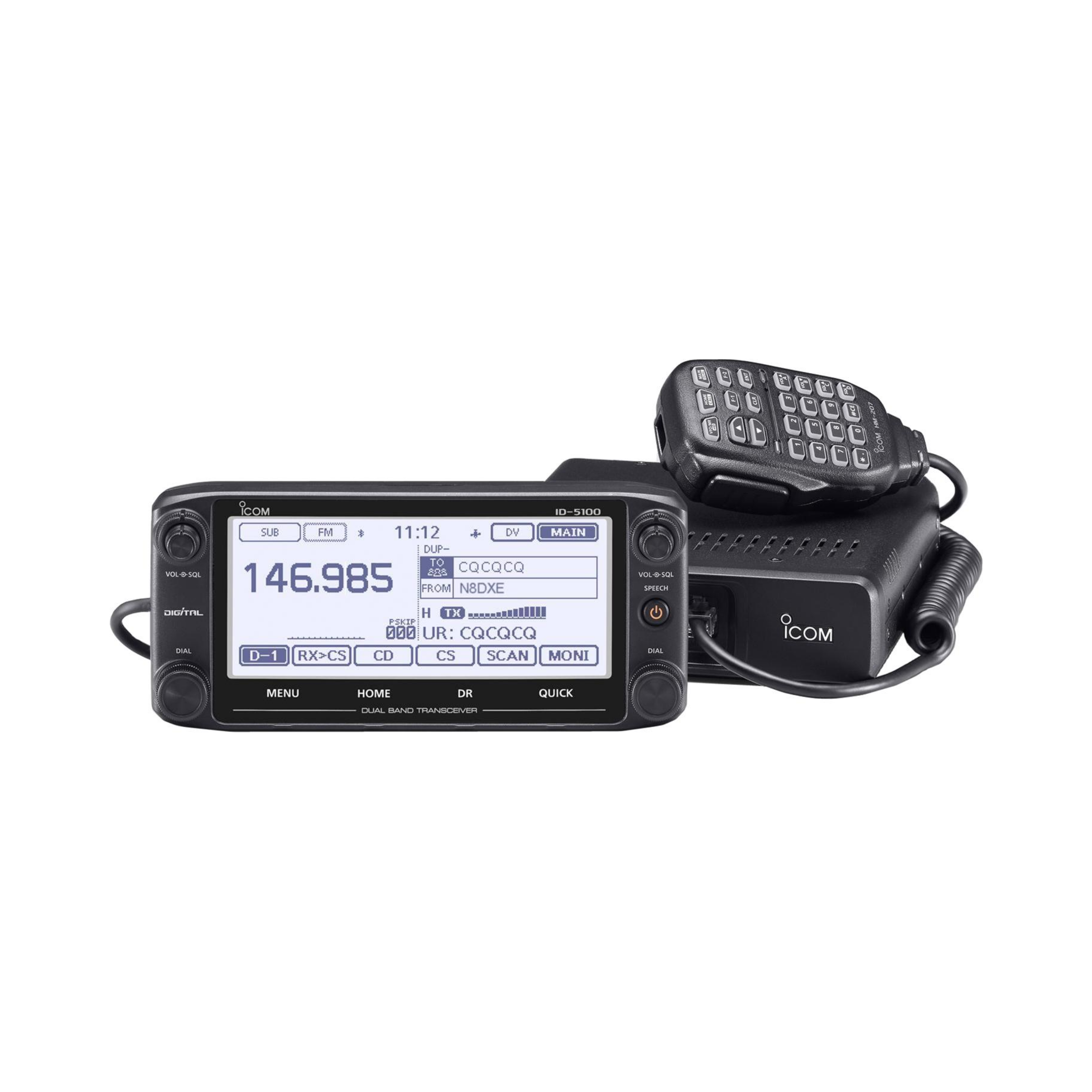

✔ ID-5100A Dual-Band Digital Mobile Transceiver Unit
✔ HM-207 Hand Microphone
✔ Controller Separation Cable (OPC-837)
✔ Mobile Mounting Bracket
✔ DC Power Cable with Fuse
✔ Microphone Hanger
✔ Spare Fuse
✔ Operating Manual / Documentation

Note: External antenna system and optional UT-133A Bluetooth® module are not included with the standard ID-5100A package.

Brand: ICOM
Model Number: ID-5100A
Product Type: Dual-Band Digital / Analog Mobile Transceiver
RFCharge Category: Dual-Band D-STAR Mobile Radios
Frequency Coverage (TX): 144 – 148 MHz / 430 – 450 MHz
Frequency Coverage (RX): 118 – 174 MHz / 375 – 550 MHz
Operating Modes: FM / DV (D-STAR)
RF Output Power: 50W / 15W / 5W
Display: 5.5-inch Touch Screen
Memory Channels: 1000 + 1200 Repeater Memories
Channel Spacing: 12.5 / 25 kHz
Power Supply Requirement: 13.8V DC
Maximum Current Consumption: Approx. 13A
Antenna Connector: SO-239
Weight: Main Unit Approx. 1.3 kg

The ICOM ID-5100A is a feature-rich VHF/UHF dual-band digital mobile transceiver designed for hybrid D-STAR digital voice (DV) and conventional analog FM communication across the 2m and 70cm amateur bands. Delivering up to 50W RF output power on both VHF and UHF, the ID-5100A supports long-range simplex and repeater-based operation in mobile or fixed-station environments.

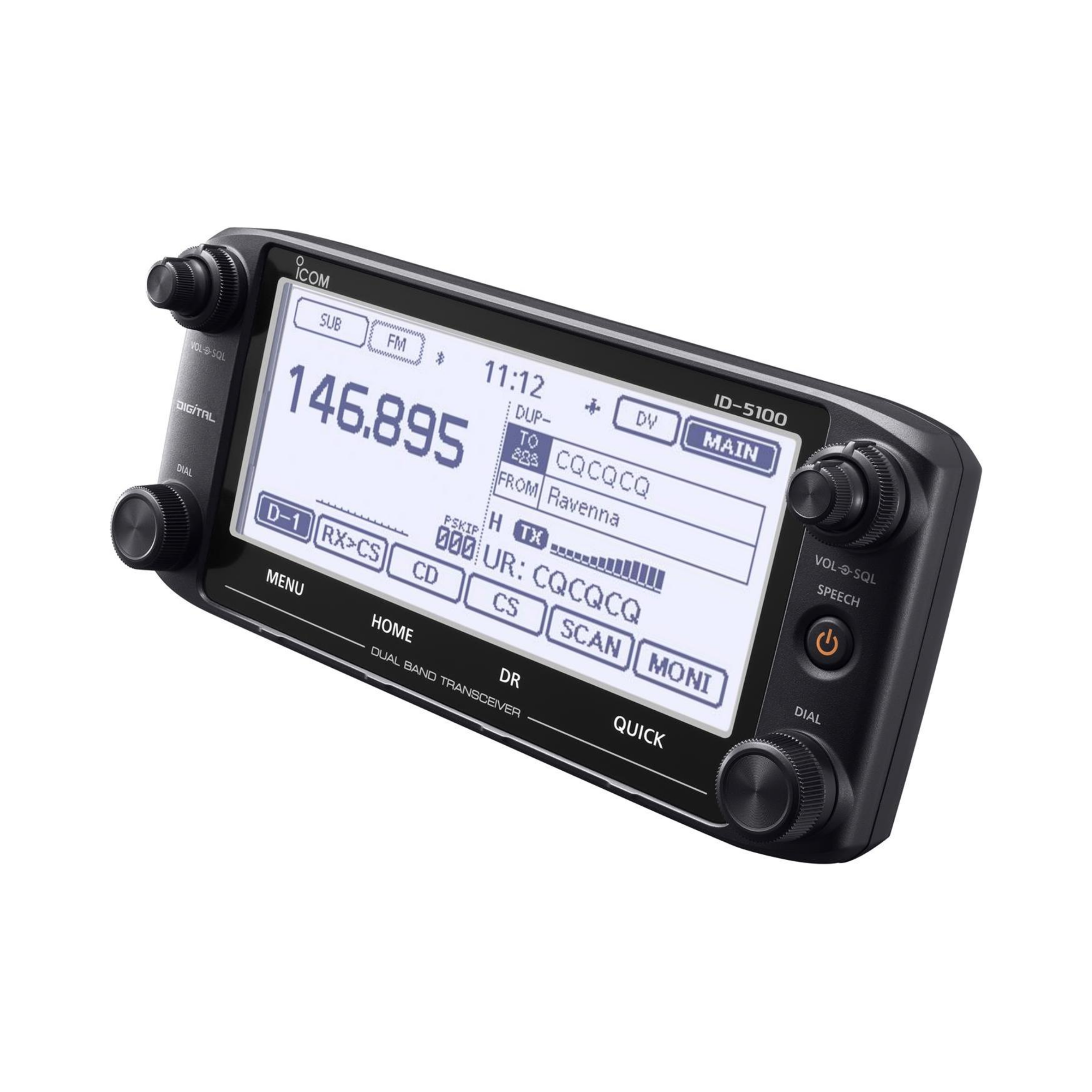

Equipped with a 5.5-inch touch-screen interface, the transceiver enables intuitive access to memory channels, DR (D-STAR Repeater) functions, and frequency settings—streamlining digital repeater linking and talkgroup-based communication workflows.

The integrated GPS receiver, embedded within the controller unit, supports position reporting, repeater search based on location data, and GPS log tracking—making the ID-5100A particularly suitable for digital network-based mobile deployments.

With support for DV/FM dual-watch, operators can simultaneously monitor analog FM and digital DV activity across independent A/B channels—allowing monitoring of multiple repeaters or reflectors during ongoing communication sessions.

Positioned within the RFCharge digital mobile lineup, the ID-5100A integrates seamlessly into hotspot-based infrastructures such as your Pi-Star/MMDVM setup for D-STAR reflector access and networked DV communication.

12 Months of Brand Warranty
