ICOM ID-50A VHF/UHF Multi Function D-Star Handheld Transceiver
Brand:
ICOM
ICOM ID-50A VHF/UHF Multi Function D-Star Handheld Transceiver
ICOM ID-50A VHF/UHF Multi Function D-Star Handheld Transceiver
ICOM ID-50A VHF/UHF Multi Function D-STAR Handheld Transceiver
The ICOM ID-50A is a compact dual-band VHF/UHF handheld transceiver featuring D-STAR digital voice technology, GPS functionality, dual-watch capability, and advanced spectrum monitoring tools. Designed as a portable communication solution for both local and worldwide amateur radio operation, the ID-50A combines intuitive D-STAR operation, rugged construction, and versatile receive coverage in a lightweight handheld platform.
Key Features
- Dual-band VHF/UHF amateur radio handheld transceiver
- D-STAR digital voice and data communication capability
- Conventional FM and D-STAR operating modes
- Dualwatch operation supporting VHF/VHF, VHF/UHF, and UHF/UHF monitoring
- Built-in GPS receiver for location-based functions and repeater selection
- Band Scope with Waterfall Display for visual signal monitoring
- DR (D-STAR Repeater) mode for simplified repeater access
- Terminal Mode and Access Point Mode support for D-STAR network access
- Easy D-STAR configuration designed for new digital operators
- Global communication through the D-STAR repeater network
- Picture Share capability when used with optional ICOM utility software
- DV mode voice and data communication support
- Wideband receive capability including VHF airband monitoring
- FM broadcast band reception
- High-visibility LCD display with adjustable backlighting
- Integrated microSD card slot for memory storage and data management
- USB Type-C connectivity for programming, charging, and PC integration
- Voice recording and playback functionality
- MicroSD support for configuration backup and memory management
- 750 mW high-output speaker audio
- IPX7 waterproof construction for portable outdoor operation
- Compact lightweight handheld design for travel and field use
- Compatible with many ID-52A, ID-51A, and ID-31 accessory options
- Optional high-capacity BP-307 battery compatibility
- Ideal for D-STAR networking, repeater operation, emergency communications, travel, and portable amateur radio activities
Typical Uses
- D-STAR digital voice communications
- Portable VHF/UHF amateur radio operation
- Travel and field communications
- Emergency and disaster communications
- VHF/UHF repeater operation
- Airband and FM broadcast monitoring
- Worldwide communication through D-STAR networks

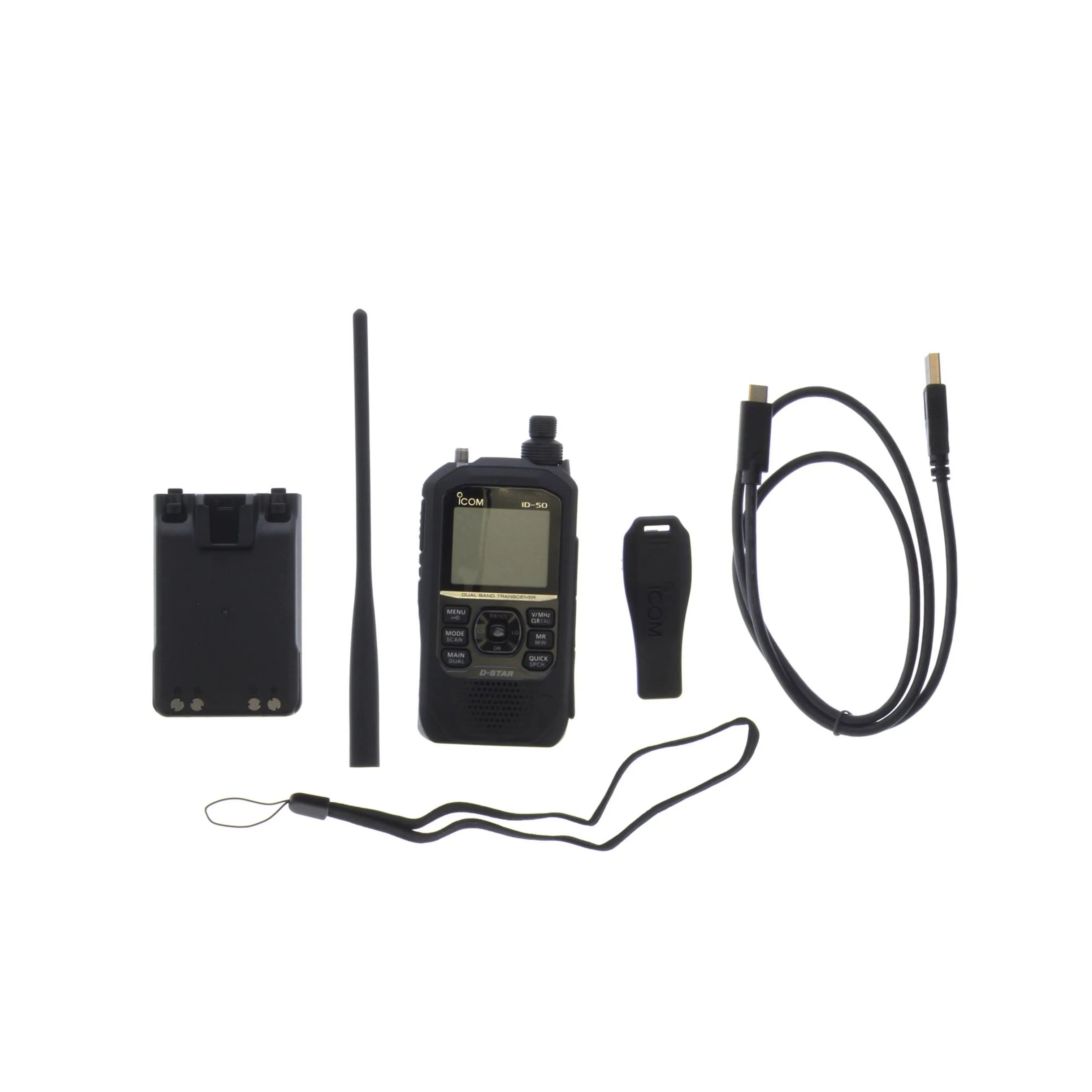

In the Box
- ICOM ID-50A Handheld Transceiver
- BP-272 Lithium-Ion Battery Pack
- Flexible Antenna
- Belt Clip
- Hand Strap
- User Documentation
| Brand | ICOM |
| Model Number | ID-50A |
| Product Type | VHF/UHF D-STAR Handheld Transceiver |
| Frequency Coverage TX VHF | 144-148 MHz |
| Frequency Coverage TX UHF | 440-450 MHz |
| Frequency Coverage RX VHF | 137-174 MHz |
| Frequency Coverage RX UHF | 375-479 MHz |
| Airband Receive | 108-136.99166 MHz AM |
| FM Broadcast Receive | 76-108 MHz |
| Operating Modes | FM/DV(D-STAR) |
| RF Output Power | 5W/2.5W/1W/0.5W/0.1W |
| Digital Voice System | D-STAR |
| Dual Watch | VHF/VHF,VHF/UHF,UHF/UHF |
| GPS Receiver | Built-In |
| Band Scope | Built-In |
| Waterfall Display | Built-In |
| DR Mode | Supported |
| Terminal Mode | Supported |
| Access Point Mode | Supported |
| Picture Share Function | Supported |
| Display | LCD With Backlight |
| Speaker Output | 750mW |
| Memory Storage | microSD Card |
| USB Interface | USB Type-C |
| Voice Recording | Supported |
| Waterproof Rating | IPX7 |
| Battery Pack | BP-272 Li-Ion |
| Battery Capacity | 1880mAh |
| Antenna Connector | SMA Female |
| Frequency Stability | ±2.5ppm |
| Dimensions | 58 x 112 x 32.4 mm |
| Weight | Approx. 290g |
| Microphone/Speaker Jack | 3.5mm |
