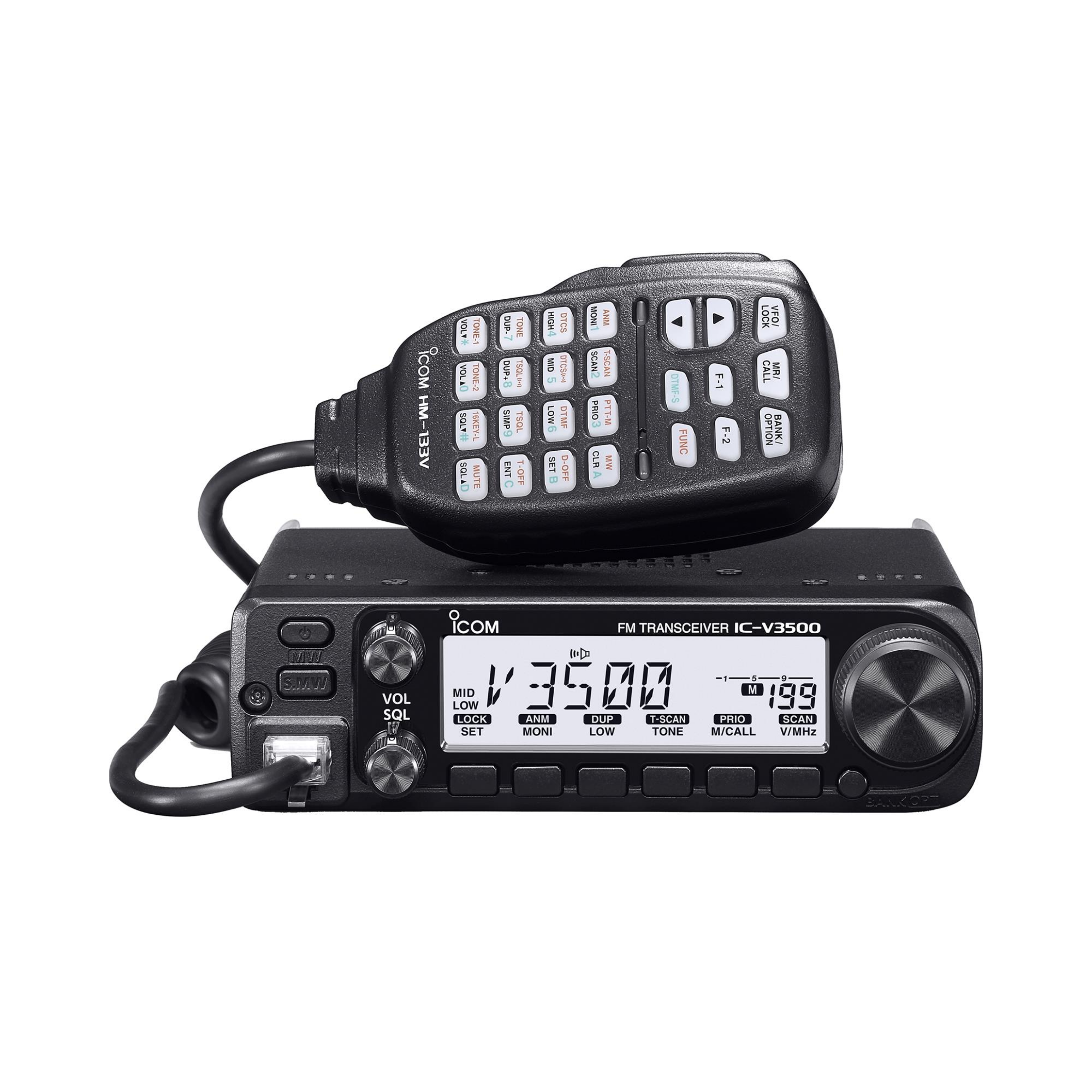

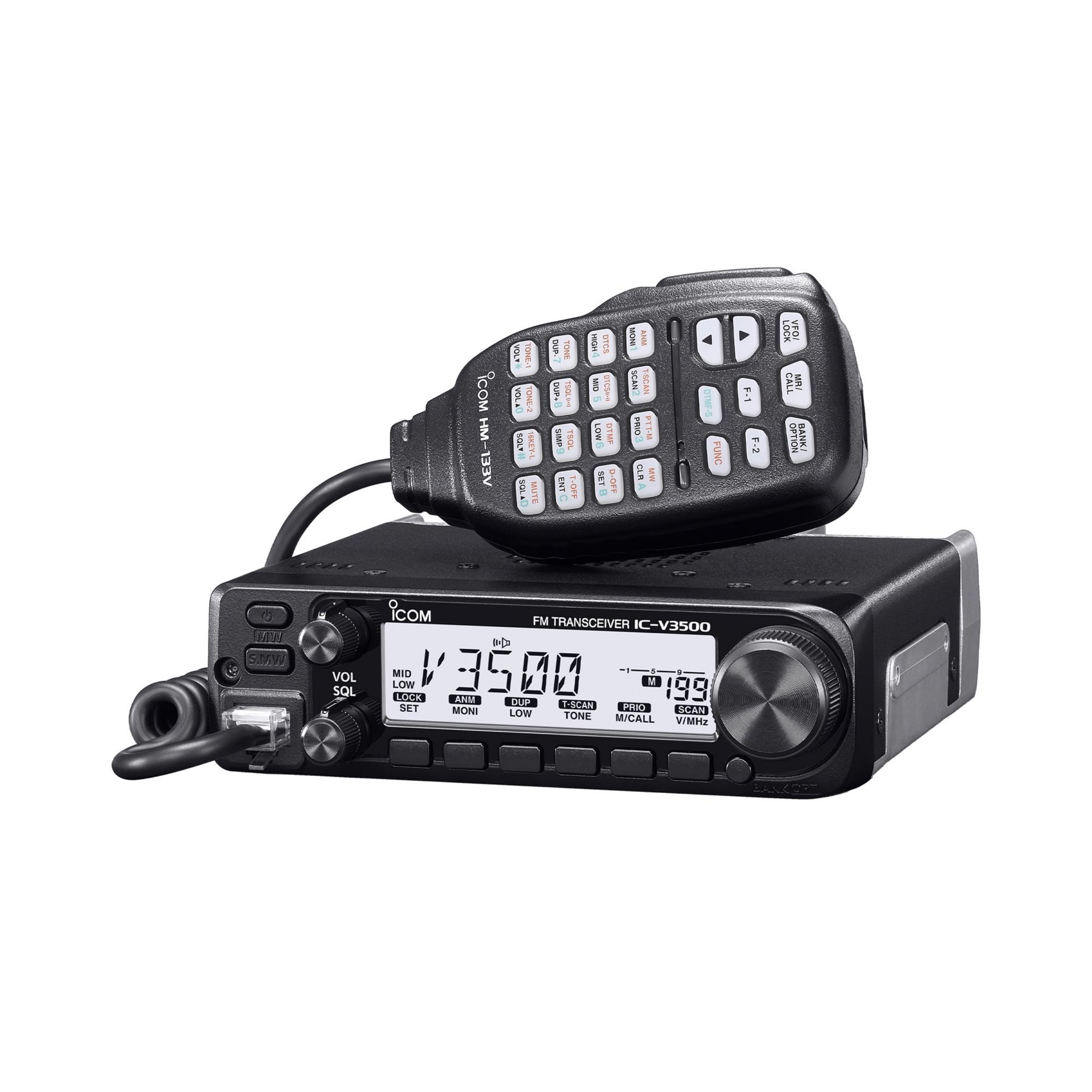

ICOM IC-V3500 2M VHF FM Mobile Transceiver
Brand:
ICOM
Available for Pre-Order
This product is currently available at our warehouse in Kawasaki, Kanagawa, Japan and is not stocked at our Kolkata facility.
Upon order confirmation, we will arrange sourcing and shipment through our global fulfillment network.
Estimated Delivery: Within 2 Weeks
Reserve your unit today by placing a pre-order.
ICOM IC-V3500 2M VHF FM Mobile Transceiver
ICOM IC-V3500 2M VHF FM Mobile Transceiver
ICOM IC-V3500 2M VHF FM Mobile Transceiver
The ICOM IC-V3500 is a high-power 2-meter VHF FM mobile transceiver designed for dependable amateur radio communication in mobile and fixed-station environments. Delivering up to 65 watts of transmit power, a large easy-to-read display, powerful front-facing audio, and extensive memory capacity, the IC-V3500 provides reliable performance for repeater operation, emergency communications, and everyday VHF amateur radio use.
Key Features
- 2-meter VHF FM amateur radio transceiver
- High-power 65 Watt transmit output for extended communication range
- Selectable RF power levels of 65W, 25W, 10W, and 5W
- Large high-contrast LCD display for easy mobile viewing
- Front-mounted speaker delivering clear, high-output receive audio
- 4.5 Watt audio output for noisy vehicle environments
- 207 memory channels including regular, call, and scan-edge memories
- 6-character alphanumeric memory channel naming
- Built-in CTCSS encoder and decoder
- Built-in DTCS encoder and decoder
- Tone scan function for repeater access identification
- Pocket Beep function for selective call notification
- Dynamic Memory Scan (DMS) system with memory bank organization
- Multiple programmable scan functions
- Automatic repeater function support
- Wide and narrow FM channel capability
- DTMF autodial memories for repeater and remote-control applications
- Programmable microphone function keys
- S-meter squelch operation
- Automatic power-off function
- Time-out timer and repeater lockout functions
- Power supply voltage monitoring display
- PC cloning and radio-to-radio cloning support
- Heavy-duty heat dissipation design for sustained high-power operation
- Compact chassis suitable for mobile installations
- Compatible with optional microphones and programming accessories
- Ideal for repeater communications, emergency networks, mobile operation, and public service activities
Typical Uses
- 2-meter FM repeater operation
- Mobile amateur radio installations
- Emergency and disaster communications
- ARES and public service events
- Fixed-station VHF communications
- Community emergency response networks
- Daily local and regional amateur radio operation
In the Box
- ICOM IC-V3500 Transceiver
- HM-133V Hand Microphone
- DC Power Cable
- Mobile Mounting Bracket
- Microphone Hanger
- Spare Fuses
- User Documentation
| Brand | ICOM |
| Model Number | IC-V3500 |
| Product Type | 2 Meter VHF FM Mobile Transceiver |
| Frequency Coverage TX | 144-148 MHz |
| Frequency Coverage RX | 136-174 MHz |
| Operating Mode | FM |
| Emission Type | F2D/F3E |
| RF Output Power | 65W/25W/10W/5W |
| Memory Channels | 207 |
| Memory Banks | 10 |
| Display | Large LCD |
| CTCSS Encoder | Built-In |
| CTCSS Decoder | Built-In |
| DTCS Encoder | Built-In |
| DTCS Decoder | Built-In |
| Tone Scan | Supported |
| DMS Scan | System Supported |
| Automatic Repeater Function | Supported |
| Wide/Narrow FM | Supported |
| DTMF Autodial | Supported |
| Audio Output Power | 4.5W |
| Frequency Stability | ±2.5ppm |
| Receiver Sensitivity | Less Than 0.18µV |
| Adjacent Channel Selectivity | More Than 70dB |
| Spurious Response Rejection | More Than 70dB |
| Antenna Connector | SO-239 |
| Antenna Impedance | 50 Ohm |
| Power Supply | 13.8VDC ±15% |
| Current Consumption RX Standby | 0.5A |
| Current Consumption RX Audio | 1.5A |
| Current Consumption TX High Power | 11A |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 140 x 40 x 195 mm |
| Weight | Approximately 1.4kg |
| Microphone | HM-133V Included |
| Cloning Function | Supported |
