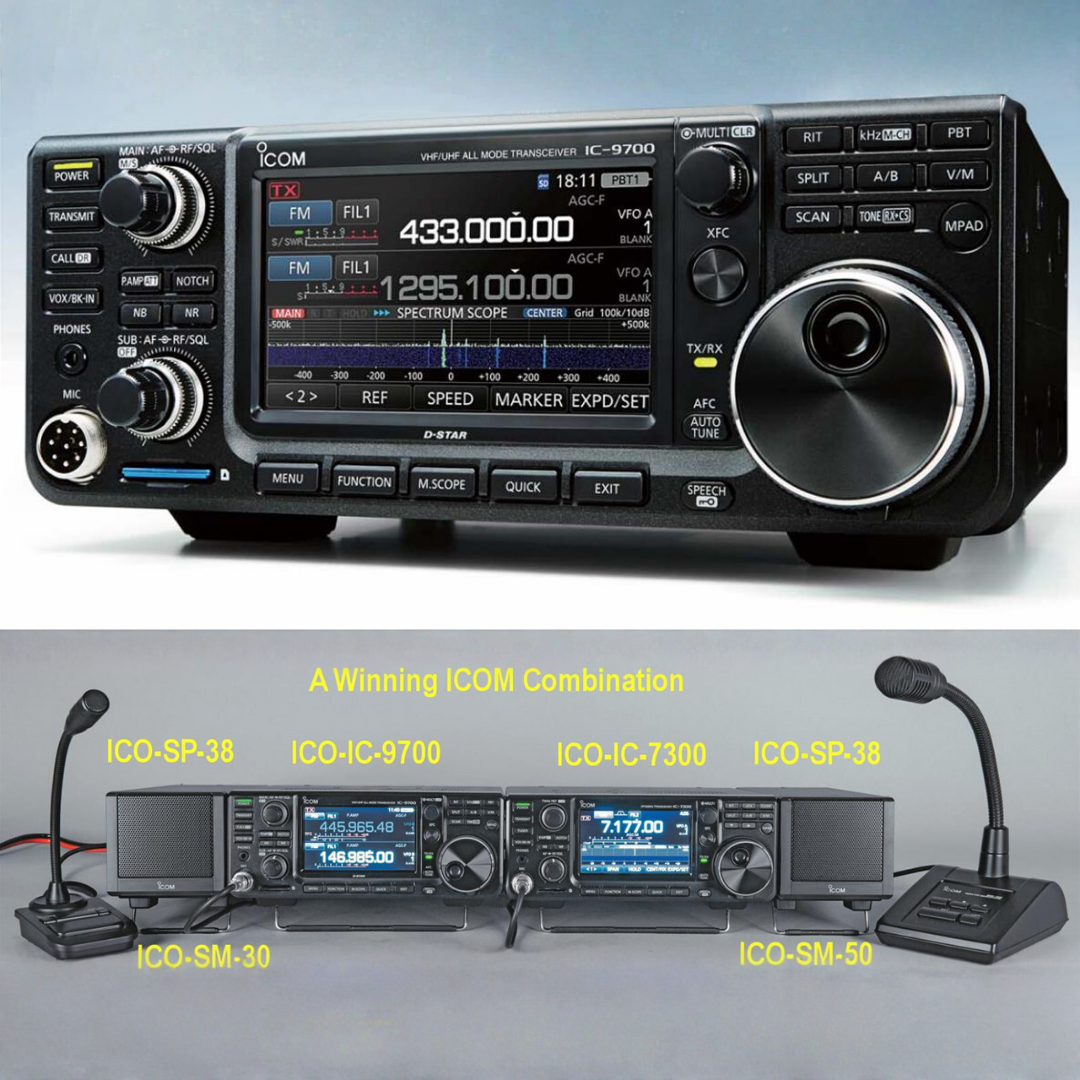

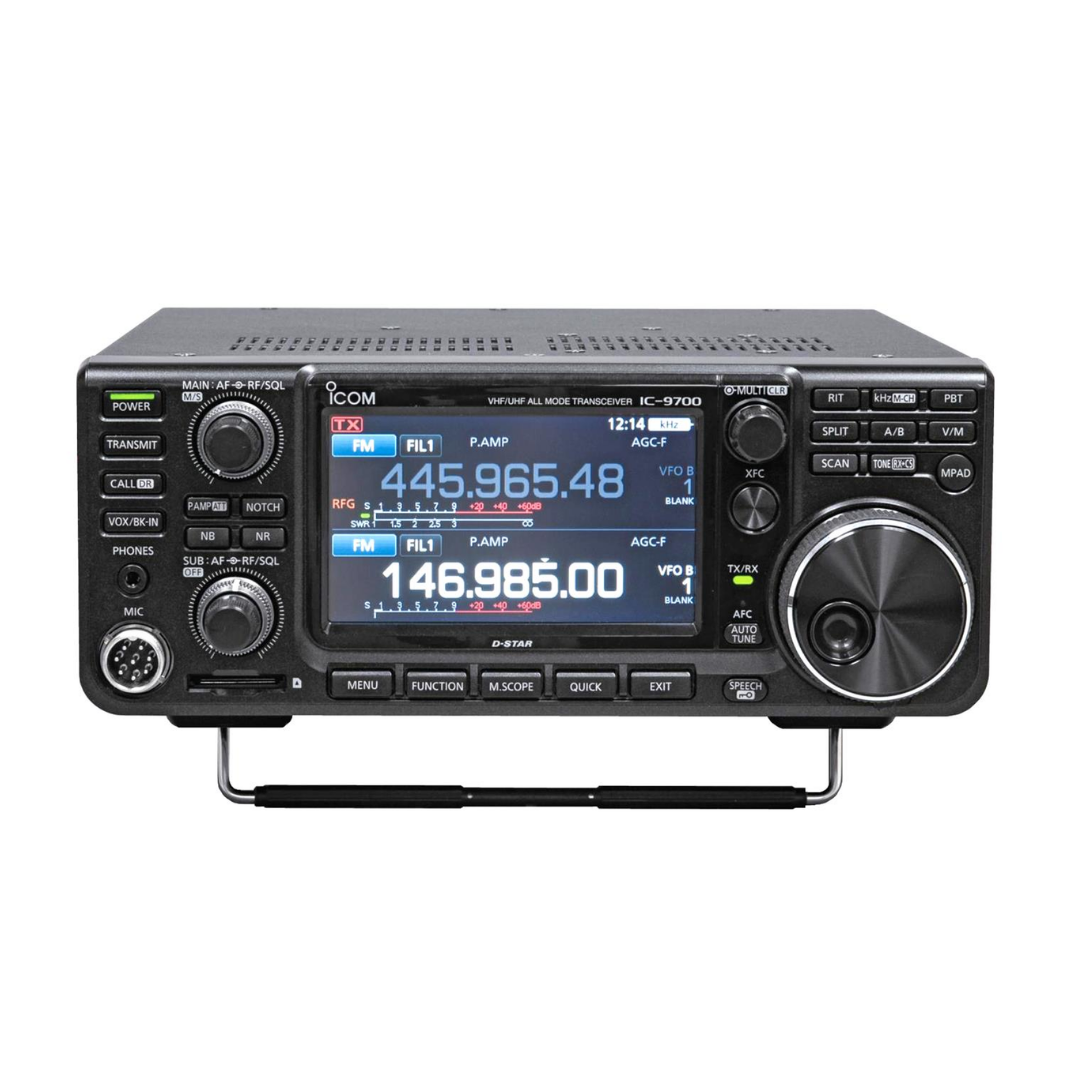

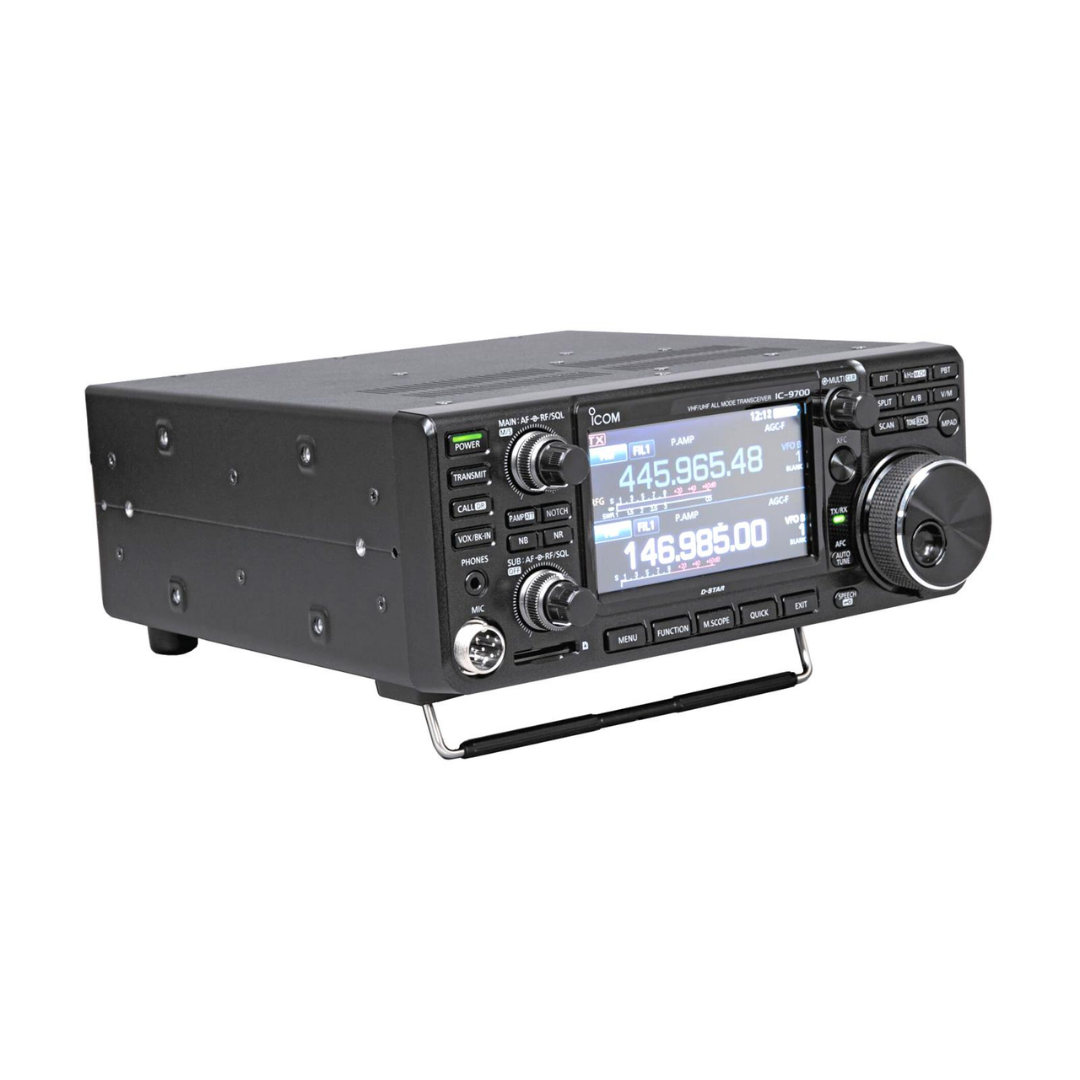

ICOM IC-9700 VHF/UHF/1.2 GHz Transceiver

Experience the cutting-edge performance of the ICOM IC-9700, a premium tri-band transceiver engineered for demanding VHF, UHF, and 1.2 GHz enthusiasts. Purpose-built for weak signal, satellite, and EME (Earth-Moon-Earth) communication, the IC-9700 integrates RF direct sampling on 2m and 70cm bands and IF sampling for 23cm — ensuring ultra-low noise, high dynamic range reception, and unmatched clarity across all bands.

With an impressive 100W output on 2m, 75W on 70cm, and 10W on 23cm, this powerhouse combines Icom’s proven SDR (Software Defined Radio) architecture with D-STAR digital voice and data modes, giving operators the flexibility to handle everything from analog FM and CW to advanced digital communications.

Integrated digital up-conversion (DUC) transmitter architecture and FPGA-based DSP processing allow RF signal digitization within the digital domain—reducing distortion and improving demodulated audio clarity compared to legacy superheterodyne receiver designs.

With SD-card-based voice recording, QSO logging, configuration backup, and dual-receive full-duplex operation, the IC-9700 is suitable for fixed amateur radio installations supporting weak-signal communication and digital mode operation.

Whether you’re chasing DX signals or running satellite contacts, the IC-9700 delivers superior precision, real-time spectrum visibility, and intuitive control in a single, robust package.

Key Features & Technical Highlights

Tri-Band Powerhouse
• 144–148 MHz: 100W
• 430–450 MHz: 75W
• 1240–1300 MHz: 10W
Selectable power levels and per-band TX controls let you fine-tune RF output, TX delay, and power limits to suit your setup.

Direct Sampling SDR Receiver
• RF direct sampling on 2m & 70cm, and down-conversion with IF sampling on 23cm (311–371 MHz).
• Provides ultra-quiet receiver performance with Icom’s renowned DSP filtering and noise reduction.

All-Mode Flexibility
• Operates in FM, SSB, AM, CW, RTTY, D-STAR Digital Voice & Data modes.
• Supports D-STAR Terminal & Access Point operation (RS-MS3A/W).
• Dual D-STAR decode capability—simultaneous decoding of two digital voice streams.

Satellite & Dual-Receive Operation
• Full-duplex operation for satellite work with normal/reverse tracking.
• 99 satellite memory channels for fast setup.
• Main/Sub receiver function supports simultaneous monitoring across bands.

High-Resolution Display & Touch Control
• 4.3-inch color TFT display with real-time spectrum and waterfall scope.
• Touchscreen interface for fast access to menus, filters, and settings.
• Spectrum scope: ±500 kHz range, Center or Fixed mode options.

Advanced Band Management
• Band-specific memory and settings for transmit/receive, noise blanker, notch, and filter adjustments.
• DR Memories for 2,500 repeaters with intelligent D-STAR management.

Modern Connectivity & Remote Operation
• USB interface for digital modes and computer control.
• Ethernet port for remote operation using Icom’s RS-BA1 software.
• SD card slot for voice recording, playback, and configuration backup.

🛰 Ideal For:

✔ Weak Signal VHF/UHF Operators
✔ Satellite & EME Communication
✔ D-STAR Digital Voice/Data Users
✔ Serious Base Station Builders
 ✔ Advanced Amateur Radio Enthusiasts

Technical Specifications

• Receive Range: 144–148 MHz / 430–450 MHz / 1240–1300 MHz


• Receiver Type: Dual independent receiver


• Power Supply: 13.8 V DC (external, not included)


• Maximum Current Draw: 20 A

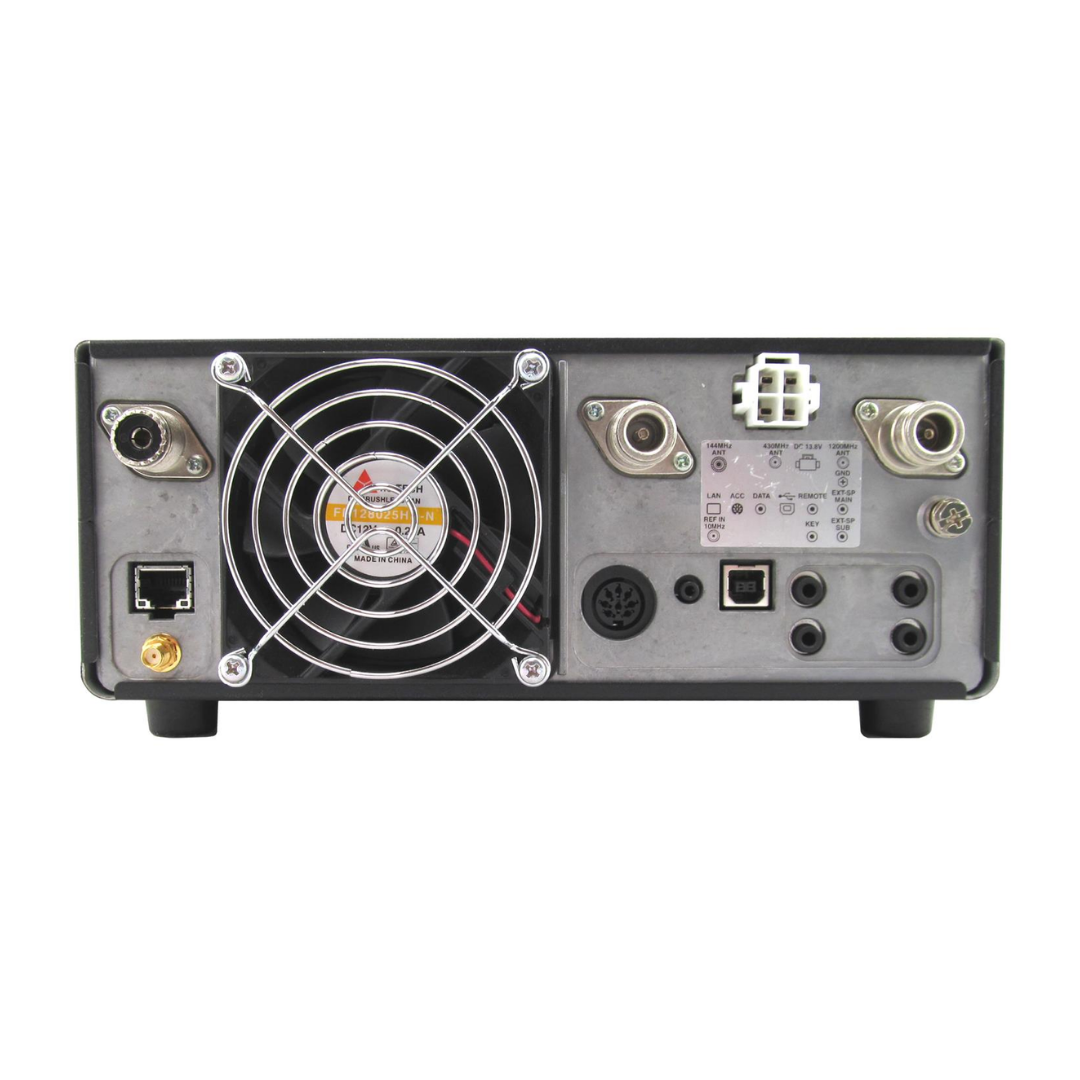

• Antenna Connectors: 3 (SO-239 for 2m, Type N for 70cm & 23cm)


• Display: 4.3-inch color TFT with spectrum/waterfall scope


• Warranty: 1 Year
