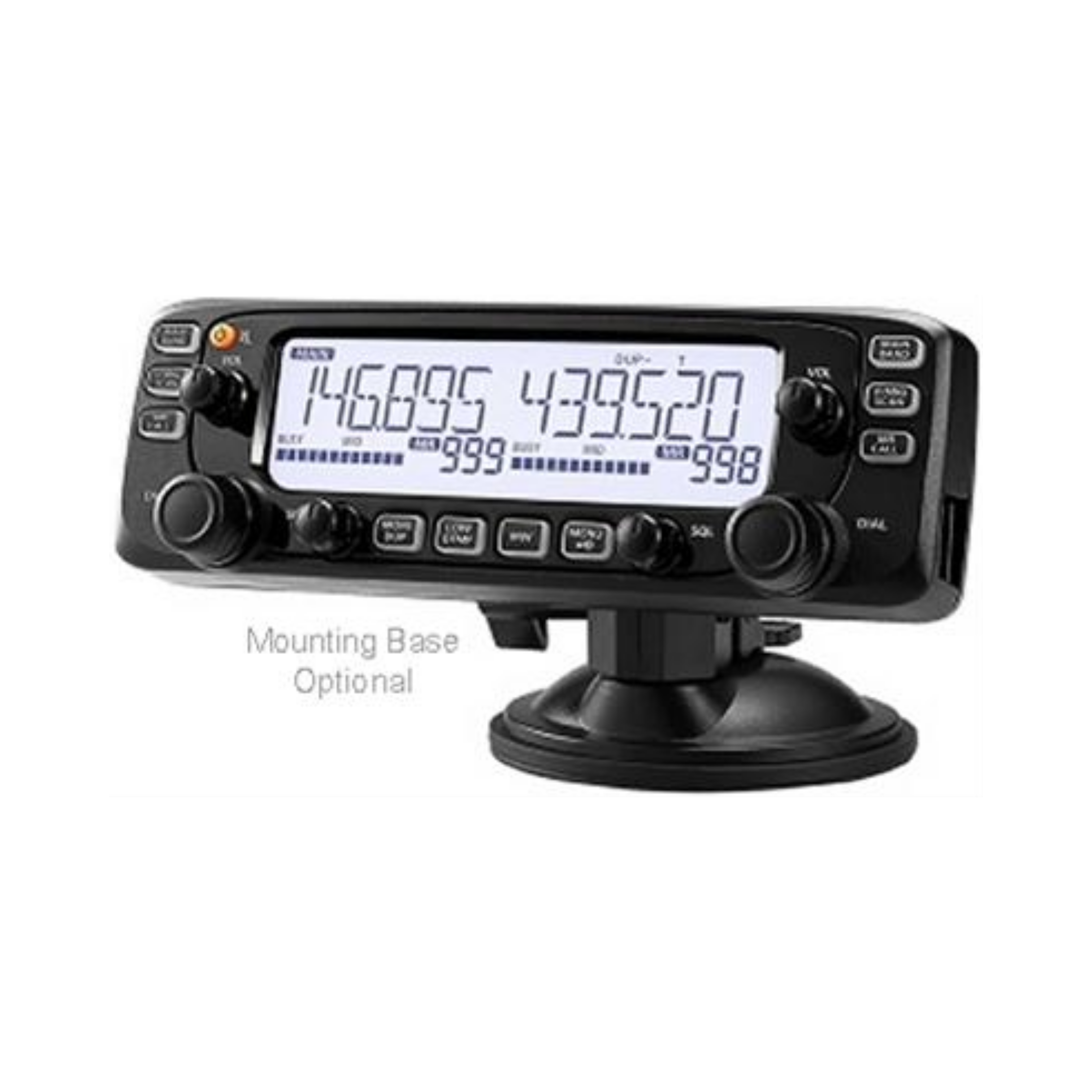

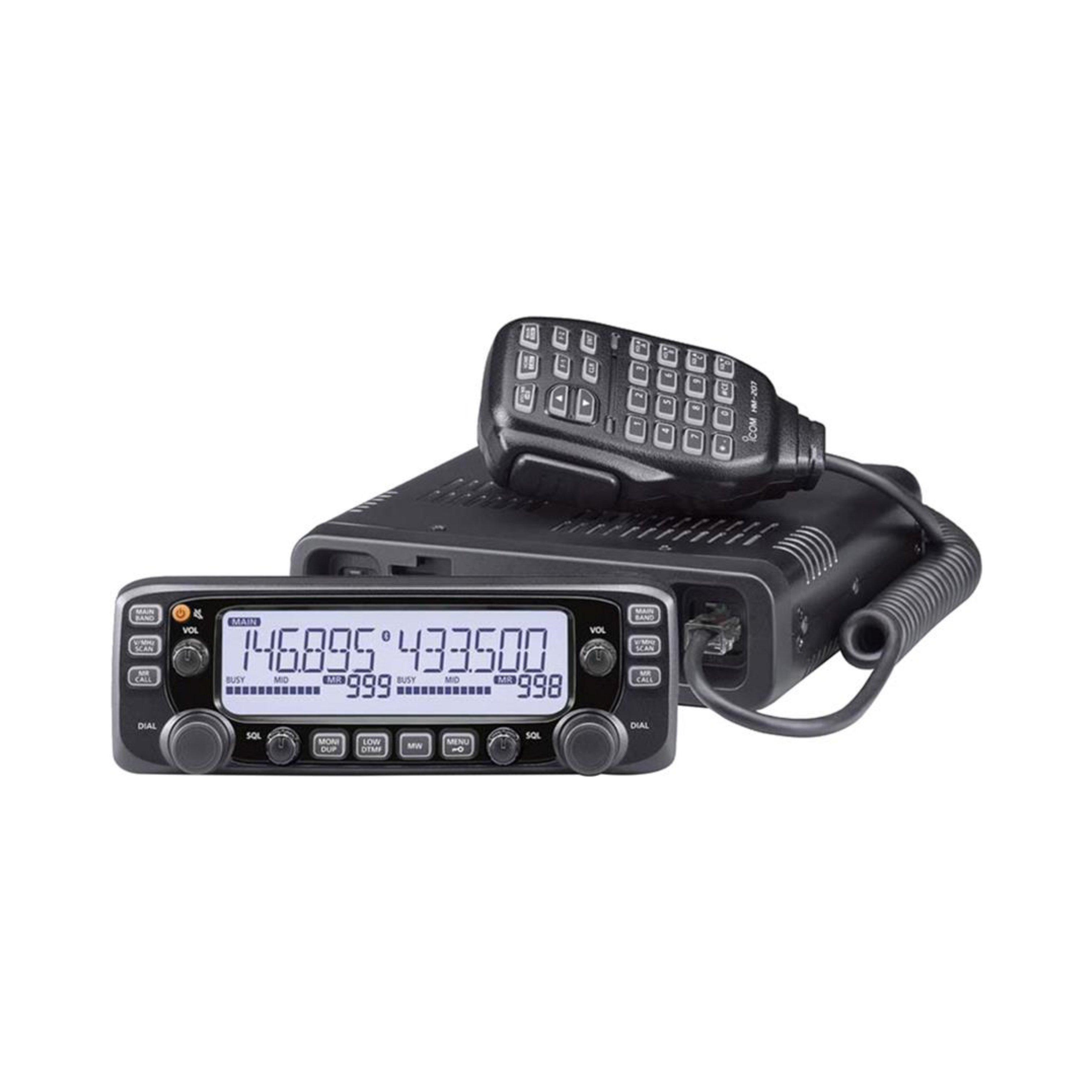

ICOM IC-2730A VHF/UHF FM Transceiver
Rs. 33,500.00
(Inclusive of GST)
ICOM IC-2730A VHF/UHF FM Transceiver
ICOM IC-2730A VHF/UHF FM Transceiver
ICOM IC-2730A VHF/UHF FM Transceiver
The ICOM IC-2730A is a high-performance dual-band VHF/UHF FM mobile transceiver designed for amateur radio operators who require simultaneous dual-band monitoring, powerful transmit performance, and flexible installation options. Featuring independent VHF and UHF receivers, true dual-watch capability, a detachable control head, and intuitive operation, the IC-2730A is ideal for mobile, base station, emergency communication, and repeater applications.
Key Features
- Dual-band operation covering 2-meter and 70-centimeter amateur bands
- True simultaneous VHF and UHF reception with independent receivers
- 50 Watt transmit output on both VHF and UHF bands
- Selectable power levels for flexible mobile and base station operation
- Large dual-frequency display with independent band information
- Full dual-watch capability for monitoring two frequencies simultaneously
- VHF/VHF, UHF/UHF, and VHF/UHF receive combinations supported
- Detachable front panel for flexible vehicle installations
- Optional remote mounting kits available for custom installations
- 1052 total memory channels including regular, scan edge, call, and repeater memories
- Programmable alphanumeric memory channel naming
- Built-in CTCSS encoder and decoder
- Built-in DTCS encoder and decoder
- Tone scan function for repeater access configuration
- Automatic repeater function support
- Independent volume, squelch, and tuning controls for each receiver
- High-speed memory scanning and programmable scan functions
- 50 memory banks for organized channel management
- Integrated duplex operation support
- Weather alert functionality (version dependent)
- Wide and narrow FM operation support
- Excellent receive sensitivity across amateur VHF and UHF bands
- 4.5 Watt high-output internal speaker audio
- PC programming and cloning support
- Microphone keypad frequency entry and memory control functions
- Compatible with optional Bluetooth® operation accessories
- Compact mobile chassis with efficient cooling system
- Ideal for repeater networks, mobile communications, emergency response, and dual-band amateur radio operation
Typical Uses
- Dual-band VHF/UHF mobile communications
- Amateur radio repeater operation
- Emergency and disaster communication networks
- ARES and public service events
- Cross-band monitoring applications
- Fixed-station VHF/UHF operation
- Daily amateur radio communication and travel use
In the Box
- ICOM IC-2730A Transceiver
- HM-207 Dual-Band Hand Microphone
- DC Power Cable
- Control Head Separation Cable
- Mobile Mounting Bracket
- Microphone Hanger
- User Documentation
| Brand | ICOM |
| Model Number | IC-2730A |
| Product Type | Dual-Band VHF/UHF FM Mobile Transceiver |
| Frequency Coverage TX VHF | 144-148 MHz |
| Frequency Coverage TX UHF | 430-450 MHz |
| Frequency Coverage RX VHF | 118-174 MHz |
| Frequency Coverage RX UHF | 375-550 MHz |
| Operating Mode | FM |
| Dual Receive | True Simultaneous Dual Receive |
| Receiver Configuration | Independent Dual Receivers |
| RF Output Power VHF | 50W/15W/5W |
| RF Output Power UHF | 50W/15W/5W |
| Memory Channels | 1052 |
| Memory Banks | 50 |
| Display | Dual Frequency LCD |
| Control Head | Detachable |
| CTCSS Encoder | Built-In |
| CTCSS Decoder | Built-In |
| DTCS Encoder | Built-In |
| DTCS Decoder | Built-In |
| Tone Scan | Supported |
| Automatic Repeater Function | Supported |
| Wide/Narrow FM | Supported |
| Audio Output Power | 4.5W |
| Frequency Stability | ±2.5ppm |
| Antenna Connector | SO-239 |
| Antenna Impedance | 50 Ohm |
| Supply Voltage | 13.8VDC ±15% |
| Current Consumption RX Standby | 0.8A |
| Current Consumption RX Audio | 1.5A |
| Current Consumption TX High Power | 13A |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 150 x 40 x 151 mm |
| Weight | Approximately 1.2kg |
| Microphone | HM-207 Included |
| Programming Support | PC Programmable |
| Cloning Function | Supported |
