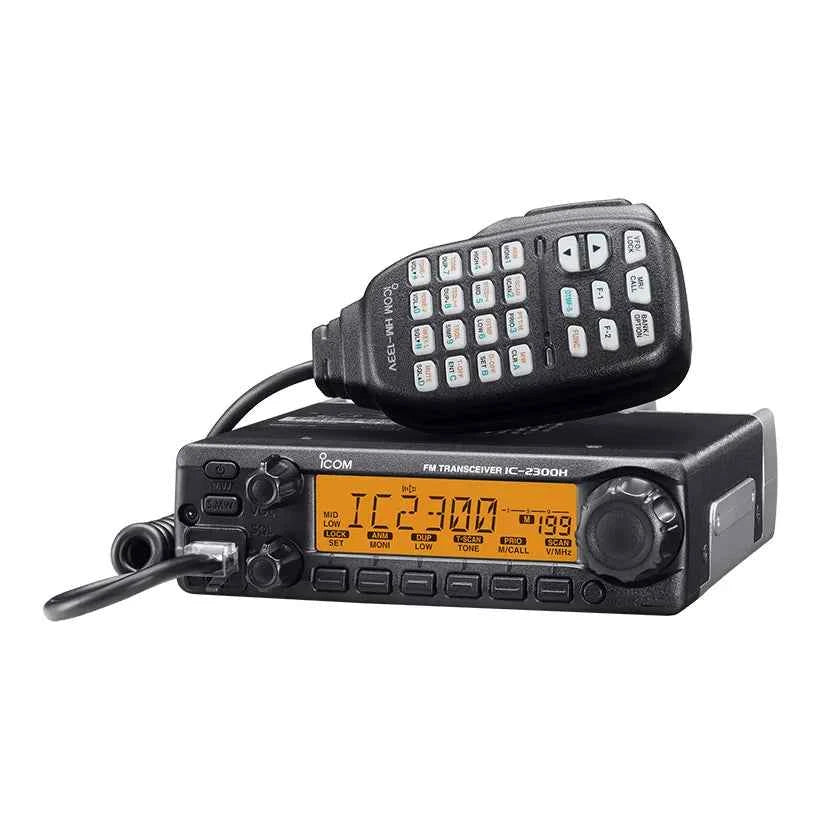

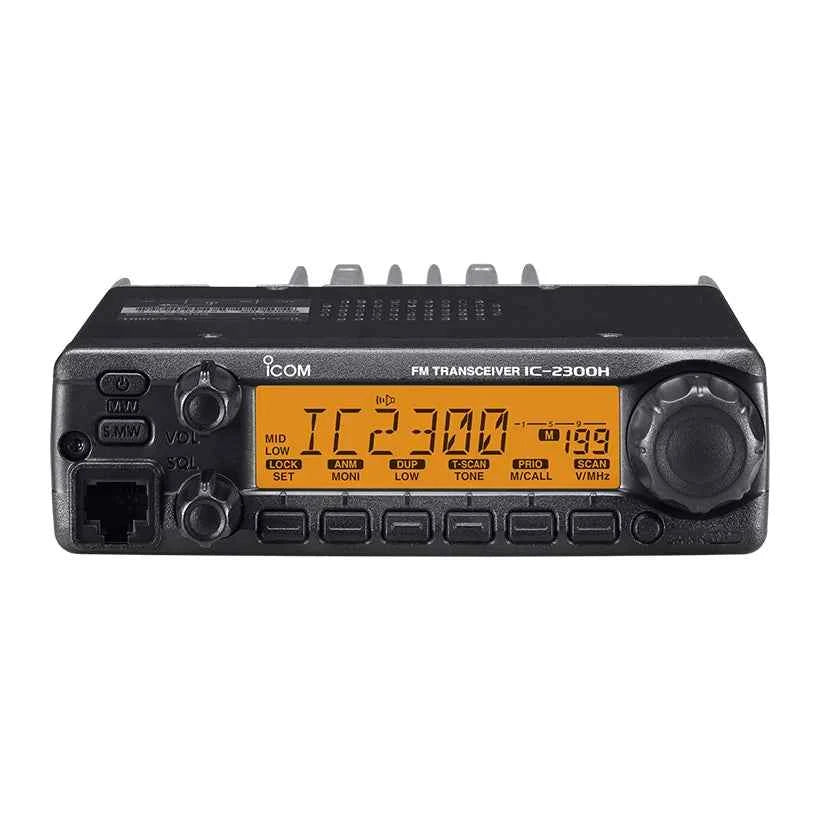

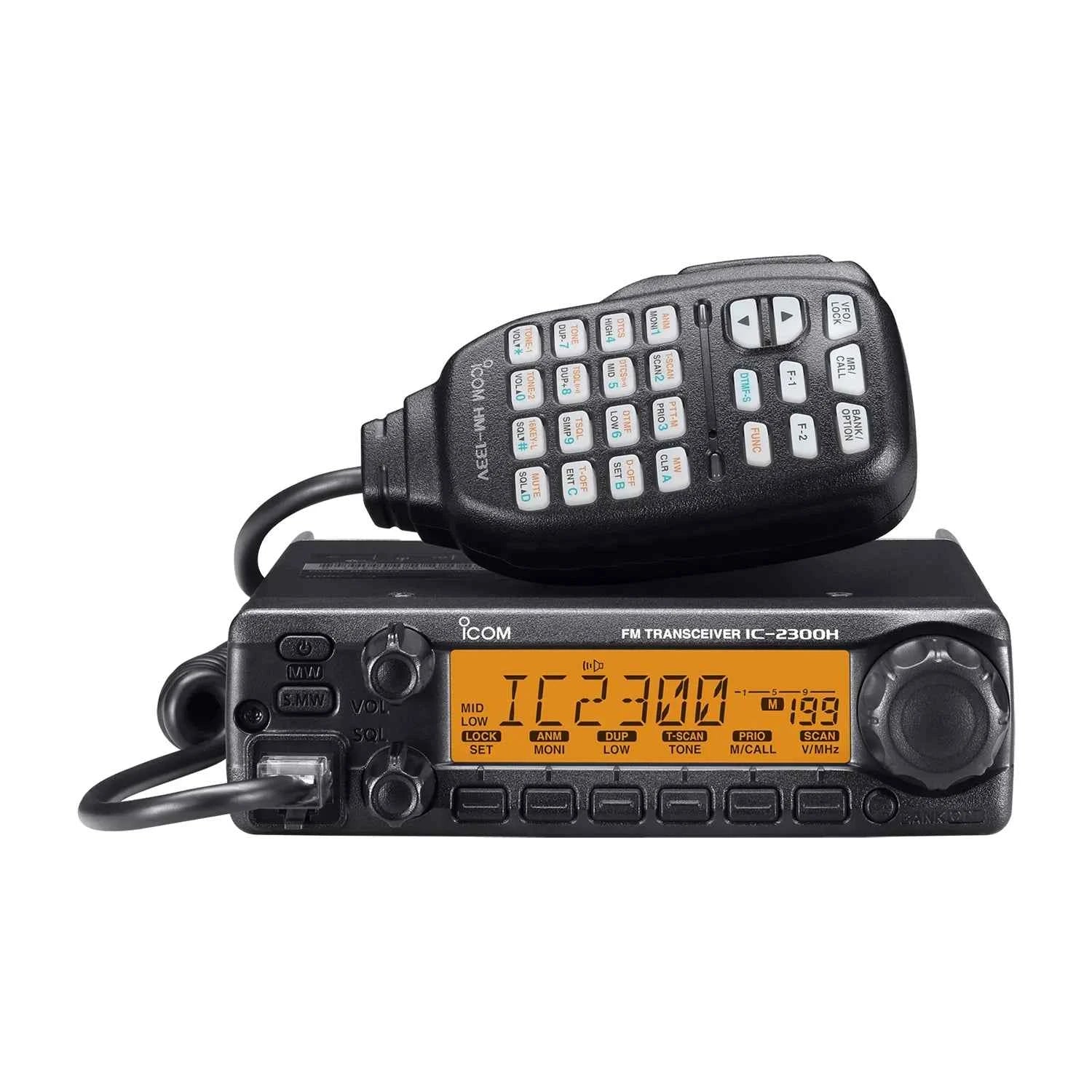

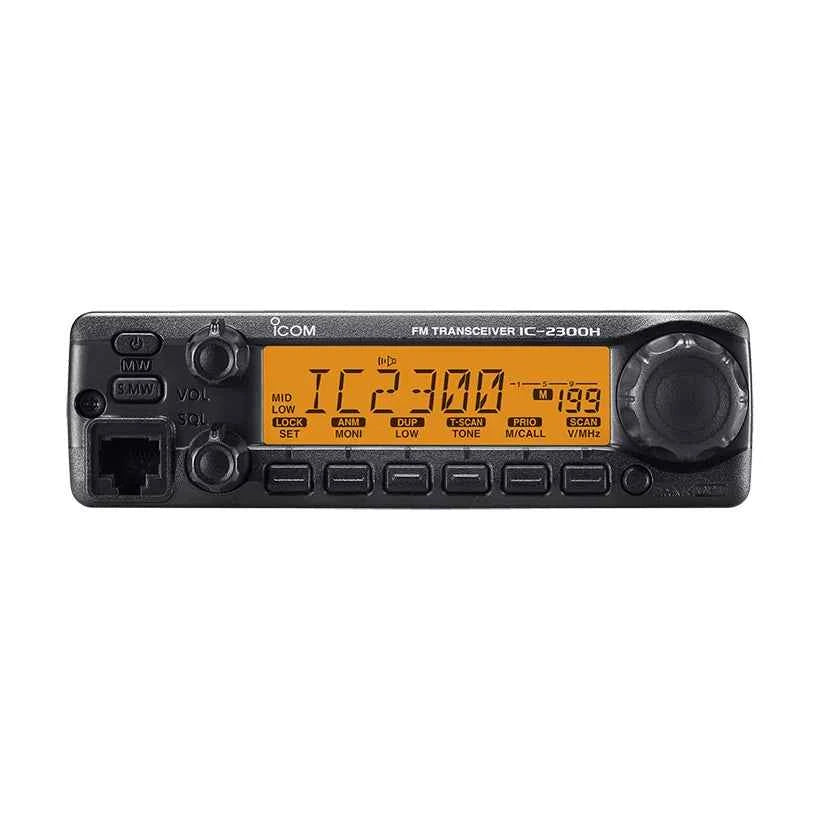

ICOM IC-2300H 2M VHF FM Transceiver
Rs. 17,500.00
(Inclusive of GST)
ICOM IC-2300H 2M VHF FM Transceiver
The ICOM IC-2300H is a rugged 2-meter VHF FM mobile transceiver engineered for reliable everyday communication in mobile, base station, and emergency service applications. Delivering up to 65 watts of output power, a durable aluminum die-cast chassis, built-in CTCSS/DTCS functionality, and MIL-STD tested construction, the IC-2300H provides dependable performance in demanding operating environments.
Key Features
- 144 MHz FM amateur band transceiver
- High-power 65 Watt RF output for extended communication range
- Selectable transmit power levels of 65W, 25W, 10W, and 5W
- Heavy-duty aluminum die-cast chassis for efficient heat dissipation
- Stable RF output during extended duty-cycle operation
- MIL-STD 810G tested for shock, vibration, and temperature resistance
- 207 memory channels including 200 regular memories, 6 scan edges, and 1 call channel
- 6-character programmable memory channel names
- Built-in CTCSS encoder and decoder
- Built-in DTCS encoder and decoder functionality
- Tone scan feature for repeater access identification
- Pocket Beep function with audible and visual call alerts
- DMS (Dynamic Memory Scan) system with 10 memory banks
- Multiple scan modes for efficient channel monitoring
- Large easy-to-read LCD display optimized for mobile operation
- Programmable front-panel function keys
- Selectable wide and narrow FM channel settings
- 4.5 Watt high-output internal audio amplifier
- Power supply voltage display function
- DTMF autodial capability
- S-meter squelch operation
- Squelch attenuator for strong-signal environments
- Selectable LCD backlight colors including amber, yellow, and green
- Automatic power-off function
- Repeater lockout and time-out timer functions
- PC cloning and radio-to-radio cloning capability
- Compatible with optional HM-209 active noise-canceling microphone
- Compact reduced-depth chassis for flexible vehicle installation
- Ideal for repeater operation, emergency communications, mobile installations, and VHF FM base stations
Typical Uses
- 2-meter FM repeater operation
- Mobile amateur radio installations
- Emergency and disaster communications
- Public service and event communications
- Fixed-station VHF operation
- ARES and community emergency networks
- Daily local and regional amateur radio communication
In the Box
- ICOM IC-2300H Transceiver
- HM-133V Hand Microphone
- DC Power Cable
- Mounting Bracket
- Microphone Hanger
- User Documentation
| Brand | ICOM |
| Model Number | IC-2300H |
| Product Type | 2 Meter VHF FM Mobile Transceiver |
| Frequency Coverage TX | 144-148 MHz |
| Frequency Coverage RX | 136-174 MHz |
| Operating Mode | FM |
| Emission Type | F2D/F3E |
| RF Output Power | 65W/25W/10W/5W |
| Memory Channels | 207 |
| Memory Banks | 10 |
| CTCSS Encoder | Built-In |
| CTCSS Decoder | Built-In |
| DTCS Encoder | Built-In |
| DTCS Decoder | Built-In |
| Tone Scan | Supported |
| DMS Scan | System Supported |
| Display | LCD |
| Audio Output Power | 4.5W Typical |
| Frequency Stability | ±3ppm |
| Receiver Sensitivity | Less Than 0.18µV |
| Spurious Response Rejection | More Than 60dB |
| Antenna Connector | SO-239 |
| Antenna Impedance | 50 Ohm |
| Power Supply | 13.8VDC ±15% |
| Current Consumption RX Standby | 0.4A |
| Current Consumption RX Audio | 1.5A |
| Current Consumption TX 65W | 11A |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 140 x 40 x 162 mm |
| Weight | 1.1kg |
| MIL Standard | MIL-STD 810G |
| Microphone | HM-133V Included |
