SKU: RF-AH-705

ICOM AH-705 Compact Antenna Tuner

Regular price Rs. 36,750.00 (Including GST)
Sale price Rs. 36,750.00 (Including GST) Regular price
Unit price
Brand: ICOM
Estimated Domestic Ship Date: 5 days lead time
Estimated International Ship Date: 5 days lead time
Estimated Domestic Delivery: Standard: 5-7 Days | Express: 1-4 Days
Estimated International Delivery: Standard: 10-20 Days
Ask a question

Ask a Question

* Required fields

 Size guide

Share this product:

ICOM AH-705 Compact Antenna Tuner - RFCharge

ICOM AH-705 Compact Antenna Tuner

Regular price Rs. 36,750.00 (Including GST)
Sale price Rs. 36,750.00 (Including GST) Regular price
Unit price

Earn 0 points on this purchase.

Learn more
Product description
What's in the Box
Technical Specifications
Overview
Warranty
Documentation

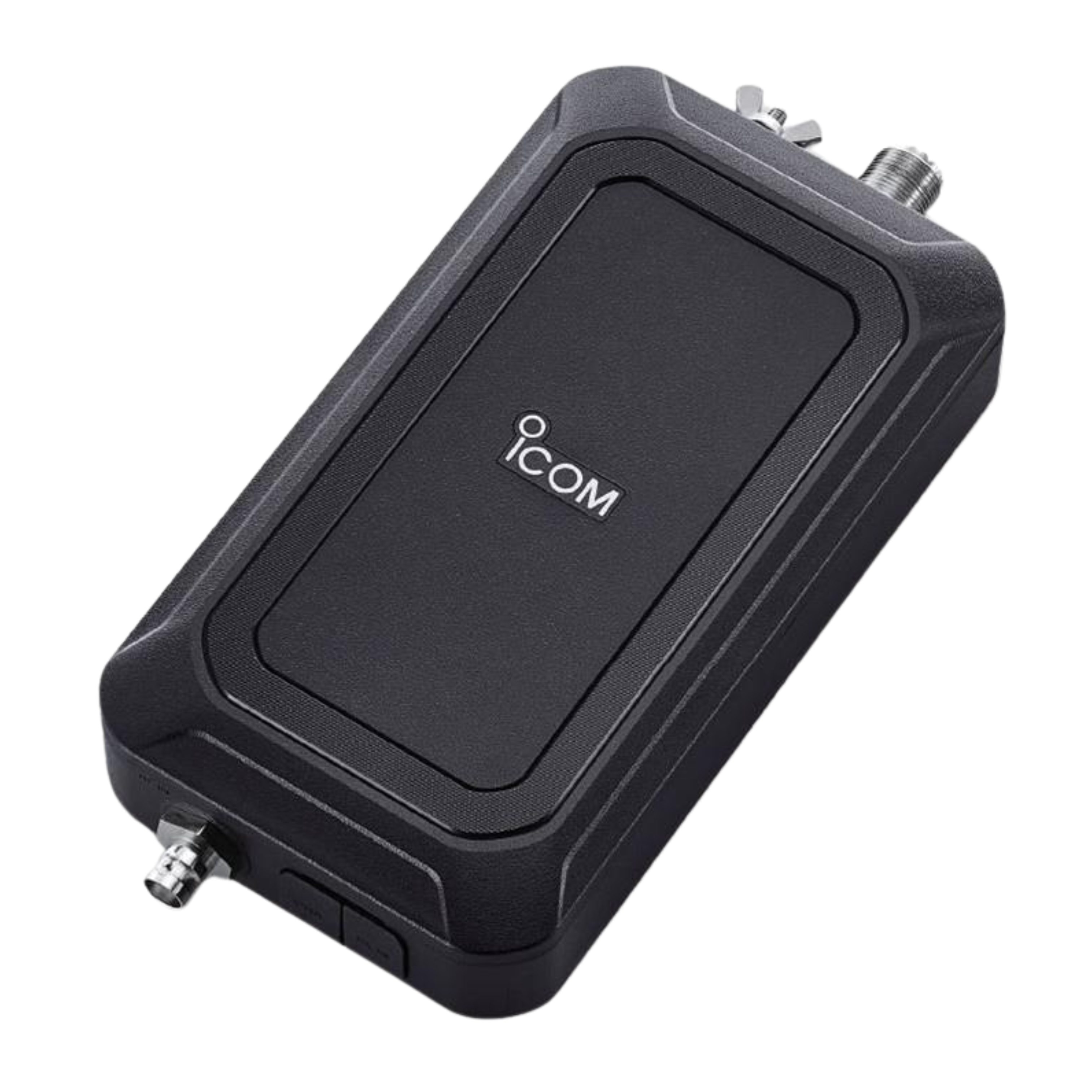

The ICOM AH-705 is a compact microprocessor-controlled automatic antenna tuner engineered specifically for portable QRP operation with the IC-705. Designed for efficient impedance matching across the HF and 6m amateur bands, the AH-705 enables stable transmission through non-resonant antenna systems such as long-wire antennas, dipoles, verticals, and portable whips—without requiring manual tuning.

Supporting automatic matching across 1.8 MHz to 54 MHz, the AH-705 utilizes a relay-switched matching network to optimize SWR performance—minimizing reflected power and improving radiation efficiency during portable HF deployment.

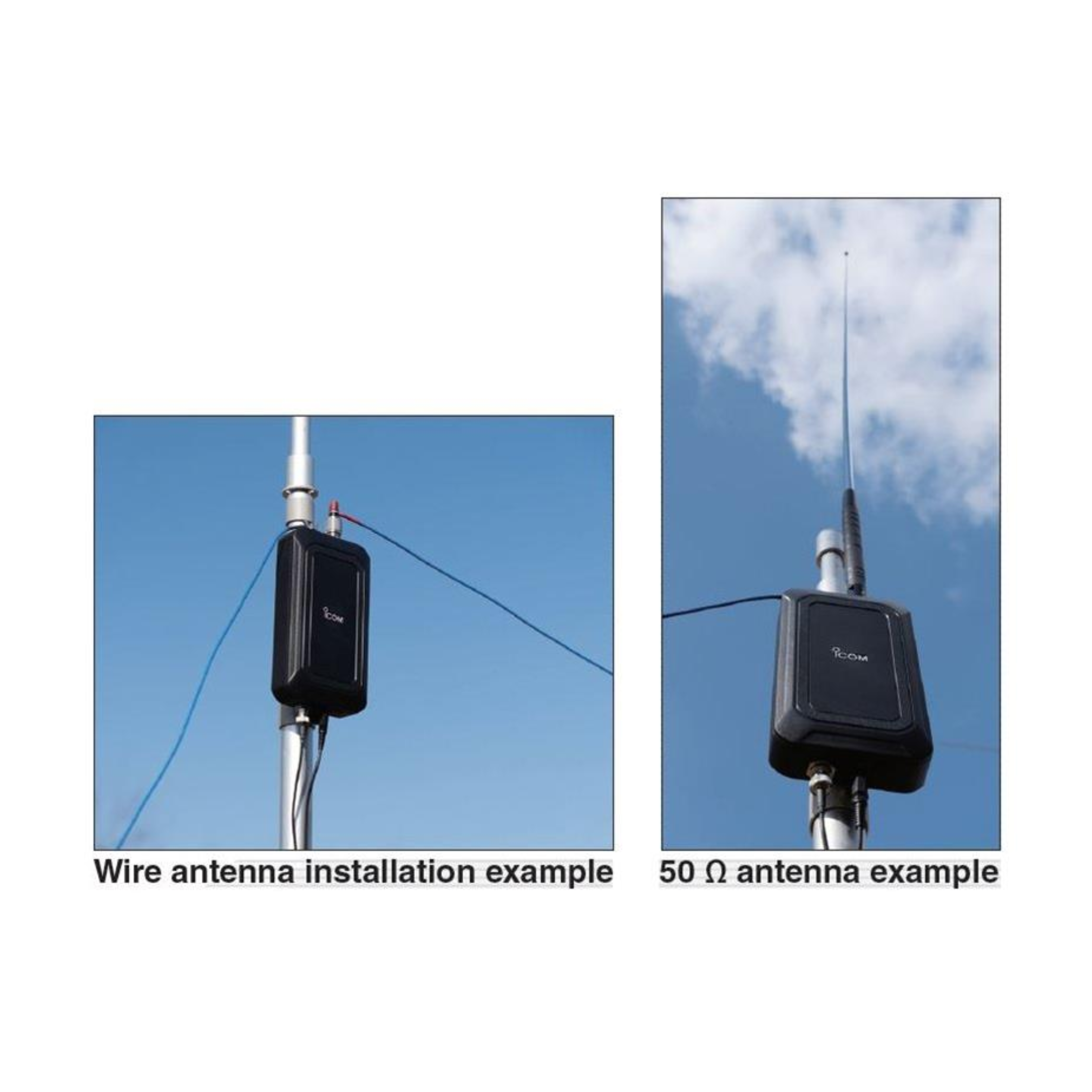

With an IP54-rated weather-resistant enclosure, the tuner can be installed close to the antenna feedpoint—enhancing matching efficiency in field environments such as:

  • POTA / SOTA Activations

  • Emergency Communication Setups

  • Portable Long-Wire Deployments

  • Mobile HF Stations

The AH-705 supports both 50 Ω coaxial antennas and end-fed wire antennas via its supplied terminal connector—making it suitable for rapid portable HF deployment.

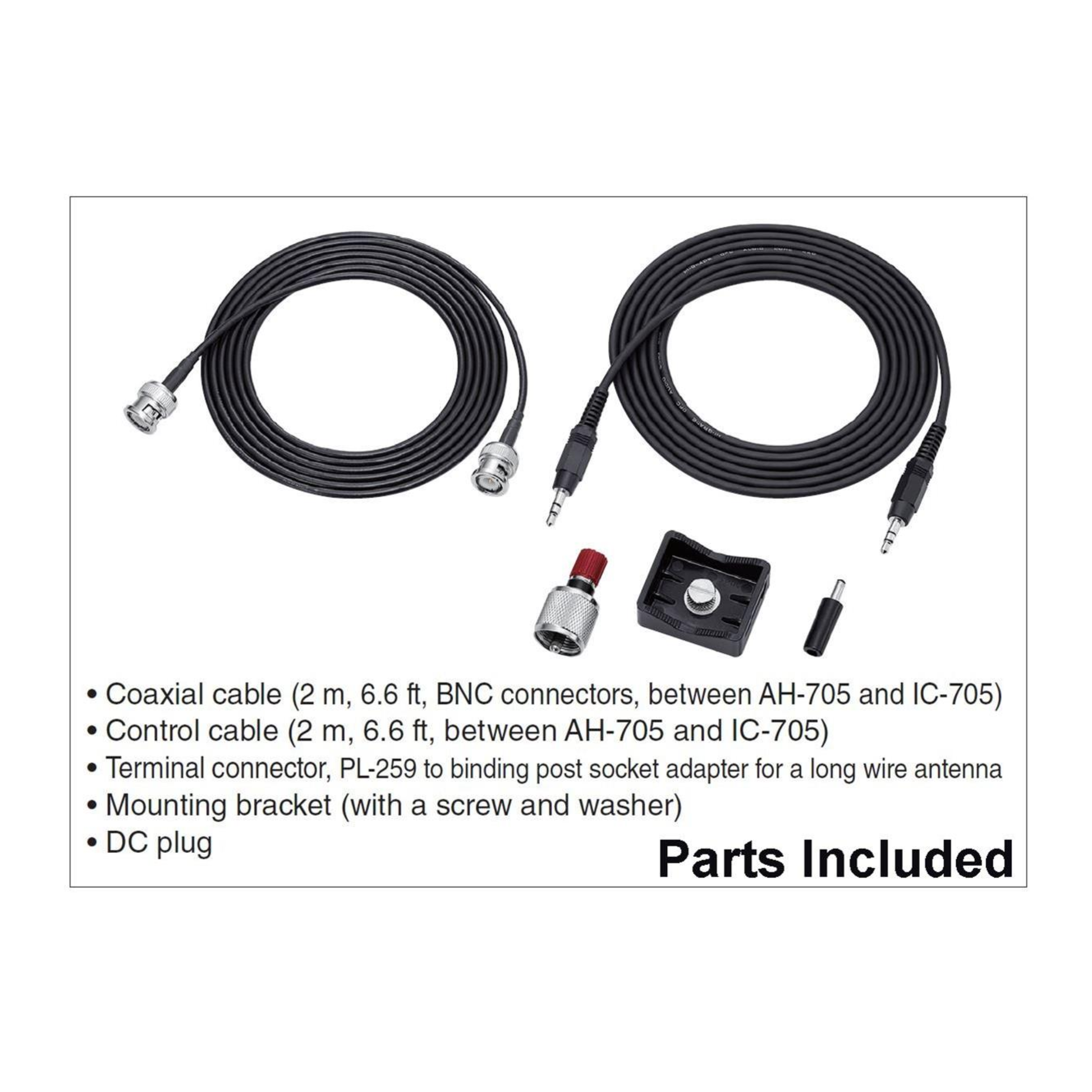

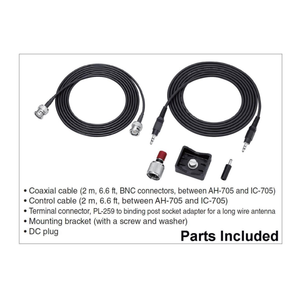

✔ AH-705 Automatic Antenna Tuner Unit
✔ 2m Coaxial Cable (BNC)
✔ 2m Control Cable
✔ PL-259 to Binding Post Terminal Adapter
✔ Mounting Bracket Kit
✔ DC Power Plug

Brand: ICOM
Model Number: AH-705
Product Type: Automatic External Antenna Tuner
RFCharge Category: Portable HF Antenna Tuners
Frequency Coverage: 1.8 MHz – 54 MHz
Maximum Input Power: 10W
Input Impedance: 50 Ω
Tuning Accuracy: ≤ 2:1 VSWR
Tuning Time: Approx. 2–3 Seconds (Max 15s)
Tuning Memories: 45 Channels
Power Supply: 3V DC (2×AA) / 13.8V DC External
Current Consumption: <300 mA (Tuning) / <1 mA (Standby)
IP Rating: IP54
Dimensions: 190 × 105 × 40 mm
Weight: Approx. 450 g (Excl. Batteries)

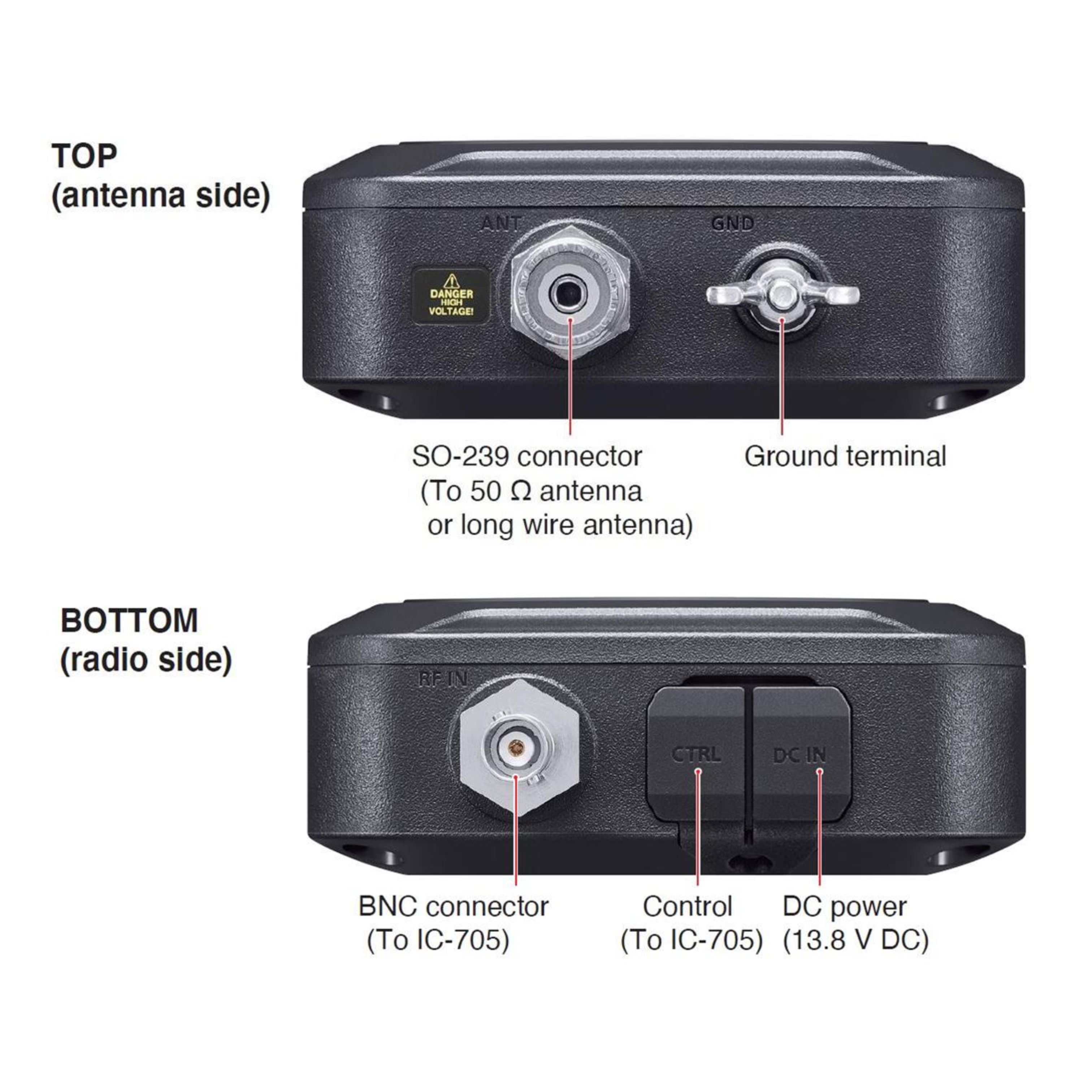

Connector Interface: SO-239 / Binding Post Adapter

The AH-705 Automatic Tuner provides:

  • HF Band Matching (160m – 10m)
  • 6m Band Support (50 MHz)
  • SWR Tuning Accuracy typically below 2:1
  • 45 Memory Channels for Fast Retuning

Automatic tuning is initiated directly through the IC-705 control interface—eliminating the need for manual LC tuning networks during field operation.

12 Months of Brand Warranty
