ICOM IC-7760 HF/50MHz All Mode Transceiver for Superior Communication and Performance
ICOM IC-7760 HF/50MHz All Mode Transceiver for Superior Communication and Performance

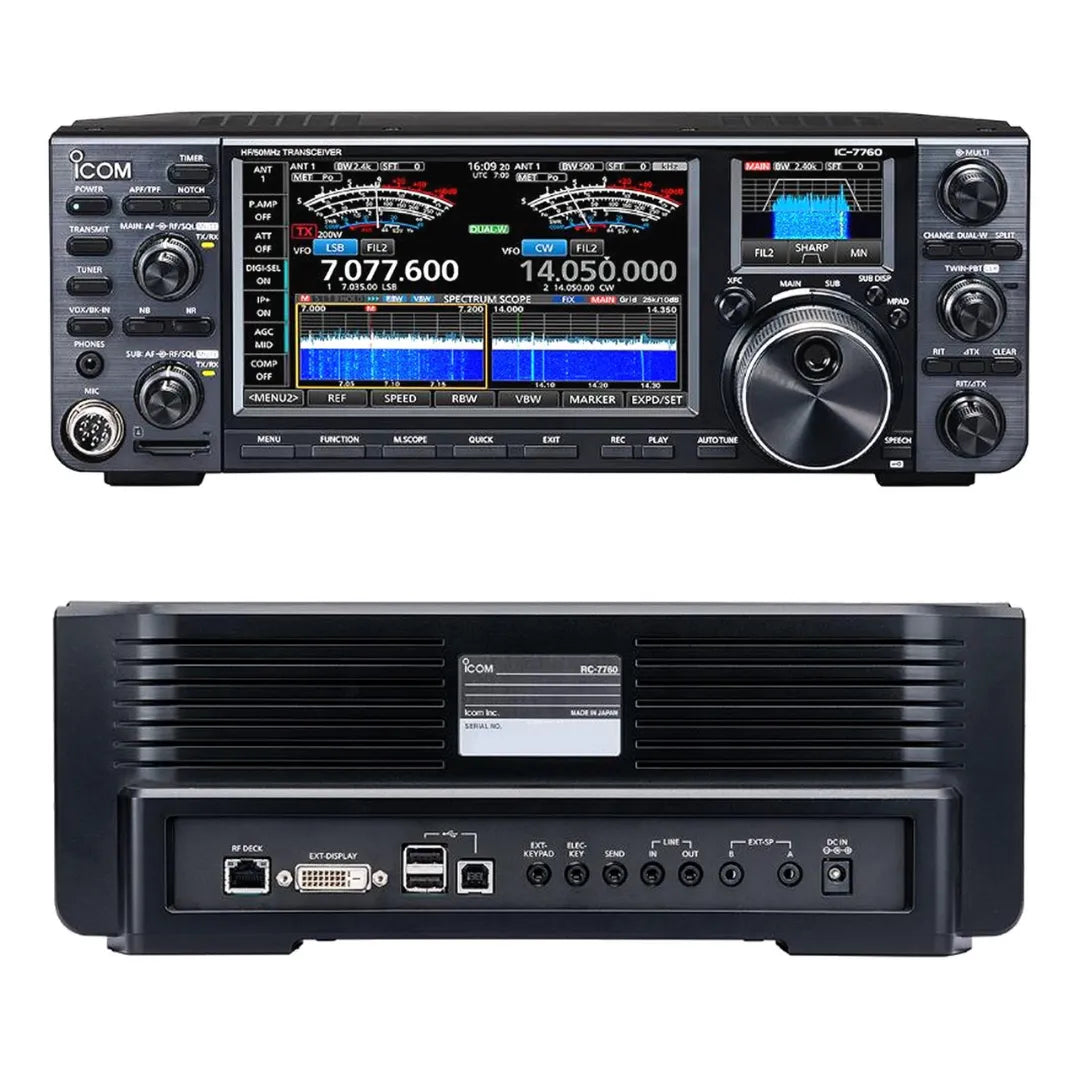

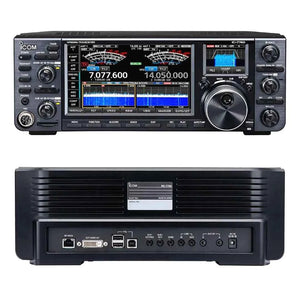

ICOM IC-7760 HF/50MHz All Mode Base Transceiver
The ICOM IC-7760 is a flagship-class HF and 50 MHz SDR transceiver designed for high-performance DXing, contesting, and advanced amateur radio operation. Featuring a unique separated control head and RF deck architecture, dual independent receivers, 200 Watt output power, RF direct sampling technology, and integrated network-based remote operation, the IC-7760 delivers exceptional receiver performance, installation flexibility, and clean signal transmission for demanding stations.
Key Features
- HF and 50 MHz all-mode amateur radio transceiver
- 200 Watt transmitter output for high-performance operation
- Advanced RF direct sampling SDR receiver architecture

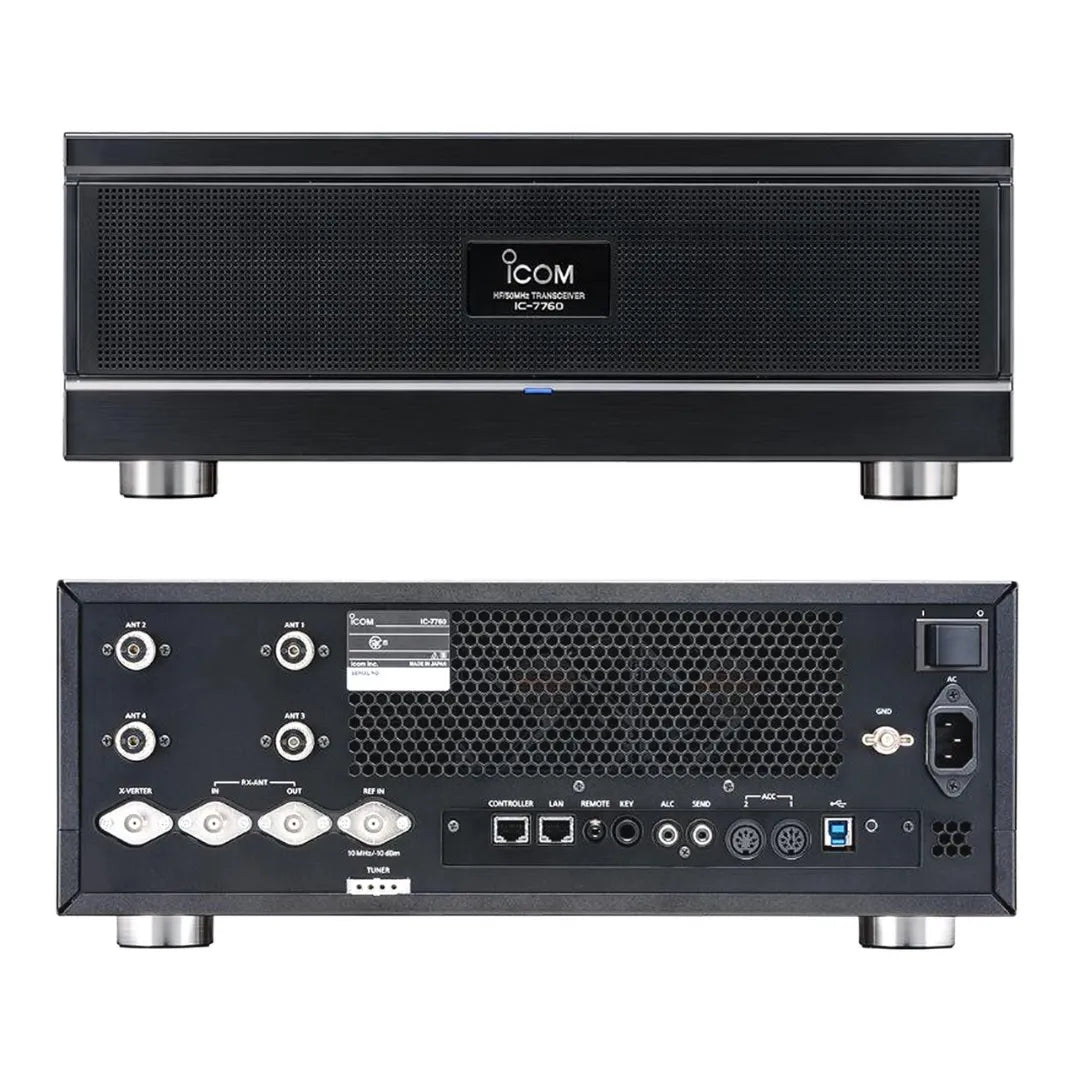

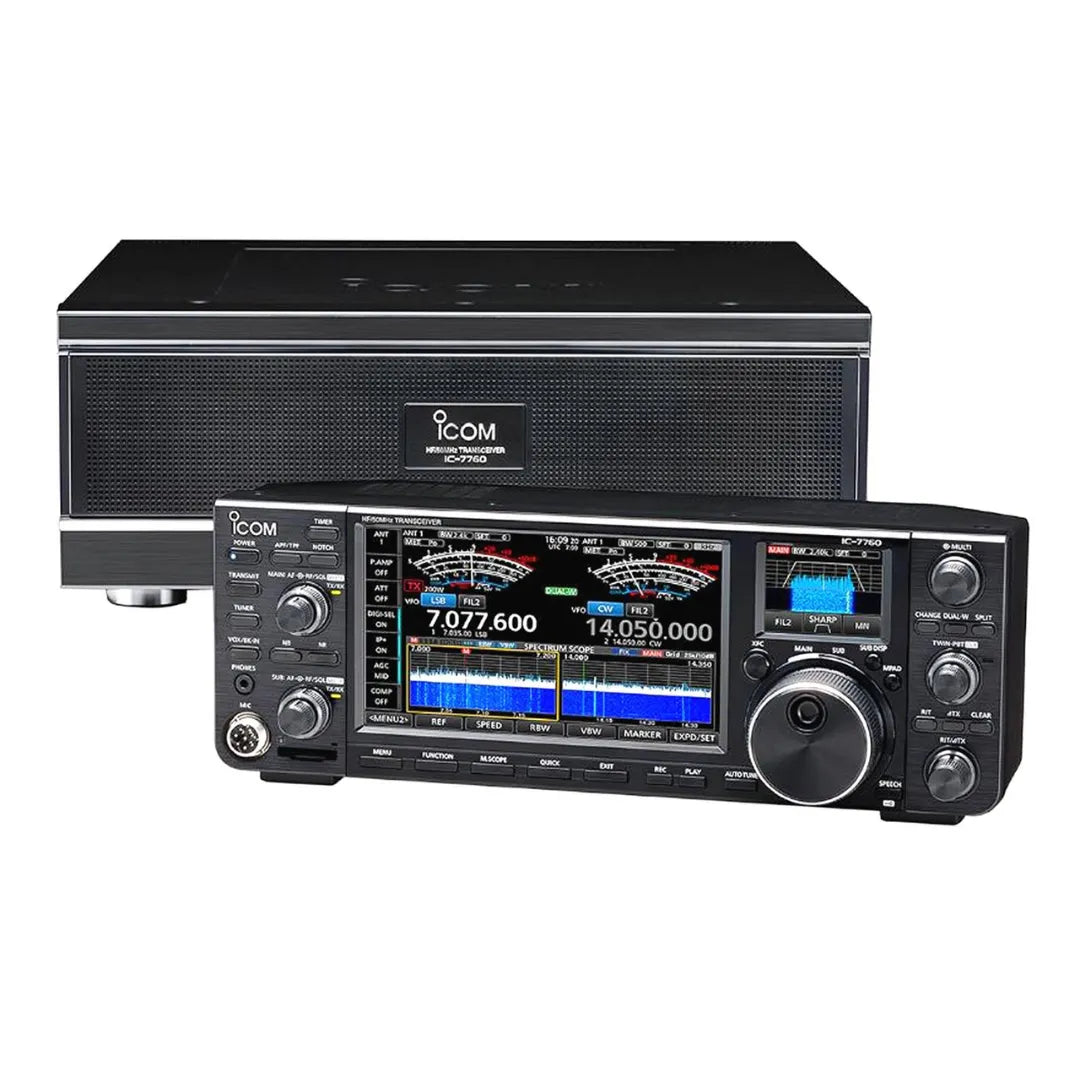

- Separate control head and RF deck design for flexible station installation
- Control head and RF deck connection via supplied LAN cable
- Supports remote installation of RF deck up to 100 meters using Cat5e or higher cable
- Built-in home network remote operation without requiring a PC
- Internet-based remote operation capability through network connectivity
- Dual completely independent receivers from antenna to audio output
- Simultaneous dual-band and dual-mode reception
- Dual real-time spectrum scopes for MAIN and SUB receivers
- High-performance FPGA-based digital signal processing
- DIGI-SEL digital preselector for enhanced strong-signal handling
- Preamp and DIGI-SEL architecture optimized for improved receiver sensitivity
- 15-band RF filtering system with dedicated amateur-band bandpass filters
- Enhanced out-of-band signal rejection and A/D converter protection
- Digital Pre-Distortion (DPD) technology for cleaner transmitted signals

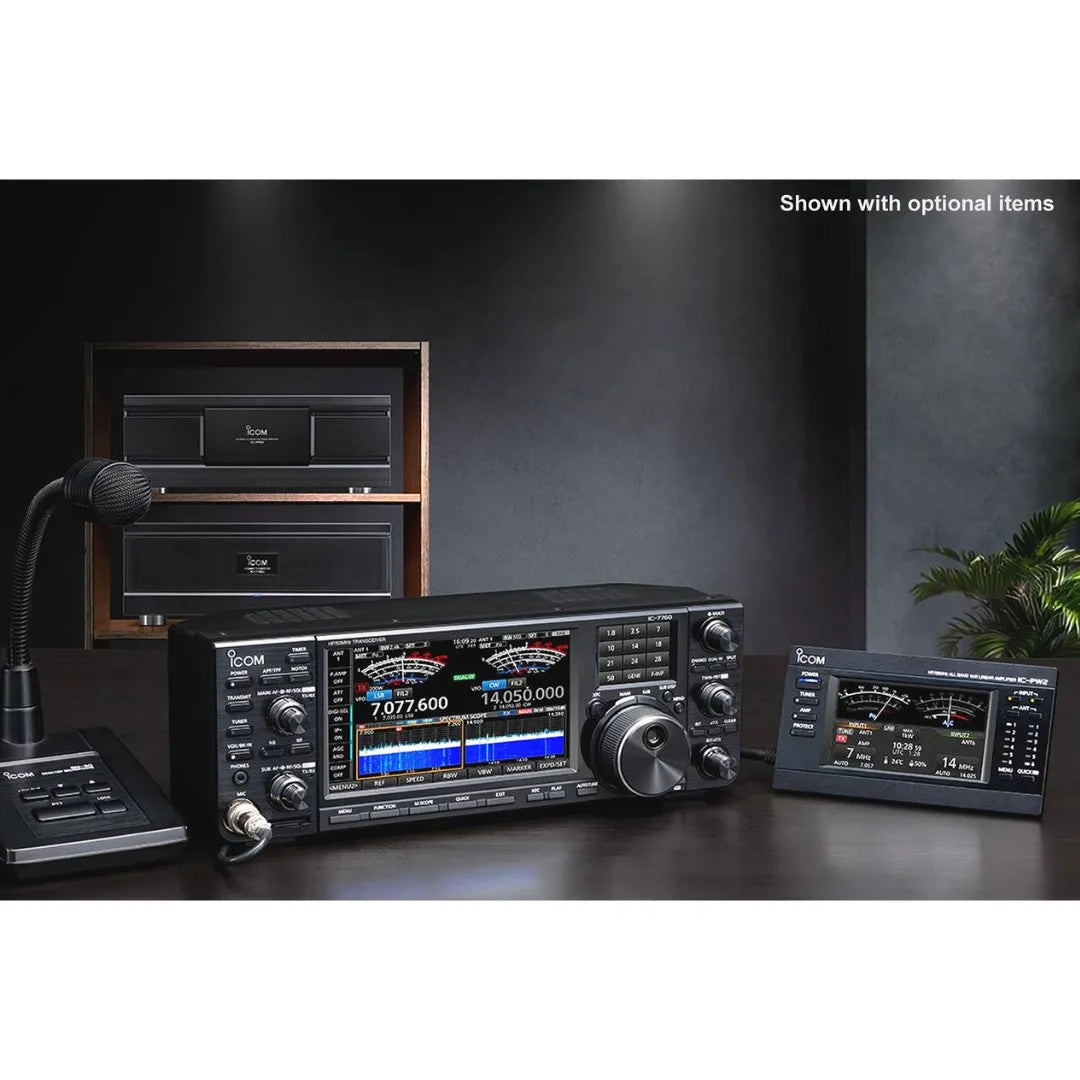

- Compatible with IC-PW2 amplifier DPD operation
- 450 W-class 65 V LDMOS-FET power amplifier stage
- Continuous full-duty-cycle operation capability including digital modes such as FT8
- Advanced cooling system with large heatsink and multi-fan thermal management
- Built-in mechanical relay automatic antenna tuner
- Fast antenna tuning with automatic memory recall
- Dual touchscreen display configuration
- 7-inch WVGA color touchscreen main display
- 2.4-inch color touchscreen sub-display
- Integrated RTTY, PSK31, and PSK63 decoding capability
- Audio scope for transmit and receive signal analysis
- USB connectivity for CAT control, audio, and digital mode integration
- I/Q signal output for advanced SDR applications and spectrum analysis
- SD card support for settings backup, recordings, and firmware updates
- Optimized for contest stations, DX operation, and advanced HF installations
Typical Uses
- Serious HF DX chasing and pileup operation
- Single and multi-operator contest stations
- FT8, RTTY, PSK31, and digital communications
- Remote station operation over LAN or Internet
- Weak-signal and low-band operation
- High-duty-cycle digital mode operation
- Premium amateur radio base station installations
In the Box
- ICOM IC-7760 Control Head
- ICOM IC-7760 RF Deck
- Control Connection Cable (3 m)
- Hand Microphone
- DC Power Cable
- Accessory Connectors
- User Documentation
| Brand | ICOM |
| Model Number | IC-7760 |
| Product Type | HF/50MHz SDR Base Transceiver |
| Frequency Coverage TX | HF Amateur Bands and 50 MHz |
| Operating Modes | SSB/CW/AM/FM/RTTY/PSK31/PSK63 |
| RF Output Power | 200 W |
| AM Output Power | 50 W |
| Receiver Architecture | RF Direct Sampling SDR |
| Receivers | Dual Independent Receivers |
| Display Main | 7 in WVGA Color Touchscreen |
| Display Sub | 2.4 in Color Touchscreen |
| Spectrum Scope | Dual Real-Time Spectrum Scope |
| Waterfall Display | Dual |
| Signal Processing | FPGA Based DSP |
| Automatic Antenna Tuner | Built-In Mechanical Relay Type |
| DIGI-SEL | Built-In Digital Preselector |
| Power Amplifier Device | 65 V LDMOS-FET |
| DPD Technology | Built-In |
| I/Q Output | USB Digital Output |
| USB Interface | Built-In |
| LAN Connectivity | Built-In Ethernet |
| Remote Operation | LAN and Internet Capable |
| Bandpass Filters | 15 Dedicated RF Filters |
| Memory Storage | SD Card |
| Audio Scope | Built-In |
| Frequency Stability | Less than ±0.5 ppm |
| Frequency Resolution | 1 Hz |
| Control Head Connection | Cable or LAN Network |
| Maximum RF Deck Separation | 100 m |
| Power Supply | 13.8 VDC |
| Cooling System | Multi-Fan Forced Air |

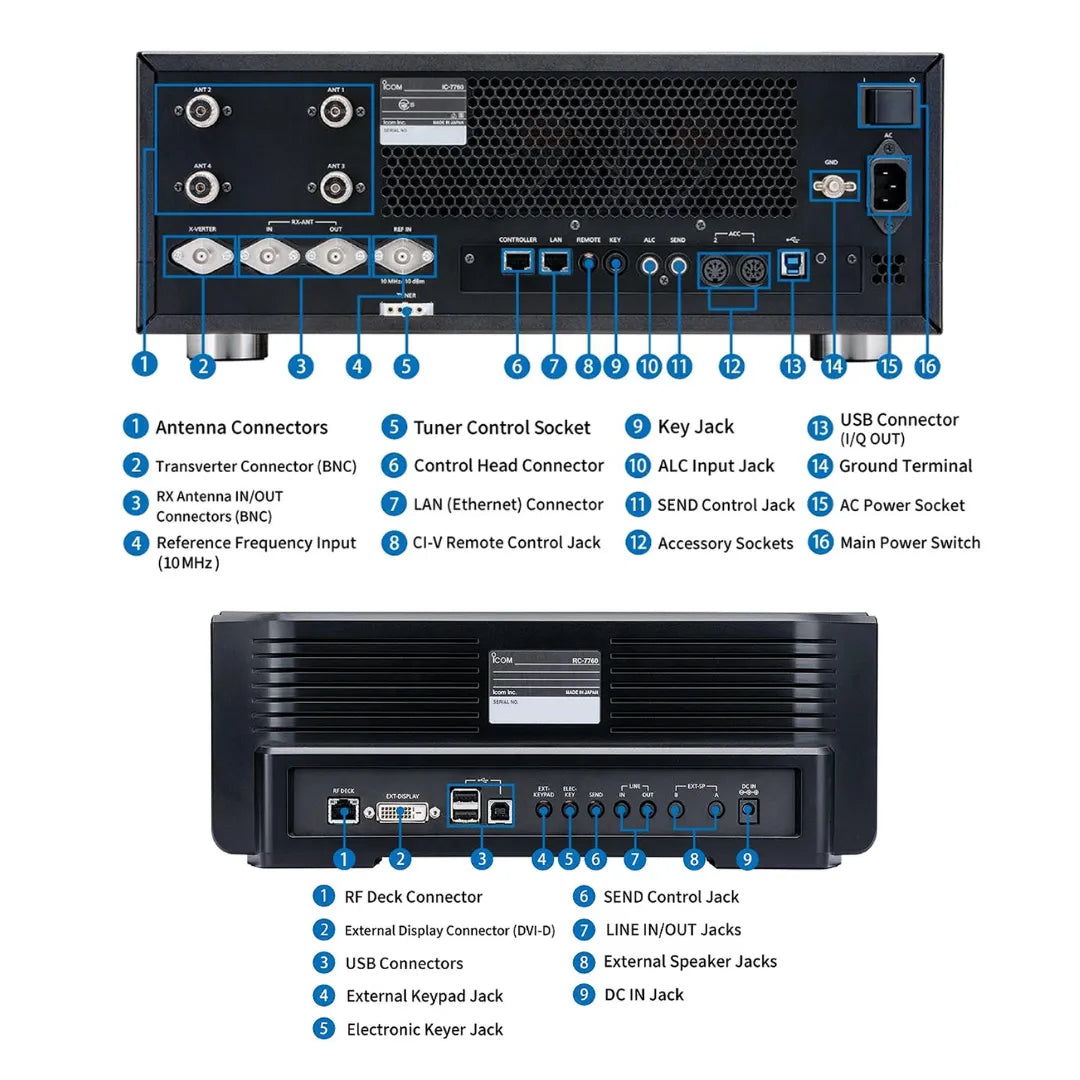

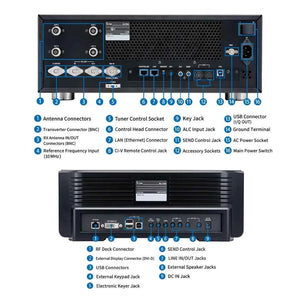

| Antenna Connectors | Dual Antenna Inputs |
| Duty Cycle | Continuous Full Power Operation |
| Microphone | Included |
