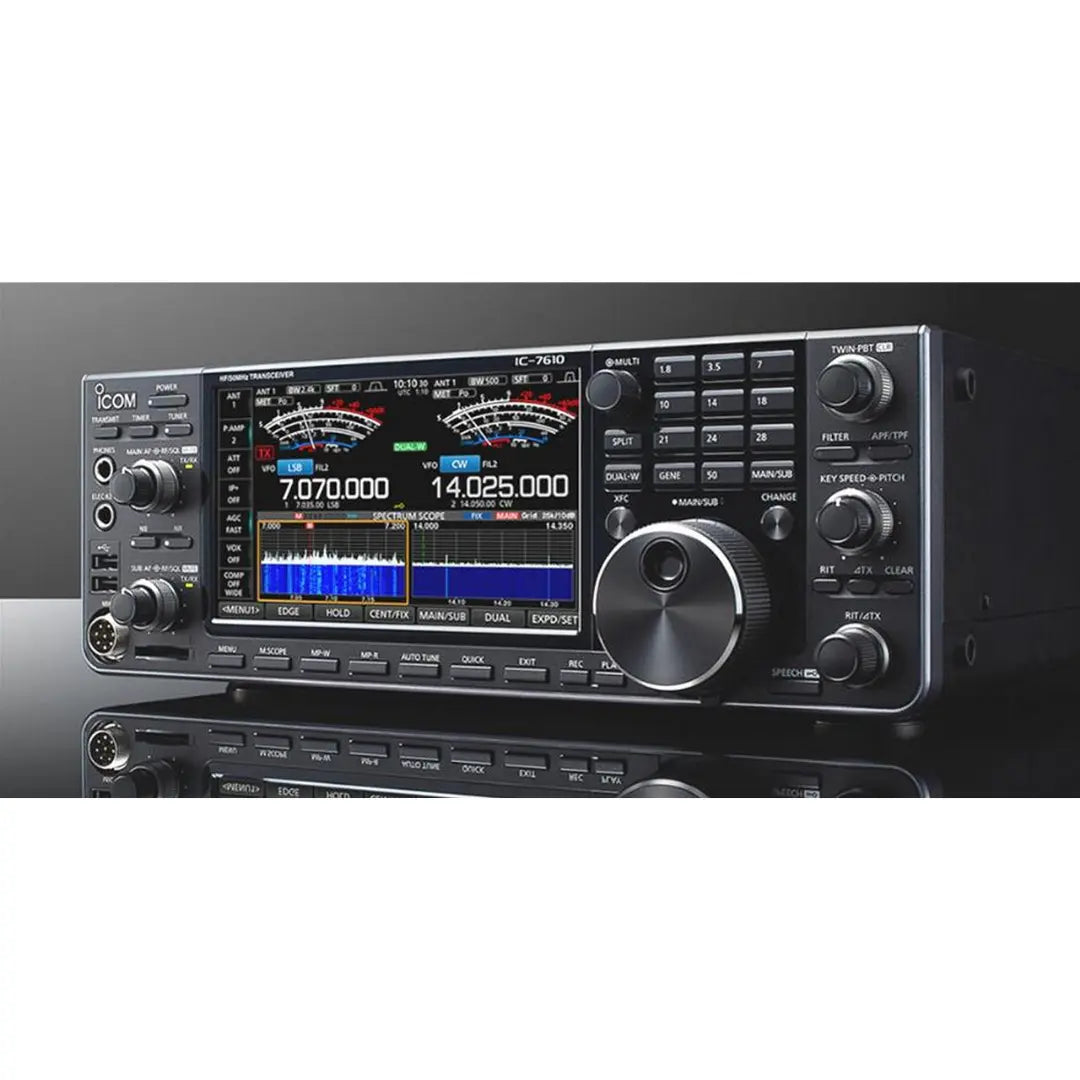

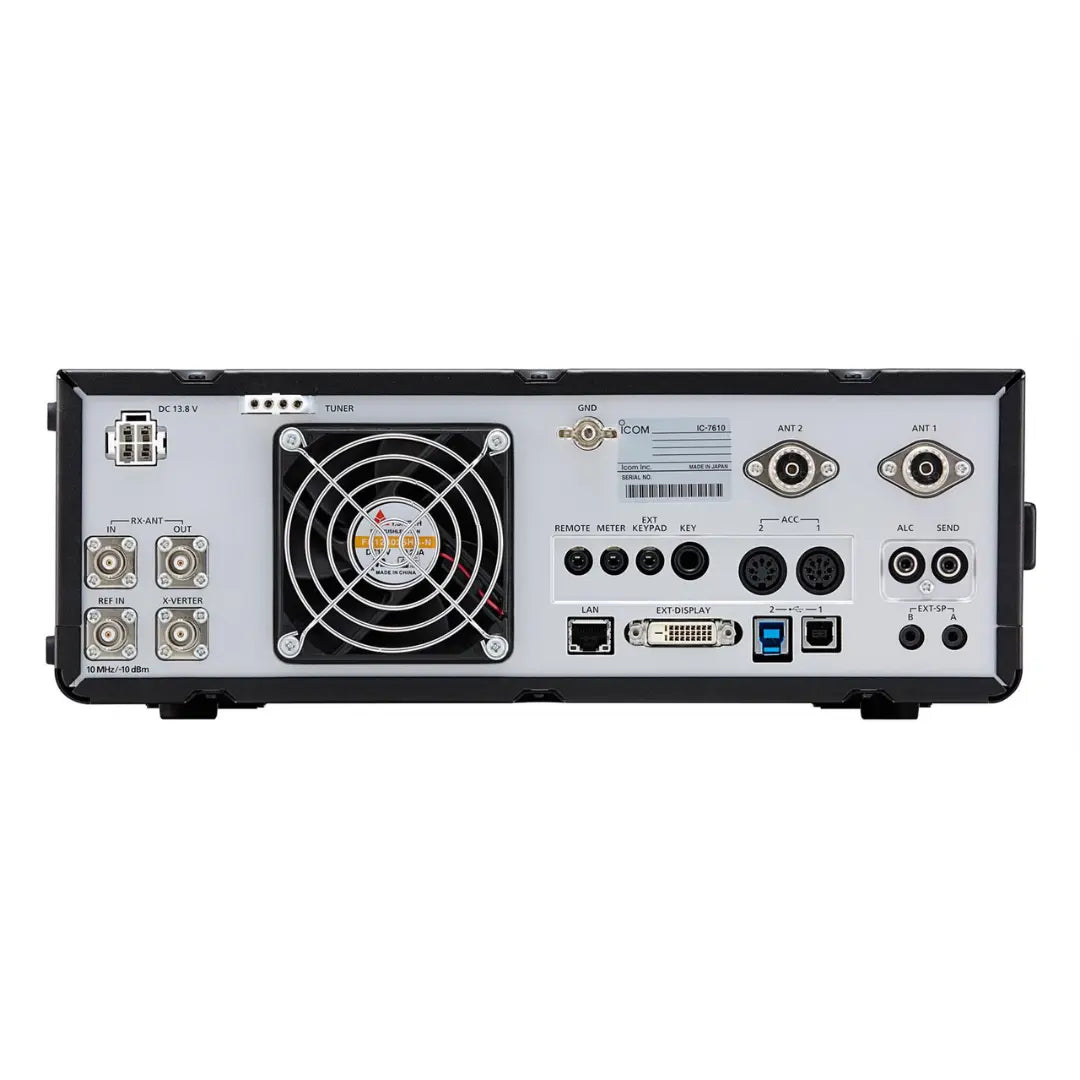

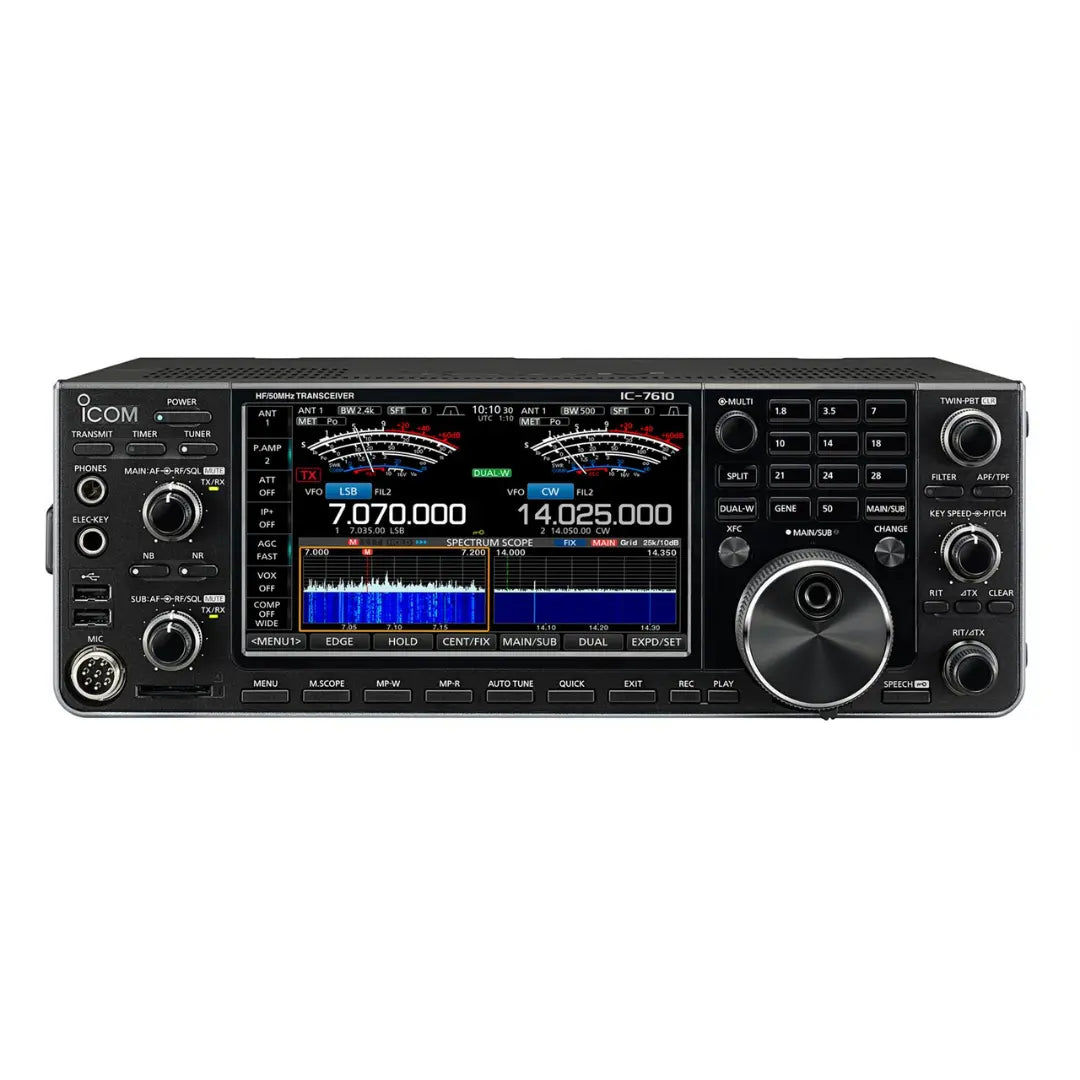

ICOM IC-7610 HF/50MHz All Mode Transceiver
Brand:
ICOM
Available for Pre-Order
This product is currently available at our warehouse in Kawasaki, Kanagawa, Japan and is not stocked at our Kolkata facility.
Upon order confirmation, we will arrange sourcing and shipment through our global fulfillment network.
Estimated Delivery: Within 2 Weeks
Reserve your unit today by placing a pre-order.
ICOM IC-7610 HF/50MHz All Mode Transceiver
ICOM IC-7610 HF/50MHz All Mode Transceiver
ICOM IC-7610 HF/50MHz All Mode Transceiver
The ICOM IC-7610 is a premium HF and 50 MHz SDR transceiver engineered for demanding DX, contest, and weak-signal operation. Featuring dual independent direct-sampling receivers, advanced FPGA signal processing, dual spectrum scopes, and a large touchscreen display, the IC-7610 delivers exceptional receiver performance, signal separation, and operating flexibility for serious amateur radio stations.
Key Features
- HF and 50 MHz amateur band coverage
- Dual independent RF direct-sampling SDR receivers
- Simultaneous dual-watch operation with independent receiver control
- 100 Watt RF output on SSB, CW, FM, RTTY, and digital modes
- 25 Watt AM carrier output

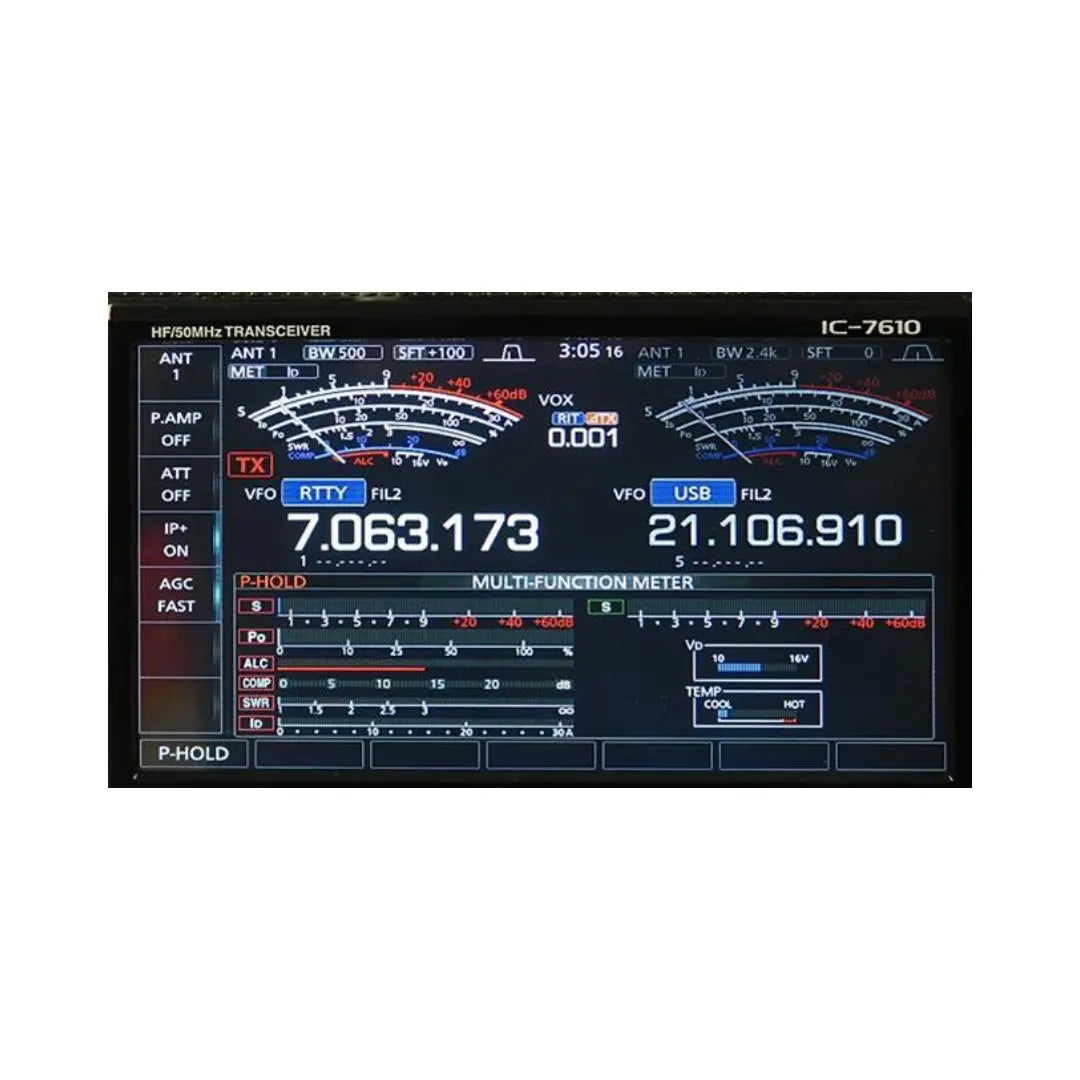

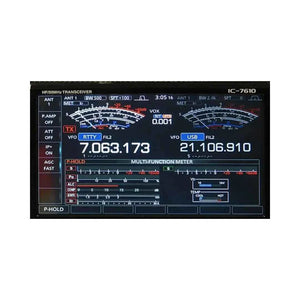

- Large 7-inch color TFT touchscreen display
- Dual real-time spectrum scopes and waterfall displays
- High-performance FPGA-based signal processing architecture
- Excellent reciprocal mixing dynamic range and strong-signal handling
- IP+ function for enhanced third-order intercept performance
- Dual antenna inputs with flexible receiver assignment
- Dedicated RX antenna input/output connectors for external receive systems
- Built-in automatic antenna tuner
- Diversity reception capability with Main/Sub band tracking
- Digital noise reduction and noise blanker functions
- Digital Twin Passband Tuning (Twin PBT)
- Variable RF attenuator from 3 dB to 45 dB
- Two selectable preamplifiers for optimized receive performance
- Integrated RTTY encoder and decoder
- CW auto-tune and advanced CW operating functions
- Audio Peak Filter (APF) for improved CW reception
- Built-in electronic keyer and memory functions
- DVI-D output for external monitor connection
- USB interface with audio, CAT control, and I/Q signal output
- Ethernet LAN connectivity for remote operation
- Compatible with ICOM RS-BA1 remote control software
- SD card support for recordings, screenshots, settings, and firmware updates
- Voice memory and digital recording functions
- Independent audio outputs for Main and Sub receivers
- Quick Split and Quick Dualwatch operation
- Designed for high-performance DXing, contesting, and advanced HF station installations
Typical Uses
- HF DX chasing and pileup operation
- Single-operator and multi-operator contesting
- Weak-signal and low-band operation
- CW contest and DX operation
- FT8, RTTY, PSK31, and digital communications
- Remote station control via IP networks
- Advanced amateur radio base station installations
In the Box
- ICOM IC-7610 Transceiver
- HM-219 Hand Microphone
- DC Power Cable
- Fuses
- Accessory Plugs
- User Documentation
| Brand | ICOM |
| Model Number | IC-7610 |
| Product Type | HF/50MHz SDR Base Transceiver |
| Frequency Coverage TX | 160-6 Meter Amateur Bands |
| Frequency Coverage RX | 0.03-60 MHz |
| Operating Modes | USB/LSB/CW/RTTY/PSK31/PSK63/AM/FM |
| RF Output Power | 1-100 W |
| AM Output Power | 1-25 W |
| Receiver Architecture | Dual RF Direct Sampling SDR |
| Receivers | Independent Dual Receivers |
| Display | 7 in Color TFT Touchscreen |
| Spectrum Scope | Dual Real-Time Spectrum Scope |
| Waterfall Display | Dual Waterfall Display |
| Signal Processing | FPGA Based DSP |
| Automatic Antenna Tuner | Built-In |
| Antenna Connectors | SO-239 x2 |
| RX Antenna Port | BNC RX IN/OUT |
| Preamplifiers | 2 Selectable |
| RF Attenuator | 3-45 dB Variable |
| Diversity Reception | Supported |
| CW Auto Tune | Yes |
| RTTY Decoder | Built-In |
| Audio Peak Filter | Built-In |
| USB Audio Interface | Built-In |
| USB CAT Control | Supported |
| I/Q Output | Supported |
| Ethernet Port | Built-In |
| Remote Operation | RS-BA1 Compatible |
| External Display Output | DVI-D |
| Memory Channels | 101 |
| Memory Storage | SD Card |
| Frequency Stability | Less than ±0.5 ppm |
| Frequency Resolution | 1 Hz |
| Audio Output Power | More than 2 W |
| Power Supply | 13.8 VDC ±15% |
| Current Consumption RX | 3.0-3.5 A |
| Current Consumption TX | 23 A |
| Dimensions | 340 x 118 x 277 mm |
| Weight | 8.5 kg |
| Microphone | HM-219 Included |
