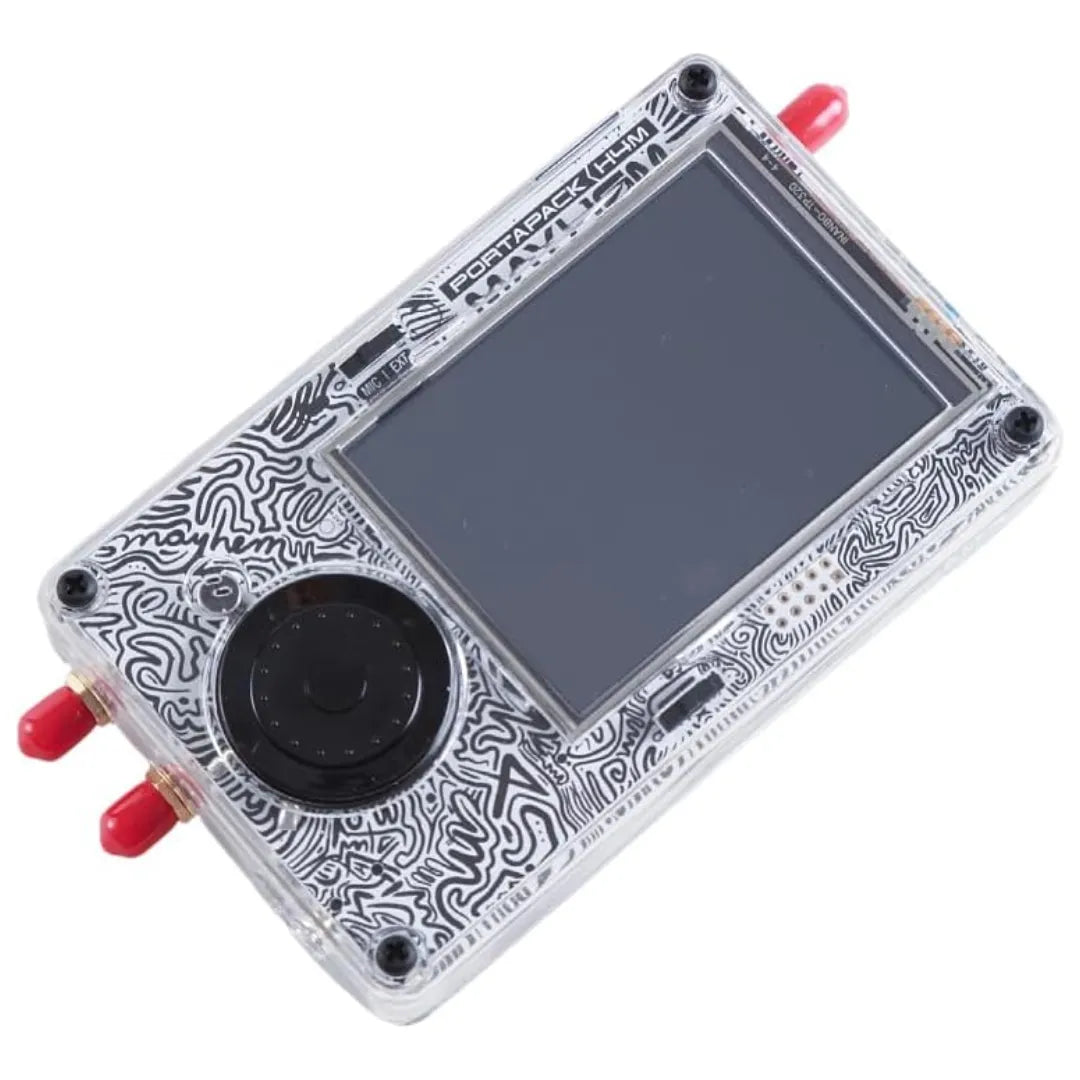

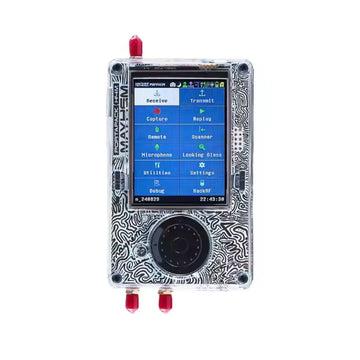

HackRF R10C PortaPack H4M
The HackRF R10C PortaPack H4M is a next-generation portable software defined radio transceiver that combines the HackRF One R10C platform with the advanced PortaPack H4M interface. Covering 1 MHz to 6 GHz, it provides standalone SDR operation without a computer, featuring the latest Mayhem firmware, a high-resolution IPS touchscreen, improved power management, USB-C connectivity, and enhanced RF shielding for professional RF analysis, wireless research, spectrum monitoring, and amateur radio applications.
Key Features
- Portable software defined radio transceiver

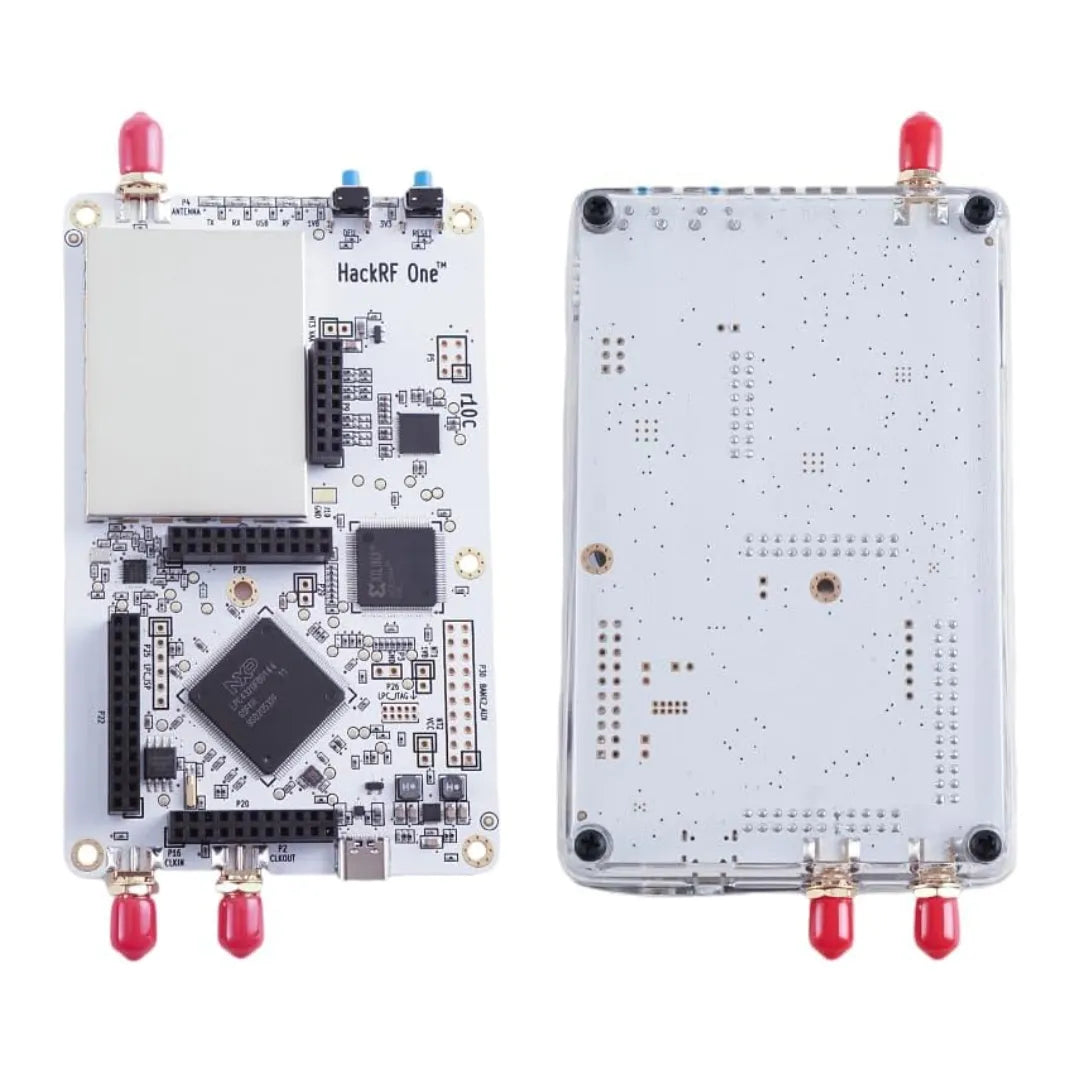

- HackRF One R10C SDR with integrated PortaPack H4M
- Standalone operation without requiring a computer
- Wide frequency coverage from 1 MHz to 6 GHz
- Half-duplex transmit and receive capability
- Up to 20 MSPS sampling rate
- 20 MHz instantaneous bandwidth

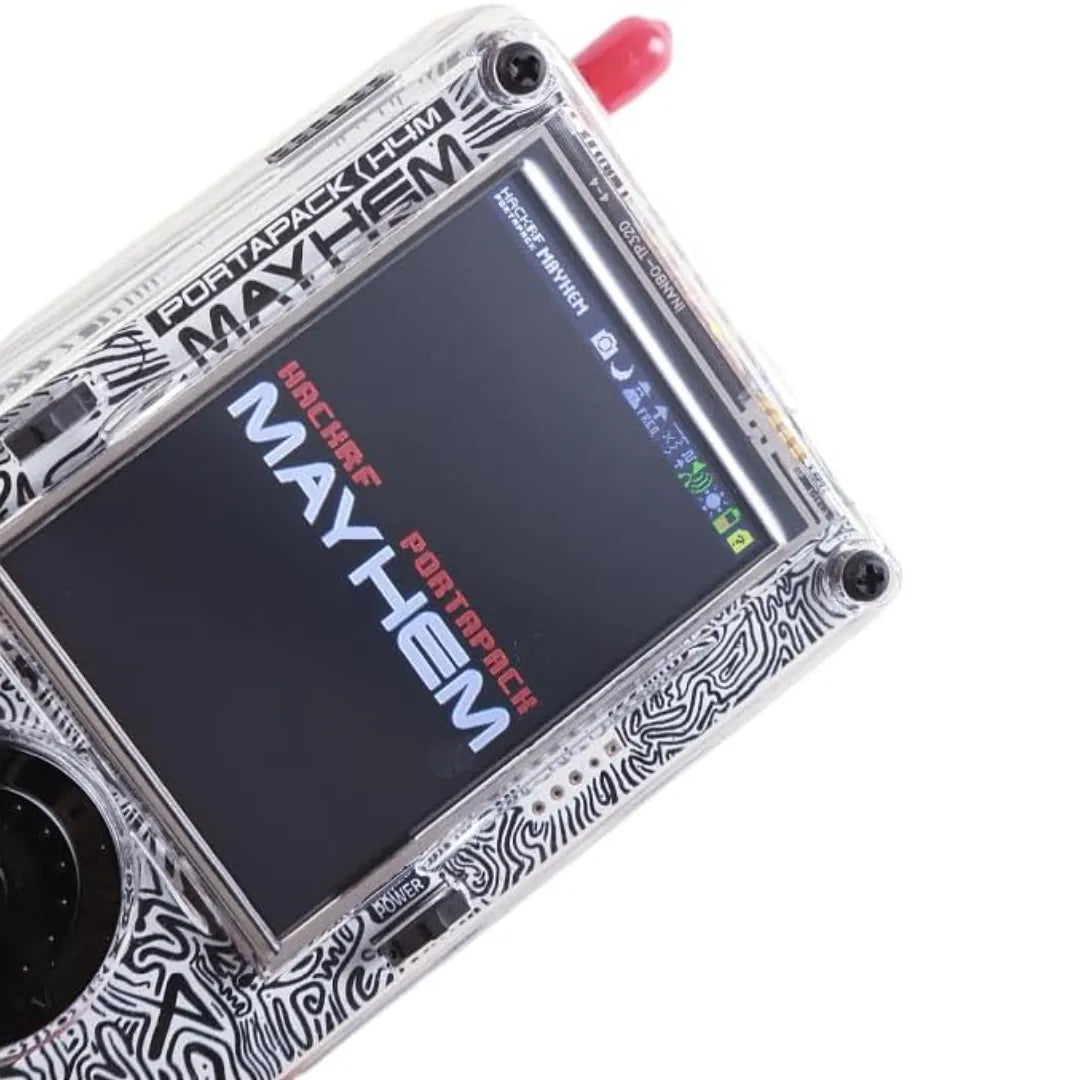

- Pre-installed Mayhem firmware for standalone SDR operation
- 3.5-inch matte IPS touchscreen for improved outdoor visibility
- USB Type-C interface for charging and PC connectivity

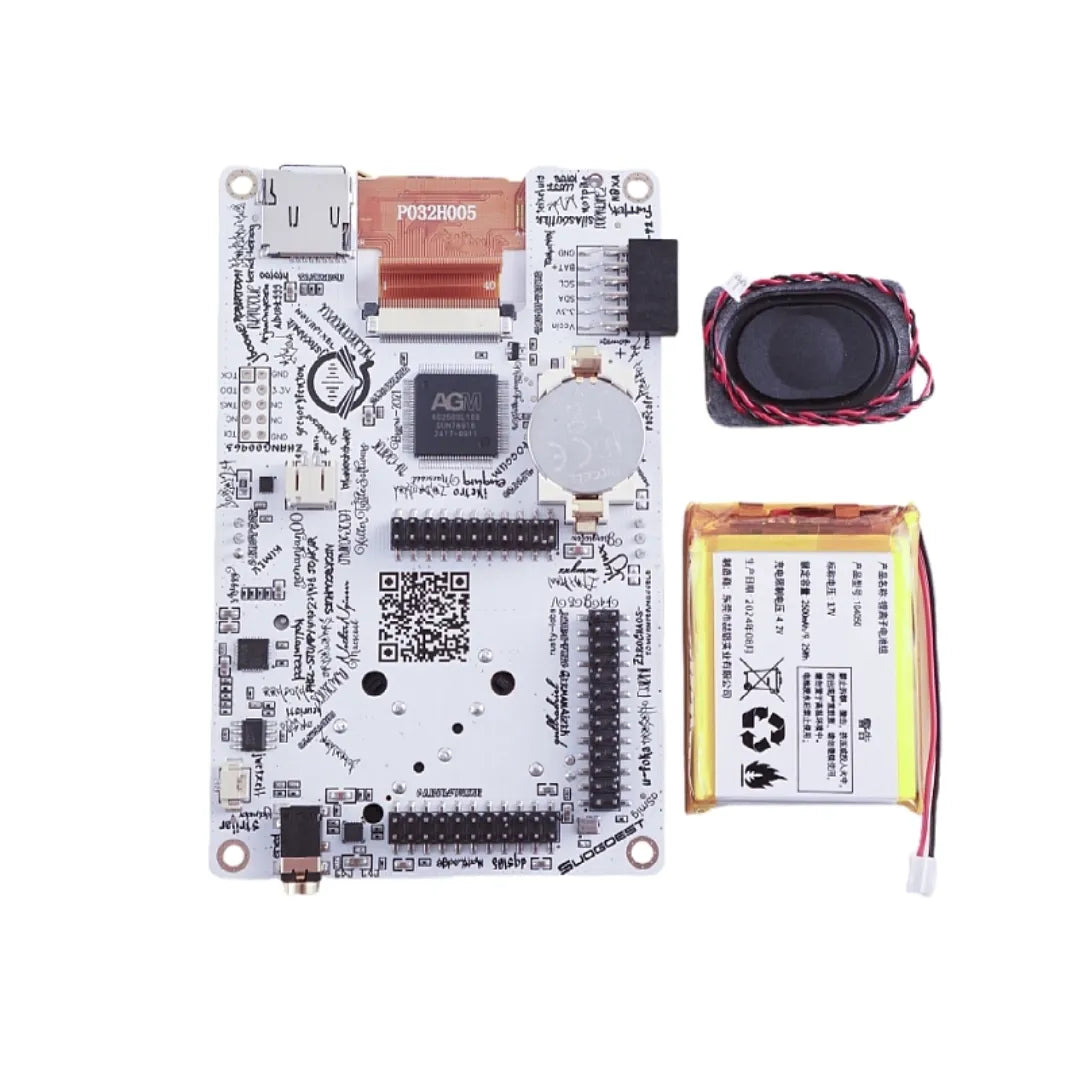

- Integrated 2400 mAh rechargeable Li-Polymer battery
- Advanced battery management with charge status display
- Dedicated power switch for complete power shutdown
- Built-in speaker and integrated microphone
- Automatic switching between speaker and headphones

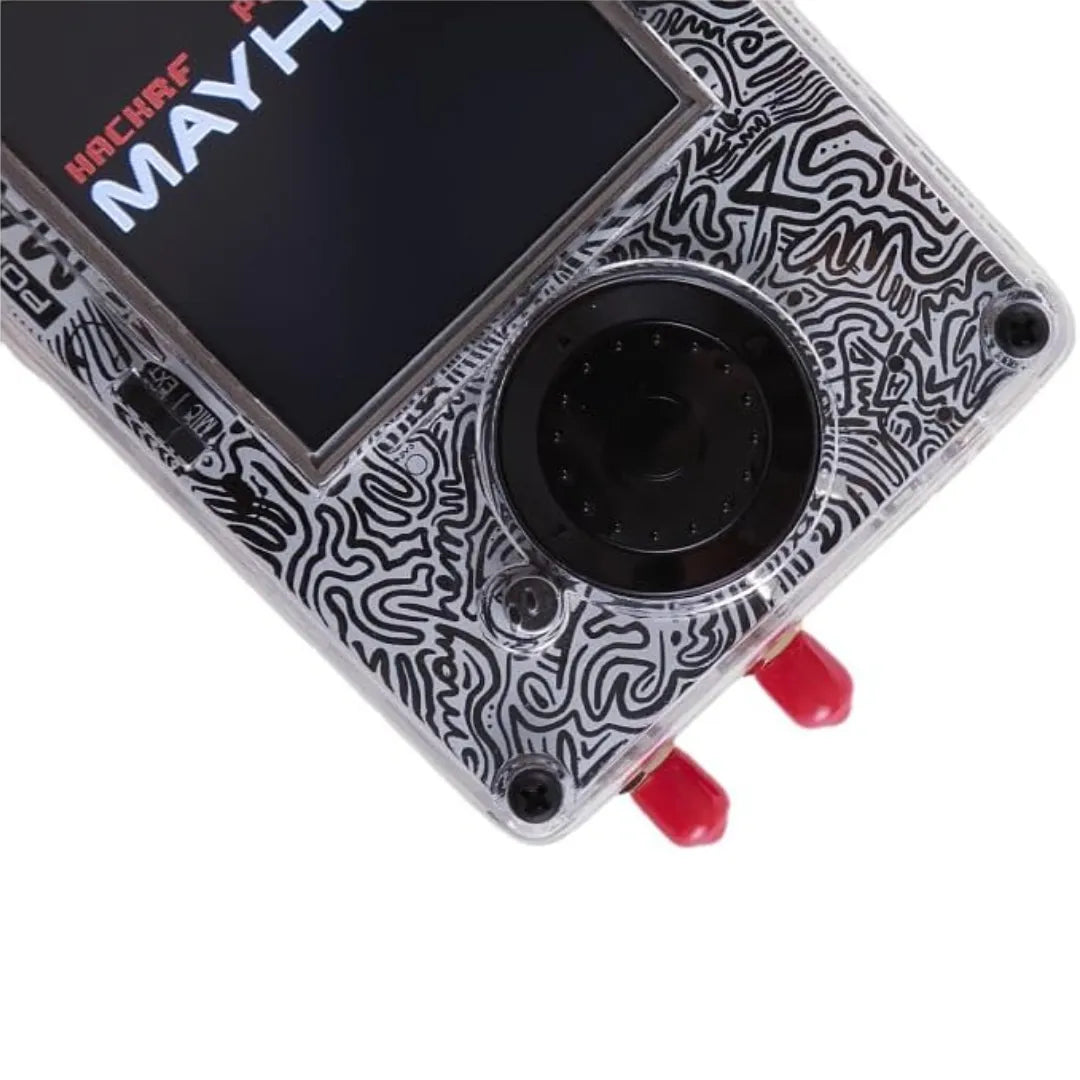

- Rotary click-wheel encoder for intuitive navigation
- Real-time spectrum analyzer and waterfall display
- Signal generator and RF test functionality
- Supports AM, FM, NFM, WFM, SSB and numerous digital applications
- MicroSD card support for recording and firmware updates
- Improved RF shielding for reduced interference
- High-stability 0.1 ppm TCXO frequency reference
- GPIO expansion port for external accessories and development
- Compatible with GNU Radio, SDR#, SDR Console and Universal Radio Hacker
- Ideal for RF research, spectrum analysis, wireless experimentation, signal monitoring, and SDR development
Typical Uses
- Software Defined Radio experimentation
- RF spectrum analysis
- Wireless protocol research
- Signal monitoring and recording
- Amateur radio development
- Educational and laboratory projects
- Portable field testing

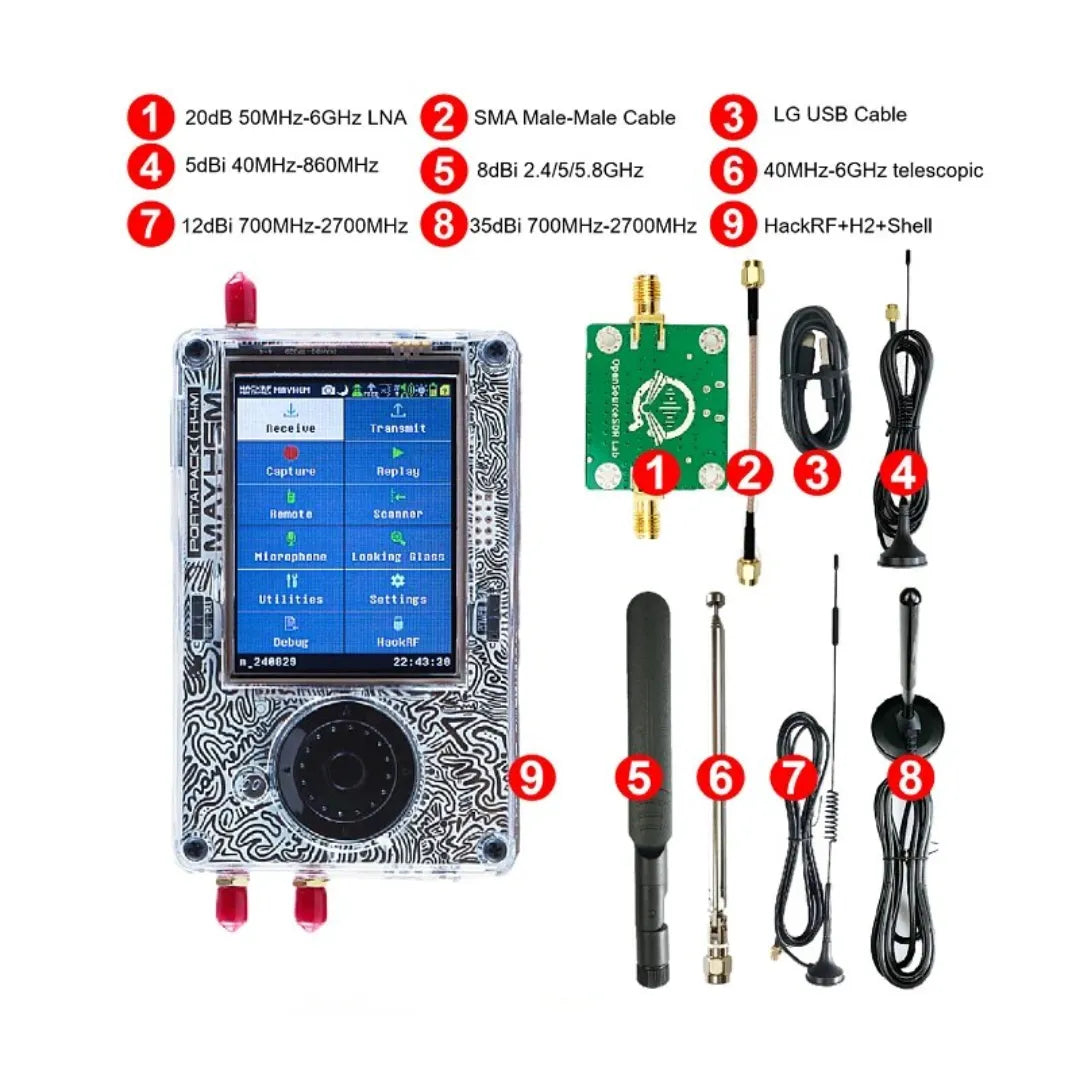

In the Box
- HackRF One R10C with PortaPack H4M
- 2400 mAh rechargeable Li-Polymer battery (installed)
- USB Type-C cable
- MicroSD card (model dependent)
- Multi-band SMA antenna set (model dependent)
- User documentation
| Brand | HackRF |
| Model Number | R10C PortaPack H4M |
| Product Type | Software Defined Radio Transceiver |
| Frequency Coverage | 1MHz-6GHz |
| Operation | Half Duplex |
| Transmit Capability | Yes |
| Receive Capability | Yes |
| Maximum Sample Rate | 20MSPS |
| Instantaneous Bandwidth | 20MHz |
| ADC Resolution | 8-Bit I/Q |
| Display | 3.5-inch IPS Touchscreen |
| Firmware | Mayhem Pre-installed |
| Battery | 2400mAh Rechargeable Li-Polymer |
| Charging Interface | USB Type-C |
| Frequency Reference | 0.1ppm TCXO |
| Storage | MicroSD Card Supported |
| Audio | Built-In Speaker and Microphone |
| Headphone Output | 3.5mm |
| Antenna Connector | SMA Female |
| USB Interface | USB 2.0 Type-C |
| GPIO Expansion | Yes |
| Software Compatibility | GNU Radio/SDR#/SDR Console/Universal Radio Hacker |
| Operation Mode | Standalone or PC Connected |
| Application | RF Spectrum Analysis |
| Application | Wireless Research |
| Application | Signal Monitoring |
| Application | SDR Development |
Warranty:
12 Months of Warranty against Manufacturing Defects Only
