HackRF R10 Portapack H2M
HackRF R10 Portapack H2M

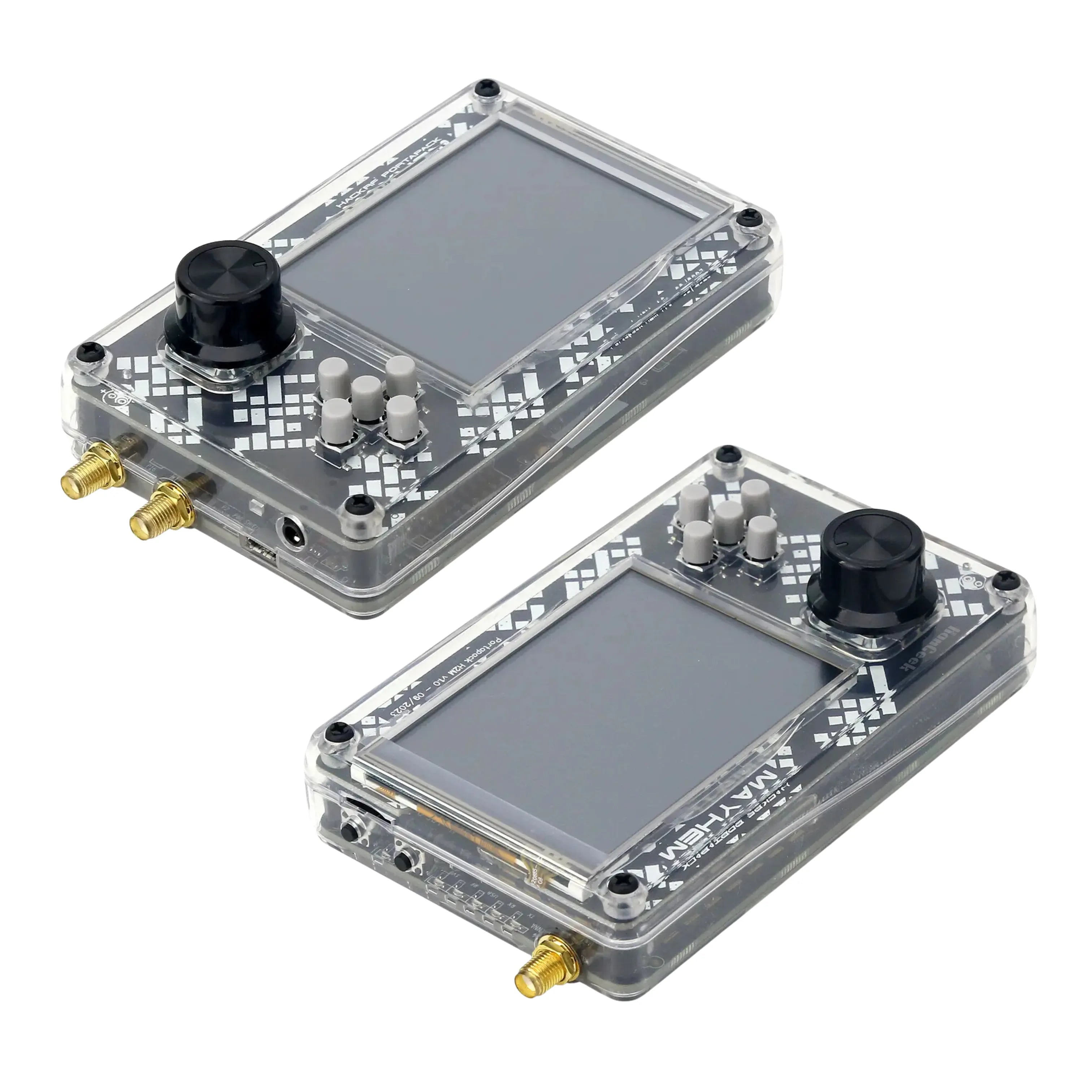

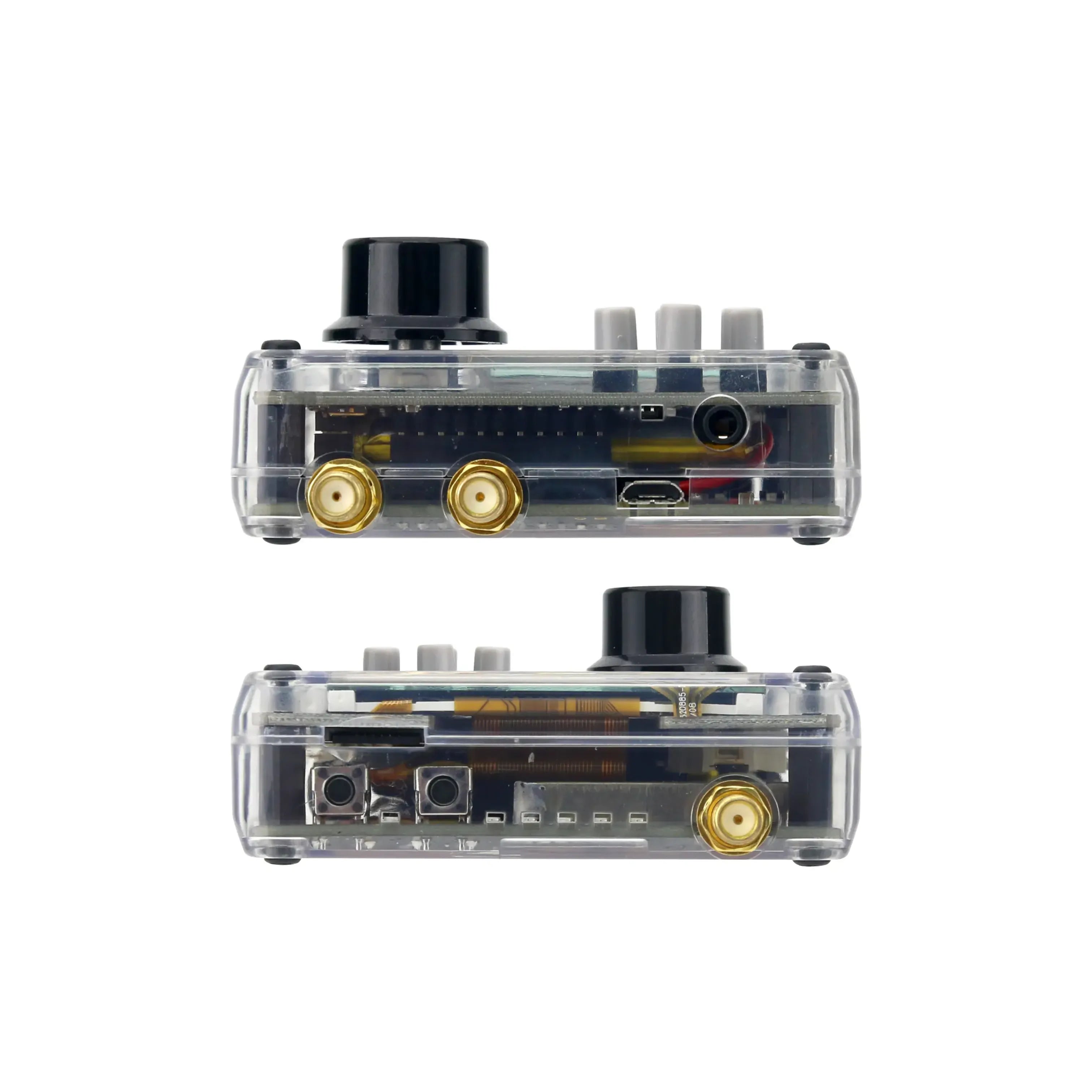

HackRF R10 PortaPack H2M
The HackRF R10 PortaPack H2M is a portable software defined radio transceiver combining the HackRF One SDR platform with the PortaPack H2M standalone interface. Covering frequencies from 1 MHz to 6 GHz, it supports both transmit and receive operation without requiring a computer, making it ideal for RF research, spectrum analysis, signal monitoring, wireless experimentation, and amateur radio applications. Preloaded Mayhem firmware, a color touchscreen, rechargeable battery, and microSD support provide a complete handheld SDR solution.
Key Features
- Portable software defined radio transceiver
- HackRF One R10 SDR with integrated PortaPack H2M
- Standalone operation without a computer
- Frequency coverage from 1 MHz to 6 GHz
- Half-duplex transmit and receive capability
- Up to 20 MSPS sample rate
- 8-bit I/Q sampling architecture
- Wideband RF spectrum analysis
- Pre-installed Mayhem firmware
- 3.2-inch full-color touchscreen display
- Integrated rotary encoder and navigation controls
- Real-time spectrum analyzer and waterfall display
- Signal generation and RF testing capabilities
- Supports AM, FM, NFM, WFM, SSB and digital signal applications
- MicroSD card support for data storage and firmware updates
- Built-in rechargeable lithium battery for portable operation
- Integrated speaker and headphone output
- USB connection for PC operation and firmware programming
- Compatible with GNU Radio, SDR#, SDR Console, Universal Radio Hacker, and other SDR software
- SMA antenna connector for external antennas
- Software-controlled RF gain and baseband filtering
- TCXO frequency reference for improved frequency stability
- Suitable for spectrum monitoring, signal analysis, and wireless experimentation
- Compact CNC-style enclosure for portable field use
- Ideal for amateur radio, RF education, research, and laboratory applications
Typical Uses
- Software Defined Radio (SDR) experimentation
- Spectrum analysis and RF monitoring
- Amateur radio research
- Signal recording and playback
- Wireless protocol analysis
- Educational and laboratory projects
- Portable RF field testing

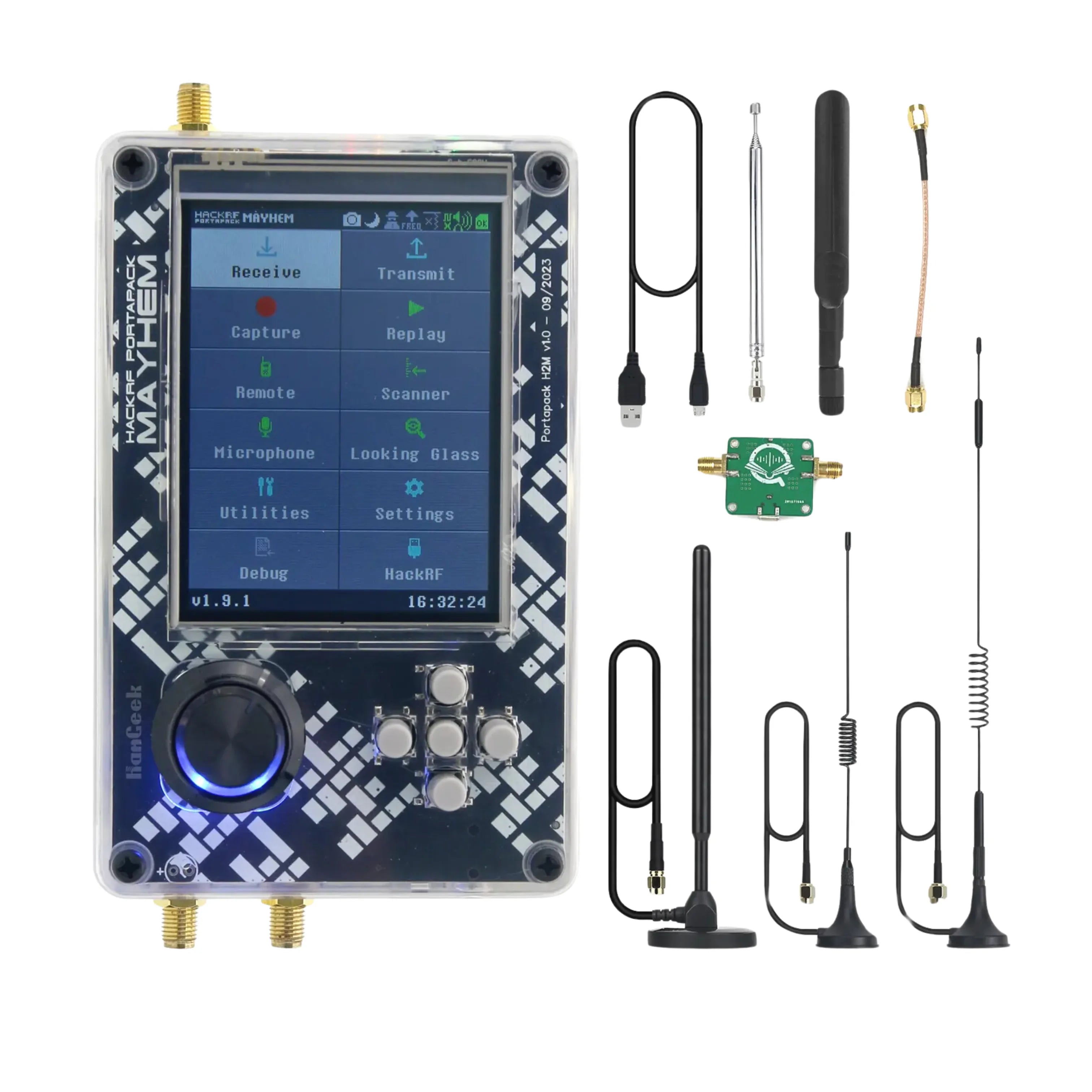

In the Box
- HackRF R10 SDR with PortaPack H2M
- Pre-installed rechargeable lithium battery
- USB cable
- Multi-band antenna set (configuration dependent)
- User documentation
| Brand | HamGeek |
| Model Number | HackRF R10 PortaPack H2M |
| Product Type | Software Defined Radio Transceiver |
| Frequency Coverage | 1MHz-6GHz |
| Operation | Half Duplex |
| Transmit Capability | Yes |
| Receive Capability | Yes |
| Maximum Sample Rate | 20MSPS |
| ADC Resolution | 8-Bit I/Q |
| RF Bandwidth | 20MHz |
| Display | 3.2-inch Color Touchscreen |
| Firmware | Mayhem Pre-installed |
| Processor | ARM Cortex-M4 |
| Battery | Rechargeable Li-Polymer |
| Battery Capacity | 2400mAh |
| Storage | MicroSD Card Supported |
| Antenna Connector | SMA Female |
| USB Interface | USB 2.0 |
| Frequency Reference | 0.1ppm TCXO |
| Software Compatibility | GNU Radio/SDR#/SDR Console/URH |
| Operation Mode | Standalone or PC Connected |
| Application | RF Spectrum Analysis |
| Application | Wireless Research |
| Application | Signal Monitoring |
| Application | SDR Development |
