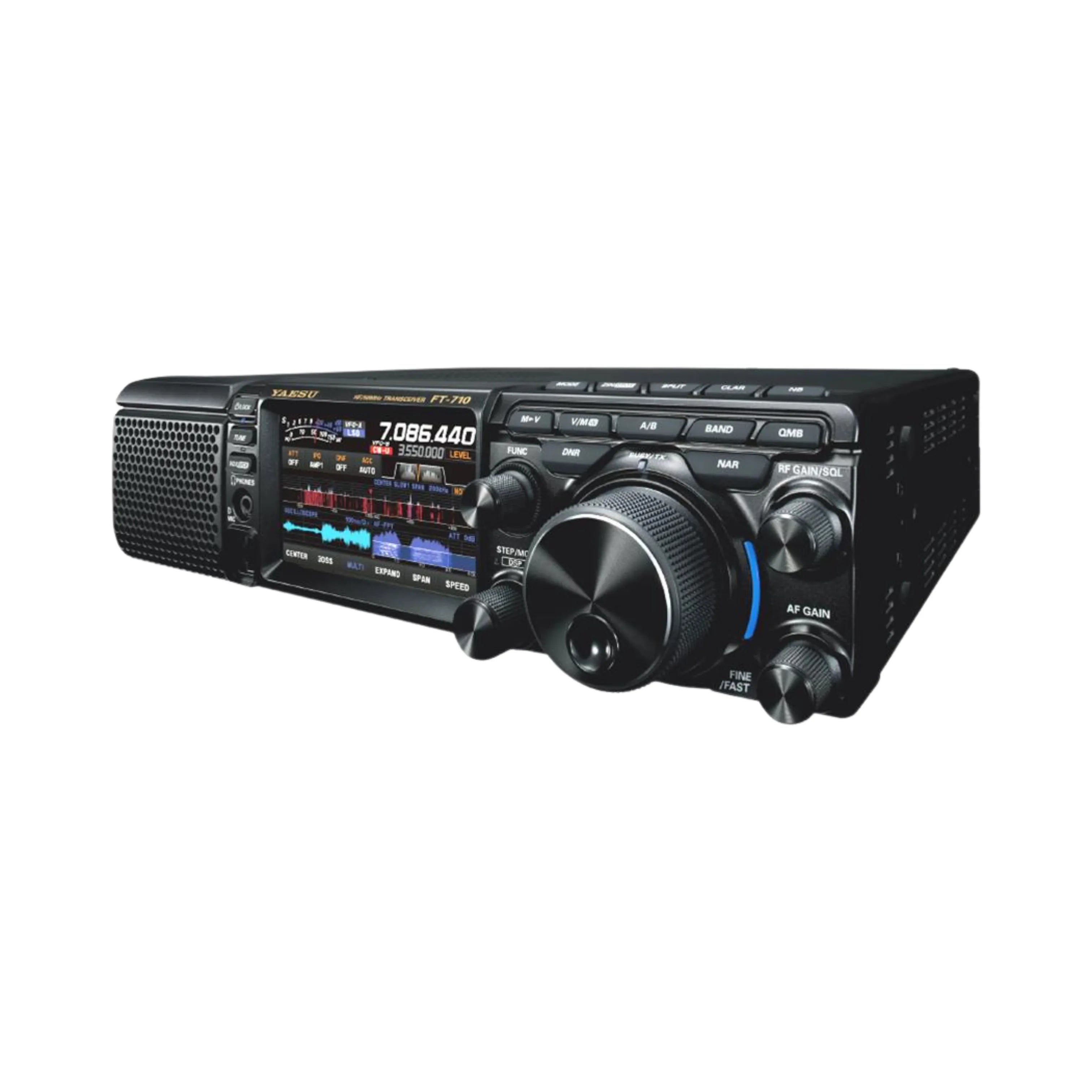

Yaesu FT-710 AESS HF/50 MHz Base/Portable Transceivers w/SP-40 Speaker

The Yaesu FT-710 AESS represents the next evolution of HF/50 MHz SDR technology, delivering exceptional performance and powerful digital processing in a compact, operator-friendly package. Designed for both portable operators and base-station users, the FT-710 brings the advanced engineering of Yaesu’s high-end FTDX series into a more accessible, streamlined form factor — without sacrificing capability.

Built around a cutting-edge SDR architecture, the FT-710 offers superb receiver performance, outstanding interference reduction, and smooth, intuitive control through its 4.3-inch high-resolution TFT touch display. Combined with the Acoustic Enhancement Speaker System (AESS), this transceiver produces rich, high-fidelity audio that dramatically elevates the listening experience.

Key Features

✔ Advanced SDR Architecture

• Powerful RF front-end with low-noise oscillator system for excellent multi-signal handling



• High-speed DSP enables precise QRM reduction and real-time interference control



• 3DSS (3-Dimensional Spectrum Stream) spectrum scope enhances signal visualization



✔ AESS High-Fidelity Audio System

• Digital audio enhancement creates spacious, immersive RX audio



• Includes the SP-40 external speaker for richer, clearer sound



• Mid-low frequency enhancement paired with side-speaker processing for superior clarity



✔ Operator-Focused Touch Display & Controls

• Large 4.3" color touch screen for quick access to menus and settings



• Ergonomic front panel with large tuning dial and intuitive layout



• Filter display shows passband, AF spectrum, and interference filtering status in real-time



✔ Memory & Operating Enhancements

• QMB (Quick Memory Bank) stores up to 10 dedicated channels with full mode, filter, and TX/RX settings



• FT8-friendly Preset Mode with up to five parameter profiles



• Large VFO Mode Indicators for instant confirmation of VFO-A, VFO-B, memory, and split operation



✔ Built-in Antenna Tuner + External Tuner Support

• High-speed internal ATU with 100-channel memory



• Supports external FC-40 Auto Antenna Tuner (via rear panel connection)



✔ Modern Connectivity

• SD card slot for saving settings, memories, screenshots, and firmware updates



• Dual USB ports:



• USB-A for USB keyboard input and additional control



• USB-B for CAT control, digital mode audio, and TX control

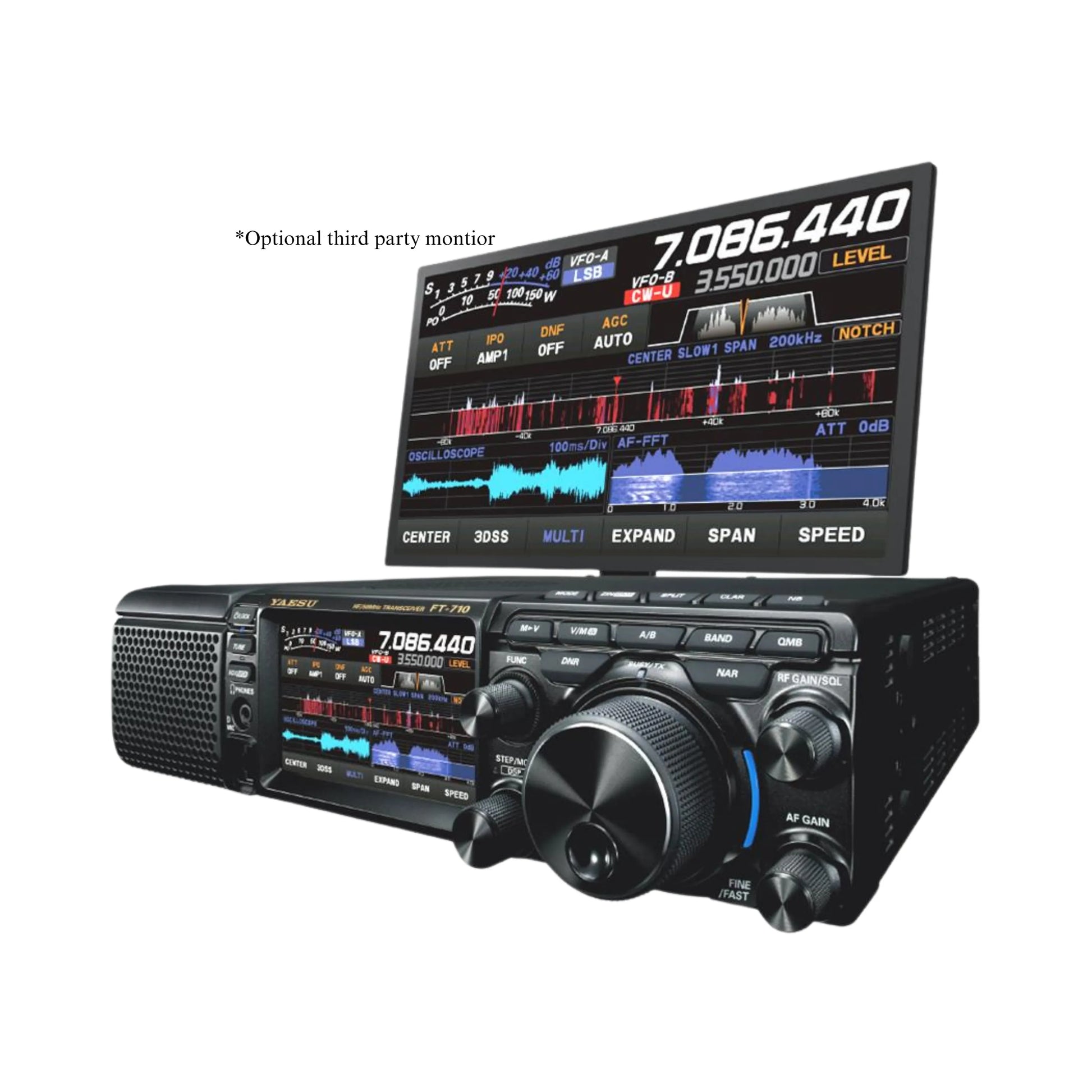

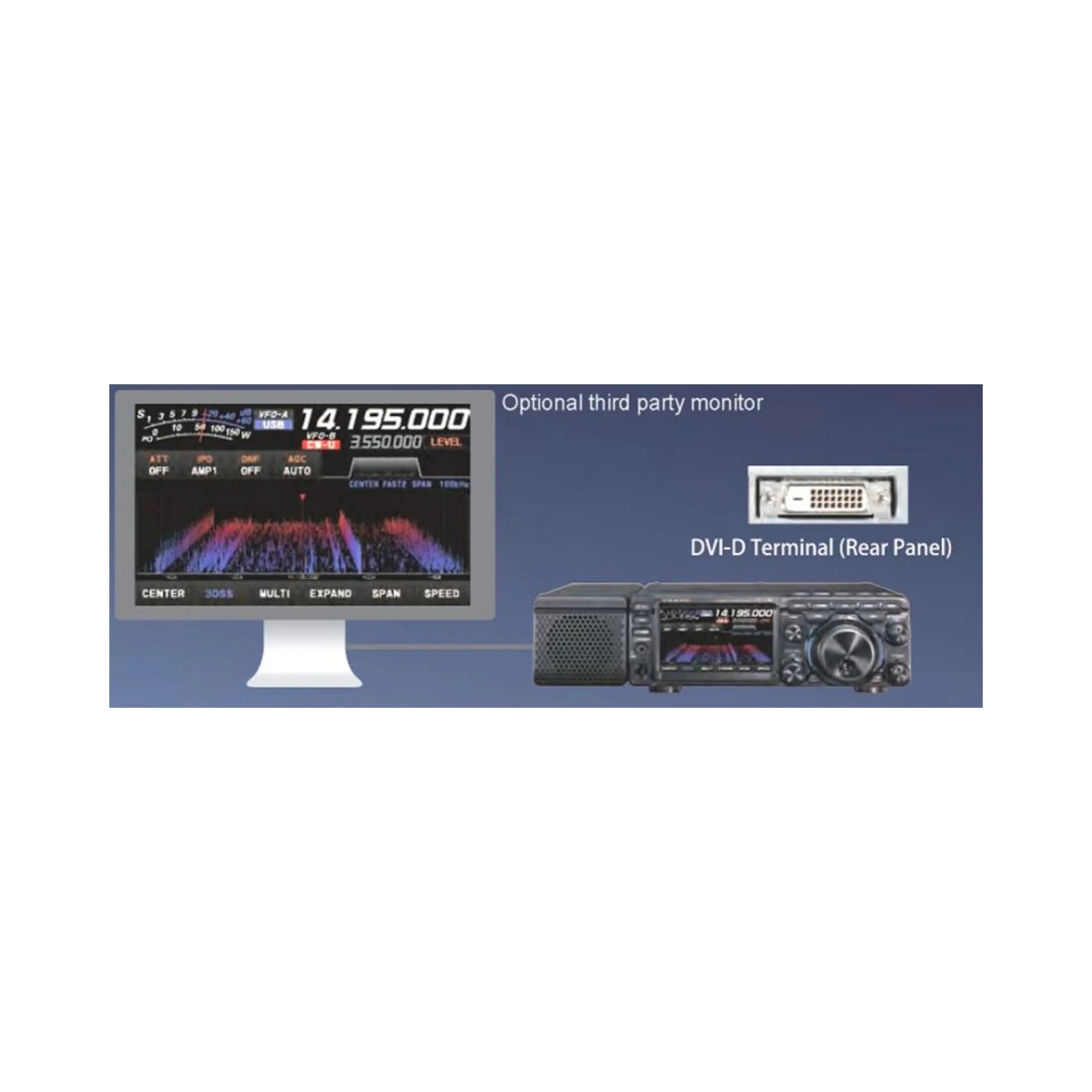

• DVI-D port for connecting an external high-resolution monitor



✔ CW, Contest & Utility Features

• CW Zero-In, Auto Zero-In, Keying Shaping, CW Reverse



• Contest Memory Keyer



• 3-stage parametric EQ



• IPO (Intercept Point Optimization)



• AGC and Band Stack functions



• ATAS antenna system support



• Compatible with FH-2 Remote Keypad (optional)



✔ Remote Operation Ready

• Supports future Network Remote Control System (via optional SCU-LAN10)

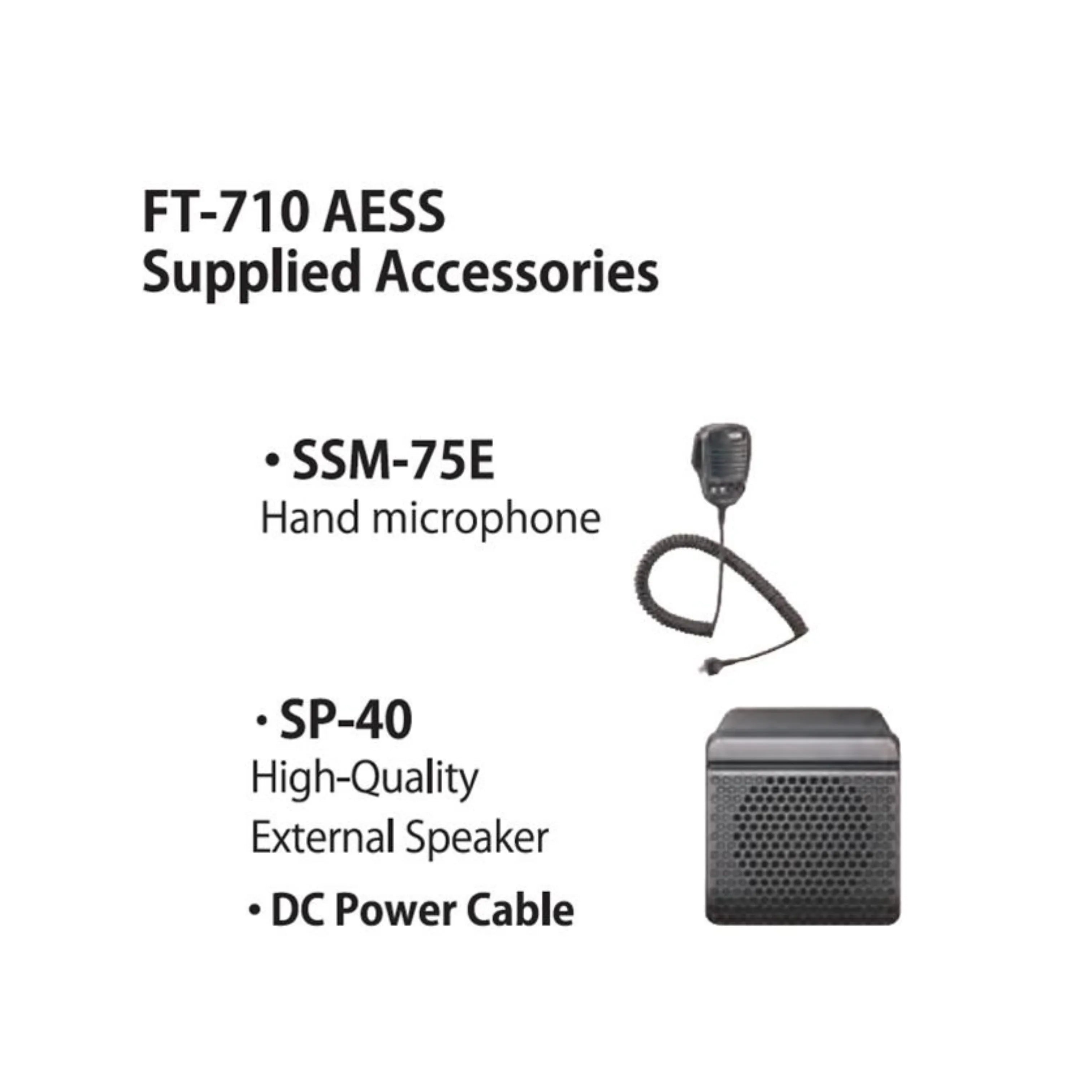

Included Accessories

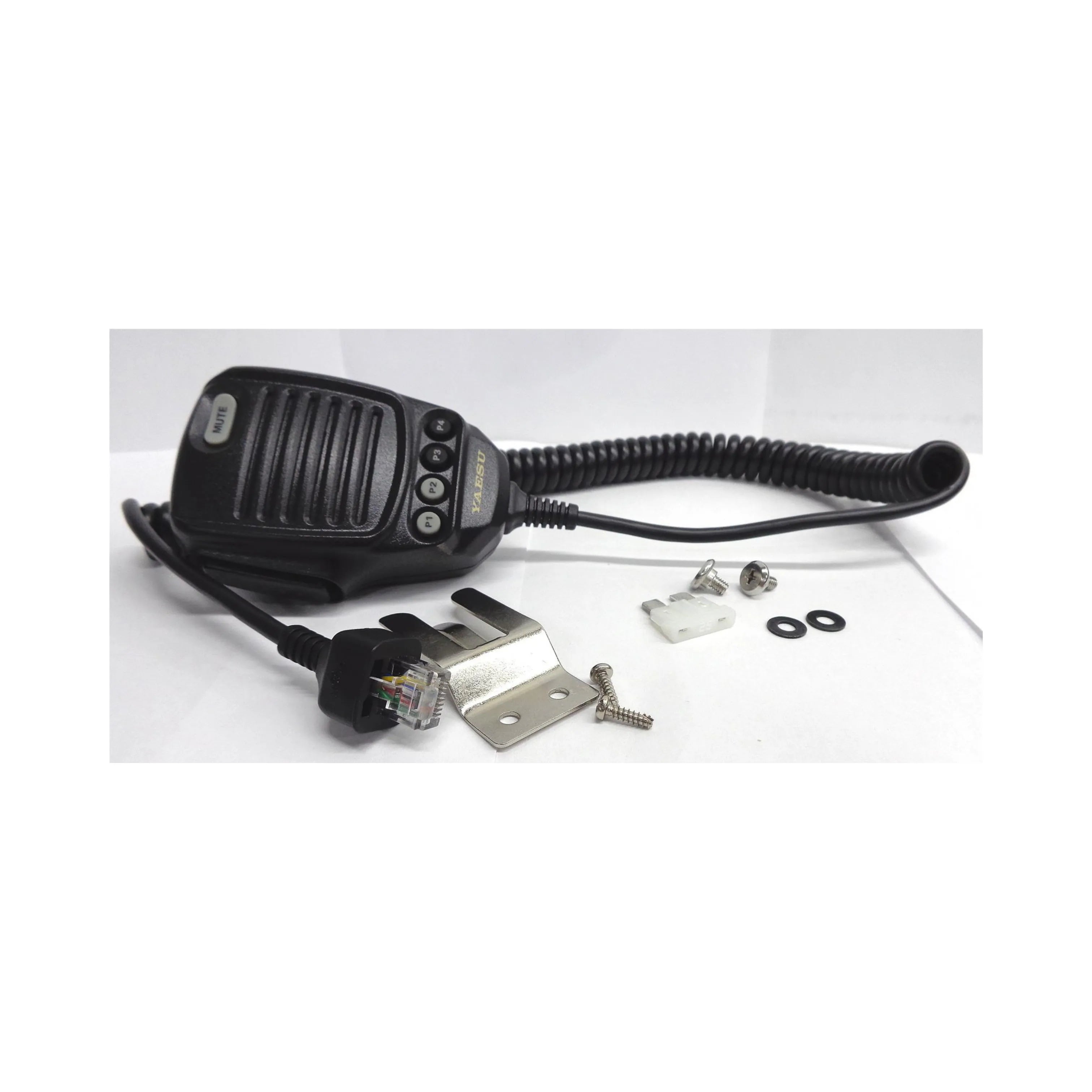

• SSM-75E Hand Microphone



• SP-40 High-Quality External Speaker



• DC Power Cable with fuse



• Spare fuse



• Operating manual
  Power supply not included.



Technical Specifications

Frequency Coverage

Transmit:

• 1.8–50 MHz (Amateur bands, US allocations)



Receive:

• 30 kHz–75 MHz wideband



• 1.8–29.699999 MHz



• 50–53.999999 MHz



• 70–70.499999 MHz



Modes

• CW (A1A)



• AM (A3E)



• SSB USB/LSB (J3E)



• FM (F3E)



Frequency Steps:

• 1/5/10/20 Hz (SSB/CW/AM)



• 100 Hz (FM)



• 1 Hz fine tuning available



Power Output

• SSB/CW/FM: 5–100W



• AM: 5–25W carrier



Impedance

• 50Ω unbalanced (ATU off)



• 16.7–150Ω (HF, tuner on)



• 25–100Ω (50 MHz, tuner on)



Electrical

• Power requirement: 13.8 VDC



• Current draw:



• RX (no signal): ~1.8A



• RX (with signal): ~2.2A



• TX (100W): ~21A



General

• FM deviation: ±5.0 kHz / ±2.5 kHz (Narrow)



• Harmonic suppression:



• Better than –50 dB (1.8–29.7 MHz)



• Better than –63 dB (50 MHz @ 100W)



• Operating temp: 0°C to +50°C



• Frequency stability: ±0.5 ppm

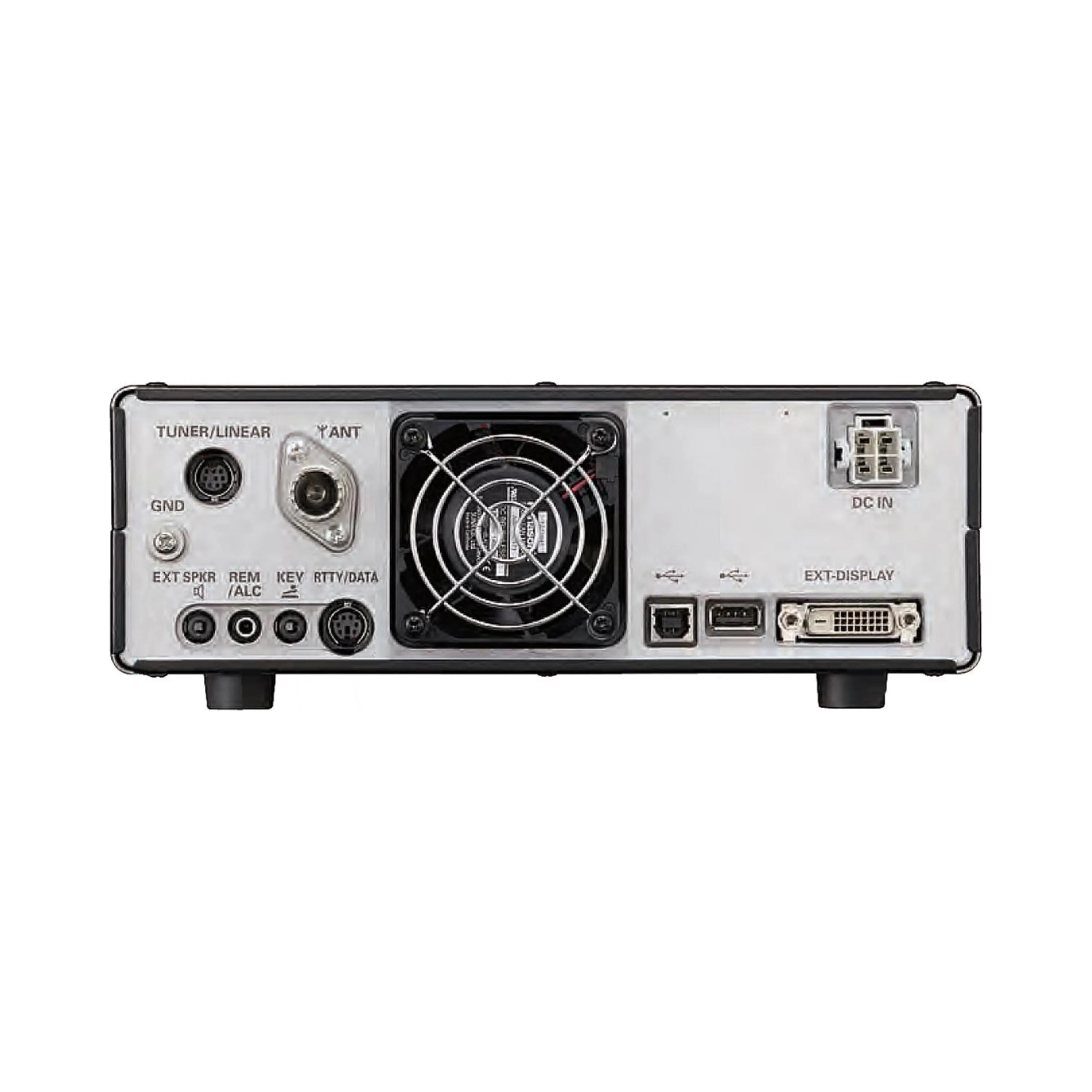

Connections & Expandability

• 1 antenna port



• USB and RS-232 for PC/rig control



• 6-pin mini-DIN for digital modes



• External display capability (DVI-D)



• External tuner support (FC-40)



Dimensions & Weight

• W × H × D: 9.409" × 3.150" × 9.724"



• Weight: 9.921 lbs



Warranty: 3 years

Quantity: Sold individually
