Diamond Antenna SX-20C Cross Needle SWR/Power Meter

Regular price Rs. 16,500.00 (Including GST)
Sale price Rs. 16,500.00 (Including GST) Regular price
Unit price
Brand: Diamond
Estimated Domestic Ship Date: 5 days lead time
Estimated International Ship Date: 5 days lead time
Estimated Domestic Delivery: Standard: 5-7 Days | Express: 1-4 Days
Estimated International Delivery: Standard: 10-20 Days
Ask a question

Ask a Question

* Required fields

 Size guide

Share this product:

Diamond Antenna SX-20C Cross Needle SWR/Power Meter - RFCharge

Diamond Antenna SX-20C Cross Needle SWR/Power Meter

Regular price Rs. 16,500.00 (Including GST)
Sale price Rs. 16,500.00 (Including GST) Regular price
Unit price

Earn 0 points on this purchase.

Learn more
Product description
What's in the Box
Technical Specifications
Overview
Warranty
Documentation

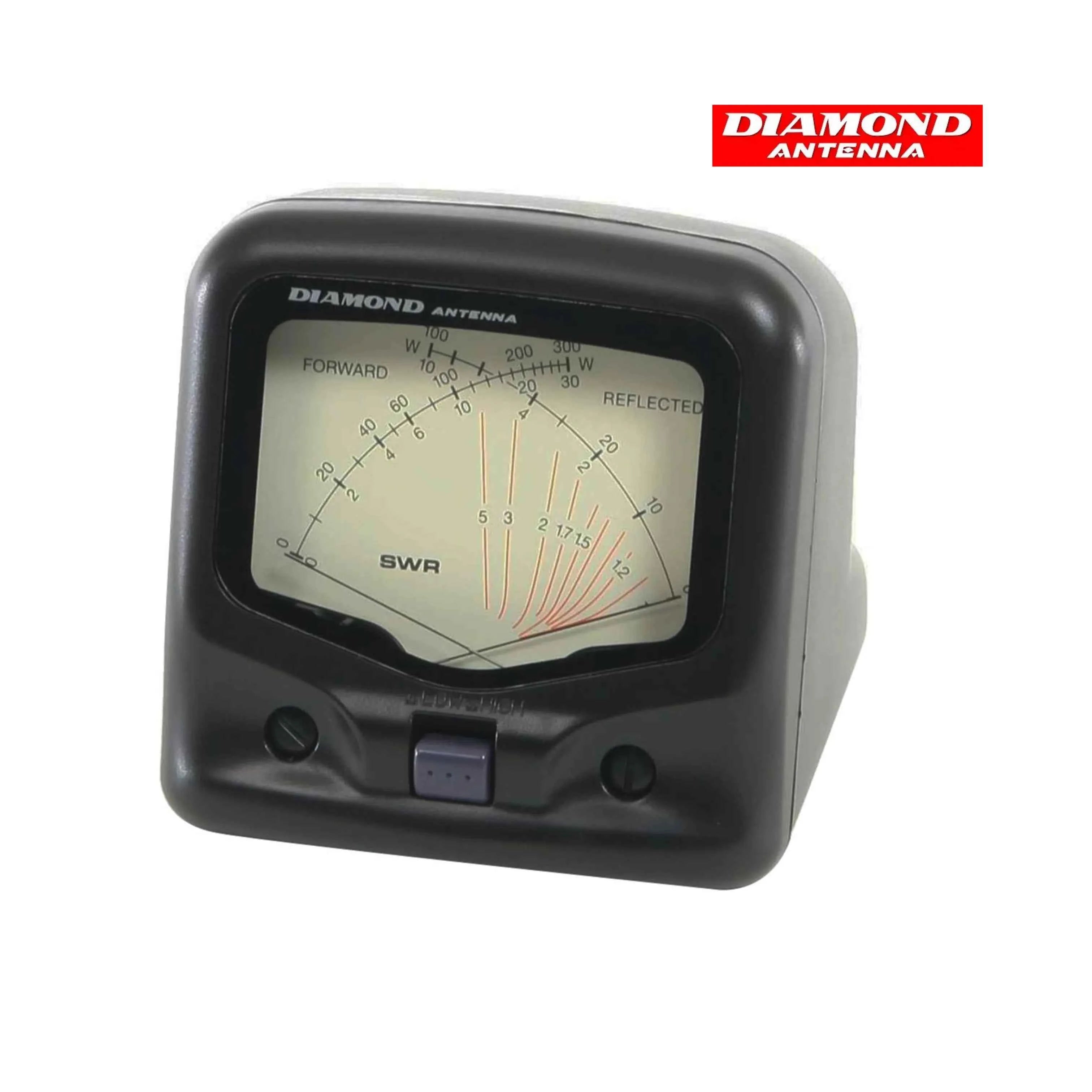

The Diamond SX-20C Cross Needle SWR/Power Meter is a precision analog RF measurement tool that provides simultaneous indication of forward and reflected RF power and SWR in HF and VHF amateur radio systems. Featuring a dual-needle cross-needle movement, the SX-20C offers intuitive real-time display of forward power and reflected power on intersecting scales—allowing rapid judgement of antenna match quality and transmitter loading without complex digital displays.

Designed for use between a transceiver and antenna system, this meter helps operators optimize antenna tuning, detect mismatch conditions, and protect transmitter output stages from high SWR. Its robust mechanical construction ensures reliable performance in both fixed base stations and portable field setups.

Ideal for:

  • HF & VHF SWR monitoring

  • Antenna tuning and matching

  • Transmitter protection against reflected power

  • Field and portable operation

  • Entry to intermediate level RF diagnostics

✔ SX-20C Cross Needle SWR/Power Meter Unit
✔ User Manual / Documentation

Notes:

• Coaxial feedline and connectors are not included; this meter is installed in-line between the radio and antenna.

• No external power supply or batteries are required for operation.

Brand: Diamond Antenna
Model Number: SX-20C
Product Type: Cross-Needle SWR / Power Meter
RFCharge Category: RF Measurement Accessories
Frequency Coverage: Approx. 1.8 MHz – 150 MHz
Power Handling: Approx. 20 W – 200 W PEP
Meter Type: Cross-Needle Analog Display (Forward / Reflected)
Connector Type: SO-239 (UHF Female)
Impedance: 50 Ω
Meter Scales: Forward Power / Reflected Power / SWR
Dimensions: Approx. 125 × 65 × 40 mm
Weight: Approx. 250–380 g

The SX-20C Cross Needle SWR/Power Meter provides:

  • Cross-needle analog display of forward and reflected power
  • Direct visual correlation between forward/reverse levels for SWR interpretation
  • Broadband operation across HF and VHF bands
  • Simple inline integration between transceiver and antenna
  • No external power or calibration required

This meter enhances real-time station monitoring when tuning antennas, verifying feedline performance, or checking transmitter output integrity.

12 Months of Brand Warranty
