Diamond Antenna SX-100 SWR/Power Meter

Regular price Rs. 12,500.00 (Including GST)
Sale price Rs. 12,500.00 (Including GST) Regular price
Unit price

Earn 0 points on this purchase.

Learn more
Product description
What's in the Box
Technical Specifications
Overview
Warranty
Documentation

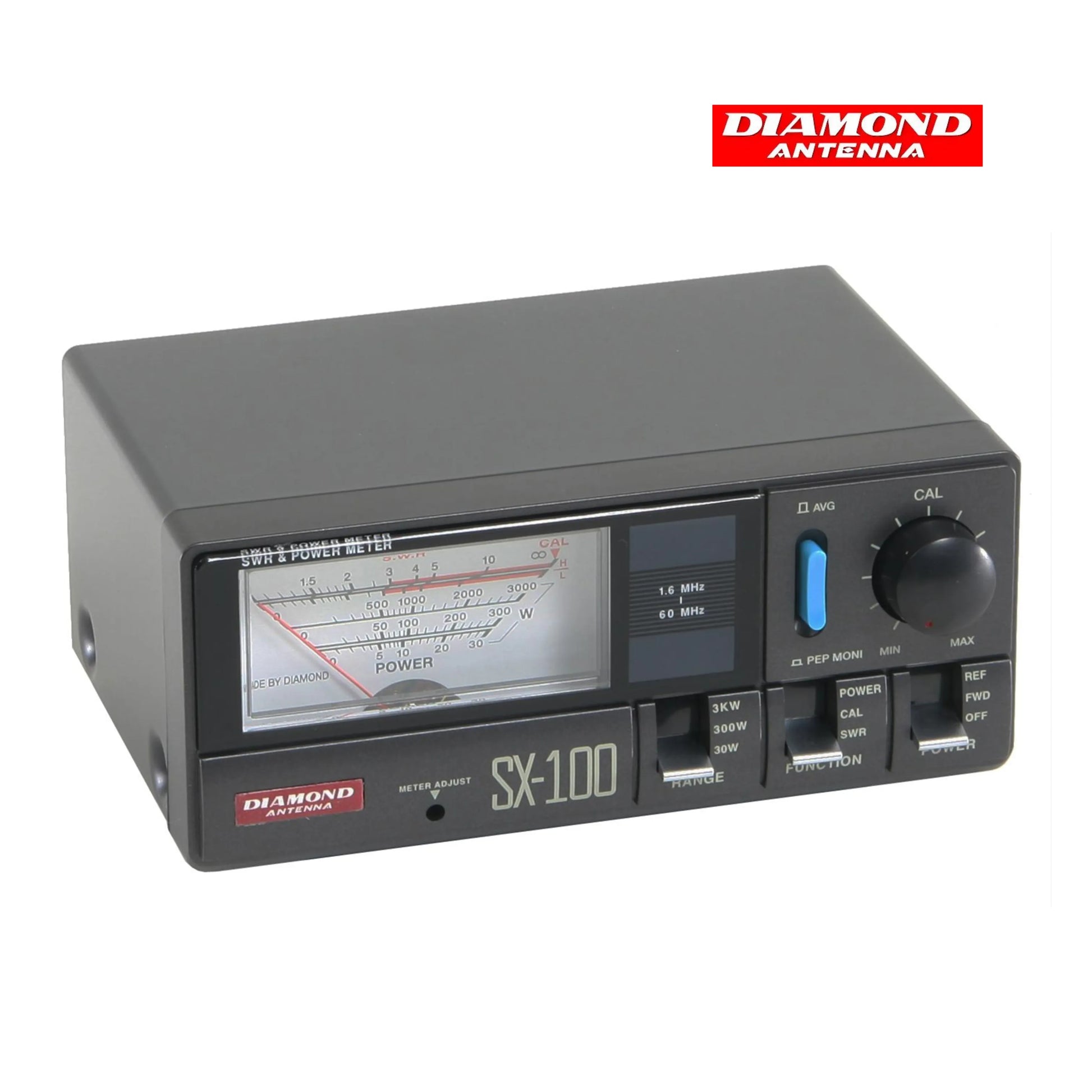

The Diamond SX-100 SWR/Power Meter is a simple and reliable analog RF measurement tool designed to monitor standing wave ratio (SWR) and RF power levels in HF and VHF station installations. Engineered for amateur radio and communications applications, the SX-100 helps operators optimize antenna systems, detect mismatch conditions, and protect transmitter output stages from excessive reflected power.

With a clear dual-scale analog meter, the SX-100 offers easy visual indication of forward and reflected power, making it an ideal accessory for antenna tuning and routine station checks without the need for digital instrumentation.

Ideal for:

  • HF and VHF SWR monitoring

  • Antenna tuning and matching verification

  • Base station and portable operation

  • Amateur radio transceiver protection

  • Entry-level RF diagnostics

✔ SX-100 SWR/Power Meter Unit
✔ User Manual / Documentation

Note: Coaxial feedline and connectors are not included; this meter is installed in-line between the transceiver and antenna system.

Brand: Diamond Antenna
Model Number: SX-100
Product Type: SWR / Power Meter
RFCharge Category: RF Measurement Accessories
Frequency Coverage: Approx. 1.8 MHz – 150 MHz
Power Handling: 3KW PEP
Meter Type: Dual Analog Needle (Forward / Reflected)
Connector Type: SO-239 (UHF Female)


Impedance: 50 Ω


Meter Scales: Forward Power / Reflected Power / SWR


Dimensions: Approx. 125 × 65 × 35 mm


Weight: Approx. 180–280 g

The SX-100 SWR/Power Meter provides:

  • Analog indication of forward and reflected power
  • Simple SWR reading via meter comparison
  • Broadband coverage for HF and VHF operation
  • Easy in-line installation between radio and antenna
  • Rugged construction for daily amateur use

This meter makes it easy to observe antenna performance and adjust feedline matching during tuning sessions or field deployments.

12 Months of Brand Warranty
